Route Instructions

_|

In this guide you will learn how to display a map, calculate routes between multiple points, and show detailed route instructions.

How it Works

This example demonstrates the following key features:

• Display a map.
• Compute a route and simulate navigation.
• Display real-time lane instruction images.

Initial map view

Calculated route

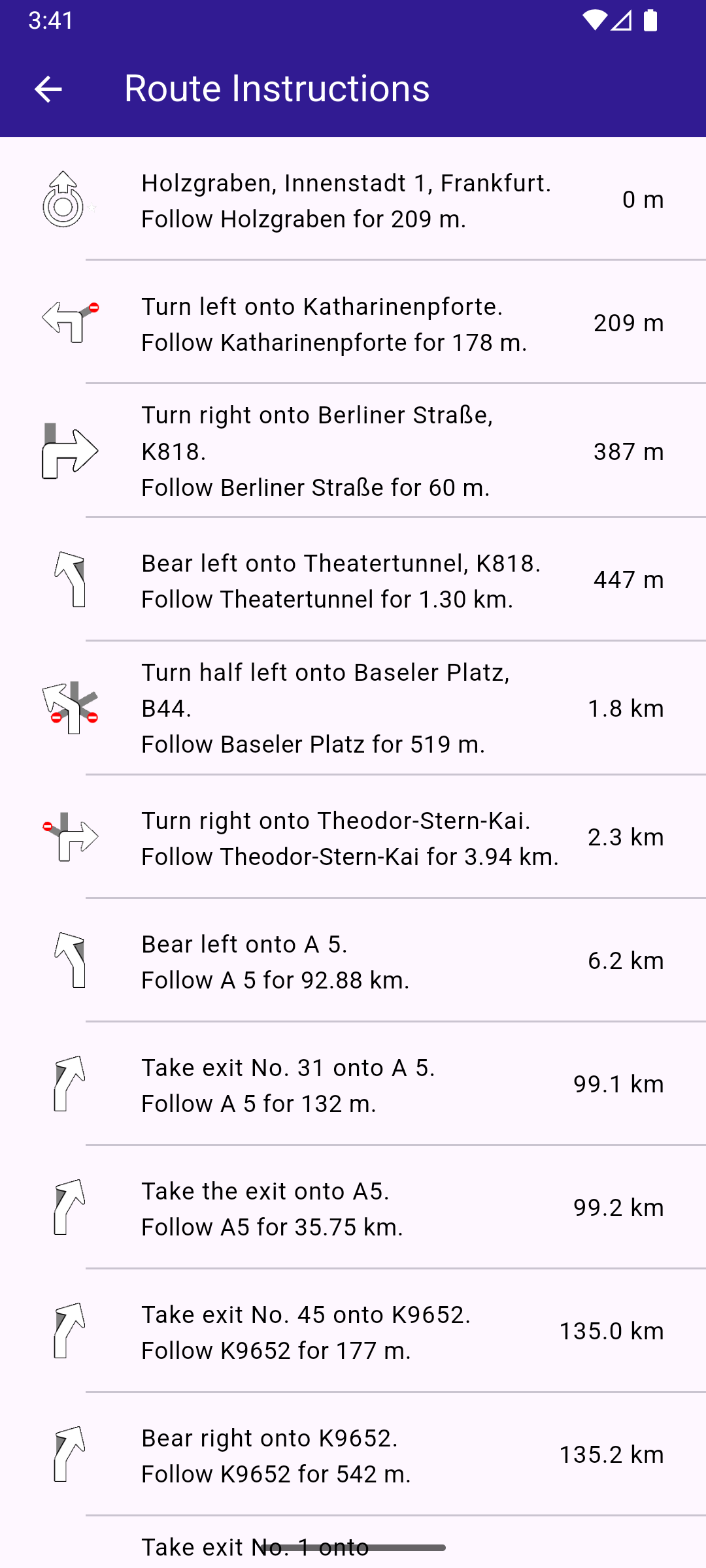

Route instructions list

UI and Map Integration

The following code demonstrates how to create a UI featuring a GemMap along with an app bar that includes a "Build Route" button and a "Route Instructions" button. Once a route is calculated, the "Route Instructions" button will appear on the left side of the app bar. Tapping this button navigates the user to a dedicated page displaying detailed route instructions.

main.dart

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return const MaterialApp(debugShowCheckedModeBanner: false, title: 'Route Instructions', home: MyHomePage());
  }
}

class MyHomePage extends StatefulWidget {
  const MyHomePage({super.key});

  @override
  State<MyHomePage> createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
  late GemMapController _mapController;

  // We use the handler to cancel the route calculation.
  TaskHandler? _routingHandler;
  bool _areRoutesBuilt = false;

  List<RouteInstruction>? instructions;

  @override
  void dispose() {
    GemKit.release();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        backgroundColor: Colors.deepPurple[900],
        title: const Text("Route Instructions", style: TextStyle(color: Colors.white)),
        actions: [
          if (_areRoutesBuilt)
            IconButton(
              onPressed: _onRouteCancelButtonPressed,
              icon: const Icon(Icons.cancel, color: Colors.white),
            ),
          if (!_areRoutesBuilt)
            IconButton(
              onPressed: () => _onBuildRouteButtonRoute(context),
              icon: const Icon(Icons.route, color: Colors.white),
            ),
        ],
        leading: Row(
          children: [
            if (_areRoutesBuilt)
              IconButton(
                onPressed: _onRouteInstructionsButtonPressed,
                icon: const Icon(Icons.density_medium_sharp, color: Colors.white),
              ),
          ],
        ),
      ),
      body: GemMap(key: ValueKey("GemMap"), onMapCreated: _onMapCreated, appAuthorization: projectApiToken),
    );
  }

  // The callback for when map is ready to use.
  void _onMapCreated(GemMapController controller) {
    // Save controller for further usage.
    _mapController = controller;
  }

  void _onBuildRouteButtonRoute(BuildContext context) {
    // Define the departure.
    final departureLandmark = Landmark.withLatLng(latitude: 50.11428, longitude: 8.68133);

    // Define the intermediary point.
    final intermediaryPointLandmark = Landmark.withLatLng(latitude: 49.0069, longitude: 8.4037);

    // Define the destination.
    final destinationLandmark = Landmark.withLatLng(latitude: 48.1351, longitude: 11.5820);

    // Define the route preferences.
    final routePreferences = RoutePreferences();
    _showSnackBar(context, message: 'The route is calculating.');

    _routingHandler = RoutingService.calculateRoute(
      [departureLandmark, intermediaryPointLandmark, destinationLandmark],
      routePreferences,
      (err, routes) async {
        // If the route calculation is finished, we don't have a progress listener anymore.
        _routingHandler = null;

        ScaffoldMessenger.of(context).clearSnackBars();

        // If there aren't an errors, we display the routes.
        if (err == GemError.success) {
          // Get the routes collection from map preferences.
          final routesMap = _mapController.preferences.routes;

          // Display the routes on map.
          for (final route in routes) {
            routesMap.add(route, route == routes.first, label: getMapLabel(route));
          }

          // Center the camera on routes.
          _mapController.centerOnRoutes(routes: routes);

          // Get the segments of the main route.
          instructions = _getInstructionsFromSegments(routes.first.segments);
          setState(() {
            _areRoutesBuilt = true;
          });
        }
      },
    );
  }

  void _onRouteCancelButtonPressed() async {
    // Remove the routes from map.
    _mapController.preferences.routes.clear();

    if (_routingHandler != null) {
      // Cancel the calculation of the route.
      RoutingService.cancelRoute(_routingHandler!);
      _routingHandler = null;
    }

    // Remove the instructions.
    if (instructions != null) {
      instructions!.clear();
    }

    setState(() {
      _areRoutesBuilt = false;
    });
  }

  void _onRouteInstructionsButtonPressed() {
    Navigator.of(
      context,
    ).push(MaterialPageRoute<dynamic>(builder: (context) => RouteInstructionsPage(instructionList: instructions!)));
  }

  //Parse all segments and gather all instructions
  List<RouteInstruction> _getInstructionsFromSegments(List<RouteSegment> segments) {
    List<RouteInstruction> instructionsList = [];

    for (final segment in segments) {
      final segmentInstructions = segment.instructions;
      instructionsList.addAll(segmentInstructions);
    }
    return instructionsList;
  }

  // Method to show message in case calculate route is not finished
  void _showSnackBar(BuildContext context, {required String message, Duration duration = const Duration(hours: 1)}) {
    final snackBar = SnackBar(content: Text(message), duration: duration);

    ScaffoldMessenger.of(context).showSnackBar(snackBar);
  }
}

Route Instructions Page

The RouteInstructionsPage displays detailed route instructions. Here is the code for RouteInstructionsPage and the InstructionsItem widget.

route_instructions_page.dart

class RouteInstructionsPage extends StatefulWidget {
  final List<RouteInstruction> instructionList;

  const RouteInstructionsPage({super.key, required this.instructionList});

  @override
  State<RouteInstructionsPage> createState() => _RouteInstructionsState();
}

class _RouteInstructionsState extends State<RouteInstructionsPage> {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        automaticallyImplyLeading: true,
        title: const Text("Route Instructions", style: TextStyle(color: Colors.white)),
        backgroundColor: Colors.deepPurple[900],
        foregroundColor: Colors.white,
      ),
      body: ListView.separated(
        padding: EdgeInsets.zero,
        itemCount: widget.instructionList.length,
        separatorBuilder: (context, index) => const Divider(indent: 50, height: 0),
        itemBuilder: (contex, index) {
          final instruction = widget.instructionList.elementAt(index);
          return InstructionsItem(instruction: instruction);
        },
      ),
    );
  }
}

class InstructionsItem extends StatefulWidget {
  final RouteInstruction instruction;
  const InstructionsItem({super.key, required this.instruction});

  @override
  State<InstructionsItem> createState() => _InstructionsItemState();
}

class _InstructionsItemState extends State<InstructionsItem> {
  @override
  Widget build(BuildContext context) {
    return ListTile(
      leading: Container(
        padding: const EdgeInsets.all(8),
        width: 50,
        child: widget.instruction.turnImg.isValid
            ? Image.memory(
                widget.instruction.turnDetails.getAbstractGeometryImage(
                  renderSettings: AbstractGeometryImageRenderSettings(),
                  size: Size(100, 100),
                )!,
              )
            : SizedBox(),
      ),
      title: Text(
        widget.instruction.turnInstruction,
        overflow: TextOverflow.fade,
        style: const TextStyle(color: Colors.black, fontSize: 14, fontWeight: FontWeight.w400),
        maxLines: 2,
      ),
      subtitle: Text(
        widget.instruction.followRoadInstruction,
        overflow: TextOverflow.fade,
        style: const TextStyle(color: Colors.black, fontSize: 14, fontWeight: FontWeight.w400),
        maxLines: 2,
      ),
      trailing: Text(
        getFormattedDistanceUntilInstruction(widget.instruction),
        overflow: TextOverflow.fade,
        style: const TextStyle(color: Colors.black, fontSize: 14, fontWeight: FontWeight.w400),
      ),
    );
  }
}
