Multi Map Routing

_|

In this guide, you will learn how to implement multi-map routing functionality using the Maps SDK for Flutter. This example demonstrates how to manage routes on two maps simultaneously.

How it Works

This example demonstrates the following features:

• Interact with and manage routing functionalities on two separate maps within the same application.
• Create and calculate routes with specified waypoints and preferences for each map independently.

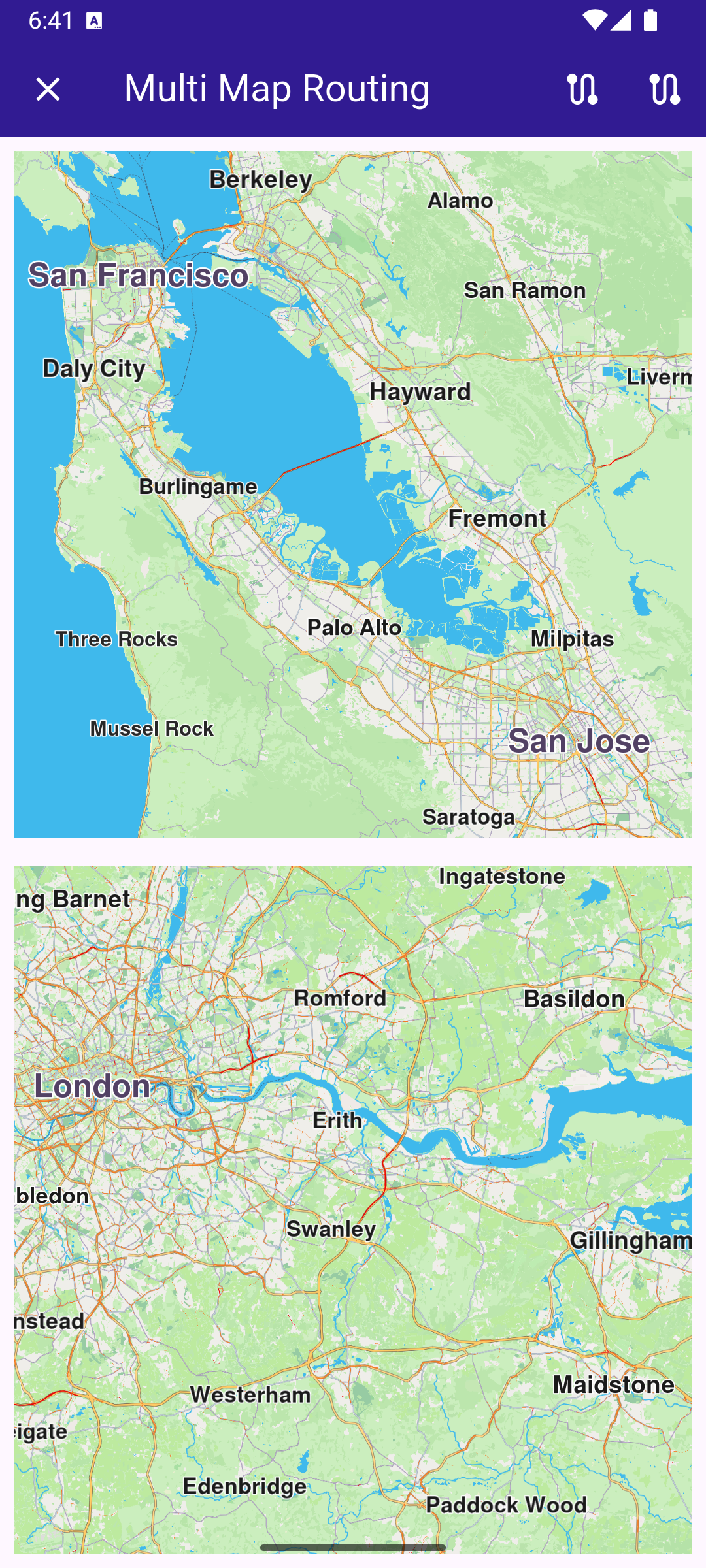

Initial maps screen

Computed route of top map

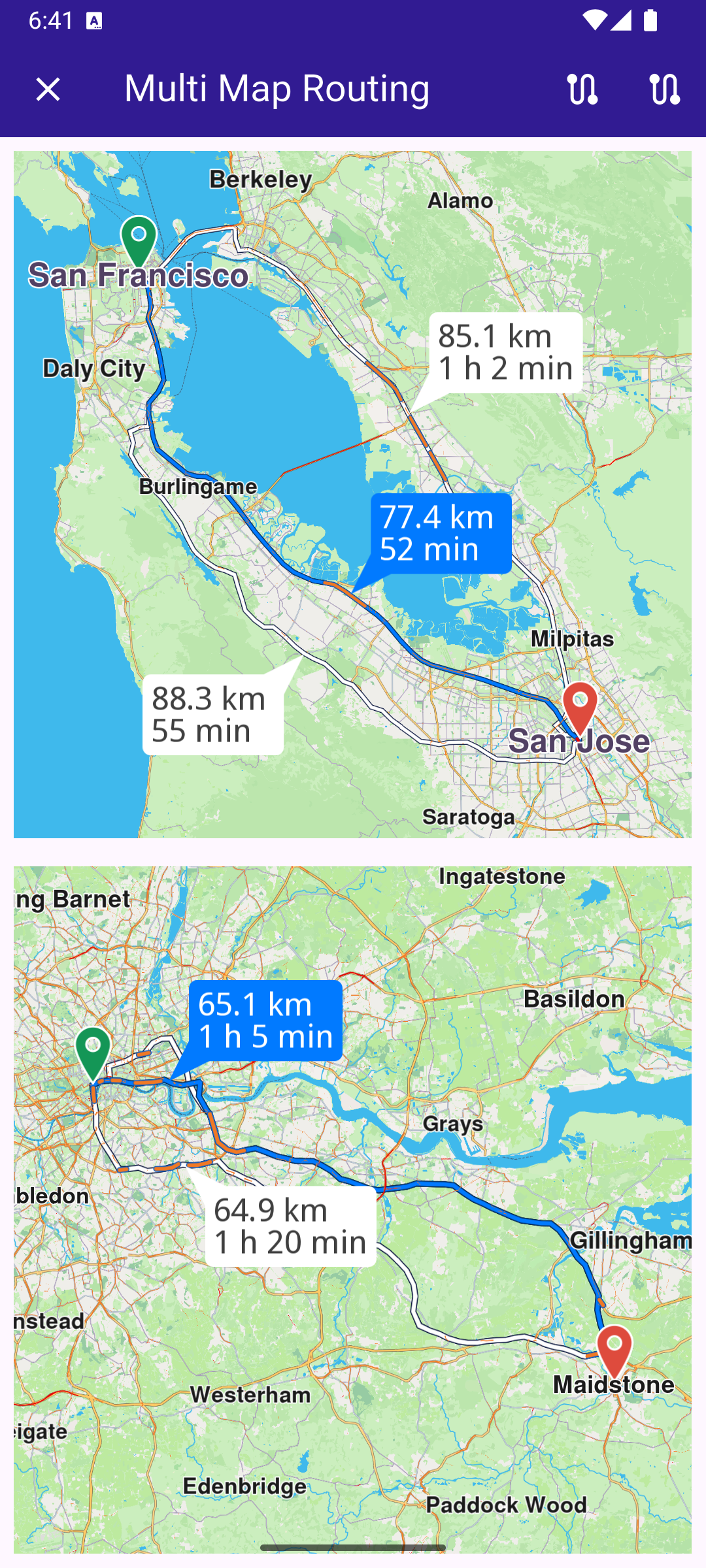

Computed routes on both maps

Build the Main Application

Define the main application widget, MyApp.

main.dart

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return const MaterialApp(title: 'Multi Map Routing', debugShowCheckedModeBanner: false, home: MyHomePage());
  }
}

Handle Maps and Routes in the Stateful Widget

Create the stateful widget, MyHomePage , which will handle two maps and their respective routes.

main.dart

class MyHomePage extends StatefulWidget {
  const MyHomePage({super.key});

  @override
  State<MyHomePage> createState() => _MyHomePageState();
}

Define State Variables and Methods

Within _MyHomePageState , define the necessary state variables and methods to interact with the maps and manage routes.

main.dart

class _MyHomePageState extends State<MyHomePage> {
  late GemMapController _mapController1;
  late GemMapController _mapController2;

  // We use the handlers to cancel the route calculation.
  TaskHandler? _routingHandler1;
  TaskHandler? _routingHandler2;

  @override
  void dispose() {
    GemKit.release();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        backgroundColor: Colors.deepPurple[900],
        title: const Text('Multi Map Routing', style: TextStyle(color: Colors.white)),
        leading: IconButton(
          onPressed: _removeRoutes,
          icon: const Icon(Icons.close, color: Colors.white),
        ),
        actions: [
          IconButton(
            onPressed: () => _onBuildRouteButtonPressed(true),
            icon: const Icon(Icons.route, color: Colors.white),
          ),
          IconButton(
            onPressed: () => _onBuildRouteButtonPressed(false),
            icon: const Icon(Icons.route, color: Colors.white),
          ),
        ],
      ),
      body: Column(
        children: [
          Expanded(
            child: Padding(
              padding: const EdgeInsets.all(8.0),
              child: GemMap(key: ValueKey("GemMap"), onMapCreated: _onMap1Created, appAuthorization: projectApiToken),
            ),
          ),
          Expanded(
            child: Padding(
              padding: const EdgeInsets.all(8.0),
              child: GemMap(onMapCreated: _onMap2Created),
            ),
          ),
        ],
      ),
    );
  }

  void _showSnackBar(BuildContext context, {required String message, Duration duration = const Duration(hours: 1)}) {
    final snackBar = SnackBar(content: Text(message), duration: duration);

    ScaffoldMessenger.of(context).showSnackBar(snackBar);
  }

  // The callback for when map 1 is ready to use.
  void _onMap1Created(GemMapController controller) {
    // Save controller for further usage.
    _mapController1 = controller;
  }

  // The callback for when map 2  is ready to use.
  void _onMap2Created(GemMapController controller) {
    // Save controller for further usage.
    _mapController2 = controller;
  }

  void _onBuildRouteButtonPressed(bool isFirstMap) {
    final waypoints = <Landmark>[];
    if (isFirstMap) {
      // Define the departure.
      final departure = Landmark.withLatLng(latitude: 37.77903, longitude: -122.41991);

      // Define the destination.
      final destination = Landmark.withLatLng(latitude: 37.33619, longitude: -121.89058);

      waypoints.add(departure);
      waypoints.add(destination);
    } else {
      // Define the departure.
      final departure = Landmark.withLatLng(latitude: 51.50732, longitude: -0.12765);

      // Define the destination.
      final destination = Landmark.withLatLng(latitude: 51.27483, longitude: 0.52316);

      waypoints.add(departure);
      waypoints.add(destination);
    }

    // Define the route preferences.
    final routePreferences = RoutePreferences();

    _showSnackBar(
      context,
      message: isFirstMap ? 'The first route is calculating.' : 'The second route is calculating.',
    );

    // Calling the calculateRoute SDK method.
    // (err, results) - is a callback function that gets called when the route computing is finished.
    // err is an error enum, results is a list of routes.
    if (isFirstMap) {
      _routingHandler1 = RoutingService.calculateRoute(
        waypoints,
        routePreferences,
        (err, routes) => _onRouteBuiltFinished(err, routes, true),
      );
    } else {
      _routingHandler2 = RoutingService.calculateRoute(
        waypoints,
        routePreferences,
        (err, routes) => _onRouteBuiltFinished(err, routes, false),
      );
    }
  }

  void _onRouteBuiltFinished(GemError err, List<Route>? routes, bool isFirstMap) {
    // If the route calculation is finished, we don't have a progress listener anymore.
    if (isFirstMap) {
      _routingHandler1 = null;
    } else {
      _routingHandler2 = null;
    }

    ScaffoldMessenger.of(context).clearSnackBars();
    if (_routingHandler1 != null) {
      _showSnackBar(context, message: 'The first route is calculating.');
    }
    if (_routingHandler2 != null) {
      _showSnackBar(context, message: 'The second route is calculating.');
    }

    // If there aren't any errors, we display the routes.
    if (err == GemError.success) {
      // Get the routes collection from map preferences.
      final routesMap = (isFirstMap ? _mapController1.preferences : _mapController2.preferences).routes;

      // Display the routes on map.
      for (final route in routes!) {
        routesMap.add(route, route == routes.first, label: getMapLabel(route));
      }

      // Center the camera on routes.
      if (isFirstMap) {
        _mapController1.centerOnRoutes(routes: routes);
      } else {
        _mapController2.centerOnRoutes(routes: routes);
      }
    }
  }

  void _removeRoutes() {
    // If we have a progress listener we cancel the route calculation.

    if (_routingHandler1 != null) {
      RoutingService.cancelRoute(_routingHandler1!);
      _routingHandler1 = null;
    }

    if (_routingHandler2 != null) {
      RoutingService.cancelRoute(_routingHandler2!);
      _routingHandler2 = null;
    }

    // Remove the routes from map.
    _mapController1.preferences.routes.clear();
    _mapController2.preferences.routes.clear();
  }
}

Displaying Route Information

main.dart

String getMapLabel(Route route) {
  return '${convertDistance(route.getTimeDistance().totalDistanceM)} \n${convertDuration(route.getTimeDistance().totalTimeS)}';
}

// Utility function to convert the meters distance into a suitable format.
String convertDistance(int meters) {
  if (meters >= 1000) {
    double kilometers = meters / 1000;
    return '${kilometers.toStringAsFixed(1)} km';
  } else {
    return '${meters.toString()} m';
  }
}

// Utility function to convert the seconds duration into a suitable format.
String convertDuration(int seconds) {
  int hours = seconds ~/ 3600; // Number of whole hours
  int minutes = (seconds % 3600) ~/ 60; // Number of whole minutes

  String hoursText = (hours > 0) ? '$hours h ' : ''; // Hours text
  String minutesText = '$minutes min'; // Minutes text

  return hoursText + minutesText;
}
