Driver Behaviour

_|

This guide will teach you how to start analyzing driver behaviour using Maps SDK for Flutter.

How It Works

The example app demonstrates the following key features:

• Initializing a map.
• Configuring the map to use live data from the device's GPS.
• Starting and stopping a driver behaviour analysis.
• Viewing recorded driver behaviour sessions.

Started recording

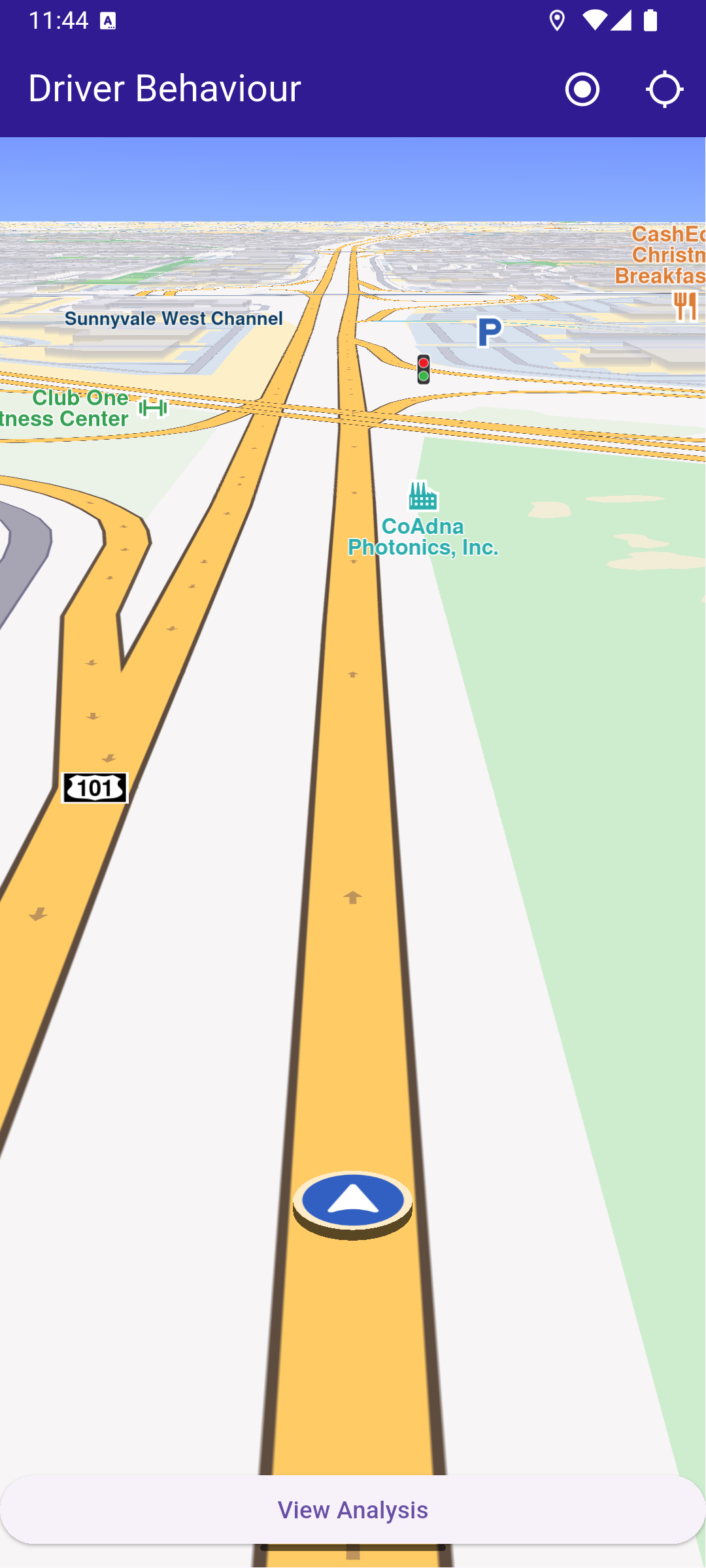

Finished recording

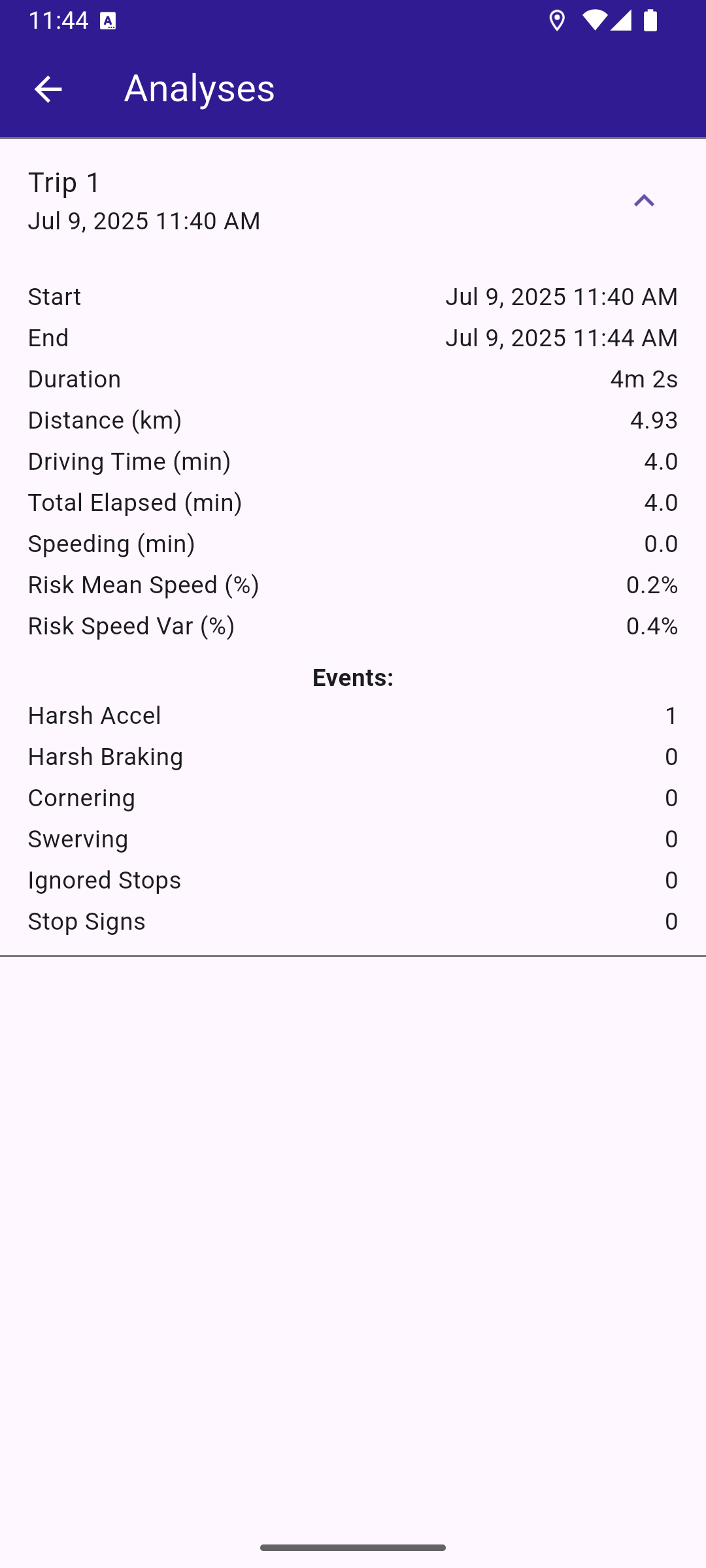

Behaviour analysis page

UI and Map Integration

The following code demonstrates how to build a user interface featuring a GemMap widget and an app bar. The app bar includes buttons for starting and stopping recordings, as well as following the user's position. After successfully completing a recording, a View Analysis button appears at the bottom of the screen. Clicking this button navigates the user to the AnalysesPage.

main.dart

const projectApiToken = String.fromEnvironment('GEM_TOKEN');

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return const MaterialApp(
      debugShowCheckedModeBanner: false,
      title: 'Driver Behaviour',
      home: MyHomePage(),
    );
  }
}

class MyHomePage extends StatefulWidget {
  const MyHomePage({super.key});

  @override
  State<MyHomePage> createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
  late GemMapController _mapController;
  late DriverBehaviour _driverBehaviour;

  DriverBehaviourAnalysis? _recordedAnalysis;

  PermissionStatus _locationPermissionStatus = PermissionStatus.denied;
  bool _hasLiveDataSource = false;
  bool _isAnalizing = false;
  @override
  void dispose() {
    GemKit.release();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        backgroundColor: Colors.deepPurple[900],
        title: const Text('Driver Behaviour', style: TextStyle(color: Colors.white)),
        actions: [
          if (_hasLiveDataSource && _isAnalizing == false)
            IconButton(
              onPressed: _onRecordButtonPressed,
              icon: Icon(Icons.radio_button_on, color: Colors.white),
            ),
          if (_isAnalizing)
            IconButton(
              onPressed: _onStopRecordingButtonPressed,
              icon: Icon(Icons.stop_circle, color: Colors.white),
            ),
          IconButton(
            onPressed: _onFollowPositionButtonPressed,
            icon: const Icon(
              Icons.location_searching_sharp,
              color: Colors.white,
            ),
          ),
        ],
      ),
      body: Stack(
        children: [
          GemMap(
            key: ValueKey("GemMap"),
            onMapCreated: (controller) => _onMapCreated(controller),
            appAuthorization: projectApiToken,
          ),
          if (_recordedAnalysis != null)
            Positioned(
                bottom: 10.0,
                left: 0.0,
                right: 0.0,
                child: ElevatedButton(
                    onPressed: () {
                      final analyses = _driverBehaviour.getAllDriverBehaviourAnalyses();
                      Navigator.of(context).push(MaterialPageRoute<void>(builder: (context) {
                        return AnalysesPage(behaviourAnalyses: analyses);
                      }));
                    },
                    child: Text("View Analysis")))
        ],
      ),
    );
  }

  // The callback for when map is ready to use.
  void _onMapCreated(GemMapController controller) async {
    // Save controller for further usage.
    _mapController = controller;
  }

  Future<void> _onFollowPositionButtonPressed() async {
    if (kIsWeb) {
      // On web platform permission are handled differently than other platforms.
      // The SDK handles the request of permission for location.
      final locationPermssionWeb = await PositionService.requestLocationPermission;
      if (locationPermssionWeb == true) {
        _locationPermissionStatus = PermissionStatus.granted;
      } else {
        _locationPermissionStatus = PermissionStatus.denied;
      }
    } else {
      // For Android & iOS platforms, permission_handler package is used to ask for permissions.
      _locationPermissionStatus = await Permission.locationWhenInUse.request();
    }

    if (_locationPermissionStatus == PermissionStatus.granted) {
      // After the permission was granted, we can set the live data source (in most cases the GPS).
      // The data source should be set only once, otherwise we'll get -5 error.
      if (!_hasLiveDataSource) {
        PositionService.instance.setLiveDataSource();
        _hasLiveDataSource = true;
      }

      // Optionally, we can set an animation
      final animation = GemAnimation(type: AnimationType.linear);

      // Calling the start following position SDK method.
      _mapController.startFollowingPosition(animation: animation);

      setState(() {});
    }
  }

  void _onRecordButtonPressed() {
    final liveDataSource = DataSource.createLiveDataSource();

    if (liveDataSource == null) {
      ScaffoldMessenger.of(context).showSnackBar(
        SnackBar(
          content: Text('Creating a data source failed.'),
          duration: Duration(seconds: 5),
        ),
      );
      return;
    }

    final driverBehaviour = DriverBehaviour(dataSource: liveDataSource, useMapMatch: true);

    setState(() {
      _isAnalizing = true;
      _driverBehaviour = driverBehaviour;
    });

    final err = _driverBehaviour.startAnalysis();

    if (!err) {
      ScaffoldMessenger.of(context).showSnackBar(
        SnackBar(
          content: Text('Starting analysis failed.'),
          duration: Duration(seconds: 5),
        ),
      );
    }
  }

  void _onStopRecordingButtonPressed() {
    final analysis = _driverBehaviour.stopAnalysis();

    setState(() {
      _isAnalizing = false;
      _recordedAnalysis = analysis;
    });
  }
}

Analyses Page

analyses_page.dart

import 'package:flutter/material.dart';
import 'package:gem_kit/driver_behaviour.dart';
import 'package:intl/intl.dart';
import 'package:driver_behaviour/utils.dart';

class AnalysesPage extends StatelessWidget {
  final List<DriverBehaviourAnalysis> behaviourAnalyses;
  const AnalysesPage({super.key, required this.behaviourAnalyses});

  @override
  Widget build(BuildContext context) {
    final fmt = DateFormat.yMMMd().add_jm();

    return Scaffold(
      appBar: AppBar(
        title: const Text('Analyses', style: TextStyle(color: Colors.white)),
        backgroundColor: Colors.deepPurple[900],
        foregroundColor: Colors.white,
      ),
      body: behaviourAnalyses.isEmpty
          ? const Center(child: Text('No analyses recorded'))
          : ListView.builder(
              itemCount: behaviourAnalyses.length,
              itemBuilder: (_, i) {
                final a = behaviourAnalyses[i];
                if (!a.isValid) {
                  return const ListTile(title: Text('Invalid analysis'));
                }
                final start = DateTime.fromMillisecondsSinceEpoch(a.startTime).toLocal();
                final end = DateTime.fromMillisecondsSinceEpoch(a.finishTime).toLocal();
                final dur = end.difference(start);

                // Build a list of simple Text rows
                final rows = <Widget>[
                  _buildRow('Start', fmt.format(start)),
                  _buildRow('End', fmt.format(end)),
                  _buildRow('Duration', formatDuration(dur)),
                  _buildRow('Distance (km)', a.kilometersDriven.toStringAsFixed(2)),
                  _buildRow('Driving Time (min)', a.minutesDriven.toStringAsFixed(1)),
                  _buildRow('Total Elapsed (min)', a.minutesTotalElapsed.toStringAsFixed(1)),
                  _buildRow('Speeding (min)', a.minutesSpeeding.toStringAsFixed(1)),
                  _buildRow('Risk Mean Speed (%)', formatPercent(a.riskRelatedToMeanSpeed)),
                  _buildRow('Risk Speed Var (%)', formatPercent(a.riskRelatedToSpeedVariation)),
                  const SizedBox(height: 8),
                  const Text('Events:', style: TextStyle(fontWeight: FontWeight.bold)),
                  _buildRow('Harsh Accel', a.numberOfHarshAccelerationEvents.toString()),
                  _buildRow('Harsh Braking', a.numberOfHarshBrakingEvents.toString()),
                  _buildRow('Cornering', a.numberOfCorneringEvents.toString()),
                  _buildRow('Swerving', a.numberOfSwervingEvents.toString()),
                  _buildRow('Ignored Stops', a.numberOfIgnoredStopSigns.toString()),
                  _buildRow('Stop Signs', a.numberOfEncounteredStopSigns.toString()),
                ];

                return ExpansionTile(
                  title: Text('Trip ${i + 1}'),
                  subtitle: Text(fmt.format(start)),
                  childrenPadding: const EdgeInsets.symmetric(horizontal: 16, vertical: 8),
                  children: rows,
                );
              },
            ),
    );
  }

  Widget _buildRow(String label, String value) {
    return Padding(
      padding: const EdgeInsets.symmetric(vertical: 2),
      child: Row(
        mainAxisAlignment: MainAxisAlignment.spaceBetween,
        children: [
          Text(label),
          Text(value),
        ],
      ),
    );
  }
}

Utility Functions

utils.dart

String formatDuration(Duration d) {
  final hours = d.inHours;
  final minutes = d.inMinutes % 60;
  final seconds = d.inSeconds % 60;
  return [if (hours > 0) '${hours}h', if (minutes > 0) '${minutes}m', '${seconds}s'].join(' ');
}

String formatPercent(double value) => '${value.toStringAsFixed(1)}%';

Required Permissions

To ensure this example functions correctly, the necessary permissions must be added to the project's Android and iOS configuration files:

Android

Add the following code to the android/app/src/main/AndroidManifest.xml file, within the <manifest> block:

<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_BACKGROUND_LOCATION" />

This example uses the Permission Handler package. Be sure to follow the setup guide.

iOS

Add the following to ios/Runner/Info.plist inside the <dict>:

<key>NSLocationWhenInUseUsageDescription</key>
<string>Location is needed for map localization and navigation</string>

This example uses the Permission Handler package. Follow the official setup instructions. Add this to your ios/Podfile:

post_install do |installer|
  installer.pods_project.targets.each do |target|
    flutter_additional_ios_build_settings(target)

    target.build_configurations.each do |config|
      config.build_settings['GCC_PREPROCESSOR_DEFINITIONS'] ||= [
        '$(inherited)',
        'PERMISSION_LOCATION=1',
      ]
    end
  end
end
