Social Report

_|

This example demonstrates how to create a Flutter app with an interactive map that allows users to upload and view social events, using the Maps SDK for Flutter.

How it works

The example app includes the following features:

• Display an interactive map.
• Upload a social report.
• Select and view existing social reports directly from the map.

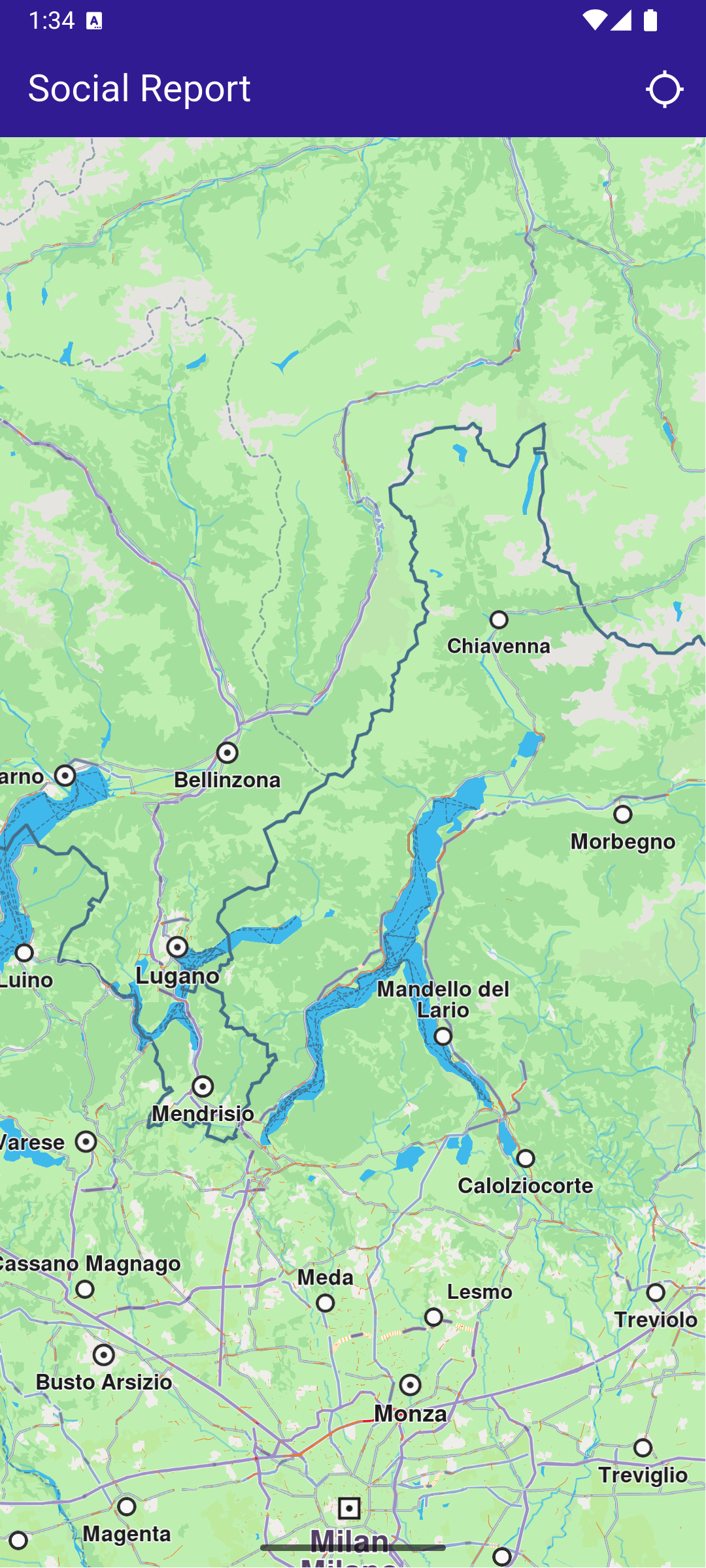

Initial map view

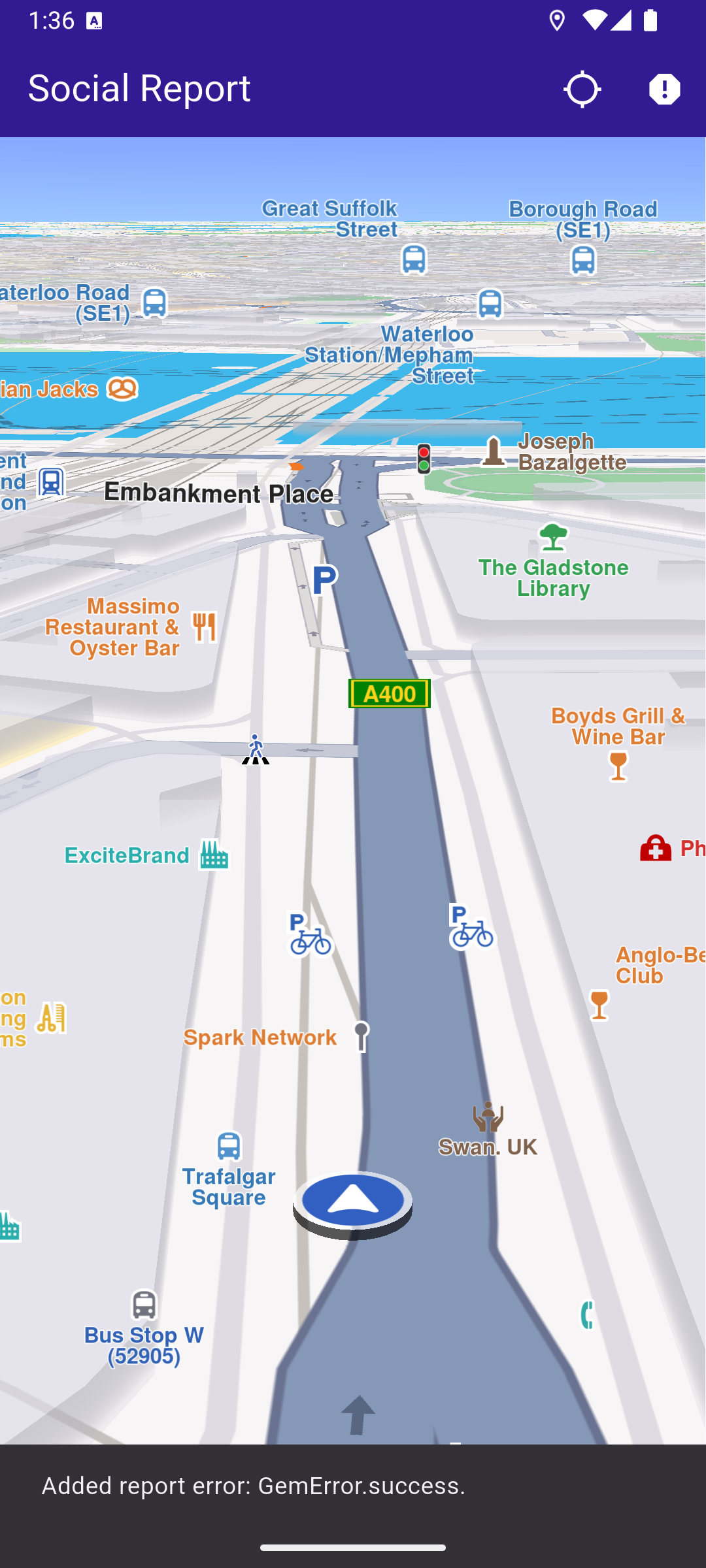

Uploaded report

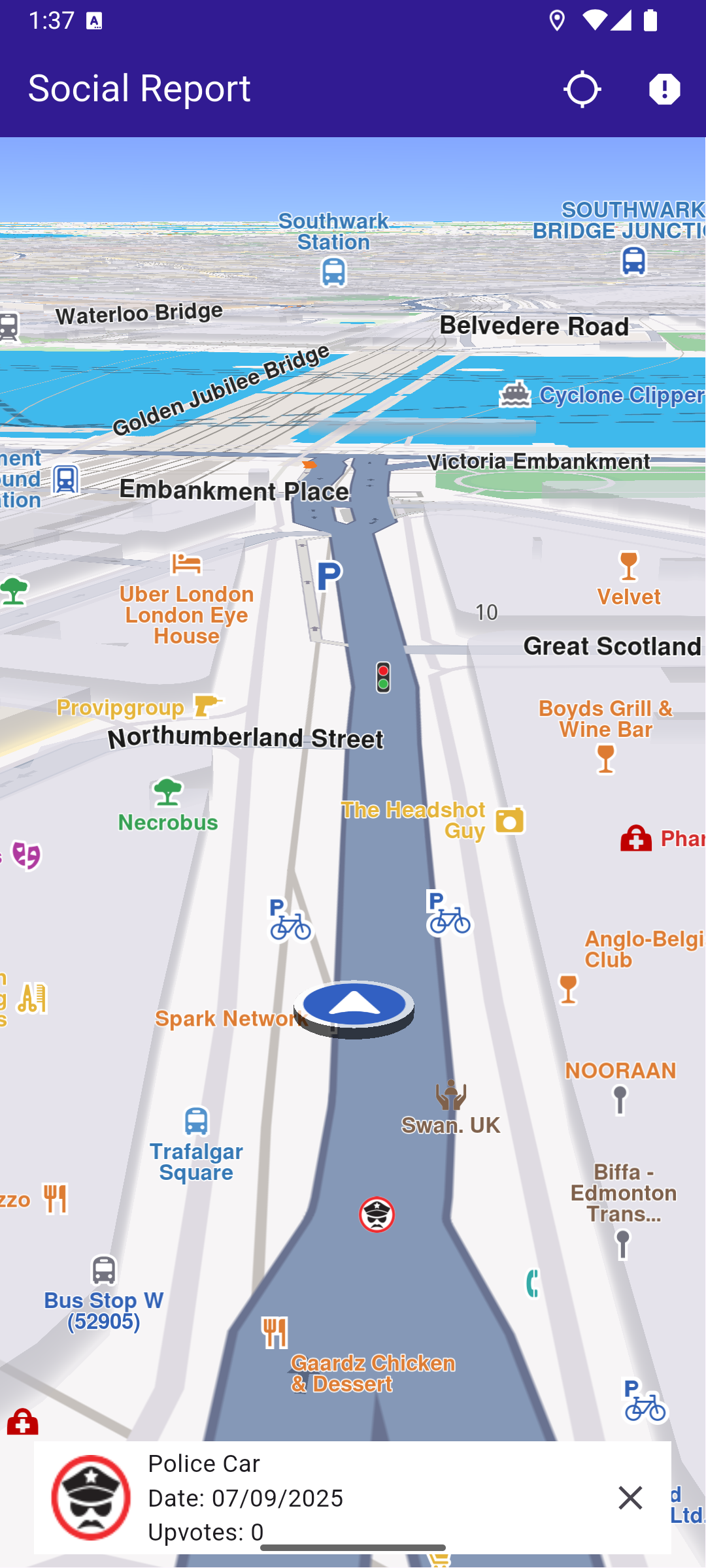

Selected social report

UI and Map Integration

The following code creates a user interface with an interactive GemMap and an app bar. The app bar includes two buttons: one for acquiring the user's current position and another for uploading a police report at the current location.

main.dart

const projectApiToken = String.fromEnvironment('GEM_TOKEN');

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return const MaterialApp(
      title: 'Social Report',
      debugShowCheckedModeBanner: false,
      home: MyHomePage(),
    );
  }
}

class MyHomePage extends StatefulWidget {
  const MyHomePage({super.key});

  @override
  State<MyHomePage> createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
  late GemMapController _mapController;

  PermissionStatus _locationPermissionStatus = PermissionStatus.denied;
  bool _hasLiveDataSource = false;

  // Current selected overlay item
  OverlayItem? _selectedItem;

  @override
  void dispose() {
    GemKit.release();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        backgroundColor: Colors.deepPurple[900],
        title: const Text(
          'Social Report',
          style: TextStyle(color: Colors.white),
        ),
        actions: [
          IconButton(
            onPressed: _onFollowPositionButtonPressed,
            icon: const Icon(
              Icons.location_searching_sharp,
              color: Colors.white,
            ),
          ),
          if (_hasLiveDataSource)
            IconButton(
                onPressed: _onPrepareReportingButtonPressed,
                icon: Icon(
                  Icons.report,
                  color: Colors.white,
                ))
        ],
      ),
      body: Stack(children: [
        GemMap(
          key: ValueKey("GemMap"),
          onMapCreated: _onMapCreated,
          appAuthorization: projectApiToken,
        ),
        if (_selectedItem != null)
          Padding(
            padding: const EdgeInsets.all(8.0),
            child: Align(
              alignment: Alignment.bottomCenter,
              child: SocialEventPanel(
                overlayItem: _selectedItem!,
                onClose: () {
                  setState(() {
                    _selectedItem = null;
                  });
                },
              ),
            ),
          )
      ]),
    );
  }

  // The callback for when map is ready to use.
  void _onMapCreated(GemMapController controller) async {
    // Save controller for further usage.
    _mapController = controller;

    // Register callback for touch events and updated cursor position
    _mapController.registerTouchCallback((point) {
      _mapController.setCursorScreenPosition(point);
    });

    // Get selected overlay items under cursor
    _mapController.registerCursorSelectionUpdatedOverlayItemsCallback((items) {
      if (items.isEmpty) return;
      final selectedItem = items.first;

      // Update selected item
      setState(() {
        _selectedItem = selectedItem;
      });
    });
  }

  void _onFollowPositionButtonPressed() async {
    if (kIsWeb) {
      // On web platform permission are handled differently than other platforms.
      // The SDK handles the request of permission for location.
      final locationPermssionWeb = await PositionService.requestLocationPermission;
      if (locationPermssionWeb == true) {
        _locationPermissionStatus = PermissionStatus.granted;
      } else {
        _locationPermissionStatus = PermissionStatus.denied;
      }
    } else {
      // For Android & iOS platforms, permission_handler package is used to ask for permissions.
      _locationPermissionStatus = await Permission.locationWhenInUse.request();
    }

    if (_locationPermissionStatus == PermissionStatus.granted) {
      // After the permission was granted, we can set the live data source (in most cases the GPS).
      // The data source should be set only once, otherwise we'll get -5 error.
      if (!_hasLiveDataSource) {
        PositionService.instance.setLiveDataSource();
        _hasLiveDataSource = true;
      }

      // Optionally, we can set an animation
      final animation = GemAnimation(type: AnimationType.linear);

      // Calling the start following position SDK method.
      _mapController.startFollowingPosition(animation: animation);

      setState(() {});
    }
  }

  void _onPrepareReportingButtonPressed() async {
    // Get current position quality
    final improvedPos = PositionService.instance.improvedPosition;
    final posQuality = improvedPos!.fixQuality;

    if (posQuality == PositionQuality.invalid || posQuality == PositionQuality.inertial) {
      _showSnackBar(
        context,
        message: "There is no accurate position at the moment.",
        duration: Duration(seconds: 3),
      );
      return;
    }

    // Get the reporting id (uses current position). Requires accurate position, may return GemError.notFound when in buildings/tunnels etc.
    int idReport = SocialOverlay.prepareReporting();

    // Get the subcategory id
    SocialReportsOverlayInfo info = SocialOverlay.reportsOverlayInfo;
    List<SocialReportsOverlayCategory> categs = info.getSocialReportsCategories();
    SocialReportsOverlayCategory cat = categs.first;
    List<SocialReportsOverlayCategory> subcats = cat.overlaySubcategories;
    SocialReportsOverlayCategory subCategory = subcats.first;

    // Report
    SocialOverlay.report(
      prepareId: idReport,
      categId: subCategory.uid,
      onComplete: (error) {
        _showSnackBar(
          context,
          message: "Added report error: $error.",
          duration: Duration(seconds: 3),
        );
      },
    );
  }

  // Show a snackbar indicating that the route calculation is in progress.
  void _showSnackBar(
    BuildContext context, {
    required String message,
    Duration duration = const Duration(hours: 1),
  }) {
    final snackBar = SnackBar(content: Text(message), duration: duration);

    ScaffoldMessenger.of(context).showSnackBar(snackBar);
  }
}

Social Event Panel

The following code demonstrates how to retrieve details from an OverlayItem that represents a social event.

social_event_panel.dart

import 'package:intl/intl.dart';

class SocialEventPanel extends StatelessWidget {
  final OverlayItem overlayItem;
  final VoidCallback onClose;
  const SocialEventPanel({super.key, required this.overlayItem, required this.onClose});

  @override
  Widget build(BuildContext context) {
    final overlayImg = overlayItem.img;
    return Container(
      width: MediaQuery.of(context).size.width - 40,
      color: Colors.white,
      child: Column(
        mainAxisSize: MainAxisSize.min,
        children: [
          Row(
            mainAxisAlignment: MainAxisAlignment.spaceBetween,
            children: [
              Row(
                children: [
                  Padding(
                      padding: const EdgeInsets.all(8.0),
                      child: overlayImg.isValid
                          ? Image.memory(
                              overlayImg.getRenderableImageBytes(size: Size(50, 50), format: ImageFileFormat.png)!,
                            )
                          : const SizedBox()),
                  Column(
                    crossAxisAlignment: CrossAxisAlignment.start,
                    children: [
                      Text(overlayItem.name),
                      Text(
                          "Date: ${formatTimestamp(overlayItem.previewDataJson["parameters"]["create_stamp_utc"] as String)}"),
                      Text("Upvotes: ${overlayItem.previewDataJson["parameters"]["score"]}"),
                    ],
                  ),
                ],
              ),
              IconButton(onPressed: onClose, icon: Icon(Icons.close)),
            ],
          ),
        ],
      ),
    );
  }

  String formatTimestamp(String timestampStr) {
    final timestamp = int.tryParse(timestampStr);
    if (timestamp == null) return "Invalid date";

    final date = DateTime.fromMillisecondsSinceEpoch(timestamp * 1000);
    return DateFormat('MM/dd/yyyy').format(date);
  }
}

Required Permissions

To ensure this example functions correctly, the necessary permissions must be added to the project's Android and iOS configuration files:

Android

Add the following code to the android/app/src/main/AndroidManifest.xml file, within the <manifest> block:

<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_BACKGROUND_LOCATION" />

This example uses the Permission Handler package. Be sure to follow the setup guide.

iOS

Add the following to ios/Runner/Info.plist inside the <dict>:

<key>NSLocationWhenInUseUsageDescription</key>
<string>Location is needed for map localization and navigation</string>

This example uses the Permission Handler package. Follow the official setup instructions. Add this to your ios/Podfile:

post_install do |installer|
  installer.pods_project.targets.each do |target|
    flutter_additional_ios_build_settings(target)

    target.build_configurations.each do |config|
      config.build_settings['GCC_PREPROCESSOR_DEFINITIONS'] ||= [
        '$(inherited)',
        'PERMISSION_LOCATION=1',
      ]
    end
  end
end
