Draw Roadblock

_|

This example showcases how to build a Flutter app featuring an interactive map. Users can draw paths on map, whose coordinates can be used to confirm a roadblock.

How it works

The example app includes the following features:

• Display a map.
• Draw a roadblock in one or multiple steps.
• Display preview paths on map.
• Confirm a persistent Roadblock based on the drawn path.

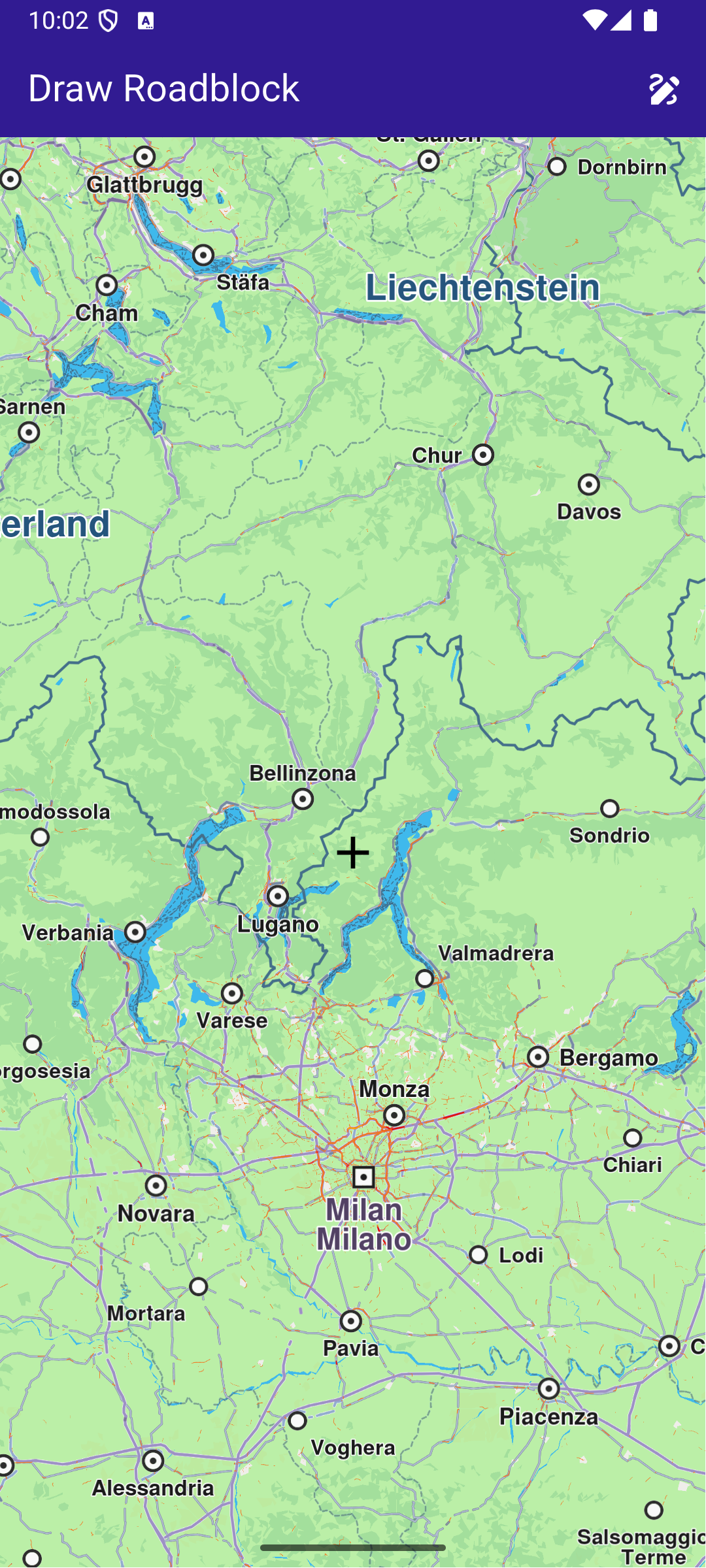

Initial map screen

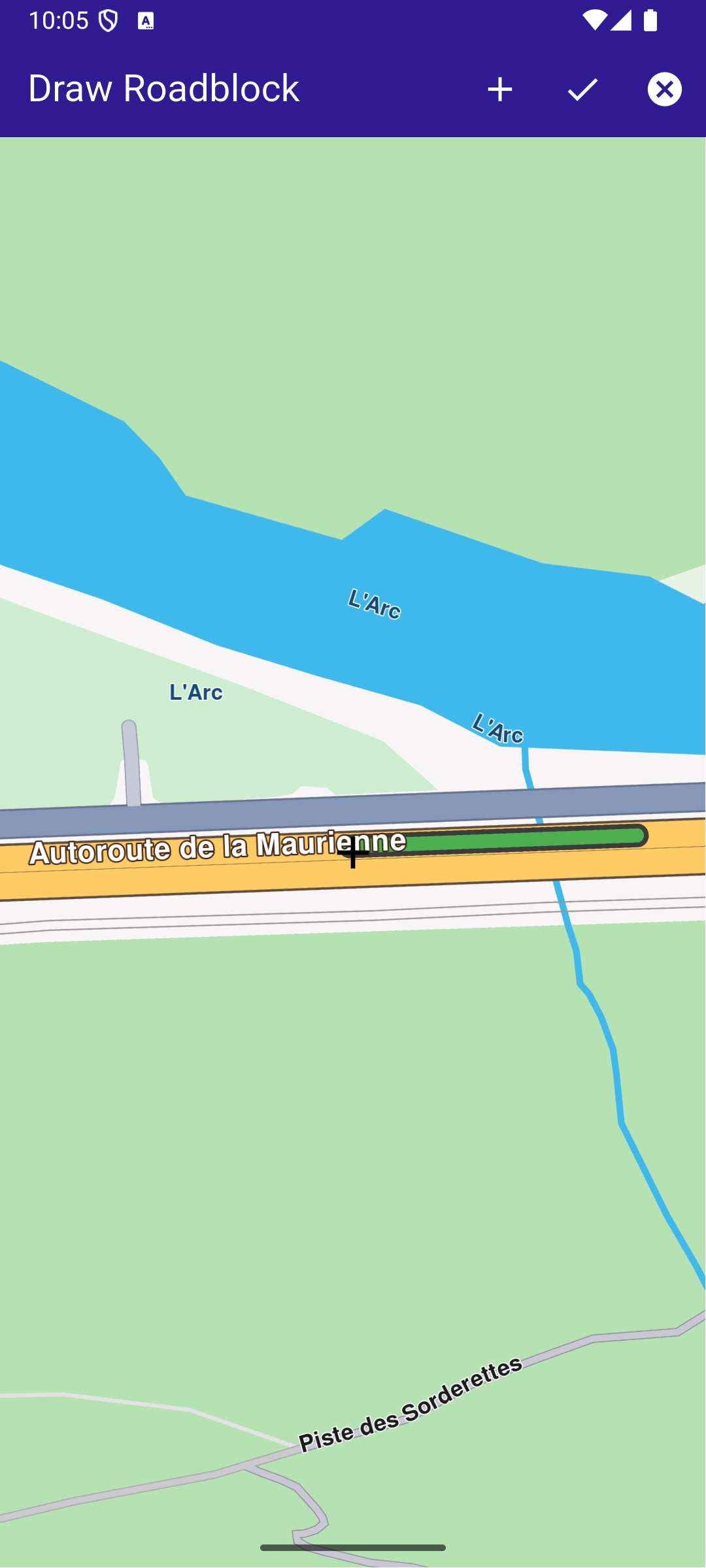

Started drawing preview path

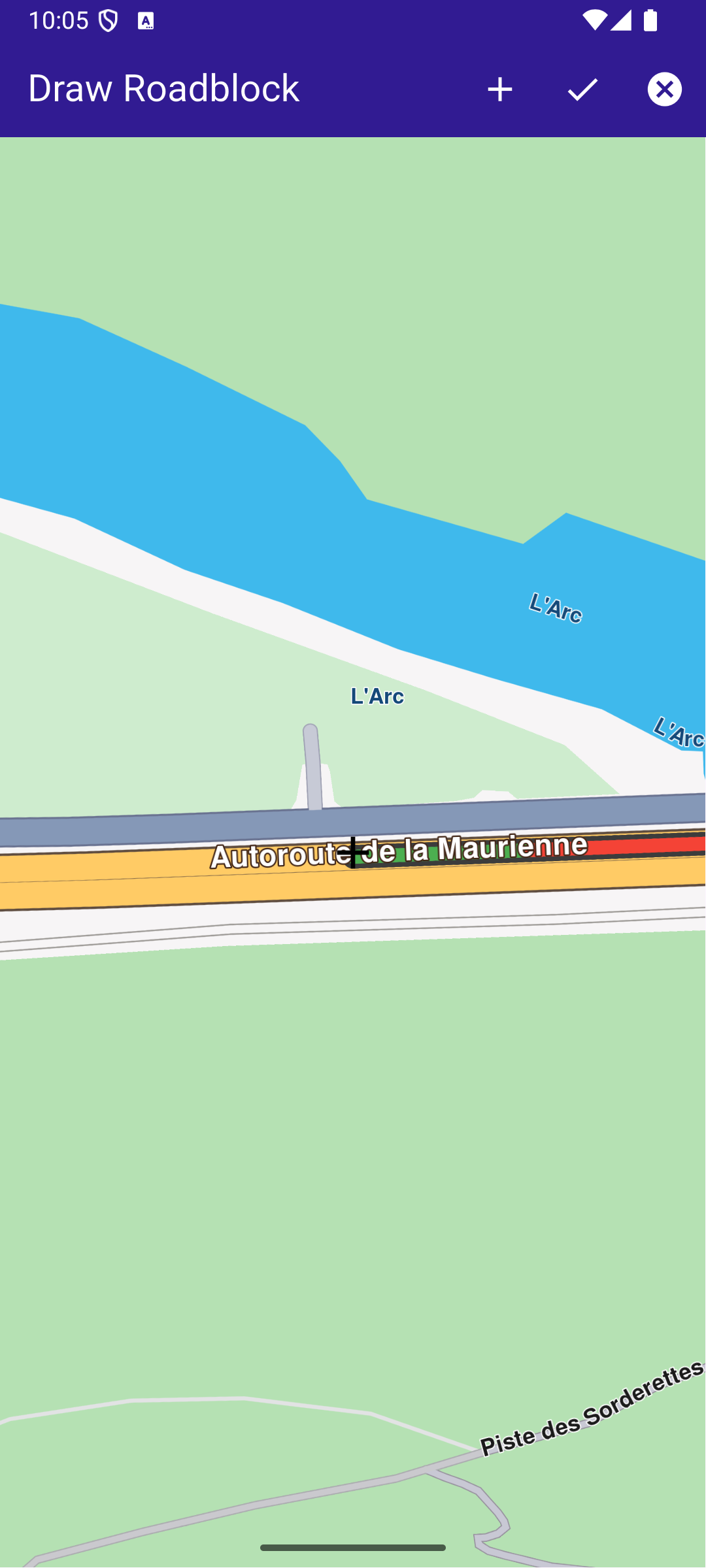

Confirmed previous path (in red)

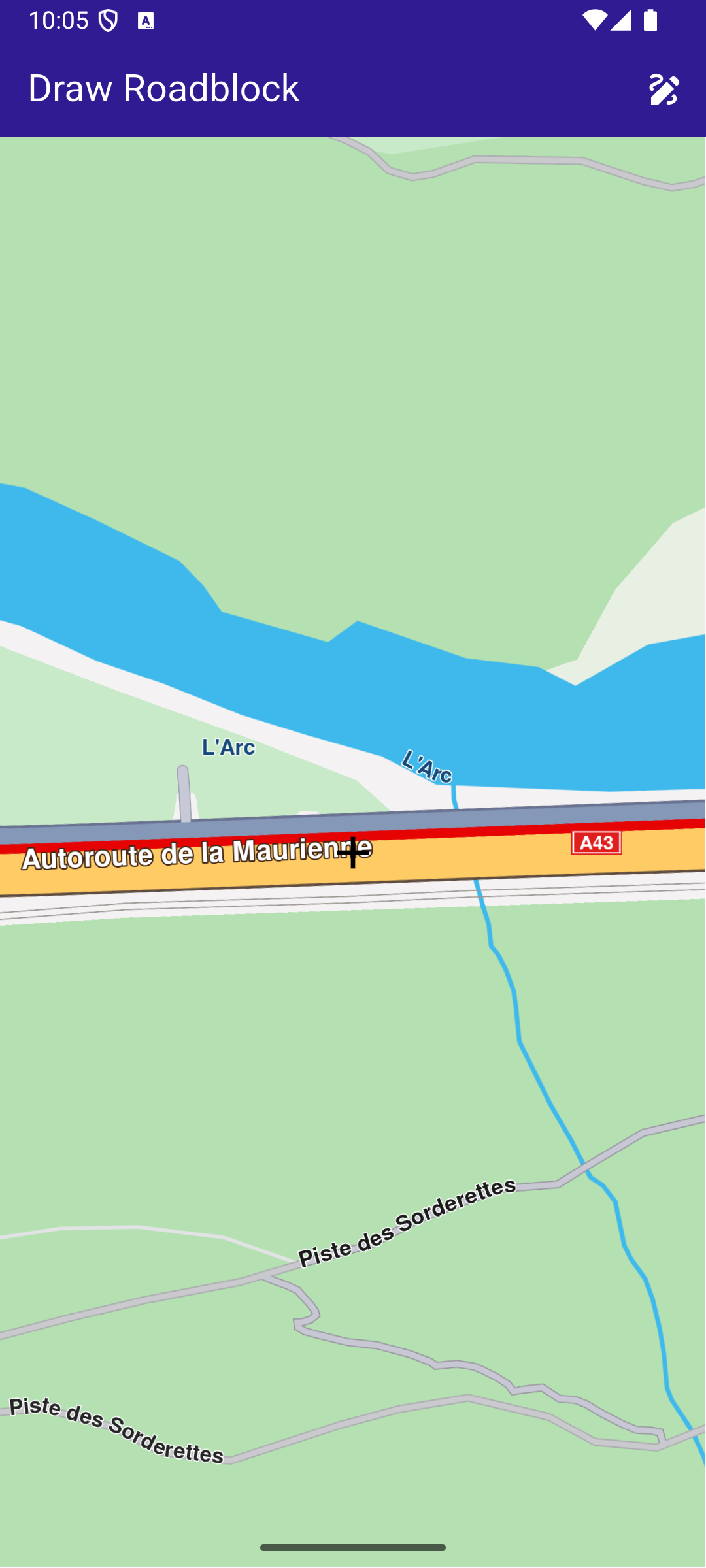

Confirmed roadblock on map

UI and Map Integration

The code below builds a user interface featuring an interactive GemMap and an app bar with action buttons to start drawing mode, confirm the drawn path, cancel drawing, and confirm a roadblock.

main.dart

const projectApiToken = String.fromEnvironment('GEM_TOKEN');

void main() async {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return const MaterialApp(
      debugShowCheckedModeBanner: false,
      title: 'Draw Roadblock',
      home: MyHomePage(),
    );
  }
}

class MyHomePage extends StatefulWidget {
  const MyHomePage({super.key});

  @override
  State<MyHomePage> createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
  late GemMapController _mapController;

  // The coordinate where the preview currently ends (acts as a cursor for preview path)
  UserRoadblockPathPreviewCoordinate? previewCursor;

  // List of permanent coordinates (user confirmed)
  List<Coordinates> permanentCoords = [];
  // List of preview (temporary) coordinates
  List<Coordinates> previewCoordsList = [];

  // Draw mode
  bool drawMode = false;

  /// Debouncer in order to calculate preview only after movement is stopped
  Timer? _debounce;

  @override
  void initState() {
    super.initState();
  }

  @override
  void dispose() {
    GemKit.release();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        automaticallyImplyLeading: true,
        foregroundColor: Colors.white,
        title: const Text(
          "Draw Roadblock",
          style: TextStyle(color: Colors.white),
        ),
        backgroundColor: Colors.deepPurple[900],
        actions: [
          // Add temporary coordinates to permanent
          if (drawMode)
            IconButton(
              icon: Icon(Icons.add),
              onPressed: () {
                permanentCoords = [...permanentCoords, ...previewCoordsList];
                previewCoordsList = [];
                _redrawPath();
              },
            ),
          // Draw mode activate button
          if (!drawMode)
            IconButton(
              icon: Icon(Icons.draw),
              onPressed: () {
                setState(() {
                  drawMode = true;
                  permanentCoords = [];
                  previewCursor = null;
                  previewCoordsList = [];
                });
                _handlePreviewPathUpdate(allowRecursive: false);
              },
            ),
          // Add roadblock by permanent coordinates and reset the draw mode and coordinates lists
          if (drawMode)
            IconButton(
              icon: Icon(Icons.check),
              onPressed: () {
                final roadblockResult = TrafficService.addPersistentRoadblockByCoordinates(
                  coords: permanentCoords,
                  startTime: DateTime.now(),
                  expireTime: DateTime.now().add(const Duration(days: 1)),
                  transportMode: RouteTransportMode.car,
                  id: DateTime.now().toIso8601String(), // Unique identifier
                );

                setState(() {
                  drawMode = false;
                  permanentCoords = [];
                  previewCursor = null;
                  previewCoordsList = [];
                });

                // In case of error, show snackbar
                if (roadblockResult.$2 != GemError.success) {
                  ScaffoldMessenger.of(context).showSnackBar(
                    SnackBar(
                      content: Text(
                        'Error ${roadblockResult.$2} when adding roadblock.',
                      ),
                      backgroundColor: Colors.red,
                      duration: Duration(seconds: 3),
                    ),
                  );
                }

                // Reset the coordinates
                permanentCoords = [];
                previewCoordsList = [];
                _redrawPath();
              },
            ),
          // Cancel draw mode
          if (drawMode)
            IconButton(
              icon: Icon(Icons.cancel),
              onPressed: () {
                setState(() {
                  drawMode = false;
                  permanentCoords = [];
                  previewCoordsList = [];
                });
                permanentCoords = [];
                previewCoordsList = [];
                previewCursor = null;
                _redrawPath();
              },
            ),
        ],
      ),
      body: Stack(
        children: [
          GemMap(
            appAuthorization: projectApiToken,
            onMapCreated: _onMapCreated,
          ),
          // Mark the center of the viewport
          const Center(
            child: Icon(
              Icons.add,
              size: 32,
              color: Colors.black,
            ),
          ),
        ],
      ),
    );
  }

  /// Called when the map is created. Registers the move callback for draw mode.
  void _onMapCreated(GemMapController controller) async {
    _mapController = controller;

    _mapController.registerMoveCallback((_, __) {
      if (!drawMode) return;

      _debounce?.cancel();
      _debounce = Timer(const Duration(milliseconds: 100), () {
        _handlePreviewPathUpdate(allowRecursive: true);
      });
    });
  }

  /// Handles updating the preview path when the map moves.
  void _handlePreviewPathUpdate({required bool allowRecursive}) {
    final centerScreen = Point<int>(
      _mapController.viewport.width ~/ 2,
      _mapController.viewport.height ~/ 2,
    );
    final centerCoord = _mapController.transformScreenToWgs(centerScreen);

    // On first call, initialize permanentCoords with the center coordinate
    if (permanentCoords.isEmpty) {
      permanentCoords.add(centerCoord);
    }

    // If previewCursor is null, set it and return
    if (previewCursor == null) {
      previewCursor = UserRoadblockPathPreviewCoordinate.fromCoordinates(centerCoord);
      return;
    }

    // Compute route coordinates from previous coordinates to new coordinates
    final (from, to, error) = TrafficService.getPersistentRoadblockPathPreview(
      from: previewCursor!,
      to: centerCoord,
      transportMode: RouteTransportMode.car,
    );

    if (error != GemError.success) {
      _resetPreviewPathOnError(allowRecursive);
      return;
    }

    _updatePreviewPath(from, to);
  }

  /// Resets the preview path and optionally retries if an error occurs.
  void _resetPreviewPathOnError(bool allowRecursive) {
    previewCoordsList = [];
    previewCursor = UserRoadblockPathPreviewCoordinate.fromCoordinates(permanentCoords.last);
    _redrawPath();
    if (allowRecursive) {
      _handlePreviewPathUpdate(allowRecursive: false);
    }
  }

  /// Updates the preview path and redraws the map.
  void _updatePreviewPath(List<Coordinates> from, UserRoadblockPathPreviewCoordinate to) {
    previewCoordsList = [...previewCoordsList, ...from];
    previewCursor = to;
    _redrawPath();
  }

  /// Redraws the permanent and preview paths on the map.
  void _redrawPath() {
    final previewPath = Path.fromCoordinates(previewCoordsList);
    final permanentPath = Path.fromCoordinates(permanentCoords);
    _mapController.preferences.paths.clear();
    _mapController.preferences.paths.add(previewPath, colorInner: Colors.green);
    _mapController.preferences.paths.add(permanentPath, colorInner: Colors.red);
  }
}
