Map Style Update
This example showcases how to build a Flutter app featuring an interactive map and how to center the camera on a route area with traffic, using the Maps SDK for Flutter.
Saving Assets
Before running the app, ensure that you save the necessary file (Oldtime style) into the assets directory.
Update your pubspec.yaml file to include these assets:
flutter:
assets:
- assets/
How it works
The example app demonstrates the following features:
- Display an interactive map.
- View online and offline map styles.
- Update old local styles.
- Download new styles.
- Set a map style.
Initial map view

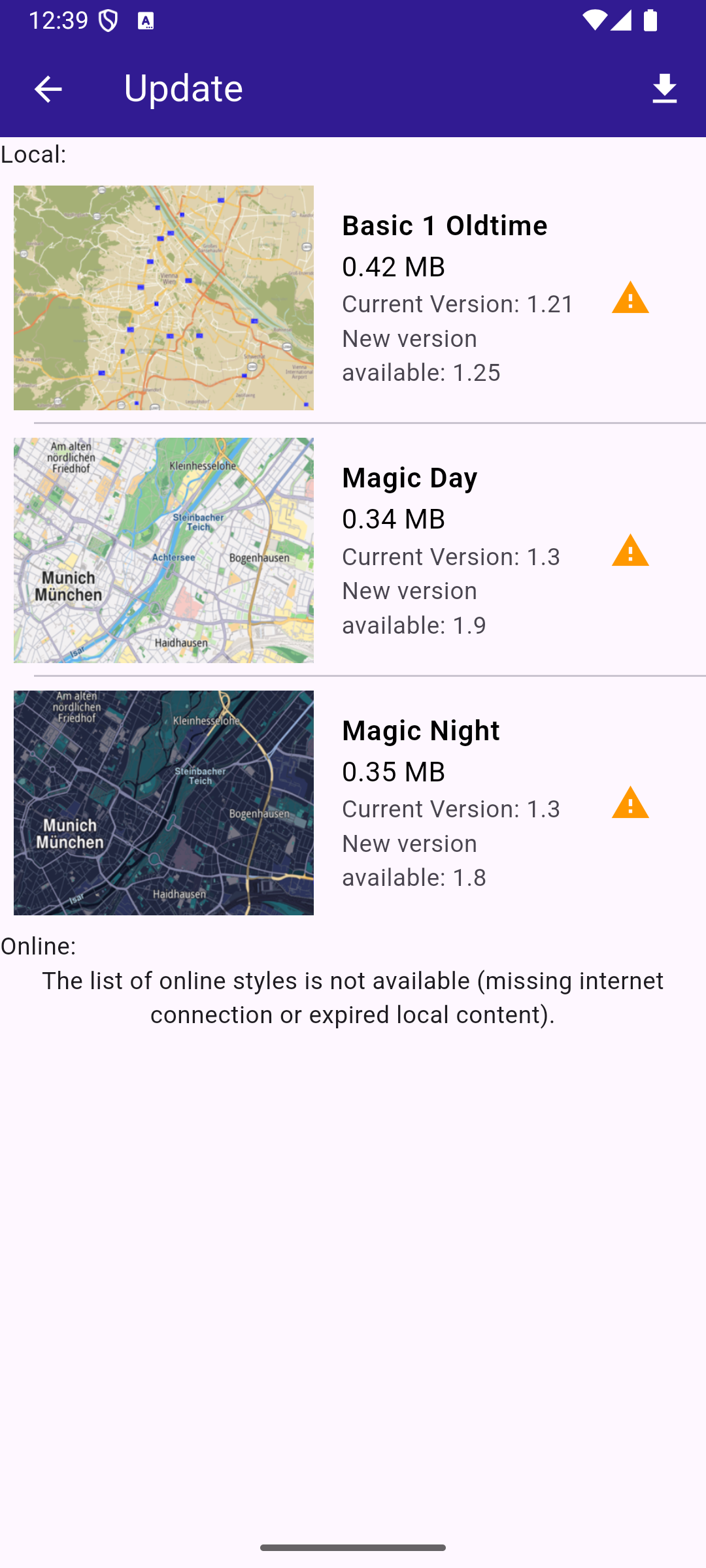

Outdated local map styles

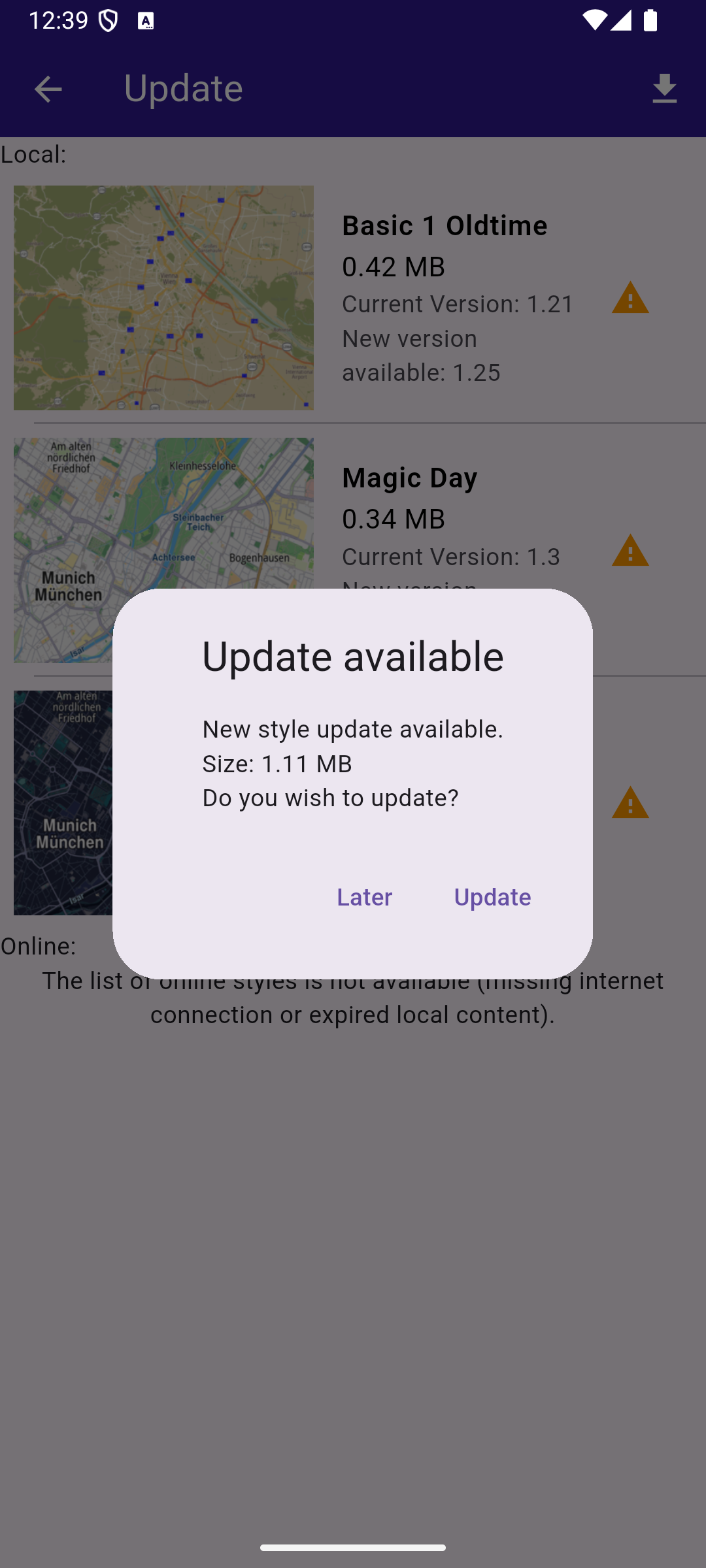

Update local styles dialog

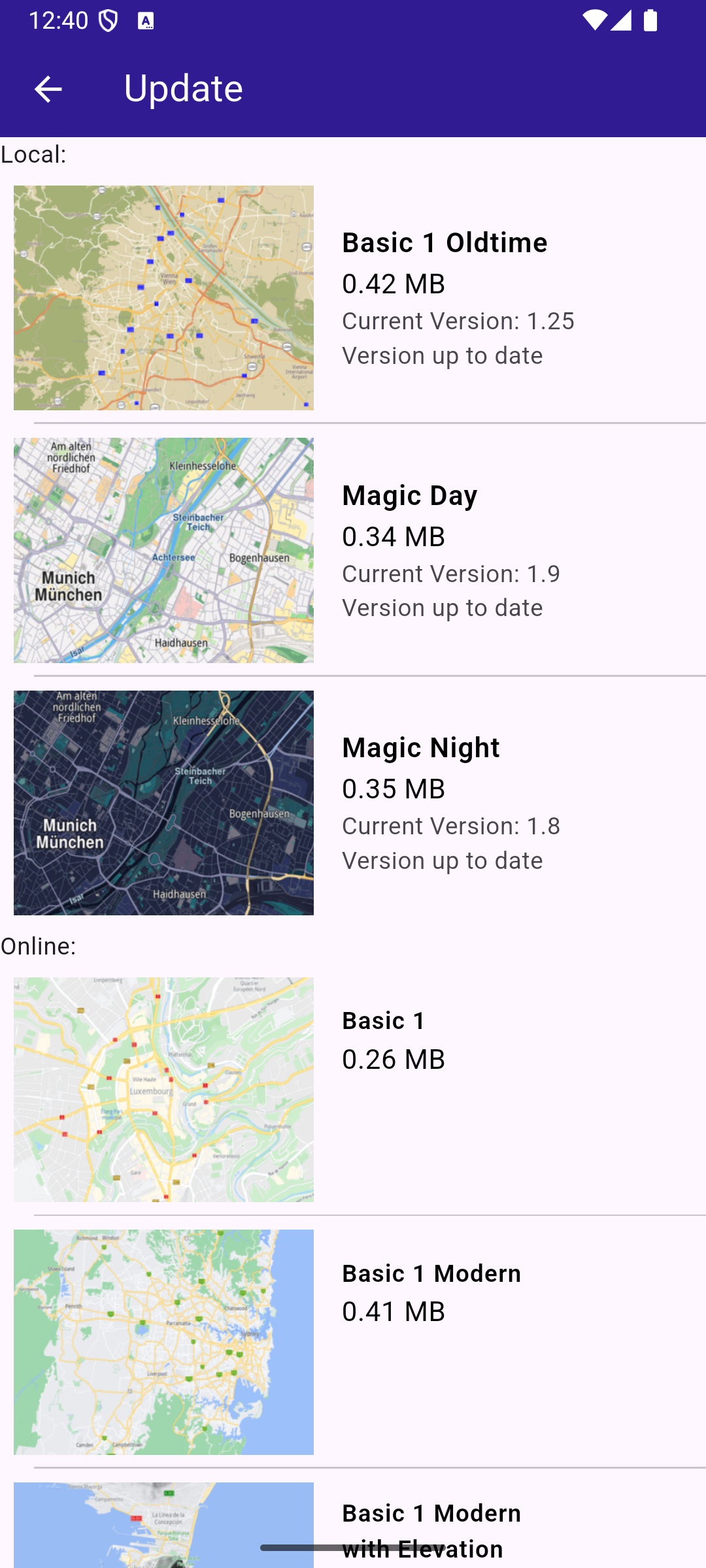

Up-to-date styles
UI and Map Integration
The following code builds a UI with a GemMap and a map styles page. The user can update local styles or download other ones.
void main() async {
WidgetsFlutterBinding.ensureInitialized();
// A init is required to create the assets directory structure where the
// styles files are located. The SDK needs to be released before copying
// the old style files into the assets directory.
await GemKit.initialize(appAuthorization: projectApiToken);
await GemKit.release();
// Simulate old styles
// delete previously existing style and get some old version
// AS A USER YOU NEVER DO THAT
await loadOldStyles(rootBundle);
final autoUpdate = AutoUpdateSettings(
isAutoUpdateForRoadMapEnabled: true,
isAutoUpdateForViewStyleHighResEnabled: false,
isAutoUpdateForViewStyleLowResEnabled: false,
isAutoUpdateForResourcesEnabled: false,
);
await GemKit.initialize(appAuthorization: projectApiToken, autoUpdateSettings: autoUpdate);
runApp(const MyApp());
}
class MyApp extends StatelessWidget {
const MyApp({super.key});
@override
Widget build(BuildContext context) {
return const MaterialApp(debugShowCheckedModeBanner: false, title: 'Map Styles Update', home: MyHomePage());
}
}
class MyHomePage extends StatefulWidget {
const MyHomePage({super.key});
@override
State<MyHomePage> createState() => _MyHomePageState();
}
class _MyHomePageState extends State<MyHomePage> {
// GemMapController object used to interact with the map
late GemMapController _mapController;
late StylesProvider stylesProvider;
@override
void initState() {
super.initState();
stylesProvider = StylesProvider.instance;
}
@override
void dispose() {
GemKit.release();
super.dispose();
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
backgroundColor: Colors.deepPurple[900],
title: const Text('Map Styles Update', style: TextStyle(color: Colors.white)),
actions: [
IconButton(
onPressed: () => _onMapButtonTap(context),
icon: const Icon(Icons.map_outlined, color: Colors.white),
),
],
),
body: GemMap(key: ValueKey("GemMap"), onMapCreated: _onMapCreated),
);
}
void _onMapCreated(GemMapController controller) async {
_mapController = controller;
}
Future<void> _onMapButtonTap(BuildContext context) async {
// Initialize the styles provider
await stylesProvider.init();
final result = await Navigator.push(
// ignore: use_build_context_synchronously
context,
MaterialPageRoute<ContentStoreItem>(builder: (context) => MapStylesUpdatePage(stylesProvider: stylesProvider)),
);
if (result != null) {
// Handle the returned data
// Wait for the map refresh to complete
await Future<void>.delayed(Duration(milliseconds: 800));
// Set selected map style
_mapController.preferences.setMapStyle(result);
}
}
}
Map Styles Page
The code that displays the list of styles is in the styles_page.dart file. You can see both online and offline items and to start/cancel the update styles process.
class MapStylesUpdatePage extends StatefulWidget {
final StylesProvider stylesProvider;
const MapStylesUpdatePage({super.key, required this.stylesProvider});
@override
State<MapStylesUpdatePage> createState() => _MapStylesUpdatePageState();
}
class _MapStylesUpdatePageState extends State<MapStylesUpdatePage> {
final stylesList = <ContentStoreItem>[];
StylesProvider stylesProvider = StylesProvider.instance;
int? updateProgress;
@override
Widget build(BuildContext context) {
final offlineStyles = StylesProvider.getOfflineStyles();
return Scaffold(
appBar: AppBar(
automaticallyImplyLeading: true,
backgroundColor: Colors.deepPurple[900],
foregroundColor: Colors.white,
title: Row(
children: [
const Text("Update", style: TextStyle(color: Colors.white)),
const SizedBox(width: 10),
if (updateProgress != null) Expanded(child: ProgressBar(value: updateProgress!)),
const SizedBox(width: 10),
],
),
actions: [
if (stylesProvider.canUpdateStyles)
updateProgress != null
? GestureDetector(
onTap: () {
stylesProvider.cancelUpdateStyles();
},
child: const Text("Cancel"),
)
: IconButton(
onPressed: () {
showUpdateDialog();
},
icon: const Icon(Icons.download),
),
],
),
body: FutureBuilder<List<ContentStoreItem>?>(
future: StylesProvider.getOnlineStyles(),
builder: (context, snapshot) {
return CustomScrollView(
slivers: [
const SliverToBoxAdapter(child: Text("Local: ")),
SliverList.separated(
separatorBuilder: (context, index) => const Divider(indent: 20, height: 0),
itemCount: offlineStyles.length,
itemBuilder: (context, index) {
final styleItem = offlineStyles.elementAt(index);
return Padding(
padding: const EdgeInsets.all(8.0),
child: OfflineItem(
styleItem: styleItem,
onItemStatusChanged: () {
if (mounted) setState(() {});
},
),
);
},
),
const SliverToBoxAdapter(child: Text("Online: ")),
if (snapshot.connectionState == ConnectionState.waiting)
const SliverToBoxAdapter(child: Center(child: CircularProgressIndicator()))
else if (snapshot.data == null || snapshot.data!.isEmpty)
const SliverToBoxAdapter(
child: Center(
child: Text(
'The list of online styles is not available (missing internet connection or expired local content).',
textAlign: TextAlign.center,
),
),
)
else
SliverList.separated(
itemCount: snapshot.data!.length,
separatorBuilder: (context, index) => const Divider(indent: 20, height: 0),
itemBuilder: (context, index) {
final styleItem = snapshot.data!.elementAt(index);
return Padding(
padding: const EdgeInsets.all(8.0),
child: StyleItem(
styleItem: styleItem,
onItemStatusChanged: () {
if (mounted) setState(() {});
},
),
);
},
),
],
);
},
),
);
}
void showUpdateDialog() {
showDialog<dynamic>(
context: context,
builder: (context) {
return CustomDialog(
title: "Update available",
content:
"New style update available.\nSize: ${(StylesProvider.computeUpdateSize() / (1024.0 * 1024.0)).toStringAsFixed(2)} MB\nDo you wish to update?",
positiveButtonText: "Update",
negativeButtonText: "Later",
onPositivePressed: () {
final statusId = stylesProvider.updateStyles(
onContentUpdaterStatusChanged: onUpdateStatusChanged,
onContentUpdaterProgressChanged: onUpdateProgressChanged,
);
if (statusId != GemError.success) {
_showMessage("Error updating $statusId");
}
},
onNegativePressed: () {
Navigator.pop(context);
},
);
},
);
}
void _showMessage(String message) => ScaffoldMessenger.of(context).showSnackBar(SnackBar(content: Text(message)));
void onUpdateProgressChanged(int? value) {
if (mounted) {
setState(() {
updateProgress = value;
});
}
}
void onUpdateStatusChanged(ContentUpdaterStatus status) {
if (mounted && isReady(status)) {
showDialog<dynamic>(
context: context,
builder: (context) {
return CustomDialog(
title: "Update finished",
content: "The update is done.",
positiveButtonText: "Ok",
negativeButtonText: "", // No negative button for this dialog
onPositivePressed: () {
//Navigator.pop(context);
},
onNegativePressed: () {
// You can leave this empty or add additional behavior if needed
},
);
},
);
}
}
}
class ProgressBar extends StatelessWidget {
final int value;
const ProgressBar({super.key, required this.value});
@override
Widget build(BuildContext context) {
return Column(
children: [
Text("$value%", style: TextStyle(fontSize: 12.0)),
LinearProgressIndicator(value: value.toDouble() * 0.01, color: Colors.white, backgroundColor: Colors.grey),
],
);
}
}
Offline and Online Style Items
class OfflineItem extends StatefulWidget {
final ContentStoreItem styleItem;
final void Function() onItemStatusChanged;
const OfflineItem({super.key, required this.styleItem, required this.onItemStatusChanged});
@override
State<OfflineItem> createState() => _OfflineItemState();
}
class _OfflineItemState extends State<OfflineItem> {
late Version _clientVersion;
late Version _updateVersion;
@override
Widget build(BuildContext context) {
final styleItem = widget.styleItem;
bool isOld = styleItem.isUpdatable;
_clientVersion = styleItem.clientVersion;
_updateVersion = styleItem.updateVersion;
return InkWell(
onTap: () => _onStyleTap(),
child: Row(
children: [
Image.memory(getStyleImage(styleItem, Size(400, 300))!, width: 175, gaplessPlayback: true),
Expanded(
child: ListTile(
title: Text(
styleItem.name,
style: const TextStyle(color: Colors.black, fontSize: 16, fontWeight: FontWeight.w600),
),
subtitle: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
"${(styleItem.totalSize / (1024.0 * 1024.0)).toStringAsFixed(2)} MB",
style: const TextStyle(color: Colors.black, fontSize: 16),
),
Text("Current Version: ${getString(_clientVersion)}"),
if (_updateVersion.major != 0 && _updateVersion.minor != 0)
Text("New version available: ${getString(_updateVersion)}")
else
const Text("Version up to date"),
],
),
trailing: (isOld) ? const Icon(Icons.warning, color: Colors.orange) : null,
),
),
],
),
);
}
// Method that downloads the current style
Future<void> _onStyleTap() async {
final item = widget.styleItem;
if (item.isUpdatable) return;
if (item.isCompleted) {
Navigator.of(context).pop(item);
}
if (getIsDownloadingOrWaiting(item)) {
// Pause the download.
item.pauseDownload();
setState(() {});
} else {
// Download the style.
_startStyleDownload(item);
}
}
void _onStyleDownloadProgressUpdated(int progress) {
if (mounted) {
setState(() {
print('Progress: $progress');
});
}
}
void _onStyleDownloadFinished(GemError err) {
widget.onItemStatusChanged();
// If success, update state
if (err == GemError.success && mounted) {
setState(() {});
}
}
void _startStyleDownload(ContentStoreItem styleItem) {
// Download style
styleItem.asyncDownload(
_onStyleDownloadFinished,
onProgressCallback: _onStyleDownloadProgressUpdated,
allowChargedNetworks: true,
);
}
}
class StyleItem extends StatefulWidget {
final ContentStoreItem styleItem;
final void Function() onItemStatusChanged;
const StyleItem({super.key, required this.styleItem, required this.onItemStatusChanged});
@override
State<StyleItem> createState() => _StyleItemState();
}
class _StyleItemState extends State<StyleItem> {
int _downloadProgress = 0;
@override
void initState() {
super.initState();
final styleItem = widget.styleItem;
_downloadProgress = styleItem.downloadProgress;
// If the style is downloading pause and start downloading again
// so the progress indicator updates value from callback
if (getIsDownloadingOrWaiting(styleItem)) {
final errCode = styleItem.pauseDownload();
if (errCode == GemError.success) {
Future.delayed(Duration(seconds: 1), () {
_startStyleDownload(styleItem);
});
} else {
print("Download pause for item ${styleItem.id} failed with code $errCode");
}
}
}
@override
Widget build(BuildContext context) {
final styleItem = widget.styleItem;
return InkWell(
onTap: () => _onStyleTap(),
child: Row(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Image.memory(getStyleImage(styleItem, Size(400, 300))!, width: 175, gaplessPlayback: true),
Expanded(
child: ListTile(
title: Text(
maxLines: 5,
styleItem.name,
overflow: TextOverflow.ellipsis,
style: const TextStyle(color: Colors.black, fontSize: 14, fontWeight: FontWeight.w600),
),
subtitle: Text(
"${(styleItem.totalSize / (1024.0 * 1024.0)).toStringAsFixed(2)} MB",
style: const TextStyle(color: Colors.black, fontSize: 16),
),
trailing: SizedBox.square(
dimension: 50,
child: Builder(
builder: (context) {
if (styleItem.isCompleted) {
return const Icon(Icons.download_done, color: Colors.green);
} else if (getIsDownloadingOrWaiting(styleItem)) {
return SizedBox(
height: 10,
child: CircularProgressIndicator(
value: _downloadProgress.toDouble() / 100,
color: Colors.blue,
backgroundColor: Colors.grey.shade300,
),
);
} else if (styleItem.status == ContentStoreItemStatus.paused) {
return const Icon(Icons.pause);
}
return const SizedBox.shrink();
},
),
),
),
),
],
),
);
}
// Method that downloads the current style
Future<void> _onStyleTap() async {
final item = widget.styleItem;
if (item.isCompleted) {
Navigator.of(context).pop(item);
}
if (getIsDownloadingOrWaiting(item)) {
// Pause the download.
item.pauseDownload();
setState(() {});
} else {
// Download the style.
_startStyleDownload(item);
}
}
void _onStyleDownloadProgressUpdated(int progress) {
if (mounted) {
setState(() {
_downloadProgress = progress;
print('Progress: $progress');
});
}
}
void _onStyleDownloadFinished(GemError err) {
widget.onItemStatusChanged();
// If success, update state
if (err == GemError.success && mounted) {
setState(() {});
}
}
void _startStyleDownload(ContentStoreItem styleItem) {
// Download style
styleItem.asyncDownload(
_onStyleDownloadFinished,
onProgressCallback: _onStyleDownloadProgressUpdated,
allowChargedNetworks: true,
);
}
}
Styles Provider class
// Singleton class for persisting update related state and logic between instances of StylesPage
class StylesProvider {
CurrentStylesStatus _currentStylesStatus = CurrentStylesStatus.unknown;
ContentUpdater? _contentUpdater;
void Function(int?)? _onContentUpdaterProgressChanged;
StylesProvider._privateConstructor();
static final StylesProvider instance = StylesProvider._privateConstructor();
Future<void> init() {
final completer = Completer<void>();
SdkSettings.setAllowInternetConnection(true);
// Keep track of the new styles status
SdkSettings.offBoardListener.registerOnWorldwideRoadMapSupportStatus((status) async {
print("StylesProvider: Styles status updated: $status");
});
SdkSettings.offBoardListener.registerOnAvailableContentUpdate((type, status) {
if (type == ContentType.viewStyleHighRes || type == ContentType.viewStyleLowRes) {
_currentStylesStatus = CurrentStylesStatus.fromStatus(status);
}
if (!completer.isCompleted) {
completer.complete();
}
});
// Force trying the style update process
// The user will be notified via onAvailableContentUpdateCallback
final code = ContentStore.checkForUpdate(ContentType.viewStyleHighRes);
print("StylesProvider: checkForUpdate resolved with code $code");
return completer.future;
}
CurrentStylesStatus get stylesStatus => _currentStylesStatus;
bool get isUpToDate => _currentStylesStatus == CurrentStylesStatus.upToDate;
bool get canUpdateStyles =>
_currentStylesStatus == CurrentStylesStatus.expiredData || _currentStylesStatus == CurrentStylesStatus.oldData;
GemError updateStyles({
void Function(ContentUpdaterStatus)? onContentUpdaterStatusChanged,
void Function(int?)? onContentUpdaterProgressChanged,
}) {
if (_contentUpdater != null) return GemError.inUse;
final result = ContentStore.createContentUpdater(ContentType.viewStyleHighRes);
// If successfully created a new content updater
// or one already exists
if (result.$2 == GemError.success || result.$2 == GemError.exist) {
_contentUpdater = result.$1;
_onContentUpdaterProgressChanged = onContentUpdaterProgressChanged;
_onContentUpdaterProgressChanged?.call(0);
// Call the update method
_contentUpdater!.update(
true,
onStatusUpdated: (status) {
print("StylesProvider: onNotifyStatusChanged with code $status");
// fully ready - for all old styles the new styles are downloaded
// partially ready - only a part of the new styles were downloaded because of memory constraints
if (isReady(status)) {
// newer styles are downloaded and everything is set to
// - delete old styles and keep the new ones
// - update style version to the new version
final err = _contentUpdater!.apply();
print("StylesProvider: apply resolved with code ${err.code}");
if (err == GemError.success) {
_currentStylesStatus = CurrentStylesStatus.upToDate;
}
_onContentUpdaterProgressChanged?.call(null);
_onContentUpdaterProgressChanged = null;
_contentUpdater = null;
}
onContentUpdaterStatusChanged?.call(status);
},
onProgressUpdated: (progress) {
_onContentUpdaterProgressChanged?.call(progress);
print('Progress: $progress');
},
onComplete: (error) {
if (error == GemError.success) {
print('StylesProvider: Successful update');
} else {
print('StylesProvider: Update finished with error $error');
}
},
);
} else {
print("StylesProvider: There was an error creating the content updater: ${result.$2}");
}
return result.$2;
}
void cancelUpdateStyles() {
_contentUpdater?.cancel();
_onContentUpdaterProgressChanged?.call(null);
_onContentUpdaterProgressChanged = null;
_contentUpdater = null;
}
// Method to load the online styles list
static Future<List<ContentStoreItem>> getOnlineStyles() async {
final stylesListCompleter = Completer<List<ContentStoreItem>>();
ContentStore.asyncGetStoreContentList(ContentType.viewStyleHighRes, (err, items, isCached) {
if (err == GemError.success && items != null) {
stylesListCompleter.complete(items);
} else {
stylesListCompleter.complete([]);
}
});
return stylesListCompleter.future;
}
// Method to load the downloaded styles list
static List<ContentStoreItem> getOfflineStyles() {
final localStyles = ContentStore.getLocalContentList(ContentType.viewStyleHighRes);
final result = <ContentStoreItem>[];
for (final style in localStyles) {
if (style.status == ContentStoreItemStatus.completed) {
result.add(style);
}
}
return result;
}
// Method to compute update size (sum of all style sizes)
static int computeUpdateSize() {
final localStyles = ContentStore.getLocalContentList(ContentType.viewStyleHighRes);
int sum = 0;
for (final localStyle in localStyles) {
if (localStyle.isUpdatable && localStyle.status == ContentStoreItemStatus.completed) {
sum += localStyle.updateSize;
}
}
return sum;
}
}
enum CurrentStylesStatus {
expiredData, // more than one version behind
oldData, // one version behind
upToDate, // updated
unknown; // not received any notification yet
static CurrentStylesStatus fromStatus(MapStatus status) {
switch (status) {
case MapStatus.expiredData:
return CurrentStylesStatus.expiredData;
case MapStatus.oldData:
return CurrentStylesStatus.oldData;
case MapStatus.upToDate:
return CurrentStylesStatus.upToDate;
}
}
}
String getString(Version version) => '${version.major}.${version.minor}';
// Map style image preview
Uint8List? getStyleImage(ContentStoreItem contentItem, Size? size) =>
contentItem.imgPreview.getRenderableImageBytes(size: size, format: ImageFileFormat.png);
bool getIsDownloadingOrWaiting(ContentStoreItem contentItem) => [
ContentStoreItemStatus.downloadQueued,
ContentStoreItemStatus.downloadRunning,
ContentStoreItemStatus.downloadWaitingNetwork,
ContentStoreItemStatus.downloadWaitingFreeNetwork,
ContentStoreItemStatus.downloadWaitingNetwork,
].contains(contentItem.status);
bool isReady(ContentUpdaterStatus updaterStatus) =>
updaterStatus == ContentUpdaterStatus.partiallyReady || updaterStatus == ContentUpdaterStatus.fullyReady;
Future<void> loadOldStyles(AssetBundle assetBundle) async {
const style = 'Basic_1_Oldtime-1_21_656.style';
final dirPath = await _getDirPath();
final resFilePath = path.joinAll([dirPath.path, "Data", "SceneRes"]);
await _deleteAssets(resFilePath, RegExp(r'Basic_1_Oldtime.+\.style'));
await _loadAsset(assetBundle, style, resFilePath);
}
Future<bool> _loadAsset(AssetBundle assetBundle, String assetName, String destinationDirectoryPath) async {
final destinationFilePath = path.join(destinationDirectoryPath, assetName);
File file = File(destinationFilePath);
if (await file.exists()) {
return false;
}
await file.create();
final asset = await assetBundle.load('assets/$assetName');
final buffer = asset.buffer;
await file.writeAsBytes(buffer.asUint8List(asset.offsetInBytes, asset.lengthInBytes), flush: true);
print('INFO: Copied asset $destinationFilePath.');
return true;
}
Future<Directory> _getDirPath() async {
if (Platform.isAndroid) {
return (await getExternalStorageDirectory())!;
} else if (Platform.isIOS) {
return await getApplicationDocumentsDirectory();
} else {
throw Exception('Platform not supported');
}
}
Future<void> _deleteAssets(String directoryPath, RegExp pattern) async {
final directory = Directory(directoryPath);
if (!directory.existsSync()) {
print('WARNING: Directory $directoryPath not found.');
}
for (final file in directory.listSync()) {
final filename = path.basename(file.path);
if (pattern.hasMatch(filename)) {
try {
print('INFO DELETE ASSETS: deleting file ${file.path}');
file.deleteSync();
} catch (e) {
print('WARNING: Deleting file ${file.path} failed. Reason:\n${e.toString()}.');
}
}
}
}
