Add Markers

_|

This example demonstrates how to create a Flutter app that displays a large number of markers on a map using Maps SDK for Flutter.

Saving Assets

Before running the app, ensure that you save the necessary files (marker icons) into the assets directory.

Update your pubspec.yaml file to include these assets:

flutter:
  assets:
    - assets/

How It Works

The example app demonstrates the following features:

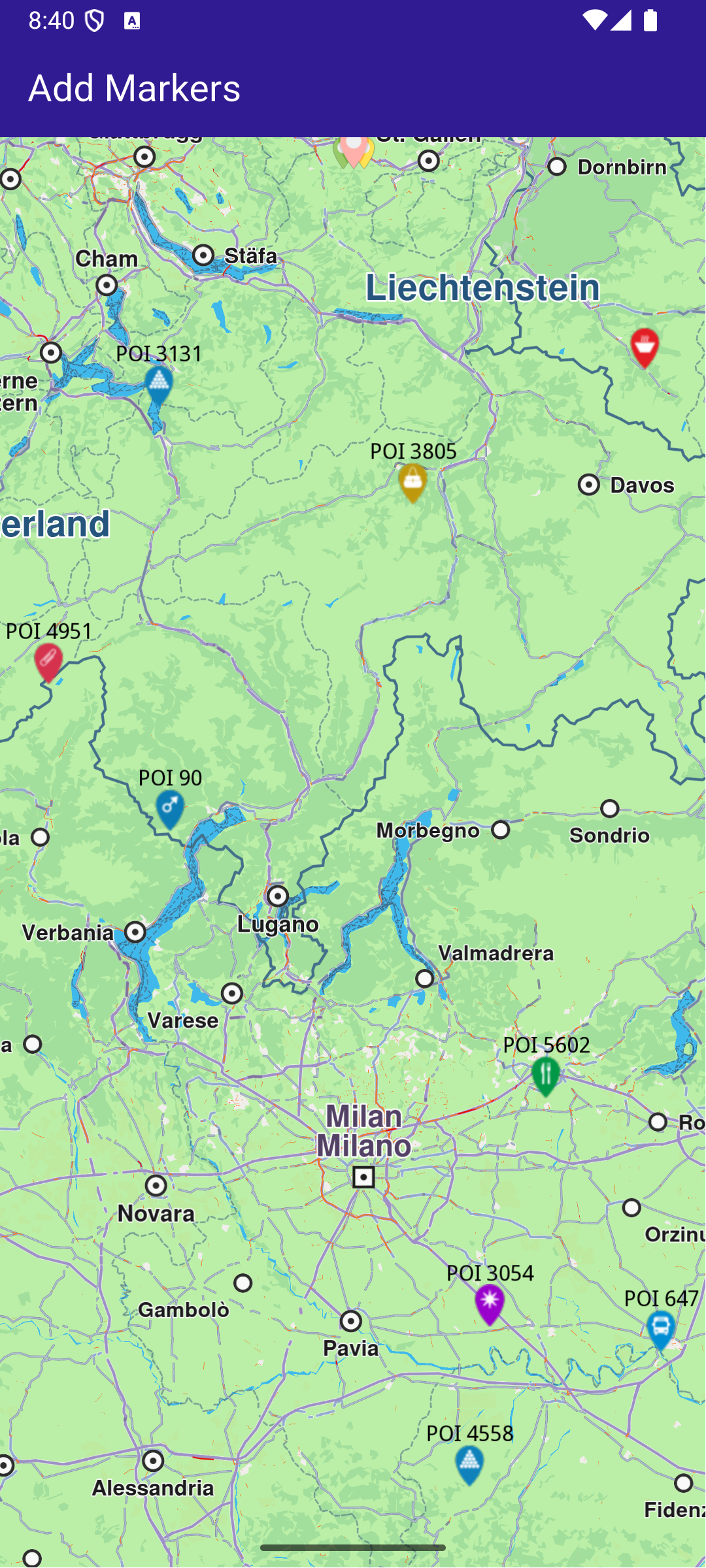

• Display a large number of markers on the map.

GemMap widget

UI and Map Integration

This code sets up the basic structure of the app, including the map and the app bar, and initializes the map when it is created.

main.dart

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return const MaterialApp(
      debugShowCheckedModeBanner: false,
      title: 'Add Markers',
      home: MyHomePage(),
    );
  }
}

class MyHomePage extends StatefulWidget {
  const MyHomePage({super.key});

  @override
  State<MyHomePage> createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
  late GemMapController _mapController;

  @override
  void dispose() {
    GemKit.release();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        backgroundColor: Colors.deepPurple[900],
        title: const Text('Hello Map', style: TextStyle(color: Colors.white)),
      ),
      body: GemMap(
        key: ValueKey("GemMap"),
        onMapCreated: _onMapCreated,
        appAuthorization: projectApiToken,
      ),
    );
  }

  // The callback for when map is ready to use.
  Future<void> _onMapCreated(GemMapController controller) async {
    // Save controller for further usage.
    _mapController = controller;

    await addMarkers();
}

Adding and displaying Markers

This code creates and adds a large number of markers to the map, generating random coordinates across Europe for demonstration purposes. It loads PNG images from assets to be used as marker icons.

main.dart

Future<void> addMarkers() async {
  final listPngs = await loadPngs();
  final ByteData imageData = await rootBundle.load('assets/pois/GroupIcon.png');
  final Uint8List imageBytes = imageData.buffer.asUint8List();

  Random random = Random();
  double minLat = 35.0; // Southernmost point of Europe
  double maxLat = 71.0; // Northernmost point of Europe
  double minLon = -10.0; // Westernmost point of Europe
  double maxLon = 40.0; // Easternmost point of Europe

  List<MarkerWithRenderSettings> markers = [];

  // Generate random coordinates for markers.
  for (int i = 0; i < 8000; ++i) {
    double randomLat = minLat + random.nextDouble() * (maxLat - minLat);
    double randomLon = minLon + random.nextDouble() * (maxLon - minLon);

    final marker = MarkerJson(
      coords: [Coordinates(latitude: randomLat, longitude: randomLon)],
      name: "POI $i",
    );

      // Choose a random POI icon for the marker and set the label size.
      final renderSettings = MarkerRenderSettings(
        image: GemImage(
          image: listPngs[random.nextInt(listPngs.length)],
          format: ImageFileFormat.png,
        ),
        labelTextSize: 2.0,
      );

      // Create a MarkerWithRenderSettings object.
      final markerWithRenderSettings = MarkerWithRenderSettings(
        marker,
        renderSettings,
      );

      // Add the marker to the list of markers.
      markers.add(markerWithRenderSettings);
    }

    // Create the settings for the collections.
    final settings = MarkerCollectionRenderSettings();

    // Set the label size.
    settings.labelGroupTextSize = 2;

    // The zoom level at which the markers will be grouped together.
    settings.pointsGroupingZoomLevel = 35;

    // Set the image of the collection.
    settings.image = GemImage(image: imageBytes, format: ImageFileFormat.png);
    // To delete the list you can use this method: _mapController.preferences.markers.clear();

    // Add the markers and the settings on the map.
    _mapController.preferences.markers.addList(
      list: markers,
      settings: settings,
      name: "Markers",
    );
  }

Future<List<Uint8List>> loadPngs() async {
  List<Uint8List> pngs = [];
  for (int i = 83; i < 183; ++i) {
    try {
      final ByteData imageData = await rootBundle.load('assets/pois/poi$i.png');
      final Uint8List png = imageData.buffer.asUint8List();
      pngs.add(png);
    } catch (e) {
      throw ("Error loading png $i");
    }
  }
  return pngs;
}
