Favourites

_{Estimated reading time: 6 minutes}

In this guide you will learn how to insert a landmark into the favorites, and also how to remove a landmark from the favorites.

Setup

1. Get your Magic Lane API key token: if you do not have a token, see the Getting Started guide.
2. Download the Maps & Navigation SDK for Android archive file.
3. Download the Favourites project archive file or clone the project with git.
4. See the Configure Android Example guide.

Run the example

In Android Studio, from the File menu, select Sync Project with Gradle Files.

1. An android device should be connected via USB cable.
2. Press SHIFT+F10 to compile, install and run the example on the android device.

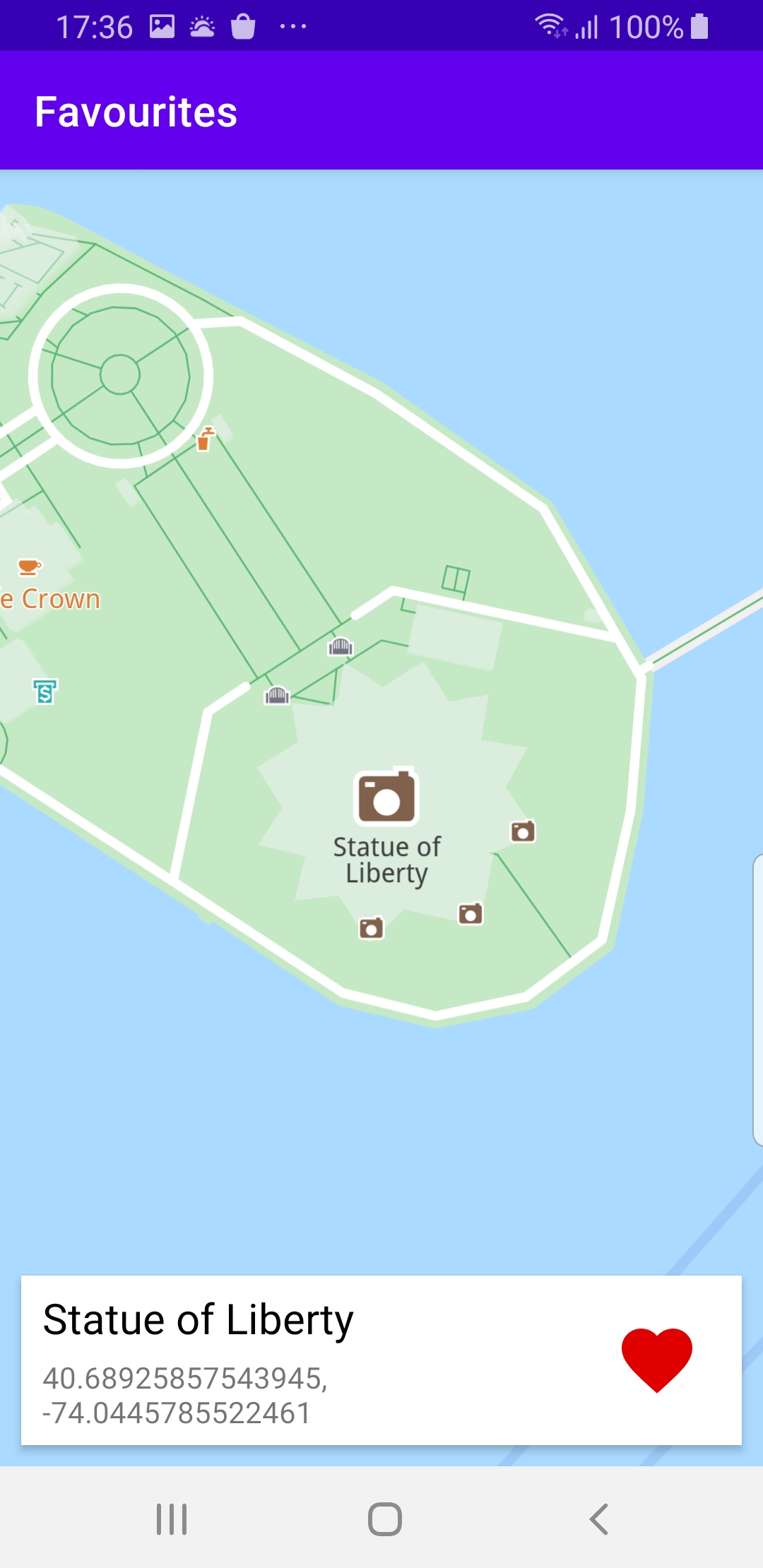

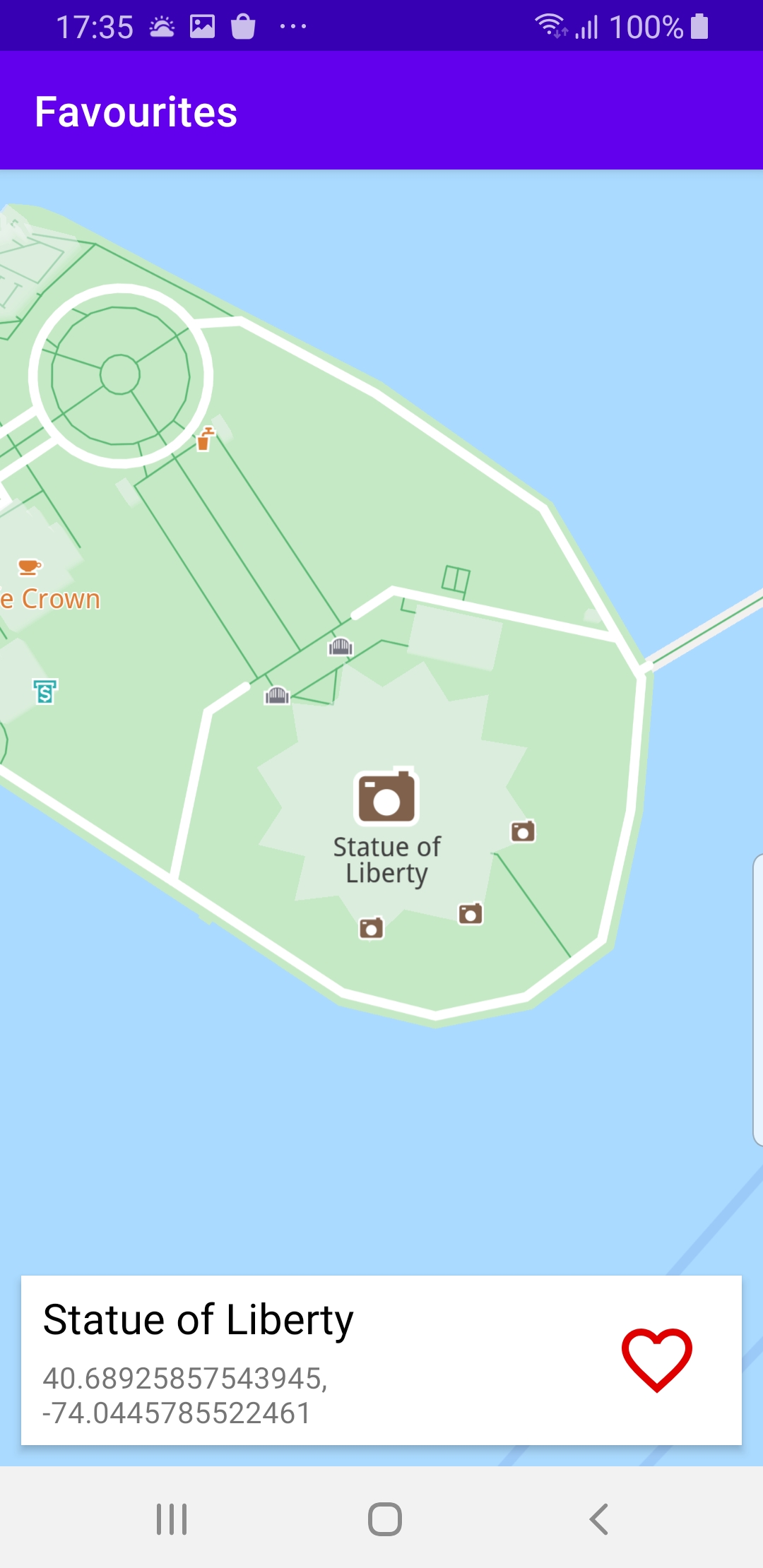

The heart icon shows that the landmark is added to the favorites when it is filled, and not added to the favorites when it is just a contour.

How it works

You can open the MainActivity.kt file to see how the a landmark is added to, or removed from, the favorites.

private lateinit var store: LandmarkStore
private val searchService = SearchService(
     onStarted = {
         progressBar.visibility = View.VISIBLE
         showStatusMessage("Search service has started!")
     },
     onCompleted = { results, errorCode, _ ->
         progressBar.visibility = View.GONE
         showStatusMessage("Search service completed with error code: $errorCode")
         when (errorCode)
         {
             GemError.NoError ->
             {
                 if (results.isNotEmpty())
                 {
                     val landmark = results[0]
                     flyTo(landmark)
                     displayLocationInfo(landmark)
                     showStatusMessage("The search completed without errors.")
                 }
                 else
                 {
                     // The search completed without errors, but there were no results found.
                     showStatusMessage("The search completed without errors, but there were no results found.")
                 }
             }
             GemError.Cancel ->
             {
                 // The search action was cancelled.
             }
             else ->
             {
                 // There was a problem at computing the search operation.
                 showDialog("Search service error: ${GemError.getMessage(errorCode)}")
             }
         }
     }
)

In the class MainActivity : AppCompatActivity(), an instance of each of the following is created:

• var store: LandmarkStore a landmark store, so the favorited landmark(s) can be written into the data folder;
• val searchService = SearchService() a search service, so that the id of a result landmark can be obtained. The search service implements the onStarted and onCompleted callbacks. When the search completes, if the result list is not empty, then the first item in the result list (at index 0) is taken and the camera flies to the location of that result:

• val landmark = results[0]
• flyTo(landmark)
• displayLocationInfo(landmark)

private fun flyTo(landmark: Landmark) = SdkCall.execute {
     landmark.geographicArea?.let { area ->
         gemSurfaceView.mapView?.let { mainMapView ->
             // Center the map on a specific area using the provided animation.
             mainMapView.centerOnArea(area)
             // Highlights a specific area on the map using the provided settings.
             mainMapView.activateHighlightLandmarks(landmark)
         }
     }
}

After the search completes and the camera flies to the target, it is up to the user whether to add it to the favorites or not, using the button in the lower right corner of the viewport. The flyTo() function is implemented using mainMapView.centerOnArea(area).

private fun displayLocationInfo(landmark: Landmark)
{
     // Display a view containing the necessary information about the landmark.
     var name = ""
     var coordinates = ""
     SdkCall.execute {
         name = landmark.name ?: "Unnamed Location"
         landmark.coordinates?.apply { coordinates = "$latitude, $longitude" }
     }
     Util.postOnMain {
         locationDetails.apply {
             val nameView = findViewById<TextView>(R.id.name)
             val coordinatesView = findViewById<TextView>(R.id.coordinates)
             val imageView = findViewById<ImageView>(R.id.favourites_icon)
             // Update the favourites icon based on the status of the landmark.
             updateFavouritesIcon(imageView, getFavouriteId(landmark) != -1)
             // Display the name and coordinates of the landmark.
             nameView.text = name
             coordinatesView.text = coordinates
             // Treat favourites icon click event (Add/ Remove from favourites)
             imageView.setOnClickListener {
                 val landmarkId = getFavouriteId(landmark)
                 if (landmarkId != -1)
                 {
                     deleteFromFavourites(landmarkId)
                     updateFavouritesIcon(imageView, false)
                     showStatusMessage("The landmark was deleted from favourites.")
                 }
                 else
                 {
                     addToFavourites(landmark)
                     updateFavouritesIcon(imageView, true)
                     showStatusMessage("The landmark was added to favourites.")
                 }
             }
             this.visibility = View.VISIBLE
         }
     }
}

The displayLocationInfo() function is called when the search completes with a non-empty result list. The function displays the name and coordinates of the landmark on screen, as well as a red heart-shaped icon which is filled if the landmark is set as a favorite and just an outline if it is not.
A click listener is set for the heart-shaped icon, imageView.setOnClickListener so the landmark is added to the favorites if the icon is clicked and the landmark is not already in the favorites; and conversely, the landmark is removed from the favorites if the icon is clicked and the landmark is already in the favorites.

private fun getFavouriteId(landmark: Landmark): Int = SdkCall.execute {
     /*
     Get the ID of the landmark saved in the store so we can use it to remove it
     or to check if it's already a favourite.
      */
     val radius = 5.0 // meters
     val area = landmark.coordinates?.let { RectangleGeographicArea(it, radius, radius) }
     val landmarks = area?.let { store.getLandmarksByArea(it) } ?: return@execute -1
     val threshold = 0.00001
     landmarks.forEach {
         val itCoordinates = it.coordinates
         val landmarkCoordinates = landmark.coordinates
         if (itCoordinates != null && landmarkCoordinates != null)
         {
             if ((itCoordinates.latitude - landmarkCoordinates.latitude < threshold) &&
                 (itCoordinates.longitude - landmarkCoordinates.longitude < threshold))
                 return@execute it.id
         }
         else
             return@execute -1
     }
     -1
} ?: -1

Note that to add or remove a landmark from the favorites, the ID of that landmark must be obtained, using the getFavouriteId() function which does a linear search through all landmarks in a specified set, and looks for coordinates that match within a specified threshold.

override fun onCreate(savedInstanceState: Bundle?)
{
     super.onCreate(savedInstanceState)
     setContentView(R.layout.activity_main)
     progressBar = findViewById(R.id.progressBar)
     gemSurfaceView = findViewById(R.id.gem_surface)
     locationDetails = findViewById(R.id.location_details)
     statusText = findViewById(R.id.status_text)
     SdkSettings.onMapDataReady = onMapDataReady@{ isReady ->
         if (!isReady) return@onMapDataReady
         // Defines an action that should be done after the world map is ready.
         SdkCall.execute {
             createStore()
             val text = "Statue of Liberty New York"
             val coordinates = Coordinates(40.68925476, -74.04456329)
             searchService.searchByFilter(text, coordinates)
         }
     }
     SdkSettings.onApiTokenRejected = {
         showDialog("TOKEN REJECTED")
     }
     if (!Util.isInternetConnected(this))
     {
         showDialog("You must be connected to internet!")
     }
}
 private fun createStore()
 {
     store = LandmarkStoreService().createLandmarkStore("Favourites")?.first!!
 }

MainActivity overrides the onCreate() function which checks that internet access is available, then calls the createStore() function, which instantiates a Landmark store to for the favorites, and then does a search for a hardcoded target:

• createStore()
• val text = "Statue of Liberty New York"
• val coordinates = Coordinates(0.0, 0.0)
• searchService.searchByFilter(text, coordinates) Note that the coordinates of the target are not required for the search and can be set to zero.
