Text Search

_|

In this guide you will learn how to do a text search and select a result to be displayed on an interactive map.

How it works

This example demonstrates the following features:

• Search for landmarks using a text input, with results being displayed on an interactive map.

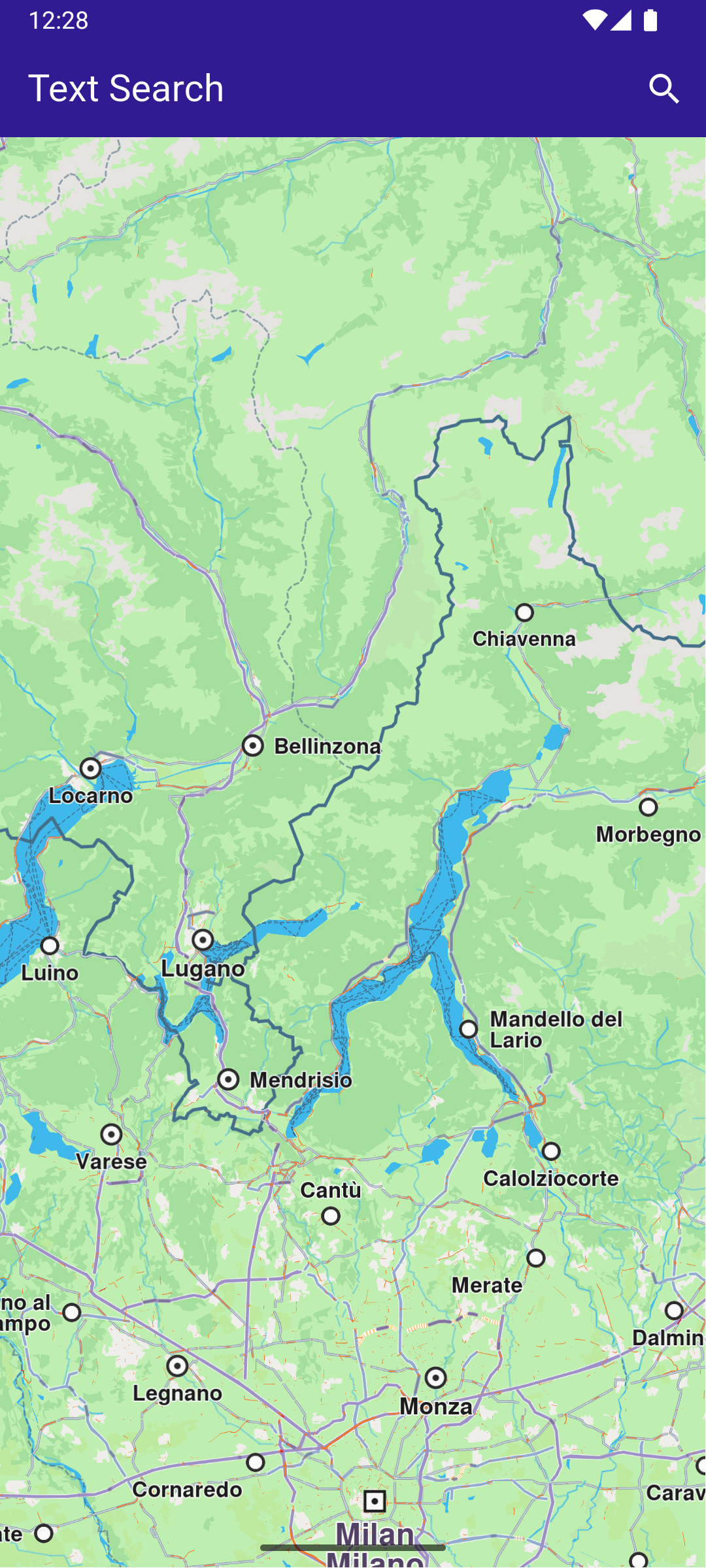

Initial map view

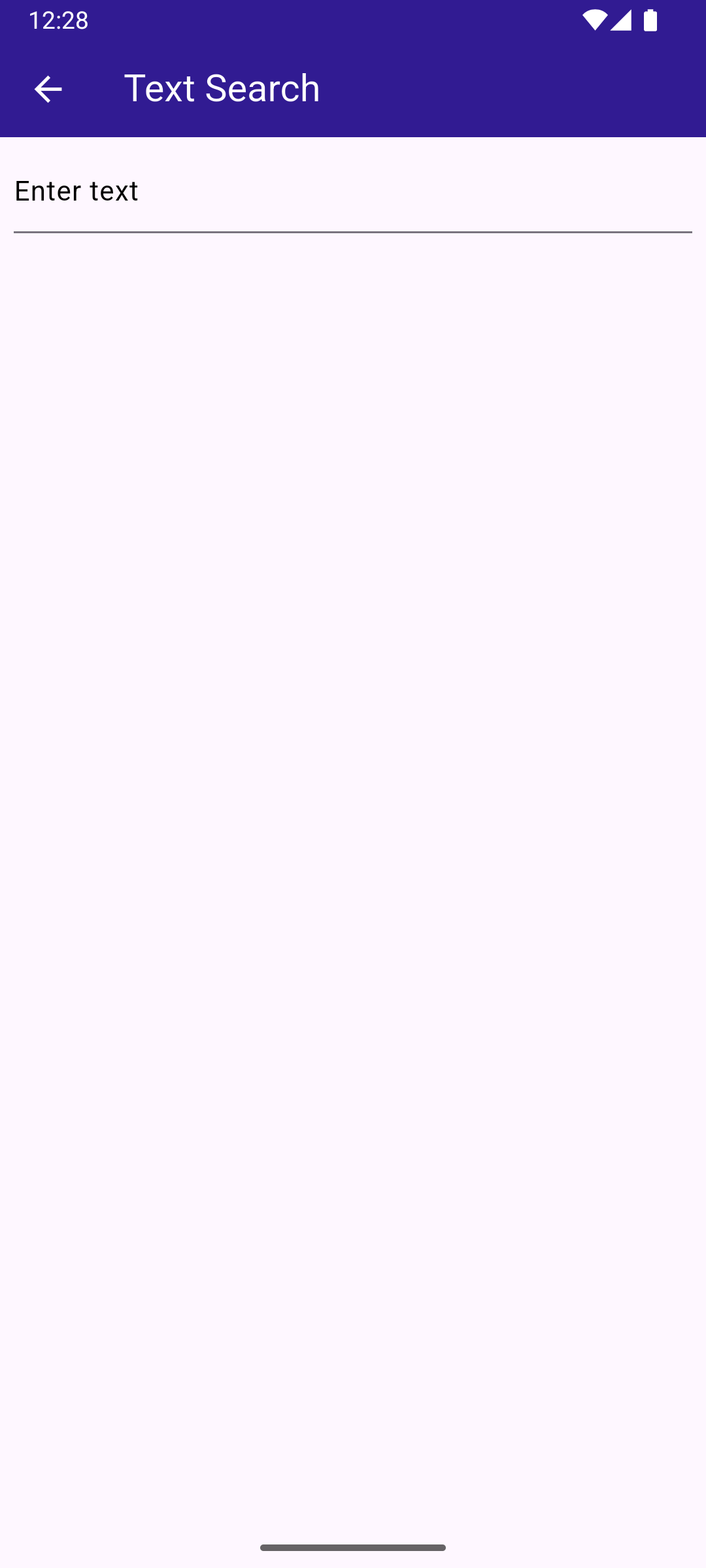

Text search page

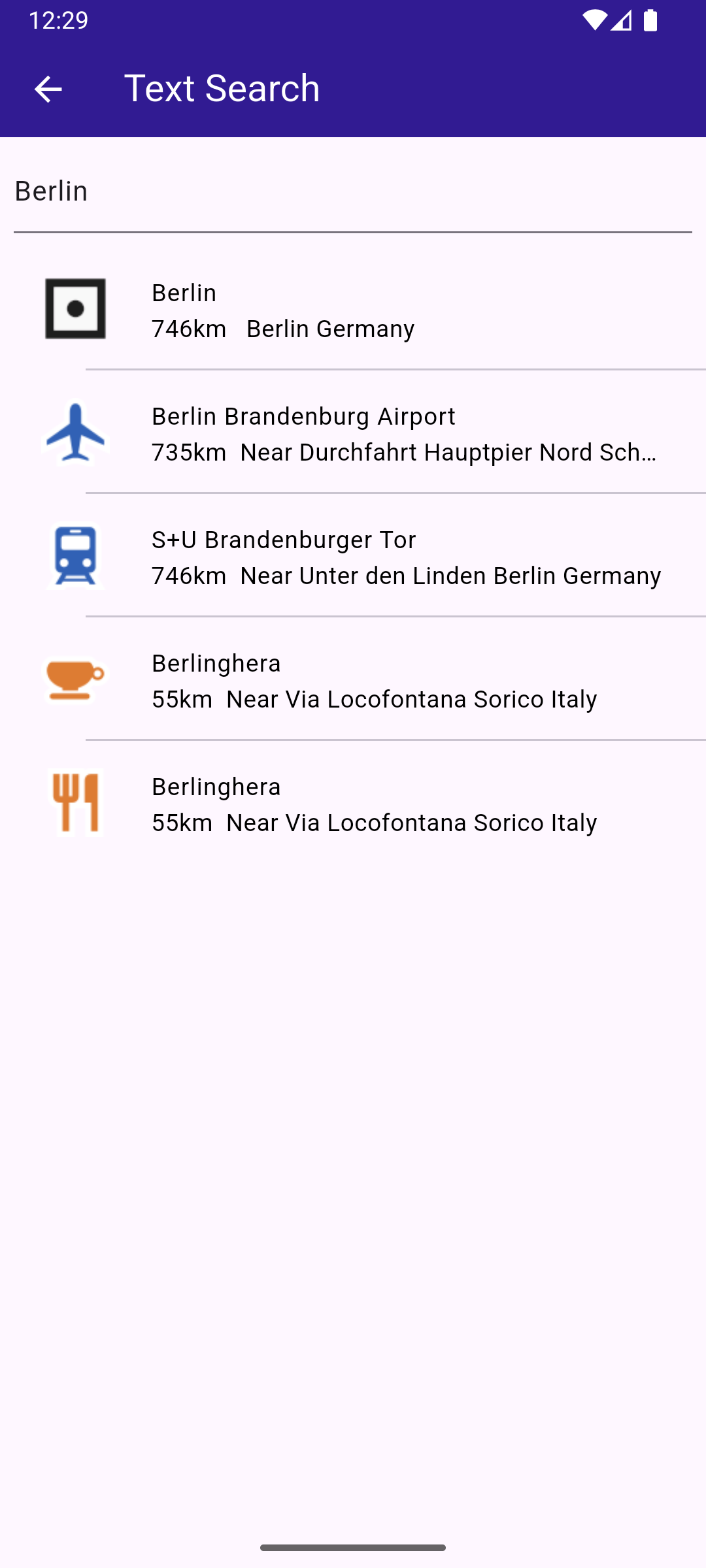

Text search page with results

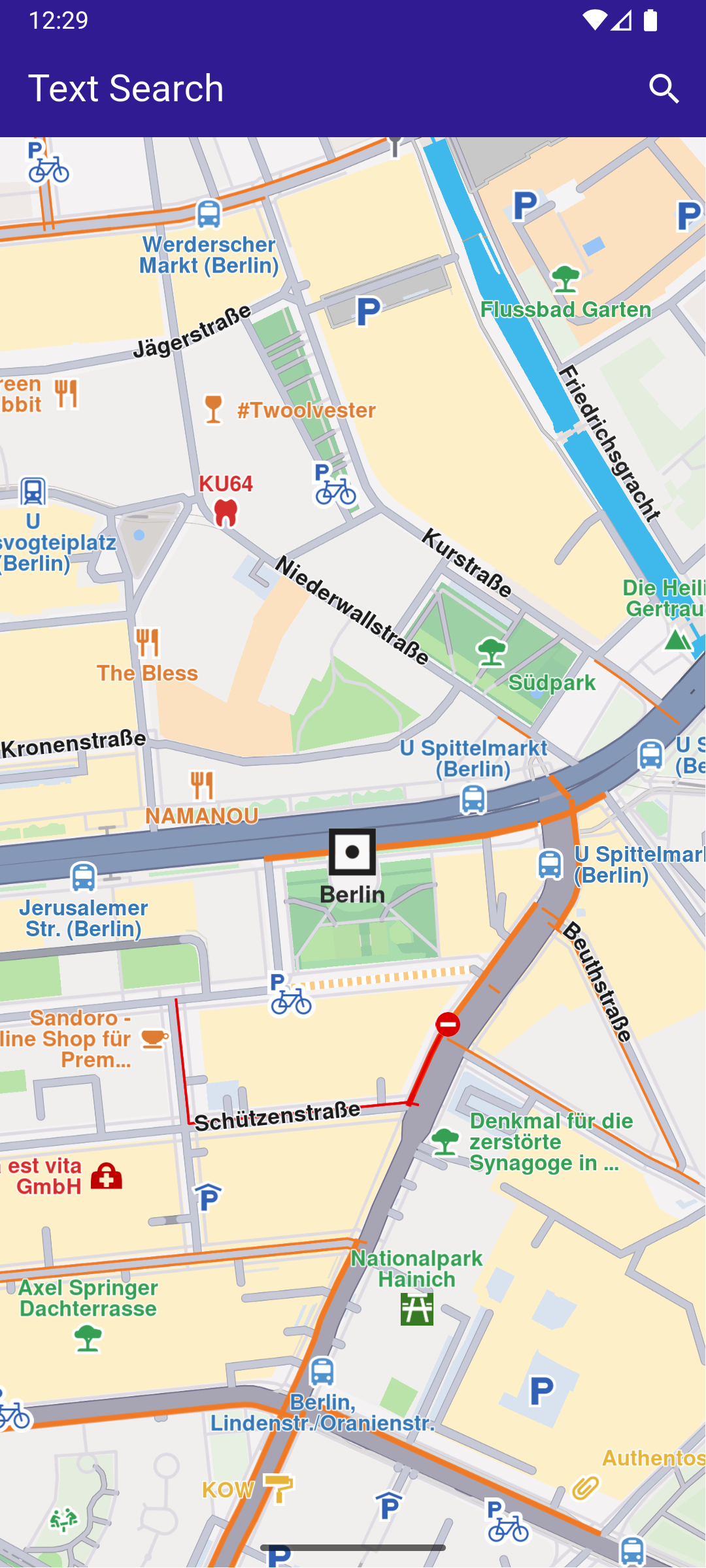

Camera centered on picked result

Handling Search Button tap

This is the method to navigate to the search screen, defined in the SearchPage() widget, in search_page.dart

main.dart

// Custom method for navigating to search screen
void _onSearchButtonPressed(BuildContext context) async {
// Taking the coordinates at the center of the screen as reference coordinates for search.
 final x = MediaQuery.of(context).size.width / 2;
 final y = MediaQuery.of(context).size.height / 2;
 final mapCoords = _mapController.transformScreenToWgs(XyType(x: x.toInt(), y: y.toInt()));

// Navigating to search screen. The result will be the selected search result(Landmark)
 final result = await Navigator.of(context).push(MaterialPageRoute<dynamic>(
   builder: (context) => SearchPage(coordinates: mapCoords!),
 ));

 if (result is Landmark) {
   // Retrieves the LandmarkStore with the given name.
   var historyStore = LandmarkStoreService.getLandmarkStoreByName("History");

   // If there is no LandmarkStore with this name, then create it.
   historyStore ??= LandmarkStoreService.createLandmarkStore("History");

   // Add the landmark to the store.
   historyStore.addLandmark(result);

   // Activating the highlight
   _mapController.activateHighlight([result], renderSettings: RenderSettings());

   // Centering the map on the desired coordinates
   _mapController.centerOnCoordinates(result.coordinates);
 }
}

As text is typed in the text field by the user, the _onSearchSubmitted() function is called, which creates a preferences instance and then the search() function is called.

The coordinates of the current location displayed on the map widget.coordinates are used for comparison, to compute the distance to the positions of the search results.

search_page.dart

void _onSearchSubmitted(String text) {
  SearchPreferences preferences = SearchPreferences(maxMatches: 40, allowFuzzyResults: true);

  search(text, widget.coordinates, preferences: preferences);
}

The search() function calls the SearchService.search() , obtains a list of landmarks in results , which are then displayed as a text list. Tapping on a result causes the map to be centered on the position of that search result.

This is done in the method that calls SearchPage() above.

The result landmark tapped by the user is selected:

main.dart

_mapController.activateHighlight([result], renderSettings: RenderSettings());

Then the map is centered on the coordinates of that result landmark:

main.dart

_mapController.centerOnCoordinates(result.coordinates);

search_page.dart

// Search method. Text and coordinates parameters are mandatory, preferences are optional.
Future<void> search(String text, Coordinates coordinates, {SearchPreferences? preferences}) async {
  Completer<List<Landmark>> completer = Completer<List<Landmark>>();

// Calling the search method from the sdk.
// (err, results) - is a callback function that calls when the computing is done.
// err is an error code, results is a list of landmarks
  SearchService.search(text, coordinates, preferences: preferences, (err, results) async {
    // If there is an error or there aren't any results, the method will return an empty list.
    if (err != GemError.success || results == null) {
      completer.complete([]);
      return;
    }
    if (!completer.isCompleted) completer.complete(results);
  });
  final result = await completer.future;
  setState(() {
    landmarks = result;
  });
}

Search Result Item

search_page.dart

class SearchResultItem extends StatefulWidget {
  final Landmark landmark;

  const SearchResultItem({super.key, required this.landmark});

  @override
  State<SearchResultItem> createState() => _SearchResultItemState();
}

class _SearchResultItemState extends State<SearchResultItem> {
  @override
  Widget build(BuildContext context) {
    return ListTile(
      onTap: () => Navigator.of(context).pop(widget.landmark),
      leading: Container(
        padding: const EdgeInsets.all(8),
        child:
        widget.landmark.img.isValid ? Image.memory(widget.landmark.img.getRenderableImageBytes(size: Size(50, 50))!) : SizedBox(),
      ),
      title: Text(
        widget.landmark.name,
        overflow: TextOverflow.fade,
        style: const TextStyle(
          color: Colors.black,
          fontSize: 14,
          fontWeight: FontWeight.w400,
        ),
        maxLines: 2,
      ),
      subtitle: Text(
        '${widget.landmark.getFormattedDistance()} ${widget.landmark.getAddress()}',
        overflow: TextOverflow.ellipsis,
        style: const TextStyle(
          color: Colors.black,
          fontSize: 14,
          fontWeight: FontWeight.w400,
        ),
      ),
    );
  }
}
