Polylines On A Map

Estimated reading time: 2 minutes

In this guide you will learn how to draw/render polylines on an interactive map. The map is fully 3D, supporting pan, pinch-zoom, rotate and tilt.

Setup​

  1. Get your Magic Lane API key token: if you do not have a token, see the Getting Started guide.
  2. See the Setup Maps SDK for iOS guide.
  3. Download the Polylines project example or clone the project with Git.//check
  4. Extract/unpack the MapView project archive to a folder/directory of your choice. You can create a new directory where to unpack it.

Open the Project​

Studio

Start Xcode, and in the welcome dialog, choose Open an existing project.

Studio

If Xcode is already started, go to the File menu and choose Open.

Studio

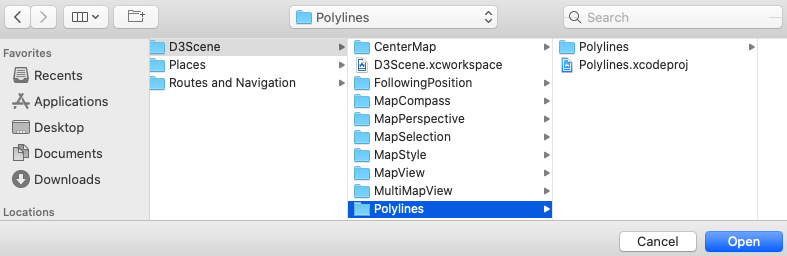

Select the MapView.xcodeproj file and click Open.

Verify that Maps SDK for iOS is configured in Xcode, see the Setup Maps SDK for iOS guide.

Set the API key token​

Studio

In any of the Maps SDK for iOS example projects, click the AppDelegate.swift file and scroll down to the getProjectApiToken() function, and replace YOUR_TOKEN with your actual Magic Lane API Key token, see the Getting Started guide.

The project is now ready to build and run!

Run the example​

Studio

Either connect a device via USB cable, or select a virtual device.

Studio

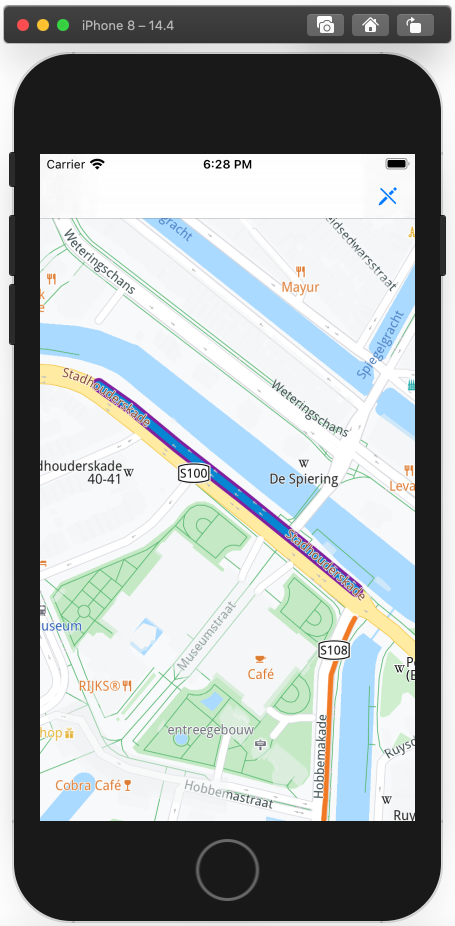

Run the Polylines example. You can pan and zoom the map. On the device you can also rotate and tilt.

Studio

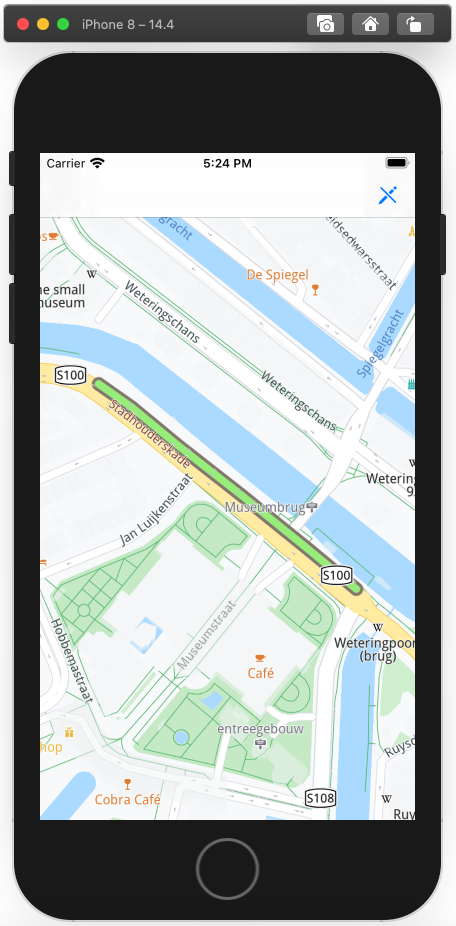

Each time you run the example, the polyline will have a different color.

iOS Examples​

Maps SDK for iOS Examples can be downloaded or cloned with Git.
