Overlays

_{Estimated reading time: 7 minutes}

An Overlay is an additional map layer, either default or user-defined, with data stored on Magic Lane servers, accessible only in online mode.

In order to define overlay data you can use the Magic Lane Map Studio. It allows uploading data regarding the POIs and their corresponding categories and binary information (via GeoJSON format). An Overlay can have multiple associated categories and subcategories. A single item from an overlay is called an overlay item.

warning

Overlays cannot be used in offline mode, even if the corresponding region has been downloaded locally. Most overlay features can be used only when a GemMap widget is created and a style containing the overlay is applied.

OverlayInfo

OverlayInfo structure

The class that contains information about an overlay is OverlayInfo. It has the following structure:

Method	Description	Type
uid	Gets the unique ID of the overlay.	int
categories	Gets the categories of the overlay.	List<OverlayCategory>
getCategory	Gets a category by its ID.	OverlayCategory?
img	Gets the image of the overlay.	Img
name	Gets the name of the overlay.	String
hasCategories	Checks if the category has subcategories.	bool

Retrieving overlays

To get all overlays which are available for the current map style, the OverlayService.getAvailableOverlays() method is used in the following way:

final Completer<GemError> completer = Completer<GemError>();
Pair<OverlayCollection, bool> availableOverlays = OverlayService.getAvailableOverlays(onCompleteDownload: (error) {
  completer.complete(error);
});

await completer.future;
OverlayCollection collection = availableOverlays.first;

The OverlayCollection class contains methods and getters such as:

• size: returns the size of the collection.
• getOverlayAt: returns the OverlayInfo at a specified index and null if it doesn't exist.
• getOverlayById: returns an OverlayInfo by a given id.

warning

It is possible that information for certain overlays is unavailable and needs to be downloaded when a network connection is accessible. As a result, the method returns a pair <OverlayCollection, bool>, where the boolean value in the second element is false, indicating that the information is currently unavailable. In this case, the onCompleteDownload callback needs to be awaited.

Usage

The primary function of the OverlayInfo class is to provide the categories within an overlay. It also provides the uid of the overlay which can be used to filter the results of search and also can be used to toggle the visibility of the overlay on the map. Other fields can be displayed on the UI.

OverlayCategory

The OverlayCategory class represents hierarchical data related to overlay categories.

OverlayCategory structure

The OverlayCategory has the following structure:

Property / Method	Description	Type
uid	The category ID.	int
overlayuid	The parent overlay ID. Refers to the id of the OverlayInfo object	int
img	The category icon.	Img
name	The category name.	String
subcategories	The subcategories of the category.	List<OverlayCategory>
hasSubcategories	Checks if the category has subcategories.	bool

Usage

The OverlayCategory class provides the category uid, which can be utilized in various search functionalities to filter results. Additionally, the uid can be used to filter and manage overlay items that trigger alerts within the AlarmService.

OverlayItem

The OverlayItem represents a single element from the overlay.

OverlayItem structure

The OverlayItem has the following structure:

Property / Method	Description	Type
categoryId	Gets the OverlayItem's category ID.	int
coordinates	Gets the coordinates of the OverlayItem.	Coordinates
hasPreviewExtendedData	Checks if the OverlayItem has preview extended data (dynamic data).	bool
img	Gets the image of the OverlayItem.	Img
name	Gets the name of the OverlayItem.	String
uid	Gets the unique ID of the OverlayItem within the overlay.	int
overlayInfo	Gets the parent OverlayInfo.	OverlayInfo
previewData	Gets the OverlayItem preview data as a parameters list.	SearchableParameterList
previewUrl	Gets the preview URL for the item (if any).	String
overlayUid	Gets the parent overlay UID.	int
getPreviewExtendedData	Asynchronously gets the OverlayItem preview extended data.	ProgressListener
cancelGetPreviewExtendedData	Cancels the asynchronous getPreviewExtendedData operation.	void

warning

Avoid confusing the uid of OverlayInfo, OverlayCategory, and OverlayItem, as they each serve distinct purposes.

The previewData getter which provides more information structured inside a SearchableParametersList, information which depend on the overlay type. We can iterate through all the parameters (which are of type GemParameter) within a SearchableParameterList in the following way:

SearchableParameterList parameters = overlayItem.previewData;
for (GemParameter param in parameters){
  // Unique for every parameter
  String? key = param.key;

  // Used for display on UI - might change depending on language
  String? name = param.name;

  // The type of param.value
  ValueType valueType = param.type;

  // The parameter value
  dynamic value = param.value;
}

Usage

OverlayItems can be selected from the map or be provided by the AlarmService on approach. Other fields and information can be displayed on the UI.

Classification

There are a few types of predefined overlays:

• Safety overlay
• Public transport overlay
• Social reports overlay

The CommonOverlayId enum contains information about the ids of the predefined overlay categories.

Safety Overlay

These overlays represent speed limit cameras, red light controls and so on.

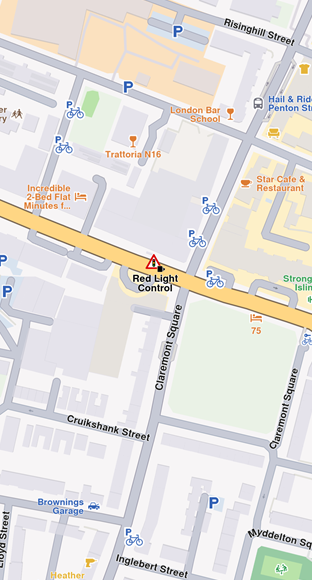

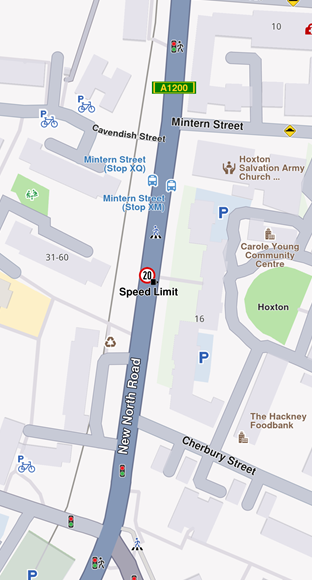

Speed limit overlay item	Red light control overlay item

For a speed limit, previewData might include information searchable by keys like:

• eStrDrivingDirection: the driving direction on which the overlay item applies as string, eg. "Both Ways"
• speedValue: value of maximum allowed speed as integer, eg. 50
• speedUnit: measure unit of speed as string, eg "km/h"
• Country: country name where the overlay is reported as string, eg "FRA"

Public Transport Overlay

This overlay is responsible for displaying public transport stations.

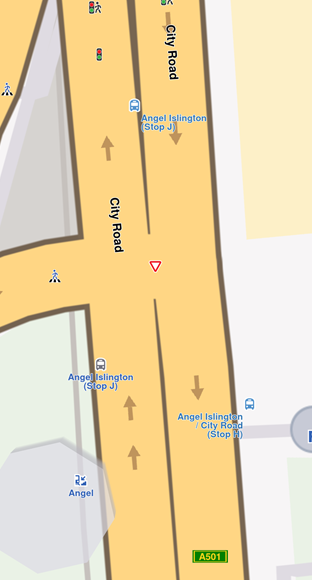

Map displaying three bus stations

For a bus station, previewData might include information searchable by keys like:

• id: unique overlay id as integer
• create_stamp_utc: unix epoch time when overlay has been created as integer
• icon: an array of 8-bit integeres representing icon data as Uint8List
• name: name of bus station as a string

Social Reports Overlay

This overlay is responsible for displaying fixed cameras, construction sites and more.

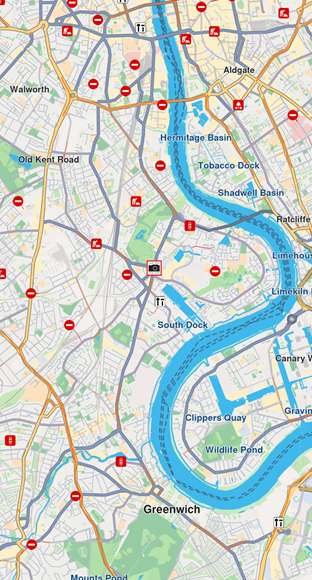

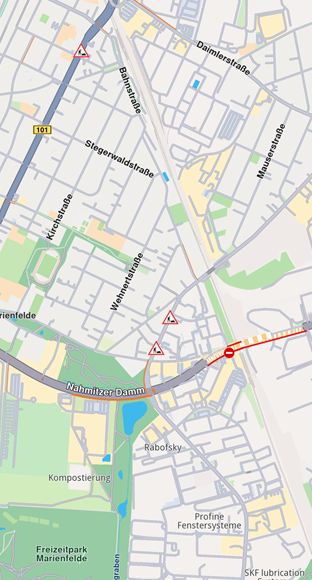

Constructions overlay item	Fixed camera overlay item

For a construction report, previewData includes information searchable by keys like:

• longitude: value for longitude coordinate as double
• latitude: value for latitude coordinates as double
• owner_name: user's name that reported the event as string
• score: likes (confirmations) offered by other users
• location_address: address of reported location as string, it contains street, city and country

The SocialOverlay static class is responsible for generating, updating, and deleting social reports. It includes several static methods designed to perform these operations efficiently.

Interaction with Overlays

Selecting overlay items

Overlay items are selectable. When user taps or clicks, you can identify specific overlay items programmatically (e.g., through the function cursorSelectionOverlayItems()). Please refer to the Map Selection Functionality guide for more details.

Searching overlay items

Overlays are searchable. This can be done in multiple ways, the most common being to set the right properties in the search preferences when performing a regular search. More details can be found within the Get started with Search guide.

Calculating route with overlay items

Overlay items are not designed for route calculation and navigation.

tip

Create a new landmark using the overlay item's relevant coordinates and a representative name, then utilize this object for routing purposes.

Get notifications when approaching overlay items

Alarms can be configured to notify users when they approach specific overlay items from selected overlays. See the Landmarks and overlay alarms guide for more details about implementing this feature.
