gem::sense::ICamera Class Reference

Definition of CameraFrame interface. More...

Inheritance diagram for gem::sense::ICamera:

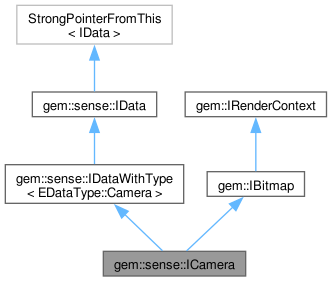

Collaboration diagram for gem::sense::ICamera:

Public Member Functions
virtual const CameraConfiguration &	getCameraConfiguration () const =0
	Get the camera configuration.
virtual std::pair< const unsigned char *, size_t >	getBuffer () const =0
	Get the direct buffer as uint8*, independent of platform.
virtual const void *	getDirectBuffer () const =0
virtual EDirectBufferType	getDirectBufferType () const =0
	Get direct buffer type.
EDataType	getType () const override final
	Get data type.
virtual LargeInteger	getAcquisitionTimestamp () const =0
Time	getTime () const
template<typename TDerivedType>
StrongPointer< TDerivedType >	cast ()
	Cast to a derived type.
virtual void *	begin ()=0
	For Bitmap context: get the start address of the bitmap.
template<typename TAddr = void>
TAddr *	beginType ()
	Reinterpret the start address of the bitmap.
virtual void	end ()=0
	For Bitmap context: announce the bitmap's memory should be unlocked.
virtual Size	size () const =0
	Get the size of the bitmap.
virtual int	alignment () const =0
	Return the alignment in bytes of the bitmap's memory.
int	stride () const
	Return the image stride size.
int	memory () const
	Return the bitmap memory size.
virtual EImagePixelFormat	encoding () const =0
	Get the encoding.
virtual Rect const &	viewport () const =0
	Get the viewport rectangle associated with this rendering context.
virtual const void *	getSystemContext () const
	Get the system rendering context (platform-dependent).

Static Public Member Functions
static bool	isSameType (const IData *ptr)
	Check if two data elements have the same type.
static StrongPointer< class IAdjustableBitmap >	produce (const Size &sz, EImagePixelFormat format)
	Create a default adjustable bitmap ( SDK impl ).

Detailed Description

Definition of CameraFrame interface.

Member Function Documentation

alignment()

virtual int gem::IBitmap::alignment ( ) const

pure virtualinherited

Return the alignment in bytes of the bitmap's memory.

Common values: 1, 4, 8.

Returns

The alignment in bytes.

begin()

virtual void * gem::IBitmap::begin ( )

pure virtualinherited

For Bitmap context: get the start address of the bitmap.

Announce the bitmap's memory should be locked.

Returns

The start address of the bitmap.

beginType()

template<typename TAddr = void>

TAddr * gem::IBitmap::beginType ( )

inlineinherited

Reinterpret the start address of the bitmap.

Template Parameters

TAddr

The type of the address

Returns

The start address of the bitmap

cast()

template<typename TDerivedType>

StrongPointer< TDerivedType > gem::sense::IData::cast ( )

inlineinherited

Cast to a derived type.

Returns

The requested derived type as a shared pointer.

encoding()

virtual EImagePixelFormat gem::IRenderContext::encoding ( ) const

pure virtualinherited

Get the encoding.

Returns

The image pixel format.

getAcquisitionTimestamp()

virtual LargeInteger gem::sense::IData::getAcquisitionTimestamp ( ) const

pure virtualinherited

Returns

Acquisition timestamp in milliseconds since 1970 ( epoch )

Implemented in gem::sense::MockPosition.

getBuffer()

virtual std::pair< const unsigned char *, size_t > gem::sense::ICamera::getBuffer ( ) const

pure virtual

Get the direct buffer as uint8*, independent of platform.

Returns

Pair of buffer and size.

getCameraConfiguration()

virtual const CameraConfiguration & gem::sense::ICamera::getCameraConfiguration ( ) const

pure virtual

Get the camera configuration.

Returns

A structure containing the camera configuration

getDirectBuffer()

virtual const void * gem::sense::ICamera::getDirectBuffer ( ) const

pure virtual

Returns

A platform-dependent raw buffer. Android - jobject(ByteBuffer) APPLE - CVPixelBufferRef Windows - char* Linux - char*

getDirectBufferType()

virtual EDirectBufferType gem::sense::ICamera::getDirectBufferType ( ) const

pure virtual

Get direct buffer type.

Returns

The type of the direct buffer.

getSystemContext()

virtual const void * gem::IRenderContext::getSystemContext ( ) const

inlinevirtualinherited

Get the system rendering context (platform-dependent).

Returns

The system rendering context.

getTime()

Time gem::sense::IData::getTime ( ) const

inlineinherited

Returns

System acquisition time

getType()

EDataType gem::sense::IDataWithType< DerivedType >::getType ( ) const

inlinefinaloverridevirtualinherited

Get data type.

Returns

The data type.

Implements gem::sense::IData.

isSameType()

bool gem::sense::IDataWithType< DerivedType >::isSameType ( const IData * ptr )

inlinestaticinherited

Check if two data elements have the same type.

Parameters

ptr	The other IData pointer to check against.

Returns

True if of same type, false if not.

memory()

int gem::IBitmap::memory ( ) const

inlineinherited

Return the bitmap memory size.

Returns

The memory size

produce()

StrongPointer< class IAdjustableBitmap > gem::IBitmap::produce ( const Size & sz, EImagePixelFormat format )

staticinherited

Create a default adjustable bitmap ( SDK impl ).

Parameters

sz	The size of the bitmap
format	The pixel format of the bitmap

Returns

The adjustable bitmap object

size()

virtual Size gem::IBitmap::size ( ) const

pure virtualinherited

Get the size of the bitmap.

Returns

The size of the bitmap

stride()

int gem::IBitmap::stride ( ) const

inlineinherited

Return the image stride size.

Returns

The stride size

viewport()

virtual Rect const & gem::IRenderContext::viewport ( ) const

pure virtualinherited

Get the viewport rectangle associated with this rendering context.

Returns

The viewport rectangle.
