gem::Screen Class Reference

Screen object. More...

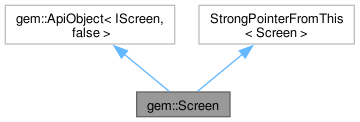

Inheritance diagram for gem::Screen:

Collaboration diagram for gem::Screen:

Public Member Functions
ERenderRule	setRenderingRule (ERenderRule rule) noexcept
	Change the screen rendering rule, see TRenderRule.
ERenderRule	getRenderingRule () const noexcept
	Get the current rendering rule.
Screen &	resize (const Size &size) noexcept
	Resize the screen to the given size in pixels.
Screen &	handleTouchEvent (ETouchEvent ev, LargeInteger touchId, const Xy &pt) noexcept
	Handle a screen touch event with the given id, see TTouchEvent for types.
Screen &	scrollEvent (int delta, const Xy &pt) noexcept
	Handle a scroll event from a pointing device.
Rect	getViewport () const noexcept
	Get screen viewport in pixels.
Screen &	render () noexcept
	Render the screen by subsequently render all contained views.
void	needsRender () noexcept
	Mark screen with pending render request.
template<typename T>
StrongPointer< Canvas >	hitTest (const XyType< T > &pt) const noexcept
	Get the view under the given coordinates.
Screen &	resetContext (bool contextLost=false) noexcept
	Reset screen context.
OpenGLContext	getOpenGLContext () const noexcept
	Get OpenGL context.
void	iterateCanvases (std::function< bool(StrongPointer< Canvas >)> collector) const noexcept
	Iterate all screen canvases.
void	iterateViews (std::function< bool(StrongPointer< MapView >)> collector) const noexcept
	Iterate all screen views.
void	iterateViews (std::function< bool(StrongPointer< MapView >, StrongPointer< MapViewV2 >)> collector) const noexcept
	Iterate all screen views * views v2.

Static Public Member Functions
static StrongPointer< Screen >	produce (OpenGLContext context, ERenderRule renderRule=RR_OnDemand) noexcept
	Create a Screen object using an OpenGL context and an optional render rule.

Detailed Description

Screen object.

It supports rendering in an OpenGL context. It is possible to use the rendering in two ways:

• Render on demand. The UI requests the screen to be rendered in the attached context.
• Render automatically. For example when the map is scrolled or rotated the map is rendered automatically in the attached context and the UI is notified when finished. MapView objects require a Screen in order to be created. After creation a MapView will hold a strong pointer to its Screen.

Implements share-read / write Api object over IScreen.

Member Function Documentation

getOpenGLContext()

OpenGLContext gem::Screen::getOpenGLContext ( ) const

inlinenoexcept

Get OpenGL context.

Returns

The OpenGL context

getRenderingRule()

ERenderRule gem::Screen::getRenderingRule ( ) const

inlinenoexcept

Get the current rendering rule.

Returns

The current rendering rule

getViewport()

Rect gem::Screen::getViewport ( ) const

inlinenoexcept

Get screen viewport in pixels.

origin is always 0, 0

Returns

The screen viewport

handleTouchEvent()

Screen & gem::Screen::handleTouchEvent ( ETouchEvent ev, LargeInteger touchId, const Xy & pt )

inlinenoexcept

Handle a screen touch event with the given id, see TTouchEvent for types.

Parameters

[in]	ev	The touch event type
[in]	touchId	The touch id
[in]	pt	The touch point

Returns

The screen object

hitTest()

template<typename T>

StrongPointer< Canvas > gem::Screen::hitTest ( const XyType< T > & pt ) const

inlinenoexcept

Get the view under the given coordinates.

With int type: coordinates are screen.

With float type: coordinates are screen fraction ( 0 - 1.f )

Parameters

[in]

pt

The coordinates

Returns

The view under the given coordinates

iterateCanvases()

void gem::Screen::iterateCanvases ( std::function< bool(StrongPointer< Canvas >)> collector ) const

noexcept

Iterate all screen canvases.

collector must return true if the iteration should continue, false if it must stop

Parameters

[in]

collector

The collector function

iterateViews() [1/2]

void gem::Screen::iterateViews ( std::function< bool(StrongPointer< MapView >)> collector ) const

inlinenoexcept

Iterate all screen views.

collector must return true if the iteration should continue, false if it must stop

Parameters

[in]

collector

The collector function

iterateViews() [2/2]

void gem::Screen::iterateViews ( std::function< bool(StrongPointer< MapView >, StrongPointer< MapViewV2 >)> collector ) const

noexcept

Iterate all screen views * views v2.

collector must return true if the iteration should continue, false if it must stop

Parameters

[in]

collector

The collector function

produce()

StrongPointer< Screen > gem::Screen::produce ( OpenGLContext context, ERenderRule renderRule = RR_OnDemand )

inlinestaticnoexcept

Create a Screen object using an OpenGL context and an optional render rule.

Parameters

[in]	context	The OpenGL context
[in]	renderRule	The rendering rule

Returns

The Screen object

render()

Screen & gem::Screen::render ( )

inlinenoexcept

Render the screen by subsequently render all contained views.

TRenderRule must be ERR_OnDemand

Returns

The screen object

resetContext()

Screen & gem::Screen::resetContext ( bool contextLost = false )

inlinenoexcept

Reset screen context.

Notifies screen that the attached OpenGLContext has changed. This will trigger updates in the SDK textures, font etc.

Parameters

[in]

contextLost

If true, the context was lost and the screen should reset all its resources

Returns

The screen object

resize()

Screen & gem::Screen::resize ( const Size & size )

inlinenoexcept

Resize the screen to the given size in pixels.

Parameters

[in]

size

The new size

Returns

The screen object

scrollEvent()

Screen & gem::Screen::scrollEvent ( int delta, const Xy & pt )

inlinenoexcept

Handle a scroll event from a pointing device.

Parameters

[in]	delta	The scroll delta
[in]	pt	The scroll point

Returns

The screen object

setRenderingRule()

ERenderRule gem::Screen::setRenderingRule ( ERenderRule rule )

inlinenoexcept

Change the screen rendering rule, see TRenderRule.

Default value if RR_OnDemand

Returns

The previous rendering rule

Parameters

[in]

rule

The new rendering rule
