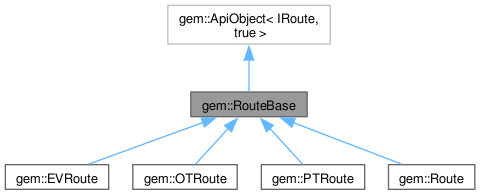

Inheritance diagram for gem::RouteBase:

[legend]

Collaboration diagram for gem::RouteBase:

Public Member Functions
LandmarkList	getWaypoints (GetWaypointsOptions options=GW_RemainingInitial) const noexcept
	Get list of route waypoints.
LandmarkList	getWaypointsVia (const Landmark &viaWpt) const noexcept
	Get a new waypoints configuration using existing waypoints and the given intermediate via waypoint.
TimeDistance	getTimeDistance () const noexcept
	Get length in meters and estimated travel time in seconds for the route / route segment.
RectangleGeographicArea	getGeographicArea () const noexcept
	Get geographic area of the route.
TilesCollectionGeographicArea	getTilesGeographicArea () const noexcept
	Get tiles collection area of the route.
PolygonGeographicArea	getPolygonGeographicArea () const noexcept
	Get Polygon Geographic Area.
bool	getIncursCosts () const noexcept
	Method to check if traveling the route or route segment incurs cost to the user.
String	getSummary () const noexcept
	Get the summary of the route.
void	setRouteListener (RouteListener routeListener) noexcept
	Set listener for events related to the current route.
RouteListener	getRouteListener () const noexcept
	Get route related events listener.
TimeDistance	getTimeDistance (bool activePart) const noexcept
	Get length in meters and estimated travel time in seconds for the route.
RouteTrafficEventList	getTrafficEvents () const noexcept
	Get list of traffic events affecting the route.
DataBuffer	exportTrafficAs (int format) const noexcept
	Export route traffic in the requested data format.
RouteSegmentList	getSegments () const noexcept
	Get route segments.
int	getClosestSegment (Coordinates const &coord) const noexcept
	Get index of the closest route segment to the given coordinates.
bool	hasFerryConnections () const noexcept
	Check if the route contains ferry connections.
bool	hasTollRoads () const noexcept
	Check if the route contains toll roads.
ERouteStatus	getStatus () const noexcept
	Get route status.
DataBuffer	exportAs (int format) const noexcept
	Export route data in the requested data format.
const RouteTerrainProfileRef	getTerrainProfile () const noexcept
	Get route terrain profile.
Coordinates	getCoordinateOnRoute (int distance) const noexcept
	Get a coordinate on route at the given distance from the departure / starting point.
TimeDistanceCoordinate	getTimeDistanceCoordinateOnRoute (const Coordinates &coords) const noexcept
	Get a time-distance coordinate on route closest to the given reference coordinate.
int	getDistanceOnRoute (const Coordinates &coords, bool activePart) const noexcept
	Get route distance from departure at the given coordinate.
Path	getPath (int start, int end) const noexcept
	Build path from route start - end segment.
Path	getPath () const noexcept
	Build path from route.
TimeDistanceCoordinateList	getTimeDistanceCoordinates (int start, int end, int step, bool stepType) const noexcept
	Build a list of time-distance coordinates from a route.
const StringListRef	getDominantRoads () const noexcept
	Get dominant road names.
TollSectionList	getTollSections () const noexcept
	Get segment toll sections.
const RoutePreferencesRef	preferences () const noexcept
	Get the route preferences.
DataBuffer	dump () const noexcept
	Debug purposes.
SearchableParameterList	getExtraInfo () const noexcept
	Get user extra info.
int	setExtraInfo (const ParameterList &info) noexcept
	Set user extra info.
LargeInteger	getId () const noexcept
	Get route unique id.

Protected Member Functions
	RouteBase (const RouteBase &obj)=default
	Default copy constructor.
	RouteBase (RouteBase &&obj)=default
	Default move constructor noexcept is deduced.
RouteBase &	operator= (const RouteBase &obj)=default
	Default copy assignment.
RouteBase &	operator= (RouteBase &&obj)=default
	Default move assignment noexcept is deduced.

Friends
class	Route
class	PTRoute

Detailed Description

RouteBase object.

Implements share-read / copy-on-write Api object over IRoute.

Constructor & Destructor Documentation

◆ RouteBase() [1/2]

gem::RouteBase::RouteBase ( const RouteBase & obj )

protecteddefault

Default copy constructor.

Parameters

obj	RouteBase to copy from.

◆ RouteBase() [2/2]

gem::RouteBase::RouteBase ( RouteBase && obj )

protecteddefault

Default move constructor noexcept is deduced.

Parameters

obj	RouteBase to move from.

Member Function Documentation

◆ dump()

DataBuffer gem::RouteBase::dump ( ) const

inlinenoexcept

Debug purposes.

Dump the route

Returns: A DataBuffer representation of the route's internal state.

◆ exportAs()

DataBuffer gem::RouteBase::exportAs ( int format ) const

inlinenoexcept

Export route data in the requested data format.

Parameters

[in] format Data format, see EPathFileFormat

Returns: Route data buffer

◆ exportTrafficAs()

DataBuffer gem::RouteBase::exportTrafficAs ( int format ) const

inlinenoexcept

Export route traffic in the requested data format.

Parameters

[in] format Data format, see EPathFileFormat

Returns: Route data buffer

◆ getClosestSegment()

int gem::RouteBase::getClosestSegment ( Coordinates const & coord ) const

inlinenoexcept

Get index of the closest route segment to the given coordinates.

Parameters

coord The geographic coordinates to check against the route segments.

Returns: -1 if route is invalid

◆ getCoordinateOnRoute()

Coordinates gem::RouteBase::getCoordinateOnRoute ( int distance ) const

inlinenoexcept

Get a coordinate on route at the given distance from the departure / starting point.

Parameters

distance The distance from the route start, in meters.

Returns: Coordinates at the specified distance along the route.

◆ getDistanceOnRoute()

int gem::RouteBase::getDistanceOnRoute	(	const Coordinates &	coords,
		bool	activePart ) const

inlinenoexcept

Get route distance from departure at the given coordinate.

Parameters

coords	The geographic coordinates where the distance is to be measured.
activePart	Boolean indicating whether to consider only the active part of the route (true) or the entire route (false).

Returns: The distance in meters from the route start to the specified coordinates.

◆ getDominantRoads()

const StringListRef gem::RouteBase::getDominantRoads ( ) const

inlinenoexcept

Get dominant road names.

A road is considered dominant when it covers n% from route total length

Returns: The names list. If a road has multiple names, they will be presented as "name1 / name2 / ... / namex"

◆ getExtraInfo()

SearchableParameterList gem::RouteBase::getExtraInfo ( ) const

inlinenoexcept

Get user extra info.

Returns: A string containing extra descriptive information added by user.

◆ getGeographicArea()

RectangleGeographicArea gem::RouteBase::getGeographicArea ( ) const

inlinenoexcept

Get geographic area of the route.

The geographic area is the smallest rectangle that can be drawn around the route.

Returns: Geographic area covered by the route, represented as a GeographicArea object.

◆ getId()

LargeInteger gem::RouteBase::getId ( ) const

inlinenoexcept

Get route unique id.

Returns: The route unique id, 0 if the route is not valid

◆ getIncursCosts()

bool gem::RouteBase::getIncursCosts ( ) const

inlinenoexcept

Method to check if traveling the route or route segment incurs cost to the user.

Returns: Boolean indicating whether the route incurs additional costs (e.g., tolls).

◆ getPath() [1/2]

Path gem::RouteBase::getPath ( ) const

inlinenoexcept

Build path from route.

Returns: The result path object

◆ getPath() [2/2]

Path gem::RouteBase::getPath	(	int	start,
		int	end ) const

inlinenoexcept

Build path from route start - end segment.

Parameters

[in]	start	Start distance from route start
[in]	end	End distance from route start

Returns: The result path object

◆ getPolygonGeographicArea()

PolygonGeographicArea gem::RouteBase::getPolygonGeographicArea ( ) const

inlinenoexcept

Get Polygon Geographic Area.

Returns: Geographic area of the route represented as a polygon.

◆ getRouteListener()

RouteListener gem::RouteBase::getRouteListener ( ) const

inlinenoexcept

Get route related events listener.

Returns: A listener for route events.

◆ getSegments()

RouteSegmentList gem::RouteBase::getSegments ( ) const

inlinenoexcept

Get route segments.

Returns: Segments of the route, each detailed with specific route information.

◆ getStatus()

ERouteStatus gem::RouteBase::getStatus ( ) const

inlinenoexcept

Get route status.

Returns: Current status of the route.

◆ getSummary()

String gem::RouteBase::getSummary ( ) const

inlinenoexcept

Get the summary of the route.

Returns: A summary of the route, including key metrics and descriptions.

◆ getTerrainProfile()

const RouteTerrainProfileRef gem::RouteBase::getTerrainProfile ( ) const

inlinenoexcept

Get route terrain profile.

Returns: Terrain profile of the route, detailing elevation changes.

◆ getTilesGeographicArea()

TilesCollectionGeographicArea gem::RouteBase::getTilesGeographicArea ( ) const

inlinenoexcept

Get tiles collection area of the route.

Returns: Detailed geographic area of the route represented in tiles.

◆ getTimeDistance() [1/2]

TimeDistance gem::RouteBase::getTimeDistance ( ) const

inlinenoexcept

Get length in meters and estimated travel time in seconds for the route / route segment.

Returns: Time and distance information for the route, encapsulated in a TimeDistance object.

◆ getTimeDistance() [2/2]

TimeDistance gem::RouteBase::getTimeDistance ( bool activePart ) const

inlinenoexcept

Get length in meters and estimated travel time in seconds for the route.

Parameters

[in] activePart If true and the route is part of a navigation session, returns only the active part of the route metrics

[in] If false or the route is not part of a navigation session, returns whole route metrics

Returns: The time and distance information.

◆ getTimeDistanceCoordinateOnRoute()

TimeDistanceCoordinate gem::RouteBase::getTimeDistanceCoordinateOnRoute ( const Coordinates & coords ) const

inlinenoexcept

Get a time-distance coordinate on route closest to the given reference coordinate.

Parameters

coords The reference coordinates

Returns: Time-distance coordinate on route closest to the reference coordinate

◆ getTimeDistanceCoordinates()

TimeDistanceCoordinateList gem::RouteBase::getTimeDistanceCoordinates	(	int	start,
		int	end,
		int	step,
		bool	stepType ) const

inlinenoexcept

Build a list of time-distance coordinates from a route.

Parameters

[in]	start	Start distance from route start
[in]	end	End distance from route start
[in]	step	The step on which the coordinates are created
[in]	stepType	The step unit type: true = distance in meters, false = time in seconds

Returns: The result list

◆ getTollSections()

TollSectionList gem::RouteBase::getTollSections ( ) const

inlinenoexcept

Get segment toll sections.

Returns: The error code. On success, the toll sections are returned

◆ getTrafficEvents()

RouteTrafficEventList gem::RouteBase::getTrafficEvents ( ) const

inlinenoexcept

Get list of traffic events affecting the route.

Returns: List of traffic events affecting the route.

◆ getWaypoints()

LandmarkList gem::RouteBase::getWaypoints ( GetWaypointsOptions options = GW_RemainingInitial ) const

inlinenoexcept

Get list of route waypoints.

The waypoints are ordered like: departure, first waypoint, ..., destination.

Parameters

[in] options See GetWaypointsOptions for details

Returns: a landmark list

◆ getWaypointsVia()

LandmarkList gem::RouteBase::getWaypointsVia ( const Landmark & viaWpt ) const

inlinenoexcept

Get a new waypoints configuration using existing waypoints and the given intermediate via waypoint.

Parameters

[in] viaWpt The via waypoint to be inserted in the route waypoints.

Returns: A new route waypoints configuration including the given via waypoint

If route is not target to a simulation / navigation, the returned list is the initial waypoints with the via inserted in a proper index position for an optimal routing

If route is target to a simulation / navigation, the returned list is the remaining to travel waypoints with the via inserted in a proper index position for an optimal routing

◆ hasFerryConnections()

bool gem::RouteBase::hasFerryConnections ( ) const

inlinenoexcept

Check if the route contains ferry connections.

Returns: Boolean indicating whether the route includes ferry connections.

◆ hasTollRoads()

bool gem::RouteBase::hasTollRoads ( ) const

inlinenoexcept

Check if the route contains toll roads.

Returns: Boolean indicating whether the route includes toll roads.

◆ operator=() [1/2]

RouteBase & gem::RouteBase::operator= ( const RouteBase & obj )

protecteddefault

Default copy assignment.

Parameters

obj	RouteBase to copy from.

Returns: RouteBase reference.

◆ operator=() [2/2]

RouteBase & gem::RouteBase::operator= ( RouteBase && obj )

protecteddefault

Default move assignment noexcept is deduced.

Parameters

obj	RouteBase to move from.

Returns: RouteBase reference.

◆ preferences()

const RoutePreferencesRef gem::RouteBase::preferences ( ) const

inlinenoexcept

Get the route preferences.

Returns: A reference to the Preferences object managing user preferences for route calculations.

◆ setExtraInfo()

int gem::RouteBase::setExtraInfo ( const ParameterList & info )

inlinenoexcept

Set user extra info.

Parameters

info	A ParameterList containing extra information to be associated with the route.

Returns: 0 if the extra information was successfully set.

◆ setRouteListener()

void gem::RouteBase::setRouteListener ( RouteListener routeListener )

inlinenoexcept

Set listener for events related to the current route.

Parameters

routeListener Route listener for this route. Use 'empty' to unregister current listener.

Public Member Functions

Protected Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

◆ RouteBase() [1/2]

◆ RouteBase() [2/2]

Member Function Documentation

◆ dump()

◆ exportAs()

◆ exportTrafficAs()

◆ getClosestSegment()

◆ getCoordinateOnRoute()

◆ getDistanceOnRoute()

◆ getDominantRoads()

◆ getExtraInfo()

◆ getGeographicArea()

◆ getId()

◆ getIncursCosts()

◆ getPath() [1/2]

◆ getPath() [2/2]

◆ getPolygonGeographicArea()

◆ getRouteListener()

◆ getSegments()

◆ getStatus()

◆ getSummary()

◆ getTerrainProfile()

◆ getTilesGeographicArea()

◆ getTimeDistance() [1/2]

◆ getTimeDistance() [2/2]

◆ getTimeDistanceCoordinateOnRoute()

◆ getTimeDistanceCoordinates()

◆ getTollSections()

◆ getTrafficEvents()

◆ getWaypoints()

◆ getWaypointsVia()

◆ hasFerryConnections()

◆ hasTollRoads()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ preferences()

◆ setExtraInfo()

◆ setRouteListener()
