gem::GeographicArea Class Reference

GeographicArea object. More...

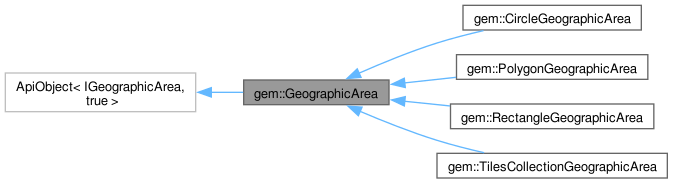

Inheritance diagram for gem::GeographicArea:

Collaboration diagram for gem::GeographicArea:

Public Member Functions
	GeographicArea (const GeographicArea &)=default
	Default copy constructor.
	GeographicArea (GeographicArea &&)=default
	Default move constructor noexcept is deduced.
GeographicArea &	operator= (const GeographicArea &other)=default
	Copy assignment operator.
GeographicArea &	operator= (GeographicArea &&other) noexcept=default
	Move assignment operator.
EGeographicAreaType	type () const
	Retrieves the specific type of the geographic area.
bool	containsCoordinates (Coordinates const &point) const
	Checks if the specified point is contained within the geographic area.
RectangleGeographicArea	getBoundingBox () const noexcept
	Get the bounding box.
Coordinates	getCenterPoint () const noexcept
	Retrieves the center point of the geographic area.
bool	equals (GeographicArea const &other) const noexcept
	Checks if two geographic areas are considered equal.
bool	operator== (const GeographicArea &area) const noexcept
	Equality comparison operator for geographic areas.
bool	operator!= (const GeographicArea &area) const noexcept
	Inequality comparison operator for geographic areas.
template<typename TSubclass>
TSubclass	cast () const noexcept
	Attempts to cast the current geographic area object to a specified subclass.
bool	isDefault () const override
	Determines if the current geographic area object is in its default state (unaltered since creation).
	operator bool () const noexcept
	Boolean conversion operator indicating if the geographic area is valid and not in its default state.
bool	isEmpty () const noexcept
	Checks if the geographic area is empty.
void	reset () noexcept
	Resets the geographic area object to its default state.
int	convert (GeographicArea &area) const noexcept
	Converts the geographic area to another type, if possible.

Detailed Description

GeographicArea object.

This object represents a geographical area on the surface of a WGS 84 Ellipsoid.

Implements share-read / copy-on-write Api object over IGeographicArea. In the calculations related to these geographical areas the altitude information contained in the Coordinates object is ignored. All geographical areas deal with Coordinates objects.

Member Function Documentation

cast()

template<typename TSubclass>

TSubclass gem::GeographicArea::cast ( ) const

inlinenoexcept

Attempts to cast the current geographic area object to a specified subclass.

This is a template method.

Template Parameters

TSubclass

The subclass type to cast to.

Returns

An object of type TSubclass if the cast is successful; otherwise, a default-constructed object of TSubclass.

containsCoordinates()

bool gem::GeographicArea::containsCoordinates ( Coordinates const & point ) const

inline

Checks if the specified point is contained within the geographic area.

Parameters

point

A Coordinates object representing the point to check.

Returns

True if the point is within the geographic area, false otherwise.

convert()

int gem::GeographicArea::convert ( GeographicArea & area ) const

inlinenoexcept

Converts the geographic area to another type, if possible.

Parameters

area	A GeographicArea object to convert to.

Returns

An integer indicating the success or failure of the conversion.

equals()

bool gem::GeographicArea::equals ( GeographicArea const & other ) const

inlinenoexcept

Checks if two geographic areas are considered equal.

Parameters

other

Another GeographicArea object for comparison.

Returns

true if the areas are equal, false otherwise.

getBoundingBox()

RectangleGeographicArea gem::GeographicArea::getBoundingBox ( ) const

inlinenoexcept

Get the bounding box.

This is the smallest rectangle that can be drawn around the area such that it surrounds this geographic area completely.

If the area is bigger than what is allowed in the WGS 84 coordinate system, the rectangle is truncated to valid WGS 84 coordinate values. The RectangleGeographicArea is always aligned with parallels and meridians.

Returns

A RectangleGeographicArea object representing the bounding box.

getCenterPoint()

Coordinates gem::GeographicArea::getCenterPoint ( ) const

inlinenoexcept

Retrieves the center point of the geographic area.

Calculates and returns the geographic center of the area.

Returns

Coordinates object representing the center point of the area.

isDefault()

bool gem::GeographicArea::isDefault ( ) const

inlineoverride

Determines if the current geographic area object is in its default state (unaltered since creation).

Returns

true if the object is default, false otherwise.

isEmpty()

bool gem::GeographicArea::isEmpty ( ) const

inlinenoexcept

Checks if the geographic area is empty.

Returns

true if the area is empty, false otherwise.

operator bool()

gem::GeographicArea::operator bool ( ) const

inlineexplicitnoexcept

Boolean conversion operator indicating if the geographic area is valid and not in its default state.

Returns

true if the object is valid and not default, false otherwise.

operator!=()

bool gem::GeographicArea::operator!= ( const GeographicArea & area ) const

inlinenoexcept

Inequality comparison operator for geographic areas.

Parameters

area	Another GeographicArea object to compare against.

Returns

true if the areas are not equal, false otherwise.

operator=() [1/2]

GeographicArea & gem::GeographicArea::operator= ( const GeographicArea & other )

default

Copy assignment operator.

Replaces the current object's contents with another GeographicArea object's contents.

Parameters

other

The GeographicArea object to copy from.

Returns

A reference to the current object after assignment.

operator=() [2/2]

GeographicArea & gem::GeographicArea::operator= ( GeographicArea && other )

defaultnoexcept

Move assignment operator.

Transfers the contents of another GeographicArea object to this one.

Parameters

other

The GeographicArea object to move from. It becomes in an unspecified state after the operation.

Returns

A reference to the current object after assignment.

operator==()

bool gem::GeographicArea::operator== ( const GeographicArea & area ) const

inlinenoexcept

Equality comparison operator for geographic areas.

Parameters

area	Another GeographicArea object to compare against.

Returns

true if the areas are equal, false otherwise.

type()

EGeographicAreaType gem::GeographicArea::type ( ) const

inline

Retrieves the specific type of the geographic area.

Returns

The type of the geographic area as an EGeographicAreaType enumeration.
