gem::OverlayMutableCollection Class Reference

Mutable collection of overlay items. More...

Inheritance diagram for gem::OverlayMutableCollection:

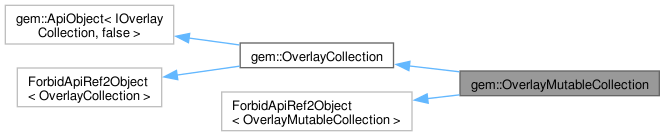

Collaboration diagram for gem::OverlayMutableCollection:

Public Member Functions
OverlayMutableCollection &	add (int overlayId) noexcept
	Add an online overlay to the collection.
OverlayMutableCollection &	add (int overlayId, int categoryId) noexcept
	Add an online overlay category to the collection.
int	remove (int overlayId) noexcept
	Remove the overlay from the collection.
int	remove (int overlayId, int categoryId) noexcept
	Remove the overlay category id from the collection.
OverlayMutableCollection &	clear () noexcept
	Clear all overlays in collection.
int	size () const noexcept
	Get the number of overlay datasets in this collection.
const OverlayInfoRef	getOverlayAt (int index) const noexcept
	Get the overlay at the specified index.
const OverlayInfoRef	getOverlayByUid (int overlayUid) const noexcept
	Get the overlay having the specified UID.
bool	contains (int overlayId) const noexcept
	Check if overlay is added to the collection.
bool	contains (int overlayId, int categoryId) const noexcept
	Check if overlay category is added to the collection.
template<typename TCollector>
bool	iterateOverlays (TCollector collector) const
	Iterate all overlays in the collection.
template<typename TCollector>
bool	iterateOverlaysAndCategories (TCollector collector) const
	Iterate all overlays & categories in the collection.

Detailed Description

Mutable collection of overlay items.

Implements share-read / write Api object over IOverlayCollection. Extends OverlayCollection by allowing overlays to be added, removed, or updated in a MapView at runtime.

Member Function Documentation

add() [1/2]

OverlayMutableCollection & gem::OverlayMutableCollection::add ( int overlayId )

inlinenoexcept

Add an online overlay to the collection.

Parameters

[in]

overlayId

The overlay id. The list of available overlays can be obtained by using OverlayService

Add an overlay to the collection. If the overlay has categories, all are added to the collection

Returns

reference to this object

add() [2/2]

OverlayMutableCollection & gem::OverlayMutableCollection::add ( int overlayId, int categoryId )

inlinenoexcept

Add an online overlay category to the collection.

Parameters

[in]	overlayId	The overlay id
[in]	categoryId	The overlay category id in OverlayInfo.getCategories result list

Add an overlay category id to the collection

Returns

reference to this object

clear()

OverlayMutableCollection & gem::OverlayMutableCollection::clear ( )

inlinenoexcept

Clear all overlays in collection.

Returns

reference to this object

contains() [1/2]

bool gem::OverlayCollection::contains ( int overlayId ) const

inlinenoexceptinherited

Check if overlay is added to the collection.

Parameters

[in]

overlayId

The overlay id. The list of available overlays can be obtained by using OverlayService

Returns

True if overlay is in the collection, false otherwise

contains() [2/2]

bool gem::OverlayCollection::contains ( int overlayId, int categoryId ) const

inlinenoexceptinherited

Check if overlay category is added to the collection.

Parameters

[in]	overlayId	The overlay id. The list of available overlays can be obtained by using OverlayService
[in]	categoryId	The overlay category id in OverlayInfo.getCategories result list

Returns

True if overlay category is in the collection, false otherwise

getOverlayAt()

const OverlayInfoRef gem::OverlayCollection::getOverlayAt ( int index ) const

inlinenoexceptinherited

Get the overlay at the specified index.

Parameters

index

The index of the overlay

Returns

Empty if the index is out of bounds

getOverlayByUid()

const OverlayInfoRef gem::OverlayCollection::getOverlayByUid ( int overlayUid ) const

inlinenoexceptinherited

Get the overlay having the specified UID.

Parameters

overlayUid

The overlay UID

Returns

Empty if the overlay is not found

iterateOverlays()

template<typename TCollector>

bool gem::OverlayCollection::iterateOverlays ( TCollector collector ) const

inlineinherited

Iterate all overlays in the collection.

Collector should return true if iteration should continue and false if iteration should stop

Parameters

collector

The collector function

Returns

True if iteration was successful, false otherwise

Template Parameters

TCollector

The collector function type

iterateOverlaysAndCategories()

template<typename TCollector>

bool gem::OverlayCollection::iterateOverlaysAndCategories ( TCollector collector ) const

inlineinherited

Iterate all overlays & categories in the collection.

Collector should return true if iteration should continue and false if iteration should stop

Parameters

collector

The collector function

Returns

True if iteration was successful, false otherwise

remove() [1/2]

int gem::OverlayMutableCollection::remove ( int overlayId )

inlinenoexcept

Remove the overlay from the collection.

Parameters

[in]

overlayId

The overlay id. The list of available overlays can be obtained by using OverlayService

Returns

KNoError on success, error::KNotFound if the overlay is not in the collection

remove() [2/2]

int gem::OverlayMutableCollection::remove ( int overlayId, int categoryId )

inlinenoexcept

Remove the overlay category id from the collection.

Parameters

[in]	overlayId	The overlay id. The list of available overlays can be obtained by using OverlayService
[in]	categoryId	The overlay category id in OverlayInfo.getCategories result list

Returns

KNoError on success, error::KNotFound if the overlay category is not in the collection

size()

int gem::OverlayCollection::size ( ) const

inlinenoexceptinherited

Get the number of overlay datasets in this collection.

Returns

The number of overlays
