gem::MapViewOverlayCollection Class Reference

Read-only collection of overlays attached to a MapView. More...

Inheritance diagram for gem::MapViewOverlayCollection:

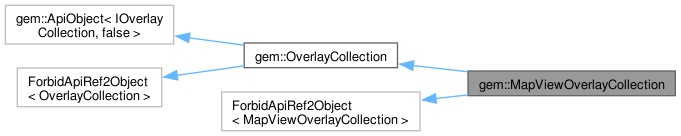

Collaboration diagram for gem::MapViewOverlayCollection:

Public Member Functions
MapViewOverlayCollection &	setRenderSettingsByUid (int uid, const OverlayRenderSettings &settings) noexcept
	Set overlay render settings.
OverlayRenderSettings	getRenderSettingsByUid (int uid) const noexcept
	Get rendering settings for the given overlay.
int	size () const noexcept
	Get the number of overlay datasets in this collection.
const OverlayInfoRef	getOverlayAt (int index) const noexcept
	Get the overlay at the specified index.
const OverlayInfoRef	getOverlayByUid (int overlayUid) const noexcept
	Get the overlay having the specified UID.
bool	contains (int overlayId) const noexcept
	Check if overlay is added to the collection.
bool	contains (int overlayId, int categoryId) const noexcept
	Check if overlay category is added to the collection.
template<typename TCollector>
bool	iterateOverlays (TCollector collector) const
	Iterate all overlays in the collection.
template<typename TCollector>
bool	iterateOverlaysAndCategories (TCollector collector) const
	Iterate all overlays & categories in the collection.

Detailed Description

Read-only collection of overlays attached to a MapView.

Implements share-read / write Api object over IOverlayCollection. Provides access to overlays currently present in a MapView, allowing applications to query and iterate overlay elements without modification.

Member Function Documentation

contains() [1/2]

bool gem::OverlayCollection::contains ( int overlayId ) const

inlinenoexceptinherited

Check if overlay is added to the collection.

Parameters

[in]

overlayId

The overlay id. The list of available overlays can be obtained by using OverlayService

Returns

True if overlay is in the collection, false otherwise

contains() [2/2]

bool gem::OverlayCollection::contains ( int overlayId, int categoryId ) const

inlinenoexceptinherited

Check if overlay category is added to the collection.

Parameters

[in]	overlayId	The overlay id. The list of available overlays can be obtained by using OverlayService
[in]	categoryId	The overlay category id in OverlayInfo.getCategories result list

Returns

True if overlay category is in the collection, false otherwise

getOverlayAt()

const OverlayInfoRef gem::OverlayCollection::getOverlayAt ( int index ) const

inlinenoexceptinherited

Get the overlay at the specified index.

Parameters

index

The index of the overlay

Returns

Empty if the index is out of bounds

getOverlayByUid()

const OverlayInfoRef gem::OverlayCollection::getOverlayByUid ( int overlayUid ) const

inlinenoexceptinherited

Get the overlay having the specified UID.

Parameters

overlayUid

The overlay UID

Returns

Empty if the overlay is not found

getRenderSettingsByUid()

OverlayRenderSettings gem::MapViewOverlayCollection::getRenderSettingsByUid ( int uid ) const

inlinenoexcept

Get rendering settings for the given overlay.

Parameters

[in]

uid

The overlay id. The list of available overlays can be obtained by using OverlayService

Returns

The rendering settings

iterateOverlays()

template<typename TCollector>

bool gem::OverlayCollection::iterateOverlays ( TCollector collector ) const

inlineinherited

Iterate all overlays in the collection.

Collector should return true if iteration should continue and false if iteration should stop

Parameters

collector

The collector function

Returns

True if iteration was successful, false otherwise

Template Parameters

TCollector

The collector function type

iterateOverlaysAndCategories()

template<typename TCollector>

bool gem::OverlayCollection::iterateOverlaysAndCategories ( TCollector collector ) const

inlineinherited

Iterate all overlays & categories in the collection.

Collector should return true if iteration should continue and false if iteration should stop

Parameters

collector

The collector function

Returns

True if iteration was successful, false otherwise

setRenderSettingsByUid()

MapViewOverlayCollection & gem::MapViewOverlayCollection::setRenderSettingsByUid ( int uid, const OverlayRenderSettings & settings )

inlinenoexcept

Set overlay render settings.

Parameters

[in]	uid	The overlay uid. The list of available overlays can be obtained by using OverlayService
[in]	settings	The rendering settings

Returns

reference to this object

size()

int gem::OverlayCollection::size ( ) const

inlinenoexceptinherited

Get the number of overlay datasets in this collection.

Returns

The number of overlays
