Route render settings. More...

Inheritance diagram for gem::RouteRenderSettings:

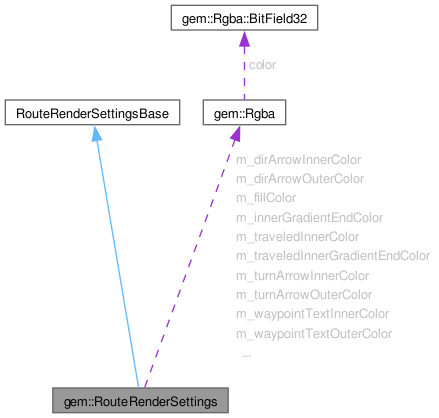

Collaboration diagram for gem::RouteRenderSettings:

[legend]

Public Types
using	Options
	The render options.

Public Member Functions
	RouteRenderSettings (int options=RRS_ShowTraffic\|RRS_ShowTurnArrows\|RRS_ShowWaypoints\|RRS_ShowHighlights, const Rgba &innerColor=Rgba::noColor(), const Rgba &outerColor=Rgba::noColor(), double innerSz=-1., double outerSz=0., const Rgba &traveledInnerColor=Rgba::noColor(), const Rgba &turnArrowInnerColor=Rgba::noColor(), const Rgba &turnArrowOuterColor=Rgba::noColor(), double turnArrowInnerSz=-1., double turnArrowOuterSz=0.)
	Constructor taking options and colors.
RouteRenderSettings &	setFillColor (const Rgba &color)
	Sets the fill color for the route.
RouteRenderSettings &	setTraveledInnerColor (const Rgba &color)
	Sets the color of the traveled part of the route.
RouteRenderSettings &	setTurnArrowInnerColor (const Rgba &color)
	Sets the inner color of the turn arrows on the route.
RouteRenderSettings &	setTurnArrowOuterColor (const Rgba &color)
	Sets the outer color of the turn arrows on the route.
RouteRenderSettings &	setTurnArrowInnerSize (double sz)
	Sets the inner size of the turn arrows on the route.
RouteRenderSettings &	setTurnArrowOuterSize (double sz)
	Sets the outer size of the turn arrows on the route.
RouteRenderSettings &	setWaypointTextSize (double sz)
	Sets the text size for waypoints on the route.
RouteRenderSettings &	setWaypointTextInnerColor (const Rgba &color)
	Sets the inner text color for waypoint labels on the route.
RouteRenderSettings &	setWaypointTextOuterColor (const Rgba &color)
	Sets the outer text color for waypoint labels on the route.
RouteRenderSettings &	setWaypointImageSize (double sz)
	Sets the image size for waypoints on the route.
RouteRenderSettings &	setDirectionArrowInnerColor (const Rgba &color)
	Sets the route direction arrow inner color.
RouteRenderSettings &	setDirectionArrowOuterColor (const Rgba &color)
	Sets the route direction arrow outer color.
RouteRenderSettings &	setDirectionArrowSize (double sz)
	Sets the route direction arrow width.
RouteRenderSettings &	setInnerGradientEndColor (const Rgba &color)
	Sets the route inner end color ( gradient fill ).
RouteRenderSettings &	setTraveledInnerGradientEndColor (const Rgba &color)
	Sets the route inner end color for traveled part ( gradient fill ).
bool	operator== (const RouteRenderSettings &s) const
	Checks for equality between two RouteRenderSettings instances.
bool	operator!= (const RouteRenderSettings &s) const
	Checks for inequality between two RouteRenderSettings instances.
auto &	setOptions (Options options)
	Set the render options.
auto &	setOption (Options option)
	Set the render options.
auto &	resetOption (Options option)
	Reset the render options.
auto &	setContourInnerColor (const Rgba &color)
	set contour inner color
auto &	setContourOuterColor (const Rgba &color)
	set contour outer color
auto &	setContourInnerSize (const double &sz)
	set contour inner size
auto &	setContourOuterSize (const double &sz)
	set contour outer size
auto &	setImageSize (const double &sz)
	set image size
auto &	setTextSize (const double &sz)
	set text size
auto &	setTextColor (const Rgba &color)
	set text color
auto &	setLineType (ELineType type)
	set line type
auto &	setImagePosition (EImagePosition pos)
	set image position
bool	operator== (const RenderSettings &s) const
	Equal operator.
bool	operator!= (const RenderSettings &s) const
	Not equal operator.

Static Public Member Functions
static Rgba	getDefaultFillColor ()
	Provides the default fill color for routes.
static Rgba	getDefaultTraveledInnerColor ()
	Provides the default color for the traveled inner part of the route.
static Rgba	getDefaultTurnArrowInnerColor ()
	Provides the default inner color for turn arrows on the route.
static Rgba	getDefaultTurnArrowOuterColor ()
	Provides the default outer color for turn arrows on the route.
static double	getDefaultTurnArrowInnerSize ()
	Provides the default inner size for turn arrows on the route.
static double	getDefaultTurnArrowOuterSize ()
	Provides the default outer size for turn arrows on the route.
static double	getDefaultWaypointTextSize ()
	Provides the default size for route waypoints text.
static Rgba	getDefaultWaypointTextInnerColor ()
	Provides the default inner color for waypoint text on the route.
static Rgba	getDefaultWaypointTextOuterColor ()
	Provides the default outer color for waypoint text on the route.
static double	getDefaultWaypointImageSize ()
	Provides the default size for route waypoints image.
static Rgba	getDefaultDirectionArrowInnerColor ()
	Provides the default inner color for direction arrows.
static Rgba	getDefaultDirectionArrowOuterColor ()
	Provides the default outer color for direction arrows.
static Rgba	getDefaultDirectionArrowSize ()
	Provides the default size for direction arrows.
static Rgba	getDefaultInnerGradientEndColor ()
	Provides the default gradient inner end color.
static Rgba	getDefaultTraveledInnerGradientEndColor ()
	Provides the default gradient inner end color for traveled part.
static Rgba	getDefaultInnerColor ()
	Get default inner color.
static Rgba	getDefaultOuterColor ()
	get default outer color
static double	getDefaultInnnerSize ()
	get default inner size
static double	getDefaultOuterSize ()
	get default outer size
static double	getDefaultTextSize ()
	get default image size
static Rgba	getDefaultTextColor ()
	get default text color
static double	getDefaultImageSize ()
	get default image size

Public Attributes
Rgba	m_traveledInnerColor
	The traveled route part inner color.
Rgba	m_turnArrowInnerColor
	The turn arrow inner color.
Rgba	m_turnArrowOuterColor
	The turn arrow outer color.
double	m_turnArrowInnerSz
	The turn arrow inner size ( mm ).
double	m_turnArrowOuterSz
	The turn arrow outer size ( mm ).
Rgba	m_fillColor
	The route fill color ( only for result type = RRT_Range ).
double	m_waypointTextSz
	Waypoint names text size ( mm ). Default is 0, meaning waypoint names are not displayed.
Rgba	m_waypointTextInnerColor
	Waypoints text inner color.
Rgba	m_waypointTextOuterColor
	Waypoints text outer color.
double	m_waypointImgSz
	Waypoint image size ( mm ). Default is 0, meaning map view style value is used.
Rgba	m_dirArrowInnerColor
	Direction arrow inner color.
Rgba	m_dirArrowOuterColor
	Direction arrow outer color.
double	m_dirArrowSz
	Direction arrow width ( mm ).
Rgba	m_innerGradientEndColor
	The route inner color end.
Rgba	m_traveledInnerGradientEndColor
	The traveled route inner color end.
Options	m_options
	options
Options	labelingMode
	options for labeling
union {
Options m_options
	options
Options labelingMode
	options for labeling
};
	The render options.
Rgba	m_innerColor
	inner color RGBA
Rgba	polylineInnerColor
	Polyline inner color RGBA.
union {
Rgba m_innerColor
	inner color RGBA
Rgba polylineInnerColor
	Polyline inner color RGBA.
};
	The polyline inner color.
Rgba	m_outerColor
	outer color RGBA
Rgba	polylineOuterColor
	Polyline outer color RGBA.
union {
Rgba m_outerColor
	outer color RGBA
Rgba polylineOuterColor
	Polyline outer color RGBA.
};
	The polyline outer color.
double	m_innerSz
	inner size in mm
double	polylineInnerSize
	Polyline inner size in mm.
union {
double m_innerSz
	inner size in mm
double polylineInnerSize
	Polyline inner size in mm.
};
	The polyline inner size in mm.
double	m_outerSz
	outer size in mm
double	polylineOuterSize
	Polyline outer size in mm.
union {
double m_outerSz
	outer size in mm
double polylineOuterSize
	Polyline outer size in mm.
};
	The polyline outer ( border ) size in mm.
double	m_imgSz
	image size in mm
double	imageSize
	image size in mm
union {
double m_imgSz
	image size in mm
double imageSize
	image size in mm
};
	The image size in mm ( default: value from current style ).
double	m_textSz
	text size in mm
double	labelTextSize
	label text size in mm
union {
double m_textSz
	text size in mm
double labelTextSize
	label text size in mm
};
	The text size in mm ( default: value from current style ).
Rgba	m_textColor
	text color RGBA
Rgba	labelTextColor
	label color RGBA
union {
Rgba m_textColor
	text color RGBA
Rgba labelTextColor
	label color RGBA
};
	The text color ( default: value from current style ).
ELineType	m_lineType
	line type
ELineType	polylineType
	Polyline type.
union {
ELineType m_lineType
	line type
ELineType polylineType
	Polyline type.
};
	The line type.
EImagePosition	m_imgPos
	image position
EImagePosition	imagePosition
	image position
union {
EImagePosition m_imgPos
	image position
EImagePosition imagePosition
	image position
};
	The image position.

Detailed Description

Route render settings.

Constructor & Destructor Documentation

◆ RouteRenderSettings()

gem::RouteRenderSettings::RouteRenderSettings	(	int	options = RRS_ShowTraffic \| RRS_ShowTurnArrows \| RRS_ShowWaypoints \| RRS_ShowHighlights,
		const Rgba &	innerColor = Rgba::noColor(),
		const Rgba &	outerColor = Rgba::noColor(),
		double	innerSz = -1.,
		double	outerSz = 0.,
		const Rgba &	traveledInnerColor = Rgba::noColor(),
		const Rgba &	turnArrowInnerColor = Rgba::noColor(),
		const Rgba &	turnArrowOuterColor = Rgba::noColor(),
		double	turnArrowInnerSz = -1.,
		double	turnArrowOuterSz = 0. )

inline

Constructor taking options and colors.

Parameters

options	The options to be used for rendering the route.
innerColor	The color to be used for the inner part of the route.
outerColor	The color to be used for the outer part of the route.
innerSz	The size of the inner part of the route.
outerSz	The size of the outer part of the route.
traveledInnerColor	The color to be used for the inner part of the route that has been traveled.
turnArrowInnerColor	The color to be used for the inner part of the turn arrows.
turnArrowOuterColor	The color to be used for the outer part of the turn arrows.
turnArrowInnerSz	The size of the inner part of the turn arrows.
turnArrowOuterSz	The size of the outer part of the turn arrows.

Member Function Documentation

◆ getDefaultDirectionArrowInnerColor()

Rgba gem::RouteRenderSettings::getDefaultDirectionArrowInnerColor ( )

inlinestatic

Provides the default inner color for direction arrows.

Returns: The default RGBA color value with no color, used for the outer part of waypoint text.

◆ getDefaultDirectionArrowOuterColor()

Rgba gem::RouteRenderSettings::getDefaultDirectionArrowOuterColor ( )

inlinestatic

Provides the default outer color for direction arrows.

Returns: The default RGBA color value with no color, used for the outer part of waypoint text.

◆ getDefaultDirectionArrowSize()

Rgba gem::RouteRenderSettings::getDefaultDirectionArrowSize ( )

inlinestatic

Provides the default size for direction arrows.

Returns: The default value

◆ getDefaultFillColor()

Rgba gem::RouteRenderSettings::getDefaultFillColor ( )

inlinestatic

Provides the default fill color for routes.

Returns: The default RGBA color value with no color.

◆ getDefaultImageSize()

double gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::getDefaultImageSize ( )

inlinestaticinherited

get default image size

Returns: The default image size

◆ getDefaultInnerColor()

Rgba gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::getDefaultInnerColor ( )

inlinestaticinherited

Get default inner color.

Returns: The default inner color

◆ getDefaultInnerGradientEndColor()

Rgba gem::RouteRenderSettings::getDefaultInnerGradientEndColor ( )

inlinestatic

Provides the default gradient inner end color.

Returns: The default RGBA color value with no color meaning gradient fill is disabled

◆ getDefaultInnnerSize()

double gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::getDefaultInnnerSize ( )

inlinestaticinherited

get default inner size

Returns: The default inner size

◆ getDefaultOuterColor()

Rgba gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::getDefaultOuterColor ( )

inlinestaticinherited

get default outer color

Returns: The default outer color

◆ getDefaultOuterSize()

double gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::getDefaultOuterSize ( )

inlinestaticinherited

get default outer size

Returns: The default outer size

◆ getDefaultTextColor()

Rgba gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::getDefaultTextColor ( )

inlinestaticinherited

get default text color

Returns: The default text color

◆ getDefaultTextSize()

double gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::getDefaultTextSize ( )

inlinestaticinherited

get default image size

Returns: The default image size

◆ getDefaultTraveledInnerColor()

Rgba gem::RouteRenderSettings::getDefaultTraveledInnerColor ( )

inlinestatic

Provides the default color for the traveled inner part of the route.

Returns: The default RGBA color value with no color.

◆ getDefaultTraveledInnerGradientEndColor()

Rgba gem::RouteRenderSettings::getDefaultTraveledInnerGradientEndColor ( )

inlinestatic

Provides the default gradient inner end color for traveled part.

Returns: The default RGBA color value with no color meaning gradient fill is disabled

◆ getDefaultTurnArrowInnerColor()

Rgba gem::RouteRenderSettings::getDefaultTurnArrowInnerColor ( )

inlinestatic

Provides the default inner color for turn arrows on the route.

Returns: The default RGBA color value with no color.

◆ getDefaultTurnArrowInnerSize()

double gem::RouteRenderSettings::getDefaultTurnArrowInnerSize ( )

inlinestatic

Provides the default inner size for turn arrows on the route.

Returns: The default size value, typically indicating no specific size set.

◆ getDefaultTurnArrowOuterColor()

Rgba gem::RouteRenderSettings::getDefaultTurnArrowOuterColor ( )

inlinestatic

Provides the default outer color for turn arrows on the route.

Returns: The default RGBA color value with no color.

◆ getDefaultTurnArrowOuterSize()

double gem::RouteRenderSettings::getDefaultTurnArrowOuterSize ( )

inlinestatic

Provides the default outer size for turn arrows on the route.

Returns: The default size value, typically zero, indicating no outer size.

◆ getDefaultWaypointImageSize()

double gem::RouteRenderSettings::getDefaultWaypointImageSize ( )

inlinestatic

Provides the default size for route waypoints image.

Returns: The default size value, typically zero, used for waypoint labels image.

◆ getDefaultWaypointTextInnerColor()

Rgba gem::RouteRenderSettings::getDefaultWaypointTextInnerColor ( )

inlinestatic

Provides the default inner color for waypoint text on the route.

Returns: The default RGBA color value with no color, used for the inner part of waypoint text.

◆ getDefaultWaypointTextOuterColor()

Rgba gem::RouteRenderSettings::getDefaultWaypointTextOuterColor ( )

inlinestatic

Provides the default outer color for waypoint text on the route.

Returns: The default RGBA color value with no color, used for the outer part of waypoint text.

◆ getDefaultWaypointTextSize()

double gem::RouteRenderSettings::getDefaultWaypointTextSize ( )

inlinestatic

Provides the default size for route waypoints text.

Returns: The default size value, typically zero, used for waypoint labels text.

◆ operator!=() [1/2]

bool gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::operator!= ( const RenderSettings< int, int(RRS_ShowTraffic|RRS_ShowTurnArrows|RRS_ShowWaypoints|RRS_ShowHighlights), GEM_SETTING_COLOR(0, 0, 0, 0), GEM_SETTING_COLOR(0, 0, 0, 0), GEM_SETTING_SIZE(-1.), GEM_SETTING_SIZE(0.), struct RouteRenderSettings > & s ) const

inlineinherited

Not equal operator.

Parameters

s	The settings to compare

Returns: True if the settings are not equal

◆ operator!=() [2/2]

bool gem::RouteRenderSettings::operator!= ( const RouteRenderSettings & s ) const

inline

Checks for inequality between two RouteRenderSettings instances.

Parameters

s	Another instance of RouteRenderSettings to compare with.

Returns: True if any property does not match, false otherwise.

◆ operator==() [1/2]

bool gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::operator== ( const RenderSettings< int, int(RRS_ShowTraffic|RRS_ShowTurnArrows|RRS_ShowWaypoints|RRS_ShowHighlights), GEM_SETTING_COLOR(0, 0, 0, 0), GEM_SETTING_COLOR(0, 0, 0, 0), GEM_SETTING_SIZE(-1.), GEM_SETTING_SIZE(0.), struct RouteRenderSettings > & s ) const

inlineinherited

Equal operator.

Parameters

s	The settings to compare

Returns: True if the settings are equal

◆ operator==() [2/2]

bool gem::RouteRenderSettings::operator== ( const RouteRenderSettings & s ) const

inline

Checks for equality between two RouteRenderSettings instances.

Parameters

s	Another instance of RouteRenderSettings to compare with.

Returns: True if all properties match, false otherwise.

◆ resetOption()

auto & gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::resetOption ( Options option )

inlineinherited

Reset the render options.

Parameters

option The render options

Returns: A reference to the object

◆ setContourInnerColor()

auto & gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::setContourInnerColor ( const Rgba & color )

inlineinherited

set contour inner color

Parameters

color The color

Returns: A reference to the object

◆ setContourInnerSize()

auto & gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::setContourInnerSize ( const double & sz )

inlineinherited

set contour inner size

Parameters

sz The size

Returns: A reference to the object

◆ setContourOuterColor()

auto & gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::setContourOuterColor ( const Rgba & color )

inlineinherited

set contour outer color

Parameters

color The color

Returns: A reference to the object

◆ setContourOuterSize()

auto & gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::setContourOuterSize ( const double & sz )

inlineinherited

set contour outer size

Parameters

sz The size

Returns: A reference to the object

◆ setDirectionArrowInnerColor()

RouteRenderSettings & gem::RouteRenderSettings::setDirectionArrowInnerColor ( const Rgba & color )

inline

Sets the route direction arrow inner color.

Parameters

color The new direction arrow inner color

Returns: Reference to the current RouteRenderSettings instance.

◆ setDirectionArrowOuterColor()

RouteRenderSettings & gem::RouteRenderSettings::setDirectionArrowOuterColor ( const Rgba & color )

inline

Sets the route direction arrow outer color.

Parameters

color The new direction arrow outer color

Returns: Reference to the current RouteRenderSettings instance.

◆ setDirectionArrowSize()

RouteRenderSettings & gem::RouteRenderSettings::setDirectionArrowSize ( double sz )

inline

Sets the route direction arrow width.

Parameters

sz	The new direction arrow width ( mm )

Returns: Reference to the current RouteRenderSettings instance.

◆ setFillColor()

RouteRenderSettings & gem::RouteRenderSettings::setFillColor ( const Rgba & color )

inline

Sets the fill color for the route.

Parameters

color The new fill color to be used.

Returns: Reference to the current RouteRenderSettings instance.

◆ setImagePosition()

auto & gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::setImagePosition ( EImagePosition pos )

inlineinherited

set image position

Parameters

pos	The image position

Returns: A reference to the object

◆ setImageSize()

auto & gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::setImageSize ( const double & sz )

inlineinherited

set image size

Parameters

sz The size

Returns: A reference to the object

◆ setInnerGradientEndColor()

RouteRenderSettings & gem::RouteRenderSettings::setInnerGradientEndColor ( const Rgba & color )

inline

Sets the route inner end color ( gradient fill ).

Parameters

color The route inner end color

Returns: Reference to the current RouteRenderSettings instance.

◆ setLineType()

auto & gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::setLineType ( ELineType type )

inlineinherited

set line type

Parameters

type	The line type

Returns: A reference to the object

◆ setOption()

auto & gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::setOption ( Options option )

inlineinherited

Set the render options.

Parameters

option The render option

Returns: A reference to the object

◆ setOptions()

auto & gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::setOptions ( Options options )

inlineinherited

Set the render options.

Parameters

options The render options

Returns: A reference to the object

◆ setTextColor()

auto & gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::setTextColor ( const Rgba & color )

inlineinherited

set text color

Parameters

color The color

Returns: A reference to the object

◆ setTextSize()

auto & gem::RenderSettings< int, DefOptions, DefInnerColor, DefOuterColor, DefInnerSz, DefOuterSz, struct RouteRenderSettings >::setTextSize ( const double & sz )

inlineinherited

set text size

Parameters

sz The size

Returns: A reference to the object

◆ setTraveledInnerColor()

RouteRenderSettings & gem::RouteRenderSettings::setTraveledInnerColor ( const Rgba & color )

inline

Sets the color of the traveled part of the route.

Parameters

color The new color for the traveled part.

Returns: Reference to the current RouteRenderSettings instance.

◆ setTraveledInnerGradientEndColor()

RouteRenderSettings & gem::RouteRenderSettings::setTraveledInnerGradientEndColor ( const Rgba & color )

inline

Sets the route inner end color for traveled part ( gradient fill ).

Parameters

color The traveled route inner end color

Returns: Reference to the current RouteRenderSettings instance.

◆ setTurnArrowInnerColor()

RouteRenderSettings & gem::RouteRenderSettings::setTurnArrowInnerColor ( const Rgba & color )

inline

Sets the inner color of the turn arrows on the route.

Parameters

color The new inner color for the turn arrows.

Returns: Reference to the current RouteRenderSettings instance.

◆ setTurnArrowInnerSize()

RouteRenderSettings & gem::RouteRenderSettings::setTurnArrowInnerSize ( double sz )

inline

Sets the inner size of the turn arrows on the route.

Parameters

sz	The new inner size for the turn arrows ( mm ).

Returns: Reference to the current RouteRenderSettings instance.

◆ setTurnArrowOuterColor()

RouteRenderSettings & gem::RouteRenderSettings::setTurnArrowOuterColor ( const Rgba & color )

inline

Sets the outer color of the turn arrows on the route.

Parameters

color The new outer color for the turn arrows.

Returns: Reference to the current RouteRenderSettings instance.

◆ setTurnArrowOuterSize()

RouteRenderSettings & gem::RouteRenderSettings::setTurnArrowOuterSize ( double sz )

inline

Sets the outer size of the turn arrows on the route.

Parameters

sz	The new outer size for the turn arrows ( mm ).

Returns: Reference to the current RouteRenderSettings instance.

◆ setWaypointImageSize()

RouteRenderSettings & gem::RouteRenderSettings::setWaypointImageSize ( double sz )

inline

Sets the image size for waypoints on the route.

Parameters

sz	The new image size for waypoint labels ( mm ).

Returns: Reference to the current RouteRenderSettings instance.

◆ setWaypointTextInnerColor()

RouteRenderSettings & gem::RouteRenderSettings::setWaypointTextInnerColor ( const Rgba & color )

inline

Sets the inner text color for waypoint labels on the route.

Parameters

color The new inner text color for waypoint labels.

Returns: Reference to the current RouteRenderSettings instance.

◆ setWaypointTextOuterColor()

RouteRenderSettings & gem::RouteRenderSettings::setWaypointTextOuterColor ( const Rgba & color )

inline

Sets the outer text color for waypoint labels on the route.

Parameters

color The new outer text color for waypoint labels.

Returns: Reference to the current RouteRenderSettings instance.

◆ setWaypointTextSize()

RouteRenderSettings & gem::RouteRenderSettings::setWaypointTextSize ( double sz )

inline

Sets the text size for waypoints on the route.

Parameters

sz	The new text size for waypoint labels ( mm ).

Returns: Reference to the current RouteRenderSettings instance.

Member Data Documentation

◆ m_fillColor

Rgba gem::RouteRenderSettings::m_fillColor

The route fill color ( only for result type = RRT_Range ).

If not specified the Sdk will use the innerColor with a default alpha channel

◆ m_innerGradientEndColor

Rgba gem::RouteRenderSettings::m_innerGradientEndColor

The route inner color end.

Used for gradient rendering along the route, if valid ( !noColor() )

◆ m_traveledInnerGradientEndColor

Rgba gem::RouteRenderSettings::m_traveledInnerGradientEndColor

The traveled route inner color end.

Used for gradient rendering along the route, if valid ( !noColor() )

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ RouteRenderSettings()

Member Function Documentation

◆ getDefaultDirectionArrowInnerColor()

◆ getDefaultDirectionArrowOuterColor()

◆ getDefaultDirectionArrowSize()

◆ getDefaultFillColor()

◆ getDefaultImageSize()

◆ getDefaultInnerColor()

◆ getDefaultInnerGradientEndColor()

◆ getDefaultInnnerSize()

◆ getDefaultOuterColor()

◆ getDefaultOuterSize()

◆ getDefaultTextColor()

◆ getDefaultTextSize()

◆ getDefaultTraveledInnerColor()

◆ getDefaultTraveledInnerGradientEndColor()

◆ getDefaultTurnArrowInnerColor()

◆ getDefaultTurnArrowInnerSize()

◆ getDefaultTurnArrowOuterColor()

◆ getDefaultTurnArrowOuterSize()

◆ getDefaultWaypointImageSize()

◆ getDefaultWaypointTextInnerColor()

◆ getDefaultWaypointTextOuterColor()

◆ getDefaultWaypointTextSize()

◆ operator!=() [1/2]

◆ operator!=() [2/2]

◆ operator==() [1/2]

◆ operator==() [2/2]

◆ resetOption()

◆ setContourInnerColor()

◆ setContourInnerSize()

◆ setContourOuterColor()

◆ setContourOuterSize()

◆ setDirectionArrowInnerColor()

◆ setDirectionArrowOuterColor()

◆ setDirectionArrowSize()

◆ setFillColor()

◆ setImagePosition()

◆ setImageSize()

◆ setInnerGradientEndColor()

◆ setLineType()

◆ setOption()

◆ setOptions()

◆ setTextColor()

◆ setTextSize()

◆ setTraveledInnerColor()

◆ setTraveledInnerGradientEndColor()

◆ setTurnArrowInnerColor()

◆ setTurnArrowInnerSize()

◆ setTurnArrowOuterColor()

◆ setTurnArrowOuterSize()

◆ setWaypointImageSize()

◆ setWaypointTextInnerColor()

◆ setWaypointTextOuterColor()

◆ setWaypointTextSize()

Member Data Documentation

◆ m_fillColor

◆ m_innerGradientEndColor

◆ m_traveledInnerGradientEndColor
