Definition of Position interface. More...

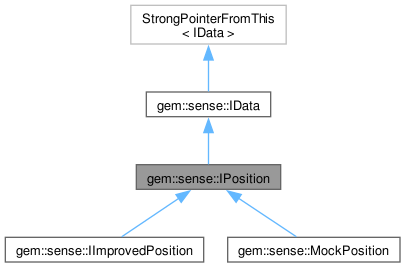

Inheritance diagram for gem::sense::IPosition:

[legend]

Collaboration diagram for gem::sense::IPosition:

[legend]

Public Types
enum class	EProvider { Unknown , GPS , Network , SensorFusion , MapMatching , Simulation }
	Values that represent the type of position provider. More...
enum class	EFixQuality { Invalid , Inertial , Low , High }
	Values that represent position data quality. More...

Public Member Functions
EDataType	getType () const override
	Get data type.
virtual LargeInteger	getSatelliteTime () const =0
	Satellite timestamp, milliseconds since 1970.
LargeInteger	getSatelliteTimestamp () const
	Satellite timestamp, milliseconds since 1970.
virtual EProvider	getProvider () const =0
	Provider type: GPS, Network, Unknown.
virtual double	getLatitude () const =0
	Geographical latitude.
virtual double	getLongitude () const =0
	Geographical longitude.
Coordinates	getCoordinates () const
	Latitude and longitude.
virtual double	getAltitude () const =0
	Altitude above main sea level.
virtual double	getSpeed () const =0
	Travel speed.
virtual double	getSpeedAccuracy () const =0
	Travel speed accuracy.
virtual double	getCourse () const =0
	The course of the movement.
virtual double	getCourseAccuracy () const =0
	Course accuracy.
virtual double	getHorizontalAccuracy () const =0
	Horizontal accuracy of position.
virtual double	getVerticalAccuracy () const =0
	Vertical accuracy of position.
virtual EFixQuality	getFixQuality () const =0
	Fix quality (whether this position is trustworthy); see the explanations at EFixQuality.
bool	isValid () const
virtual bool	hasCoordinates () const =0
	Query if this object has valid coordinates.
virtual bool	hasAltitude () const =0
	Query if this object has altitude.
virtual bool	hasSpeed () const =0
	Query if this object has speed.
virtual bool	hasSpeedAccuracy () const =0
	Query if this object has speed accuracy.
virtual bool	hasCourse () const =0
	Query if this object has course.
virtual bool	hasCourseAccuracy () const =0
	Query if this object has course accuracy.
virtual bool	hasHorizontalAccuracy () const =0
	Query if this object has horizontal accuracy.
virtual bool	hasVerticalAccuracy () const =0
	Query if this object has vertical accuracy.
virtual LargeInteger	getAcquisitionTimestamp () const =0
Time	getTime () const
template<typename TDerivedType>
StrongPointer< TDerivedType >	cast ()
	Cast to a derived type.

Static Public Member Functions
static bool	isSameType (const IData *ptr)
	Check if a certain data element is of Position type.

Detailed Description

Definition of Position interface.

Member Enumeration Documentation

◆ EFixQuality

enum class gem::sense::IPosition::EFixQuality

strong

Values that represent position data quality.

Invalid means the position can not or should not be processed (for instance, invalid coordinates)

Inertial means position has resulted from inertial extrapolation; there is a GPS outage (e.g. tunnel)

Low means the position is valid but cannot be trusted because of bad GPS accuracy (e.g. urban canyon)

High means the position is valid and can be trusted (is recent and has a good accuracy)

Enumerator
Invalid	The position data is invalid and should not be processed.
Inertial	The position data is inertial.
Low	The position is valid but has low accuracy and cannot be fully trusted.
High	The position is valid and can be trusted due to good accuracy and recency.

◆ EProvider

enum class gem::sense::IPosition::EProvider

strong

Values that represent the type of position provider.

GPS means that the position comes from a GPS sensor.

Network means that the position comes from a network source, but not GPS.

Enumerator
Unknown	The position provider is unknown.
GPS	The position is obtained from a GPS sensor.
Network	The position is obtained from a network-based source.
SensorFusion	The position is improved using inertial sensors for better accuracy.
MapMatching	The position is matched with a map for better accuracy.
Simulation	The position data comes from a simulation environment.

Member Function Documentation

◆ cast()

template<typename TDerivedType>

StrongPointer< TDerivedType > gem::sense::IData::cast ( )

inlineinherited

Cast to a derived type.

Returns: The requested derived type as a shared pointer.

◆ getAcquisitionTimestamp()

virtual LargeInteger gem::sense::IData::getAcquisitionTimestamp ( ) const

pure virtualinherited

Returns: Acquisition timestamp in milliseconds since 1970 ( epoch )

Implemented in gem::sense::MockPosition.

◆ getAltitude()

virtual double gem::sense::IPosition::getAltitude ( ) const

pure virtual

Altitude above main sea level.

Returns: The altitude in meters.

Implemented in gem::sense::MockPosition.

◆ getCoordinates()

Coordinates gem::sense::IPosition::getCoordinates ( ) const

inline

Latitude and longitude.

If both values are equal to 0, the position is considered invalid

Returns: Coordinate pair, both latitude and longitude in degrees

◆ getCourse()

virtual double gem::sense::IPosition::getCourse ( ) const

pure virtual

The course of the movement.

Represents true heading, not magnetic heading.

0 means true north, 90 east, 180 south, 270 west.

A negative value (-1 by default) means the position has no course information.

Returns: The course in degrees.

Implemented in gem::sense::MockPosition.

◆ getCourseAccuracy()

virtual double gem::sense::IPosition::getCourseAccuracy ( ) const

pure virtual

Course accuracy.

Typical accuracy for consumer GPS is 25 degrees at high speeds.

Valid course accuracy should always be positive.

Returns: The course accuracy in degrees.

Implemented in gem::sense::MockPosition.

◆ getFixQuality()

virtual EFixQuality gem::sense::IPosition::getFixQuality ( ) const

pure virtual

Fix quality (whether this position is trustworthy); see the explanations at EFixQuality.

Returns: The fix quality.

Implemented in gem::sense::MockPosition.

◆ getHorizontalAccuracy()

virtual double gem::sense::IPosition::getHorizontalAccuracy ( ) const

pure virtual

Horizontal accuracy of position.

Typical accuracy for consumer GPS is 5-20 meters.

Valid position accuracy should always be positive.

Returns: The horizontal position accuracy in meters.

Implemented in gem::sense::MockPosition.

◆ getLatitude()

virtual double gem::sense::IPosition::getLatitude ( ) const

pure virtual

Geographical latitude.

From -90 to +90; positive on northern hemisphere

If value is out of the -90...90 range, the position is considered invalid.

Returns: The latitude in degrees

Implemented in gem::sense::MockPosition.

◆ getLongitude()

virtual double gem::sense::IPosition::getLongitude ( ) const

pure virtual

Geographical longitude.

From -180 to +180; positive on eastern hemisphere

If value is out of the -180...180 range, the position is considered invalid.

Returns: The longitude in degrees

Implemented in gem::sense::MockPosition.

◆ getProvider()

virtual EProvider gem::sense::IPosition::getProvider ( ) const

pure virtual

Provider type: GPS, Network, Unknown.

Returns: The provider type.

Implemented in gem::sense::MockPosition.

◆ getSatelliteTime()

virtual LargeInteger gem::sense::IPosition::getSatelliteTime ( ) const

pure virtual

Satellite timestamp, milliseconds since 1970.

Deprecated: Use instead getSatelliteTimestamp().

Timestamps are expected to increase monotonously for subsequent positions; data with timestamp from the past will be discarded.

Returns: The satellite time in milliseconds

Implemented in gem::sense::MockPosition.

◆ getSatelliteTimestamp()

LargeInteger gem::sense::IPosition::getSatelliteTimestamp ( ) const

inline

Satellite timestamp, milliseconds since 1970.

Timestamps are expected to increase monotonously for subsequent positions; data with timestamp from the past will be discarded.

Returns: The satellite time in milliseconds

◆ getSpeed()

virtual double gem::sense::IPosition::getSpeed ( ) const

pure virtual

Travel speed.

Valid speed information should always be non-negative.

A negative value (-1 by default) means the position has no speed information.

If car is going backwards, the course should change by 180, but the speed should still be non-negative.

Returns: The speed, in m/s.

Implemented in gem::sense::MockPosition.

◆ getSpeedAccuracy()

virtual double gem::sense::IPosition::getSpeedAccuracy ( ) const

pure virtual

Travel speed accuracy.

Typical accuracy for consumer GPS is 2 m/s at steady speed and high position accuracy.

Valid speed accuracy should always be positive.

Returns: The speed accuracy in m/s.

Implemented in gem::sense::MockPosition.

◆ getTime()

Time gem::sense::IData::getTime ( ) const

inlineinherited

Returns: System acquisition time

◆ getType()

EDataType gem::sense::IPosition::getType ( ) const

inlineoverridevirtual

Get data type.

Returns: The type.

Implements gem::sense::IData.

◆ getVerticalAccuracy()

virtual double gem::sense::IPosition::getVerticalAccuracy ( ) const

pure virtual

Vertical accuracy of position.

Valid position accuracy should always be positive.

Returns: The vertical position accuracy in meters.

Implemented in gem::sense::MockPosition.

◆ hasAltitude()

virtual bool gem::sense::IPosition::hasAltitude ( ) const

pure virtual

Query if this object has altitude.

Returns: True if altitude is available and valid, false if not.

Implemented in gem::sense::MockPosition.

◆ hasCoordinates()

virtual bool gem::sense::IPosition::hasCoordinates ( ) const

pure virtual

Query if this object has valid coordinates.

Returns: True if latitude and longitude are available and valid, false if not.

Implemented in gem::sense::MockPosition.

◆ hasCourse()

virtual bool gem::sense::IPosition::hasCourse ( ) const

pure virtual

Query if this object has course.

Returns: True if course is available and valid, false if not.

Implemented in gem::sense::MockPosition.

◆ hasCourseAccuracy()

virtual bool gem::sense::IPosition::hasCourseAccuracy ( ) const

pure virtual

Query if this object has course accuracy.

Returns: True if course accuracy is available and valid, false if not.

Implemented in gem::sense::MockPosition.

◆ hasHorizontalAccuracy()

virtual bool gem::sense::IPosition::hasHorizontalAccuracy ( ) const

pure virtual

Query if this object has horizontal accuracy.

Returns: True if horizontal accuracy is available and valid, false if not.

Implemented in gem::sense::MockPosition.

◆ hasSpeed()

virtual bool gem::sense::IPosition::hasSpeed ( ) const

pure virtual

Query if this object has speed.

Returns: True if speed is available and valid, false if not.

Implemented in gem::sense::MockPosition.

◆ hasSpeedAccuracy()

virtual bool gem::sense::IPosition::hasSpeedAccuracy ( ) const

pure virtual

Query if this object has speed accuracy.

Returns: True if speed accuracy is available and valid, false if not.

Implemented in gem::sense::MockPosition.

◆ hasVerticalAccuracy()

virtual bool gem::sense::IPosition::hasVerticalAccuracy ( ) const

pure virtual

Query if this object has vertical accuracy.

Returns: True if vertical accuracy is available and valid, false if not.

Implemented in gem::sense::MockPosition.

◆ isSameType()

bool gem::sense::IPosition::isSameType ( const IData * ptr )

inlinestatic

Check if a certain data element is of Position type.

Parameters

ptr	The other IData pointer to check against.

Returns: True if the examined data is of type Position or ImprovedPosition

◆ isValid()

bool gem::sense::IPosition::isValid ( ) const

inline

Returns: Whether this position is valid.

Public Types

Public Member Functions

Static Public Member Functions

Detailed Description

Member Enumeration Documentation

◆ EFixQuality

◆ EProvider

Member Function Documentation

◆ cast()

◆ getAcquisitionTimestamp()

◆ getAltitude()

◆ getCoordinates()

◆ getCourse()

◆ getCourseAccuracy()

◆ getFixQuality()

◆ getHorizontalAccuracy()

◆ getLatitude()

◆ getLongitude()

◆ getProvider()

◆ getSatelliteTime()

◆ getSatelliteTimestamp()

◆ getSpeed()

◆ getSpeedAccuracy()

◆ getTime()

◆ getType()

◆ getVerticalAccuracy()

◆ hasAltitude()

◆ hasCoordinates()

◆ hasCourse()

◆ hasCourseAccuracy()

◆ hasHorizontalAccuracy()

◆ hasSpeed()

◆ hasSpeedAccuracy()

◆ hasVerticalAccuracy()

◆ isSameType()

◆ isValid()
