Sketches collection. More...

Inheritance diagram for gem::MarkerSketches:

[legend]

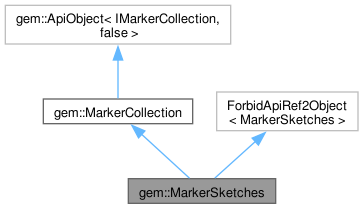

Collaboration diagram for gem::MarkerSketches:

[legend]

Public Member Functions
MarkerSketches &	add (const Marker &marker, const MarkerRenderSettings &settings, int index=-1) noexcept
	Add a new sketch with specific render settings.
const MarkerRenderSettings *	getRenderSettings (int index) const noexcept
	Get sketch render settings.
MarkerSketches &	setRenderSettings (int index, const MarkerRenderSettings &settings) noexcept
	Set sketch render settings.
bool	operator== (const MarkerCollection &markerCollection) const
	Comparison operator equal.
bool	operator!= (const MarkerCollection &coll) const
	Comparison operator not equal.
LargeInteger	getId () const noexcept
	Get collection id.
EMarkerType	getType () const noexcept
	Get collection type.
const StringRef	getName () const noexcept
	Get collection name.
void	setName (const String &name) noexcept
	Set collection name.
int	size () const noexcept
	Get marker count.
MarkerRef	getMarkerAt (int index) const noexcept
	Get the marker at the given index.
Marker	getMarkerById (LargeInteger id) const noexcept
	Get the marker with the given id.
int	indexOf (const Marker &marker) const noexcept
	Get the index of the given marker.
int	indexOf (LargeInteger id) const noexcept
	Get the index of the given marker id.
MarkerRef	getPointsGroupHead (LargeInteger markerId) const
	Gets the points group head for the given marker id.
MarkerList	getPointsGroupComponents (LargeInteger groupId) const
	Gets the points group components.
MarkerCollection &	del (int index) noexcept
	Delete a marker by index.
void	clear () noexcept
	Delete all markers.
void	hitTest (const RectangleGeographicArea &area, MarkerMatchList &list, const Marker *ignore=nullptr) const noexcept
	Hit test in collection markers.
RectangleGeographicArea	getArea () const noexcept
	Get whole collection enclosing area.
template<typename TCollector>
bool	iterateMarkers (TCollector collector) const noexcept
	Iterate marker collection markers and call collector for each.
int	save (DataBuffer &buffer) const noexcept
	Serialize to buffer.

Static Public Member Functions
static std::pair< MarkerCollection, int >	load (const DataBuffer &buffer) noexcept
	Create & load from buffer.

Detailed Description

Sketches collection.

Sketches collection contains markers with individual render settings

Sketches collections are always on top of the other marker collection

Sketches collections are in the following Z-order: polygon sketches, polylines sketches, points sketches

Member Function Documentation

◆ add()

MarkerSketches & gem::MarkerSketches::add	(	const Marker &	marker,
		const MarkerRenderSettings &	settings,
		int	index = -1 )

inlinenoexcept

Add a new sketch with specific render settings.

Parameters

[in]	marker	The marker added to the collection
[in]	settings	The marker render settings
[in]	index	The new marker position in collection. -1 means at the collection end ( topmost )

Returns: MarkerSketches reference

◆ del()

MarkerCollection & gem::MarkerCollection::del ( int index )

inlinenoexceptinherited

Delete a marker by index.

Parameters

[in] index The marker index to be deleted

Returns: MarkerCollection reference

◆ getArea()

RectangleGeographicArea gem::MarkerCollection::getArea ( ) const

inlinenoexceptinherited

Get whole collection enclosing area.

Returns: Collection rectangle geographic area

◆ getId()

LargeInteger gem::MarkerCollection::getId ( ) const

inlinenoexceptinherited

Get collection id.

Returns: Collection id

◆ getMarkerAt()

MarkerRef gem::MarkerCollection::getMarkerAt ( int index ) const

inlinenoexceptinherited

Get the marker at the given index.

Return empty if index is not valid

Parameters

[in] index The marker index

Returns: Marker reference

◆ getMarkerById()

Marker gem::MarkerCollection::getMarkerById ( LargeInteger id ) const

inlinenoexceptinherited

Get the marker with the given id.

Parameters

[in] id Marker id

Returns: Marker

◆ getName()

const StringRef gem::MarkerCollection::getName ( ) const

inlinenoexceptinherited

Get collection name.

Returns: Collection name

◆ getPointsGroupComponents()

MarkerList gem::MarkerCollection::getPointsGroupComponents ( LargeInteger groupId ) const

inlineinherited

Gets the points group components.

Parameters

[in] groupId The group id

This requires the collection to be added to a map view collection with MarkerCollectionRenderSettings::buildPointsGroupConfig set to true

If points group head info is not available the function will return a default list and will set the API error accordingly

Returns: Points group components list

◆ getPointsGroupHead()

MarkerRef gem::MarkerCollection::getPointsGroupHead ( LargeInteger markerId ) const

inlineinherited

Gets the points group head for the given marker id.

Parameters

[in] markerId The marker id belonging to the points group

This requires the collection to be added to a map view collection with MarkerCollectionRenderSettings::buildPointsGroupConfig set to true

If points group head info is not available the function will return a reference to the queried marker and will set the API error accordingly

If markerId is already a points group head the function will return a reference to the queried marker and will set the API error accordingly

Returns: Points group head marker reference

◆ getRenderSettings()

const MarkerRenderSettings * gem::MarkerSketches::getRenderSettings ( int index ) const

inlinenoexcept

Get sketch render settings.

Parameters

[in] index The marker index

Returns: Marker render settings

◆ getType()

EMarkerType gem::MarkerCollection::getType ( ) const

inlinenoexceptinherited

Get collection type.

Returns: Collection type

◆ hitTest()

void gem::MarkerCollection::hitTest	(	const RectangleGeographicArea &	area,
		MarkerMatchList &	list,
		const Marker *	ignore = nullptr ) const

noexceptinherited

Hit test in collection markers.

Parameters

[in]	area	The geographic area to be tested
[out]	list	The list of markers that intersect the area
[in]	ignore	The marker to be ignored in the test

◆ indexOf() [1/2]

int gem::MarkerCollection::indexOf ( const Marker & marker ) const

inlinenoexceptinherited

Get the index of the given marker.

Parameters

[in] marker The marker

Returns: Marker index

◆ indexOf() [2/2]

int gem::MarkerCollection::indexOf ( LargeInteger id ) const

inlinenoexceptinherited

Get the index of the given marker id.

Parameters

[in] id The marker id

Returns: Marker index

◆ iterateMarkers()

template<typename TCollector>

bool gem::MarkerCollection::iterateMarkers ( TCollector collector ) const

inlinenoexceptinherited

Iterate marker collection markers and call collector for each.

Collector should return true if iteration should continue and false if iteration should stop

Template Parameters

TCollector The collector function type

Parameters

[in] collector The collector function

Returns: true if iteration was completed, false if it was stopped by the collector

◆ load()

std::pair< MarkerCollection, int > gem::MarkerCollection::load ( const DataBuffer & buffer )

inlinestaticnoexceptinherited

Create & load from buffer.

Parameters

[in] buffer The buffer to load from

Returns: MarkerCollection and error code

◆ operator!=()

bool gem::MarkerCollection::operator!= ( const MarkerCollection & coll ) const

inlineinherited

Comparison operator not equal.

Parameters

[in] coll MarkerCollection

Returns: true if not equal

◆ operator==()

bool gem::MarkerCollection::operator== ( const MarkerCollection & markerCollection ) const

inlineinherited

Comparison operator equal.

Parameters

[in] markerCollection MarkerCollection

Returns: true if equal

◆ save()

int gem::MarkerCollection::save ( DataBuffer & buffer ) const

inlinenoexceptinherited

Serialize to buffer.

Parameters

[out] buffer The buffer to serialize to

Returns: Error code

◆ setName()

void gem::MarkerCollection::setName ( const String & name )

inlinenoexceptinherited

Set collection name.

Parameters

[in] name Collection name

◆ setRenderSettings()

MarkerSketches & gem::MarkerSketches::setRenderSettings	(	int	index,
		const MarkerRenderSettings &	settings )

inlinenoexcept

Set sketch render settings.

Parameters

[in]	index	The marker index
[in]	settings	The marker render settings

Returns: MarkerSketches reference

◆ size()

int gem::MarkerCollection::size ( ) const

inlinenoexceptinherited

Get marker count.

Returns: Marker count
