Map view marker collections. More...

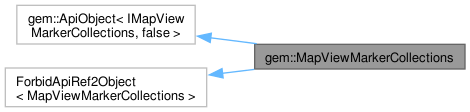

Inheritance diagram for gem::MapViewMarkerCollections:

[legend]

Collaboration diagram for gem::MapViewMarkerCollections:

[legend]

Public Member Functions
int	size () const noexcept
	Get collection size.
MarkerCollectionRef	getCollectionAt (int index) const noexcept
	Get collection at index.
int	indexOf (const MarkerCollection &col) const noexcept
	Get the index of the given collection.
int	indexOf (const String &name) const noexcept
	Get the index of the given collection name.
bool	contains (const MarkerCollection &col) const noexcept
	Check if the specified collection is in the collection.
MapViewMarkerCollections &	add (const MarkerCollection &col, const MarkerCollectionRenderSettings &settings=MarkerCollectionRenderSettings()) noexcept
	Add collection.
MapViewMarkerCollections &	remove (const MarkerCollection &col) noexcept
	Remove collection.
MapViewMarkerCollections &	remove (int index) noexcept
	Remove collection.
const MarkerCollectionRenderSettings *	getRenderSettings (int index) const noexcept
	Gets collection render settings.
const MarkerCollectionRenderSettings *	getDisplaySettings (int index) const noexcept
int	setRenderSettings (int index, const MarkerCollectionRenderSettings &settings) noexcept
	Sets collection render settings.
int	setDisplaySettings (int index, const MarkerCollectionRenderSettings &settings) noexcept
void	clear ()
	Remove all collections.
MarkerMatchList	hitTest (const RectangleGeographicArea &area, const Marker *ignore=nullptr) const noexcept
	Hit test in all collections.
template<typename TCollector>
bool	iterateCollections (TCollector collector) const noexcept
	Iterate marker collections and call collector for each.
int	save (DataBuffer &buffer) const noexcept
	Serialize to buffer.
int	load (const DataBuffer &buffer) noexcept
	Deserialize from buffer.
MarkerSketchesRef	sketches (EMarkerType type) const noexcept
	Sketches collection access.
bool	isSketches (const MarkerCollection &coll) const noexcept
	Check if the given collection is a sketches collection.

Detailed Description

Map view marker collections.

Implements share-read / share-write Api object over IMapViewMarkerCollections

Member Function Documentation

◆ add()

MapViewMarkerCollections & gem::MapViewMarkerCollections::add	(	const MarkerCollection &	col,
		const MarkerCollectionRenderSettings &	settings = MarkerCollectionRenderSettings() )

inlinenoexcept

Add collection.

Parameters

[in]	col	The markers collection to be added
[in]	settings	The markers collection render settings

Returns: MapViewMarkerCollections reference

◆ contains()

bool gem::MapViewMarkerCollections::contains ( const MarkerCollection & col ) const

inlinenoexcept

Check if the specified collection is in the collection.

Parameters

[in] col The markers collection to be searched

Returns: true if the collection is in the collection, false otherwise

◆ getCollectionAt()

MarkerCollectionRef gem::MapViewMarkerCollections::getCollectionAt ( int index ) const

inlinenoexcept

Get collection at index.

Parameters

[in] index The collection index

Returns: The MarkerCollection reference

◆ getDisplaySettings()

const MarkerCollectionRenderSettings * gem::MapViewMarkerCollections::getDisplaySettings ( int index ) const

inlinenoexcept

Deprecated: name

Parameters

[in] index The collection index

Returns: The Marker collection render settings

◆ getRenderSettings()

const MarkerCollectionRenderSettings * gem::MapViewMarkerCollections::getRenderSettings ( int index ) const

inlinenoexcept

Gets collection render settings.

Parameters

[in] index The collection index

Returns: The Marker collection render settings

◆ hitTest()

MarkerMatchList gem::MapViewMarkerCollections::hitTest	(	const RectangleGeographicArea &	area,
		const Marker *	ignore = nullptr ) const

inlinenoexcept

Hit test in all collections.

Parameters

[in]	area	The geographic area to be tested
	ignore	The marker to be ignored

Returns: The list of marker matches

◆ indexOf() [1/2]

int gem::MapViewMarkerCollections::indexOf ( const MarkerCollection & col ) const

inlinenoexcept

Get the index of the given collection.

Parameters

[in] col The markers collection to be searched

Returns: The collection index on success, error::KNotFound on error

◆ indexOf() [2/2]

int gem::MapViewMarkerCollections::indexOf ( const String & name ) const

inlinenoexcept

Get the index of the given collection name.

Parameters

[in] name The markers collection name to be searched

Returns: The collection index on success, error::KNotFound on error

◆ isSketches()

bool gem::MapViewMarkerCollections::isSketches ( const MarkerCollection & coll ) const

inlinenoexcept

Check if the given collection is a sketches collection.

Parameters

[in] coll The collection to be checked

Returns: true if the collection is a sketches collection, false otherwise

◆ iterateCollections()

template<typename TCollector>

bool gem::MapViewMarkerCollections::iterateCollections ( TCollector collector ) const

inlinenoexcept

Iterate marker collections and call collector for each.

Collector should return true if iteration should continue and false if iteration should stop

Parameters

[in] collector The collector function

Returns: true if all collections were iterated, false if the iteration was stopped by the collector

◆ load()

int gem::MapViewMarkerCollections::load ( const DataBuffer & buffer )

inlinenoexcept

Deserialize from buffer.

Parameters

[in] buffer The buffer to deserialize from

Returns: 0 on success, error code otherwise

◆ remove() [1/2]

MapViewMarkerCollections & gem::MapViewMarkerCollections::remove ( const MarkerCollection & col )

inlinenoexcept

Remove collection.

Parameters

[in] col The markers collection to be removed

Returns: MapViewMarkerCollections reference

◆ remove() [2/2]

MapViewMarkerCollections & gem::MapViewMarkerCollections::remove ( int index )

inlinenoexcept

Remove collection.

Parameters

[in] index The collection index

Returns: MapViewMarkerCollections reference

◆ save()

int gem::MapViewMarkerCollections::save ( DataBuffer & buffer ) const

inlinenoexcept

Serialize to buffer.

Parameters

[in] buffer The buffer to serialize to

Returns: 0 on success, error code otherwise

◆ setDisplaySettings()

int gem::MapViewMarkerCollections::setDisplaySettings	(	int	index,
		const MarkerCollectionRenderSettings &	settings )

inlinenoexcept

Deprecated: name

Parameters

[in]	index	The collection index
[in]	settings	The Marker collection render settings

Returns: 0 on success, error code otherwise

◆ setRenderSettings()

int gem::MapViewMarkerCollections::setRenderSettings	(	int	index,
		const MarkerCollectionRenderSettings &	settings )

inlinenoexcept

Sets collection render settings.

Parameters

[in]	index	The collection index
[in]	settings	The Marker collection render settings

Returns: 0 on success, error code otherwise

◆ size()

int gem::MapViewMarkerCollections::size ( ) const

inlinenoexcept

Get collection size.

Returns: The number of collections

◆ sketches()

MarkerSketchesRef gem::MapViewMarkerCollections::sketches ( EMarkerType type ) const

inlinenoexcept

Sketches collection access.

Parameters

[in] type The sketch type, see EMarkerType for values

If type is invalid, an empty reference is returned

Returns: The Marker Sketches collection reference
