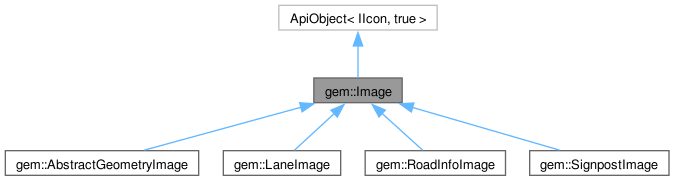

Inheritance diagram for gem::Image:

[legend]

Collaboration diagram for gem::Image:

Public Member Functions
	Image (const DataBuffer &data, int format)
	Create an image object from a data buffer in a specific format formats currently supported are enumerated in EImageFileFormat.
	Image (const DataBuffer &data, int format, const Size &size)
	Create an image object from a data buffer in a specific format and resize it to the requested dimensions formats currently supported are enumerated in EImageFileFormat.
	Image (const String &path)
	Create an image object from a given file path.
	Image (const String &path, const Size &size)
	Create an image object from a given file path and resize it to the requested dimensions.
	Image (int id)
	Create an image object from an image id.
	Image (const Image &)=default
	Default copy constructor.
	Image (Image &&)=default
	Default move constructor noexcept is deduced.
Image &	operator= (const Image &image)=default
	Default copy assignment.
Image &	operator= (Image &&image)=default
	Default move assignment noexcept is deduced.
bool	operator== (const Image &img) const noexcept
	Equal operator.
unsigned	getType () const noexcept
	Get the type of the image, see EImageType.
unsigned	getUid () const noexcept
	Get the unique ID of the image.
int	render (IBitmap &bitmap) const noexcept
	Render the Image into the provided IBitmap.
Size	getSize () const noexcept
	Get the preferred size of the image.
SizeF	getAspectRatio () const noexcept
	Get the icon aspect ratio as pair of ( width_aspect, height_aspect ).
float	getAspectRatioF () const noexcept
	Get the icon aspect ratio as a direct raport width / height.
bool	isScalable () const noexcept
	Check if icon is scalable ( i.e.
bool	isValid () const noexcept
	Check the validity of the Image.
template<typename TSpecializedImage>
TSpecializedImage &	cast () noexcept
	Cast to specialized image.
template<typename TSpecializedImage>
const TSpecializedImage &	cast () const noexcept
	Cast to const specialized image.
DataBuffer	exportAs (const Size &size, int format) const noexcept
	Export image as a data buffer in the specified format.
int	exportAs (const Size &size, int format, const String &path) const noexcept
	Export image to a file in the specified format.

Protected Member Functions
template<typename ... TArgs>
StrongPointer< IBitmap >	renderTo (const Size &size, TArgs &&... args) const noexcept
	Render the Image into a new IBitmap of the specified size, using the provided additional arguments if needed.
template<typename ... TArgs>
DataBuffer	exportTo (const Size &size, int format, TArgs &&... args) const noexcept
	Export image to a data buffer or file in the specified format, using the provided additional arguments if needed.
template<typename ... TArgs>
int	exportTo (const Size &size, int format, const String &path, TArgs &&... args) const noexcept
	Export image to a file in the specified format, using the provided additional arguments if needed.

Detailed Description

Image object.

Implements share-read / copy-on-write Api object over IIcon.

Constructor & Destructor Documentation

◆ Image() [1/5]

gem::Image::Image	(	const DataBuffer &	data,
		int	format )

inline

Create an image object from a data buffer in a specific format formats currently supported are enumerated in EImageFileFormat.

Parameters

data	Data buffer containing the image
format	Data buffer format, see EImageFileFormat

◆ Image() [2/5]

gem::Image::Image	(	const DataBuffer &	data,
		int	format,
		const Size &	size )

inline

Create an image object from a data buffer in a specific format and resize it to the requested dimensions formats currently supported are enumerated in EImageFileFormat.

Parameters

data	Data buffer containing the image
format	Data buffer format, see EImageFileFormat
size	Image desired size

◆ Image() [3/5]

gem::Image::Image ( const String & path )

inline

Create an image object from a given file path.

Parameters

path	Image file path. Must be an image file in one of the supported file formats, see EImageFileFormat

◆ Image() [4/5]

gem::Image::Image	(	const String &	path,
		const Size &	size )

inline

Create an image object from a given file path and resize it to the requested dimensions.

Parameters

path	Image file path. Must be an image file in one of the supported file formats, see EImageFileFormat
size	The side of the image.

◆ Image() [5/5]

gem::Image::Image ( int id )

Create an image object from an image id.

Parameters

id	Id of image.

Member Function Documentation

◆ cast() [1/2]

template<typename TSpecializedImage>

const TSpecializedImage & gem::Image::cast ( ) const

inlinenoexcept

Cast to const specialized image.

Returns: Specialized image

◆ cast() [2/2]

template<typename TSpecializedImage>

TSpecializedImage & gem::Image::cast ( )

inlinenoexcept

Cast to specialized image.

Returns: Specialized image

◆ exportAs() [1/2]

DataBuffer gem::Image::exportAs	(	const Size &	size,
		int	format ) const

inlinenoexcept

Export image as a data buffer in the specified format.

Parameters

[in]	size	The exported image size in pixels
[in]	format	The exported image format, see EImageFileFormat

Returns: Data buffer containing the image in the specified format

◆ exportAs() [2/2]

int gem::Image::exportAs	(	const Size &	size,
		int	format,
		const String &	path ) const

inlinenoexcept

Export image to a file in the specified format.

Parameters

[in]	size	The exported image size in pixels
[in]	format	The exported image format, see EImageFileFormat
[in]	path	The file path where to save the image

Returns: The opration result code

◆ exportTo() [1/2]

template<typename ... TArgs>

int gem::Image::exportTo	(	const Size &	size,
		int	format,
		const String &	path,
		TArgs &&...	args ) const

inlineprotectednoexcept

Export image to a file in the specified format, using the provided additional arguments if needed.

Parameters

[in]	size	The exported image size in pixels
[in]	format	The exported image format, see EImageFileFormat
[in]	path	The file path where to save the image
[in]	args	Additional arguments to be forwarded to the Render function, if needed by the specific image type

Returns: The opration result code

◆ exportTo() [2/2]

template<typename ... TArgs>

DataBuffer gem::Image::exportTo	(	const Size &	size,
		int	format,
		TArgs &&...	args ) const

inlineprotectednoexcept

Export image to a data buffer or file in the specified format, using the provided additional arguments if needed.

Parameters

[in]	size	The exported image size in pixels
[in]	format	The exported image format, see EImageFileFormat
[in]	args	Additional arguments to be forwarded to the Render function, if needed by the specific image type

Returns: If exporting to data buffer, returns the data buffer containing the image in the specified format.

◆ getAspectRatio()

SizeF gem::Image::getAspectRatio ( ) const

inlinenoexcept

Get the icon aspect ratio as pair of ( width_aspect, height_aspect ).

If width > height return { width / height, 1.f ) If width < height return { 1.f, height / width )

Returns: The aspect ratio of the image

◆ getAspectRatioF()

float gem::Image::getAspectRatioF ( ) const

inlinenoexcept

Get the icon aspect ratio as a direct raport width / height.

Returns: The aspect ratio of the image

◆ getSize()

Size gem::Image::getSize ( ) const

inlinenoexcept

Get the preferred size of the image.

Returns: The preferred size of the image

◆ getType()

unsigned gem::Image::getType ( ) const

inlinenoexcept

Get the type of the image, see EImageType.

Returns: The type of the image

◆ getUid()

unsigned gem::Image::getUid ( ) const

inlinenoexcept

Get the unique ID of the image.

Returns: The unique ID of the image

◆ isScalable()

bool gem::Image::isScalable ( ) const

inlinenoexcept

Check if icon is scalable ( i.e.

it has vectorial format )

Returns: True if the image is scalable, false otherwise

◆ isValid()

bool gem::Image::isValid ( ) const

inlinenoexcept

Check the validity of the Image.

Returns: True if the image is valid, false otherwise

◆ operator=() [1/2]

Image & gem::Image::operator= ( const Image & image )

default

Default copy assignment.

Parameters

image Other image

Returns: Reference to this object

◆ operator=() [2/2]

Image & gem::Image::operator= ( Image && image )

default

Default move assignment noexcept is deduced.

Parameters

image Other image

Returns: Reference to this object

◆ operator==()

bool gem::Image::operator== ( const Image & img ) const

inlinenoexcept

Equal operator.

Parameters

img	Other image.

Returns: True if the images are equal, false otherwise.

◆ render()

int gem::Image::render ( IBitmap & bitmap ) const

inlinenoexcept

Render the Image into the provided IBitmap.

Parameters

[in] bitmap The IBitmap object where to render the image

Returns: KNoError on success. KNotSupported in case of unsupported encoding.

◆ renderTo()

template<typename ... TArgs>

StrongPointer< IBitmap > gem::Image::renderTo	(	const Size &	size,
		TArgs &&...	args ) const

inlineprotectednoexcept

Render the Image into a new IBitmap of the specified size, using the provided additional arguments if needed.

Parameters

[in]	size	The size of the bitmap to render into
[in]	args	Additional arguments to be forwarded to the Render function, if needed by the specific image type

Returns: A StrongPointer to the rendered IBitmap, or an empty StrongPointer if rendering failed.
