Follow position preferences. More...

Inheritance diagram for gem::FollowPositionPreferencesV2:

[legend]

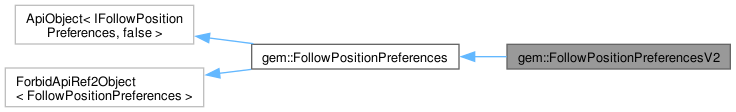

Collaboration diagram for gem::FollowPositionPreferencesV2:

[legend]

Public Member Functions
FollowPositionPreferences &	setTimeBeforeTurnPresentation (int val) noexcept
	Set the time interval before starting a turn presentation.
int	getTimeBeforeTurnPresentation () const noexcept
	Get the time interval before starting a turn presentation.
int	setCameraFocus (XyF const &pos) noexcept
	Set the follow position camera focus in viewport coordinates ( between 0.f = left / top and 1.f = right / bottom ).
XyF	getCameraFocus () const noexcept
	Get the follow position camera focus in viewport coordinates ( between 0.f = left / top and 1.f = right / bottom ).
FollowPositionPreferences &	setTouchHandlerModifyPersistent (bool persistent) noexcept
	Set manually adjusted follow position changes ( via touch handler ) persistent from one follow position session to another.
bool	getTouchHandlerModifyPersistent () const noexcept
	Test if manually adjusted follow position changes ( via touch handler ) are persistent.
FollowPositionPreferences &	setTouchHandlerExitAllow (bool allowExit) noexcept
	Set whether to allow manually exiting follow position via touch handler events.
bool	getTouchHandlerExitAllow () const noexcept
	Test if manually exiting follow position via touch handler events is enabled.
FollowPositionPreferences &	setTouchHandlerModifyHorizontalAngleLimits (const std::pair< double, double > &horizAngleLimits) noexcept
	Set touch handler horizontal angle adjust limits.
std::pair< double, double >	getTouchHandlerModifyHorizontalAngleLimits () const noexcept
	Get touch handler horizontal angle adjust limits.
FollowPositionPreferences &	setTouchHandlerModifyVerticalAngleLimits (const std::pair< double, double > &vertAngleLimits) noexcept
	Set touch handler vertical angle adjust limits.
std::pair< double, double >	getTouchHandlerModifyVerticalAngleLimits () const noexcept
	Get touch handler horizontal angle adjust limits.
FollowPositionPreferences &	setTouchHandlerModifyDistanceLimits (const std::pair< double, double > &distanceLimits) noexcept
	Set touch handler distance to object adjust limits.
std::pair< double, double >	getTouchHandlerModifyDistanceLimits () const noexcept
	Get touch handler distance to object adjust limits.
FollowPositionPreferences &	setPerspective (EMapViewPerspective perspective, Animation animation=Animation()) noexcept
	Set the map view perspective in follow position mode.
EMapViewPerspective	getPerspective () const noexcept
	Get the map view perspective in follow position mode.
FollowPositionPreferences &	setViewAngle (double value, bool animated=false) noexcept
	Set vertical angle in follow position mode.
double	getViewAngle () const noexcept
	Get the vertical angle.
int	setZoomLevel (int zoomLevel, int duration=0) noexcept
	Set a zoom level in follow position mode.
int	getZoomLevel () const noexcept
	Get zoom level in follow position mode.
void	setMapRotationMode (EFollowPositionMapRotationMode mode, double angle=0., bool objectFollowMap=true) noexcept
	Set map rotation mode in follow position.
std::pair< EFollowPositionMapRotationMode, double >	getMapRotationMode () const noexcept
	Get map rotation mode in follow position.
bool	isTrackObjectFollowingMapRotation () const noexcept
	Check if position tracking object rotation follows map rotation.
int	setAccuracyCircleVisibility (bool visible) noexcept
	Set accuracy circle visibility.
bool	isAccuracyCircleVisible () const noexcept
	Check if accuracy circle is visible.

Detailed Description

Follow position preferences.

Member Function Documentation

◆ getCameraFocus()

XyF gem::FollowPositionPreferences::getCameraFocus ( ) const

inlinenoexceptinherited

Get the follow position camera focus in viewport coordinates ( between 0.f = left / top and 1.f = right / bottom ).

Returns: The camera focus position

◆ getMapRotationMode()

std::pair< EFollowPositionMapRotationMode, double > gem::FollowPositionPreferences::getMapRotationMode ( ) const

inlinenoexceptinherited

Get map rotation mode in follow position.

Returns: pair<EFollowPositionMapRotationMode, fixed angle>

◆ getPerspective()

EMapViewPerspective gem::FollowPositionPreferences::getPerspective ( ) const

inlinenoexceptinherited

Get the map view perspective in follow position mode.

Returns: The map perspective

◆ getTimeBeforeTurnPresentation()

int gem::FollowPositionPreferences::getTimeBeforeTurnPresentation ( ) const

inlinenoexceptinherited

Get the time interval before starting a turn presentation.

Returns: The time interval in seconds

◆ getTouchHandlerExitAllow()

bool gem::FollowPositionPreferences::getTouchHandlerExitAllow ( ) const

inlinenoexceptinherited

Test if manually exiting follow position via touch handler events is enabled.

Default returns true

Returns: True if exiting follow position is allowed

◆ getTouchHandlerModifyDistanceLimits()

std::pair< double, double > gem::FollowPositionPreferences::getTouchHandlerModifyDistanceLimits ( ) const

inlinenoexceptinherited

Get touch handler distance to object adjust limits.

Default returns { 50, std::numeric_limits<double>::max() }, meaning no limits in max distance to tracked object

Returns: The distance adjust limits

◆ getTouchHandlerModifyHorizontalAngleLimits()

std::pair< double, double > gem::FollowPositionPreferences::getTouchHandlerModifyHorizontalAngleLimits ( ) const

inlinenoexceptinherited

Get touch handler horizontal angle adjust limits.

Empty { 0., 0. } means value adjustment is forbidden

Default returns { 0., 0. }, meaning adjustment is forbidden

Returns: The horizontal angle adjust limits

◆ getTouchHandlerModifyPersistent()

bool gem::FollowPositionPreferences::getTouchHandlerModifyPersistent ( ) const

inlinenoexceptinherited

Test if manually adjusted follow position changes ( via touch handler ) are persistent.

Returns: True if changes are persistent

◆ getTouchHandlerModifyVerticalAngleLimits()

std::pair< double, double > gem::FollowPositionPreferences::getTouchHandlerModifyVerticalAngleLimits ( ) const

inlinenoexceptinherited

Get touch handler horizontal angle adjust limits.

Empty { 0., 0. } means value adjustment is forbidden

Default returns { 0., 70. }

Returns: The vertical angle adjust limits

◆ getViewAngle()

double gem::FollowPositionPreferences::getViewAngle ( ) const

inlinenoexceptinherited

Get the vertical angle.

Returns: The view angle

◆ getZoomLevel()

int gem::FollowPositionPreferences::getZoomLevel ( ) const

inlinenoexceptinherited

Get zoom level in follow position mode.

Returns: The current zoom level

-1 means auto-zooming is enabled

◆ isAccuracyCircleVisible()

bool gem::FollowPositionPreferences::isAccuracyCircleVisible ( ) const

inlinenoexceptinherited

Check if accuracy circle is visible.

Returns: True if the accuracy circle is visible

◆ isTrackObjectFollowingMapRotation()

bool gem::FollowPositionPreferences::isTrackObjectFollowingMapRotation ( ) const

inlinenoexceptinherited

Check if position tracking object rotation follows map rotation.

Returns: True if the position tracking object rotation follows map rotation

◆ setAccuracyCircleVisibility()

int gem::FollowPositionPreferences::setAccuracyCircleVisibility ( bool visible )

inlinenoexceptinherited

Set accuracy circle visibility.

Parameters

[in] visible True to show the accuracy circle

Returns: KNoError Success

◆ setCameraFocus()

int gem::FollowPositionPreferences::setCameraFocus ( XyF const & pos )

inlinenoexceptinherited

Set the follow position camera focus in viewport coordinates ( between 0.f = left / top and 1.f = right / bottom ).

Parameters

[in] pos The camera focus position

Returns: KNoError Success

◆ setMapRotationMode()

void gem::FollowPositionPreferences::setMapRotationMode	(	EFollowPositionMapRotationMode	mode,
		double	angle = 0.,
		bool	objectFollowMap = true )

inlinenoexceptinherited

Set map rotation mode in follow position.

Parameters

[in]	mode	Map rotation mode
[in]	angle	The fixed rotation angle for EFollowPositionMapRotationMode::FPMRM_Fixed
[in]	objectFollowMap	The position tracker object orientation will follow map view rotation

If the position tracker object orientation will follow map view rotation, all views using the same tracking object will see the object update

◆ setPerspective()

FollowPositionPreferences & gem::FollowPositionPreferences::setPerspective	(	EMapViewPerspective	perspective,
		Animation	animation = Animation() )

inlinenoexceptinherited

Set the map view perspective in follow position mode.

Parameters

[in]	perspective	The map perspective.
[in]	animation	The operation animation type. Default is none

Returns: FollowPositionPreferences reference

◆ setTimeBeforeTurnPresentation()

FollowPositionPreferences & gem::FollowPositionPreferences::setTimeBeforeTurnPresentation ( int val )

inlinenoexceptinherited

Set the time interval before starting a turn presentation.

Parameters

[in] val The time interval in seconds. -1 means using SDK default value

Returns: FollowPositionPreferences reference

◆ setTouchHandlerExitAllow()

FollowPositionPreferences & gem::FollowPositionPreferences::setTouchHandlerExitAllow ( bool allowExit )

inlinenoexceptinherited

Set whether to allow manually exiting follow position via touch handler events.

Default value is true

Parameters

[in] allowExit True to allow exiting follow position

Returns: FollowPositionPreferences reference

◆ setTouchHandlerModifyDistanceLimits()

FollowPositionPreferences & gem::FollowPositionPreferences::setTouchHandlerModifyDistanceLimits ( const std::pair< double, double > & distanceLimits )

inlinenoexceptinherited

Set touch handler distance to object adjust limits.

Parameters

[in] distanceLimits Values must be in { 0, std::numeric_limits<double>::max() } range

Empty { 0., 0. } interval can be provided to forbid manually adjusting distance to object. Default values are { 50, std::numeric_limits<double>::max() }

Returns: FollowPositionPreferences reference

◆ setTouchHandlerModifyHorizontalAngleLimits()

FollowPositionPreferences & gem::FollowPositionPreferences::setTouchHandlerModifyHorizontalAngleLimits ( const std::pair< double, double > & horizAngleLimits )

inlinenoexceptinherited

Set touch handler horizontal angle adjust limits.

Parameters

[in] horizAngleLimits . Values must be in { -180., 180. } range

Empty { 0., 0. } interval can be provided to forbid manually adjusting horizontal angle. Default values are { 0., 0. }

Returns: FollowPositionPreferences reference

◆ setTouchHandlerModifyPersistent()

FollowPositionPreferences & gem::FollowPositionPreferences::setTouchHandlerModifyPersistent ( bool persistent )

inlinenoexceptinherited

Set manually adjusted follow position changes ( via touch handler ) persistent from one follow position session to another.

Default value is false

Parameters

[in] persistent True to make changes persistent

Returns: FollowPositionPreferences reference

◆ setTouchHandlerModifyVerticalAngleLimits()

FollowPositionPreferences & gem::FollowPositionPreferences::setTouchHandlerModifyVerticalAngleLimits ( const std::pair< double, double > & vertAngleLimits )

inlinenoexceptinherited

Set touch handler vertical angle adjust limits.

Parameters

[in] vertAngleLimits Vertical angle adjust limits. Values must be in { 0., 90. } range

Empty { 0., 0. } interval can be provided to forbid manually adjusting vertical angle. Default values are { 0., 70. }

Returns: FollowPositionPreferences reference

◆ setViewAngle()

FollowPositionPreferences & gem::FollowPositionPreferences::setViewAngle	(	double	value,
		bool	animated = false )

inlinenoexceptinherited

Set vertical angle in follow position mode.

Parameters

[in]	value	The view angle
[in]	animated	The animation flag

Returns: FollowPositionPreferences reference;

◆ setZoomLevel()

int gem::FollowPositionPreferences::setZoomLevel	(	int	zoomLevel,
		int	duration = 0 )

inlinenoexceptinherited

Set a zoom level in follow position mode.

Parameters

[in]	zoomLevel	Zoom level, may be between 0 and getMaxZoomLevel()
[in]	duration	The animation duration in milliseconds (0 means no animation)

Returns: The previous zoom level

Public Member Functions

Detailed Description

Member Function Documentation

◆ getCameraFocus()

◆ getMapRotationMode()

◆ getPerspective()

◆ getTimeBeforeTurnPresentation()

◆ getTouchHandlerExitAllow()

◆ getTouchHandlerModifyDistanceLimits()

◆ getTouchHandlerModifyHorizontalAngleLimits()

◆ getTouchHandlerModifyPersistent()

◆ getTouchHandlerModifyVerticalAngleLimits()

◆ getViewAngle()

◆ getZoomLevel()

◆ isAccuracyCircleVisible()

◆ isTrackObjectFollowingMapRotation()

◆ setAccuracyCircleVisibility()

◆ setCameraFocus()

◆ setMapRotationMode()

◆ setPerspective()

◆ setTimeBeforeTurnPresentation()

◆ setTouchHandlerExitAllow()

◆ setTouchHandlerModifyDistanceLimits()

◆ setTouchHandlerModifyHorizontalAngleLimits()

◆ setTouchHandlerModifyPersistent()

◆ setTouchHandlerModifyVerticalAngleLimits()

◆ setViewAngle()

◆ setZoomLevel()
