Overlays

_{Last updated: April 17, 2026 | 9 minutes read}

An overlay is an additional map layer with data stored on Magic Lane servers, accessible in both online and offline modes. Overlays can be default or user-defined, and they support category hierarchies and downloadable offline data.

Core classes:

• OverlayInfoObject — dataset metadata and category tree
• OverlayCategoryObject — category node in the hierarchy
• OverlayItemObject — single item on the map
• OverlayCollectionObject — all available datasets
• OverlayServiceContext — enable/disable and offline control

danger

Overlays require map content to be downloaded for offline use. Most overlay features require an active map view with a style that supports the overlay. See details in the offline content management guide.

OverlayInfoObject

OverlayInfoObject describes one overlay dataset. You retrieve instances from OverlayCollectionObject.

Method	Return type	Description
getUid()	Int	Unique overlay ID
getName()	String	Overlay name
getImage(_:)	UIImage?	Overlay icon at the given height
getCategories()	[OverlayCategoryObject]	Root category list
getCategory(_:)	OverlayCategoryObject?	Category by ID
hasCategories(_:)	Bool	Checks if a category has subcategories

Usage

Use OverlayInfoObject to:

• Access categories within an overlay
• Get the overlay uid for filtering search results
• Toggle overlay visibility on the map
• Display overlay information in the UI

let service = OverlayServiceContext()

if let collection = service.getAvailableOverlays() {
    for overlay in collection.getOverlays() {
        print("\(overlay.getUid()): \(overlay.getName())")

        for category in overlay.getCategories() {
            print("  Category: \(category.getName())")
        }
    }
}

OverlayCategoryObject

OverlayCategoryObject represents a node in an overlay's category hierarchy. Categories can be nested to any depth.

Method	Return type	Description
getUid()	Int	Category ID within the overlay
getOverlayUid()	Int	Parent overlay ID
getName()	String	Category name
getImage()	ImageObject?	Category icon
getSubcategories()	[OverlayCategoryObject]	Direct subcategories
hasSubcategories()	Bool	Subcategory existence check

Usage

Use the category uid to:

• Filter search results
• Filter and manage overlay items that trigger alerts in AlarmContext

Traverse the category tree

func printCategories(_ categories: [OverlayCategoryObject], depth: Int = 0) {
    let indent = String(repeating: "  ", count: depth)
    for cat in categories {
        print("\(indent)\(cat.getName()) (uid: \(cat.getUid()))")
        if cat.hasSubcategories() {
            printCategories(cat.getSubcategories(), depth: depth + 1)
        }
    }
}

if let collection = service.getAvailableOverlays() {
    for overlay in collection.getOverlays() {
        printCategories(overlay.getCategories())
    }
}

OverlayItemObject

OverlayItemObject represents a single item within an overlay. Items are returned by map cursor selection, search operations, or alarm callbacks.

danger

Do not confuse the uid of OverlayInfoObject, OverlayCategoryObject, and OverlayItemObject — each serves a distinct purpose.

info

getCategoryId() returns the root category ID, not necessarily the direct parent category. Use getOverlayInfo()?.getCategory(_:) to resolve the full category object.

Tip

Check if an OverlayItemObject belongs to an OverlayInfoObject using getOverlayUid(), or retrieve the full OverlayInfoObject via getOverlayInfo().

Core item data

Method	Return type	Description
getUid()	Int	Unique item ID within the overlay
getOverlayUid()	Int	Parent overlay UID
getCategoryId()	Int	Root category ID (0 = no category)
getName()	String	Item name
getCoordinates()	CoordinatesObject?	Item position
getOverlayInfo()	OverlayInfoObject?	Parent overlay dataset metadata

Images

Method	Description
getAspectRatioImage(_:)	Renders item icon at given height (cached after first call)
getAspectRatioImage(_:scale:ppi:)	Renders with explicit scale and PPI
getImage(_:)	Renders item icon at given CGSize (cached after first call)
getImage(_:scale:ppi:)	Renders with explicit scale and PPI
resetCacheImage()	Clears the cached rendered image

Preview data

Method	Return type	Description
getPreviewUrl()	URL?	Web URL for a browser-based detail view
getPreviewData(_:)	String	Raw preview payload in the given PreviewDataType format (e.g. .json)
search(inPreviewDataSafetyCameraParameterType:)	NSValue?	Typed lookup for safety camera overlay fields
search(inPreviewDataSocialReportParameterType:)	NSValue?	Typed lookup for social report overlay fields

Extended preview data (async)

Some predefined overlays expose dynamic data that must be downloaded before it is available.

Method	Description
hasPreviewExtendedData()	Checks if dynamic preview data is available for this item
getPreviewExtendedDataWithCompletionHandler(_:)	Async fetch; populates a SearchableParameterListObject
cancelGetPreviewExtendedDataWithCompletionHandler(_:)	Cancels an in-progress fetch

if item.hasPreviewExtendedData() {
    item.getPreviewExtendedData { parameterList in
        // parameterList is a SearchableParameterListObject
        print("Extended data received")
    }
}

Usage

Select OverlayItemObject instances from the map or receive them from AlarmContext on approach. Display overlay item fields and information in the UI.

OverlayCollectionObject

OverlayCollectionObject holds all overlay datasets available in the SDK.

Method	Return type	Description
size()	Int	Number of available overlay datasets
getOverlayAt(_:)	OverlayInfoObject?	Overlay at the given index
getOverlayByUid(_:)	OverlayInfoObject?	Overlay by UID
getOverlays()	[OverlayInfoObject]	All overlay datasets

Overlay service operations

Use OverlayServiceContext to toggle overlay and category visibility. Enabling or disabling affects all registered consumers — map views, alarm services, and search.

Method	Return type	Description
getAvailableOverlays()	OverlayCollectionObject?	All available overlay datasets
enableOverlay(_:)	SDKErrorCode	Enables the full overlay
enableOverlay(_:category:)	SDKErrorCode	Enables a single category
disableOverlay(_:)	SDKErrorCode	Disables the full overlay
disableOverlay(_:category:)	SDKErrorCode	Disables a single category
isOverlayEnabled(_:)	Bool	Checks if the overlay is active
isOverlayEnabled(_:category:)	Bool	Checks if a specific category is active

Enable and disable overlays

let service = OverlayServiceContext()
let safetyId = Int32(CommonOverlayIdentifier.safety.rawValue)

// Enable overlay
let enableResult = service.enableOverlay(safetyId)

// Disable overlay
let disableResult = service.disableOverlay(safetyId)

// Check if overlay is enabled
let isEnabled = service.isOverlayEnabled(safetyId)

The enableOverlay(_:category:), disableOverlay(_:category:), and isOverlayEnabled(_:category:) variants also accept a category UID to target a specific category within the overlay.

Enable a specific category

let service = OverlayServiceContext()
let overlayId = Int32(CommonOverlayIdentifier.publicTransport.rawValue)
let categoryId = service.getAvailableOverlays()?.getOverlayByUid(overlayId)?.getCategories().first?.getUid() ?? 0

service.enableOverlay(overlayId, category: categoryId)

Offline support

The offline data grabber automatically fetches overlay data for every road map content download.

Method	Return type	Description
enableOverlayOfflineDataGrabber(_:)	SDKErrorCode	Enables auto-download of overlay data with offline maps
disableOverlayOfflineDataGrabber(_:)	SDKErrorCode	Disables auto-download
isOverlayOfflineDataGrabberEnabled(_:)	Bool	Checks if grabber is active
isOverlayOfflineDataGrabberSupported(_:)	Bool	Checks if grabber is supported for this overlay
grabOverlayOfflineData(_:completionHandler:)	void	Manually triggers offline data grab over all downloaded map areas
cancelGrabOverlayOfflineData(_:)	void	Cancels an in-progress grab

let safetyId = Int32(CommonOverlayIdentifier.safety.rawValue)

if service.isOverlayOfflineDataGrabberSupported(safetyId) {

    service.enableOverlayOfflineDataGrabber(safetyId)

    service.grabOverlayOfflineData(safetyId) { success in
        print("EV charging offline data grab succeeded: \(success)")
    }
}

Predefined overlays

CommonOverlayIdentifier defines the UIDs for built-in overlays:

Constant	Description
CommonOverlayIdentifierSafety	Speed cameras, red light controls
CommonOverlayIdentifierPublicTransport	Bus stops, transit stations
CommonOverlayIdentifierSocialLabels	Social label annotations
CommonOverlayIdentifierSocialReports	User-submitted social reports
CommonOverlayIdentifierEVCharging	EV charging stations

Safety overlay

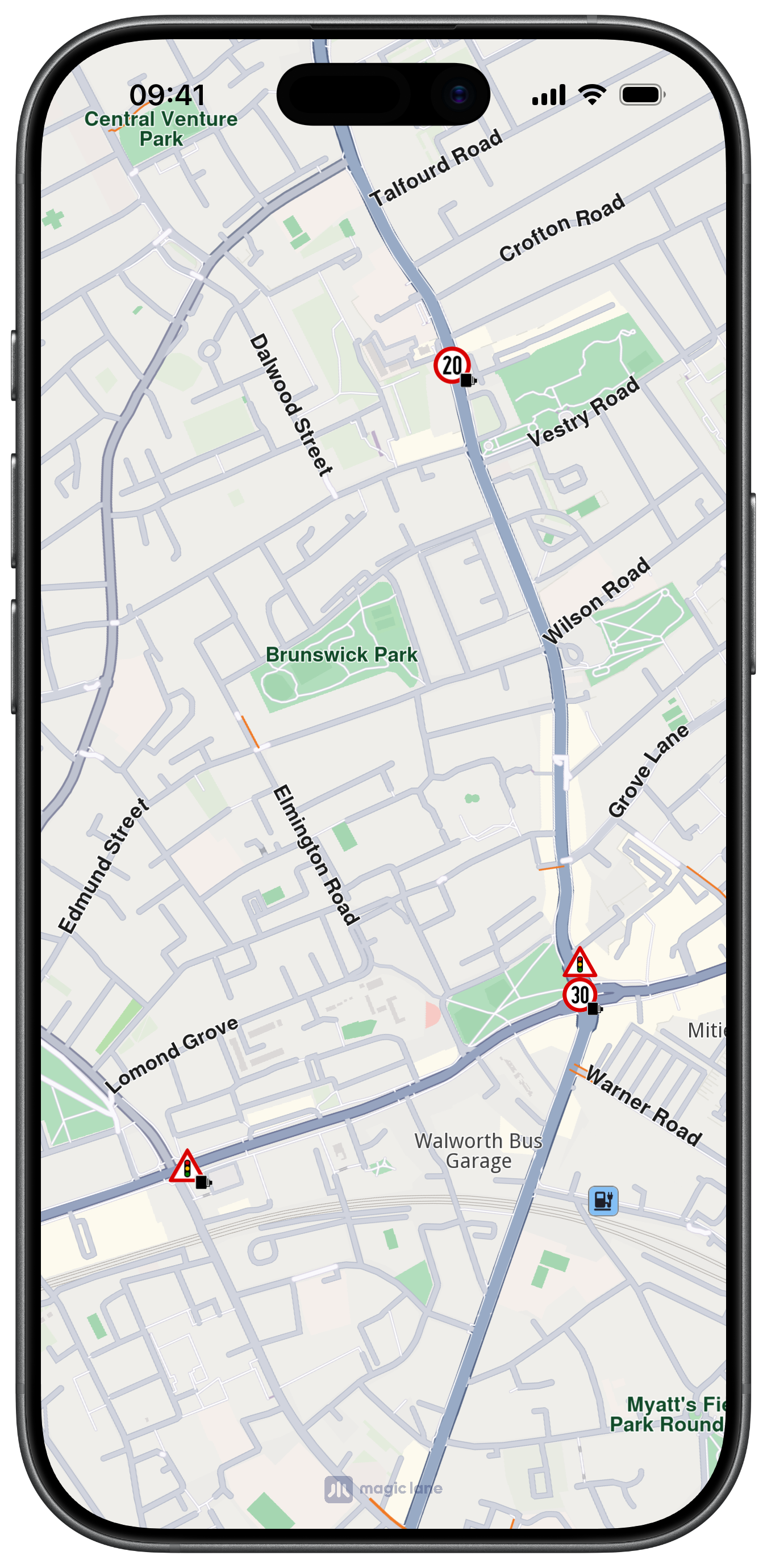

Speed limit and red light control overlay items

Safety overlays represent speed limit cameras, red light controls, and similar items.

Use search(inPreviewDataSafetyCameraParameterType:) with SafetyCameraParameterType:

Parameter	Description
SafetyCameraParameterTypeSpeedUnit	Speed limit unit (e.g. km/h, mph)
SafetyCameraParameterTypeSpeedVal	Speed limit value
SafetyCameraParameterTypeTowards	Direction angle
SafetyCameraParameterTypeDriveDir	Driving direction flag

if let speedVal = item.search(inPreviewDataSafetyCameraParameterType: .speedVal) {
    print("Speed limit: \(speedVal)")
}
if let unit = item.search(inPreviewDataSafetyCameraParameterType: .speedUnit) {
    print("Unit: \(unit)")
}

Social reports overlay

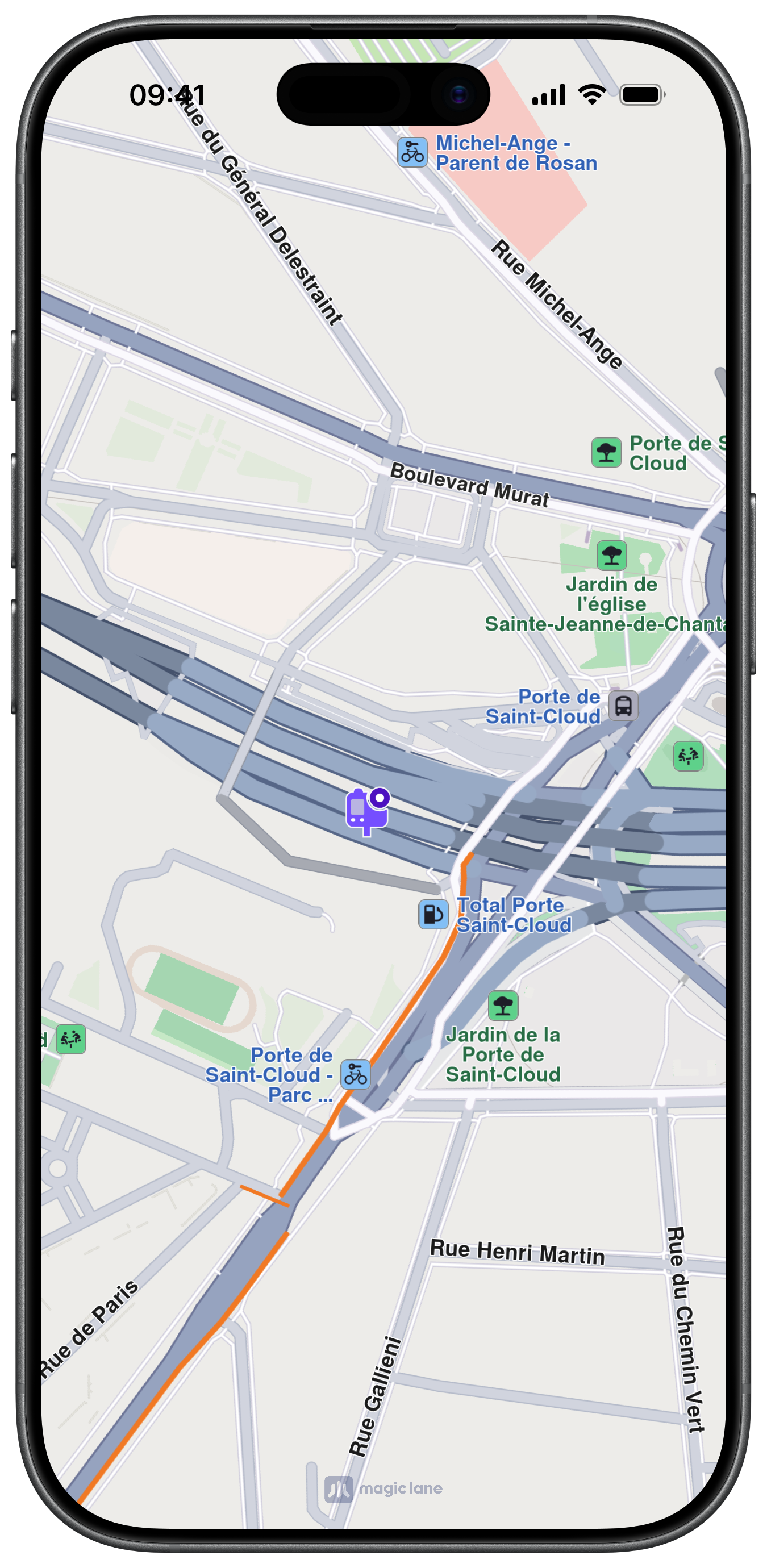

Fixed Camera social report overlay item

This overlay displays user-reported events such as fixed cameras and construction sites.

Use search(inPreviewDataSocialReportParameterType:) with SocialReportParameterType:

Parameter	Description
SocialReportParameterTypeCategNameTTS	Category TTS name
SocialReportParameterTypeCategValidity	Validity in minutes
SocialReportParameterTypeDescription	Report description
SocialReportParameterTypeOwnerId	Report owner ID
SocialReportParameterTypeOwnerName	Report owner name
SocialReportParameterTypeOwnReport	Whether the current user owns this report
SocialReportParameterTypeScore	Report score/rating

and other more advanced parameters.

Public transport overlay

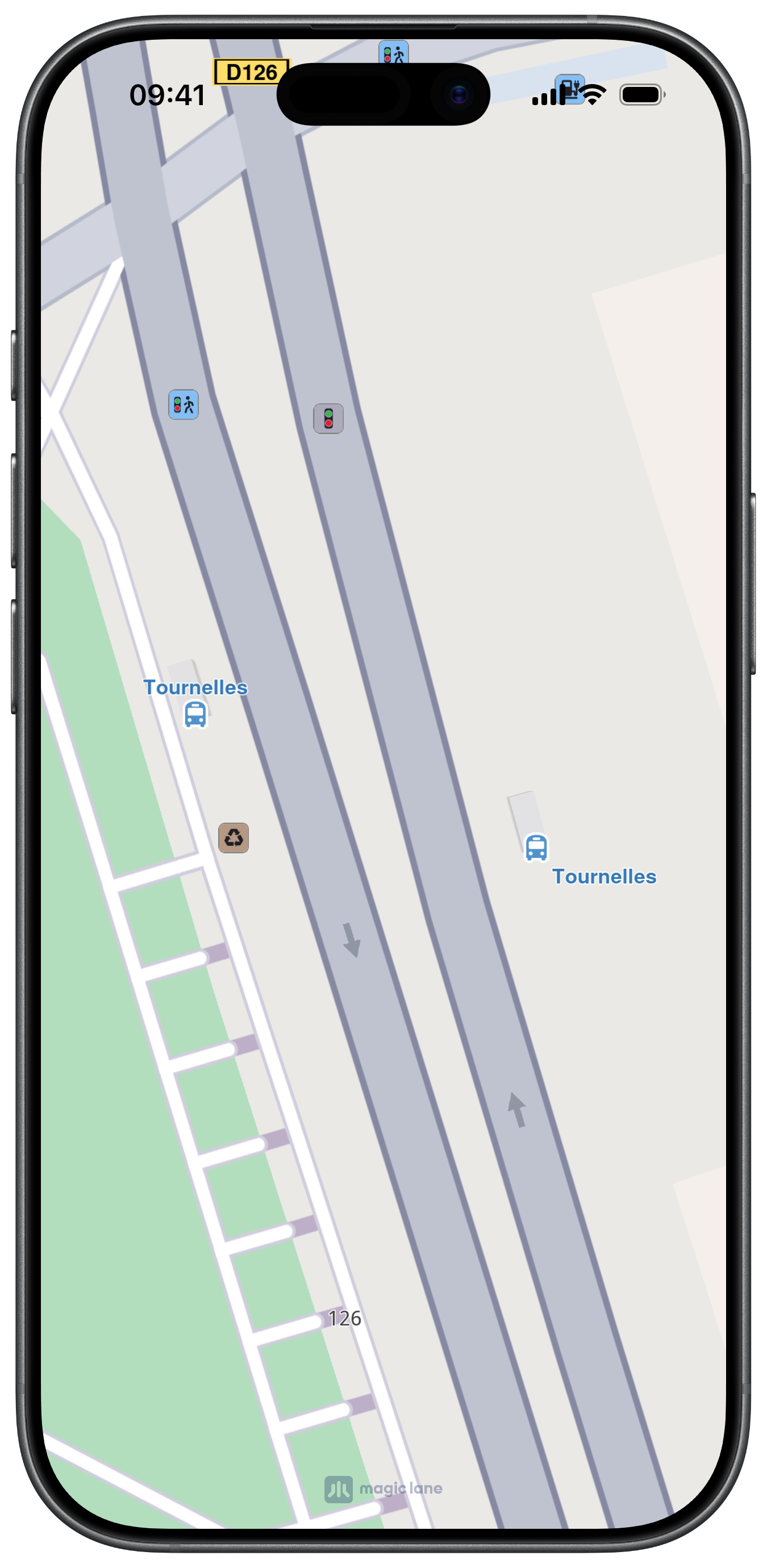

Bus Public transport overlay item

This overlay displays public transport stations. Two types of public transport stops exist:

danger

Two types of public transport stops exist:

• Bus stations with schedule information — OverlayItemObject instances
• Bus stations without schedule information — LandmarkObject instances

Work with Overlays

Select overlay items

Overlay items are selectable. Identify specific items when users tap or long-press the map using getCursorSelectionOverlayItems() on MapViewController or using the dedicated overlay selection delegate methods. See the Interact with map guide for details.

Search overlay items

Overlays are searchable. Set the appropriate properties in SearchPreferencesObject when performing a search. See the Get started with Search guide for details.

Calculate routes

Overlay items are not designed for route calculation directly.

Tip

For routing, create a landmark from the overlay item's coordinates and a representative name.

if let coords = overlayItem.getCoordinates() {
    let landmark = LandmarkObject.landmark(withName: overlayItem.getName(), location: coords)
    // Use landmark as a route waypoint
}

Display overlay item information

Access overlay item preview data using search(inPreviewDataSafetyCameraParameterType:) or search(inPreviewDataSocialReportParameterType:) for predefined overlays, or getPreviewData(_:) for the raw payload.

Use getPreviewUrl() to open a URL in a web browser for more details about the item.

danger

The preview data is unavailable if the parent map tile is disposed. Retrieve preview data before further map interactions.

Proximity alarms

Configure alarms to notify users when approaching specific overlay items. See the Landmarks and overlay alarms guide for implementation details.

Download overlay data

Some overlays can be downloaded for offline use. See the Offline section for more details.
