Navigation Instructions

_{Last updated: April 9, 2026 | 5 minutes read}

The iOS SDK provides real-time navigation guidance through NavigationInstructionObject. It exposes current street and road details, speed-limit context, remaining time and distance, lane guidance, and upcoming maneuvers during active navigation or simulation.

info

Distinguish between NavigationInstructionObject and RouteInstructionObject.

• NavigationInstructionObject: live, continuously updated turn-by-turn guidance during navigation or simulation
• RouteInstructionObject: route-plan guidance available immediately after route calculation

Get navigation instructions

You do not instantiate navigation instructions directly. The SDK provides them only while navigation or simulation is active.

Use NavigationContext in two common ways:

• Pull current state with getNavigationInstruction()
• React to updates through NavigationContextDelegate and navigationInstructionUpdatedForRoute:updatedEvents:

warning

Call getNavigationInstruction() only when navigation or simulation is running.

Read the current instruction

if let instruction = navigationContext.getNavigationInstruction() {
	print(instruction.getNextTurnInstruction())

	if let remaining = instruction.getRemainingTravelTimeDistance() {
		print("Remaining distance: \(remaining.getTotalDistance()) m")
		print("Remaining time: \(remaining.getTotalTime()) s")
	}
}

React to updates from NavigationContext

final class NavigationObserver: NSObject, NavigationContextDelegate {
	func navigationContext(
		_ navigationContext: NavigationContext,
		navigationInstructionUpdatedForRoute route: RouteObject,
		updatedEvents events: Int32
	) {
		guard let instruction = navigationContext.getNavigationInstruction() else { return }

		print("Updated events bitmask: \(events)")
		print("Next turn: \(instruction.getNextTurnInstructionFormatted())")
	}
}

Navigation instruction update events

updatedEvents is a bitmask that can contain:

Value	Description
NavigationInstructionUpdateEventNextTurnUpdated	Next maneuver data changed
NavigationInstructionUpdateEventNextTurnImageUpdated	Next-turn image changed
NavigationInstructionUpdateEventLaneInfoUpdated	Lane guidance changed

Understand the structure

Method	Return type	Description
getNavigationStatus()	NavigationStatus	Current navigation or simulation state
getCurrentStreetName()	String	Current street name
getCurrentStreetSpeedLimit()	Double	Current street speed limit in m/s (0 when unavailable)
getCurrentStreetSpeedLimitFormatted()	String	Localized speed-limit text
getDriveSide()	DriveSideType	Current drive side
hasNextTurnInfo()	Bool	Whether next-turn information is available
getNextTurnInstruction()	String	Next maneuver text
getNextTurnDetails()	TurnDetailsObject?	Full next-turn details
hasNextNextTurnInfo()	Bool	Whether next-next-turn information is available
getNextNextTurnInstruction()	String	Next-next maneuver text
getNextNextTurnDetails()	TurnDetailsObject?	Full next-next-turn details
getTimeDistanceToNextTurn()	TimeDistanceObject?	Time and distance to next turn
getTimeDistanceToNextNextTurn()	TimeDistanceObject?	Time and distance to next-next turn
getRemainingTravelTimeDistance()	TimeDistanceObject?	Remaining route metrics
getRemainingTravelTimeDistanceToNextWaypoint()	TimeDistanceObject?	Remaining metrics to next waypoint
getTraveledTimeDistance()	TimeDistanceObject?	Traveled time and distance
getSegmentIndex() / getInstructionIndex()	Int32	Current segment and instruction indices
getCurrentPosition()	PositionObject?	Current position snapshot

Turn and maneuver details

Next turn

Use the next-turn APIs to populate maneuver UI with text, images, and detailed turn metadata:

if instruction.hasNextTurnInfo() {
	let nextTurnText = instruction.getNextTurnInstruction()
	let formattedText = instruction.getNextTurnInstructionFormatted()
	let turnDetails = instruction.getNextTurnDetails()
	let turnImage = instruction.getNextTurnImage(CGSize(width: 96, height: 96))

	print(nextTurnText)
	print(formattedText)
	print(turnDetails?.getRoundaboutExitNumber() ?? -1)
	print(turnImage != nil)
}

You can also render customized turn images with the overloads that accept active and inactive colors.

Next-next turn

Use the same pattern for the turn after the next one:

if instruction.hasNextNextTurnInfo() {
	let nextNextTurnText = instruction.getNextNextTurnInstruction()
	let nextNextDetails = instruction.getNextNextTurnDetails()
	let nextNextImage = instruction.getNextNextTurnImage(CGSize(width: 96, height: 96))

	print(nextNextTurnText)
	print(nextNextDetails?.getRoundaboutExitNumber() ?? -1)
	print(nextNextImage != nil)
}

info

hasNextNextTurnInfo() is typically false when the next instruction is the destination.

Street and road information

Use these APIs to populate current, next, and next-next street panels.

let currentStreetName = instruction.getCurrentStreetName()
let currentCountryCode = instruction.getCurrentCountryCodeISO()
let driveSide = instruction.getDriveSide()

print(currentStreetName)
print(currentCountryCode)
print(driveSide)

if instruction.hasCurrentRoadInfo() {
	for road in instruction.getCurrentRoadInformation() {
		print(road.getRoadName())
	}
}

let currentRoadCodeImage = instruction.getCurrentRoadCodeImage(CGSize(width: 120, height: 36))
let nextStreetName = instruction.getNextStreetName()
let nextCountryCode = instruction.getNextCountryCodeISO()

if instruction.hasNextRoadInfo() {
	let nextRoadCodeImage = instruction.getNextRoadCodeImage(CGSize(width: 120, height: 36))
	print(nextStreetName)
	print(nextCountryCode)
	print(nextRoadCodeImage != nil)
}

if instruction.hasNextNextRoadInfo() {
	let nextNextStreetName = instruction.getNextNextStreetName()
	let nextNextRoadCodeImage = instruction.getNextNextRoadCodeImage(CGSize(width: 120, height: 36))
	print(nextNextStreetName)
	print(nextNextRoadCodeImage != nil)
}

info

Some roads may not have a street name. In that case, getCurrentStreetName() returns an empty string.

Signpost guidance

When signpost data is available, you can show both text and a rendered sign image:

if instruction.hasSignpostInfo() {
	let signpostText = instruction.getSignpostInstruction()
	let signpostDetails = instruction.getSignpostDetails()
	let signpostImage = instruction.getSignpostImage(
		CGSize(width: 320, height: 96),
		border: 2,
		roundCorners: true,
		rows: 2
	)

	print(signpostText)
	print(signpostDetails?.getItems().count ?? 0)
	print(signpostImage != nil)
}

Get speed limit information

NavigationInstructionObject exposes the current street speed limit and formatted text.

let speedLimitMS = instruction.getCurrentStreetSpeedLimit()
let speedLimitText = instruction.getCurrentStreetSpeedLimitFormatted()

if speedLimitMS == 0 {
	print("Speed limit unavailable")
} else {
	print("Speed limit: \(speedLimitText)")
}

Display lane guidance

Lane guidance is rendered directly as UIImage in iOS:

if instruction.hasLaneInfo() {
	let laneImage = instruction.getLaneImage(
		CGSize(width: 400, height: 120),
		backgroundColor: .black,
		activeColor: .white,
		inactiveColor: .lightGray
	)

	print(laneImage != nil)
}

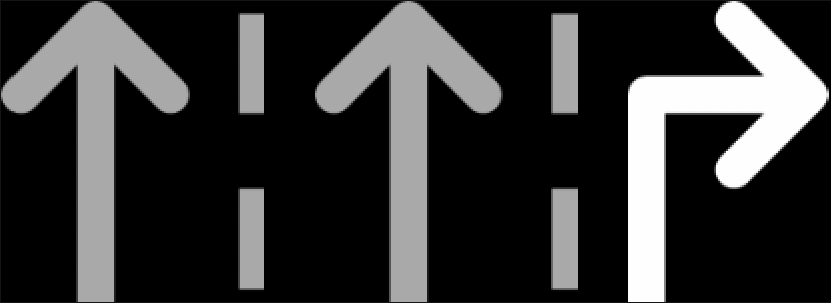

Example of lane guidance image

Return-to-route support

When navigation status is NavigationStatusWaitingReturnToRoute, use the return-to-route APIs to guide the user back to the navigation path.

if instruction.getNavigationStatus() == .waitingReturnToRoute {
	let returnPosition = instruction.getReturnToRoutePosition()
	let returnImage = instruction.getReturnToRouteImage(
		CGSize(width: 96, height: 96),
		colorActiveInner: .systemBlue,
		colorActiveOuter: .white,
		colorInactiveInner: .lightGray,
		colorInactiveOuter: .darkGray
	)

	print("\(returnPosition.latitude), \(returnPosition.longitude)")
	print(returnImage != nil)
}

Change instruction language

Navigation instruction texts follow the language configured in the SDK. The same language setting affects the strings returned by methods such as getNextTurnInstruction(), getSignpostInstruction(), and getCurrentStreetSpeedLimitFormatted().

---

Use NavigationInstructionObject as the live UI model for maneuver text, images, street and road info, signposts, lane guidance, and progress metrics during navigation.
