Simulate Route

_{Last updated: April 24, 2026 | 5 minutes read}

UIKit

This example demonstrates how to use GEMKit in a UIKit application to calculate a route and simulate driving it at an accelerated speed with turn-by-turn voice guidance.

Check the full implementation on GitHub.

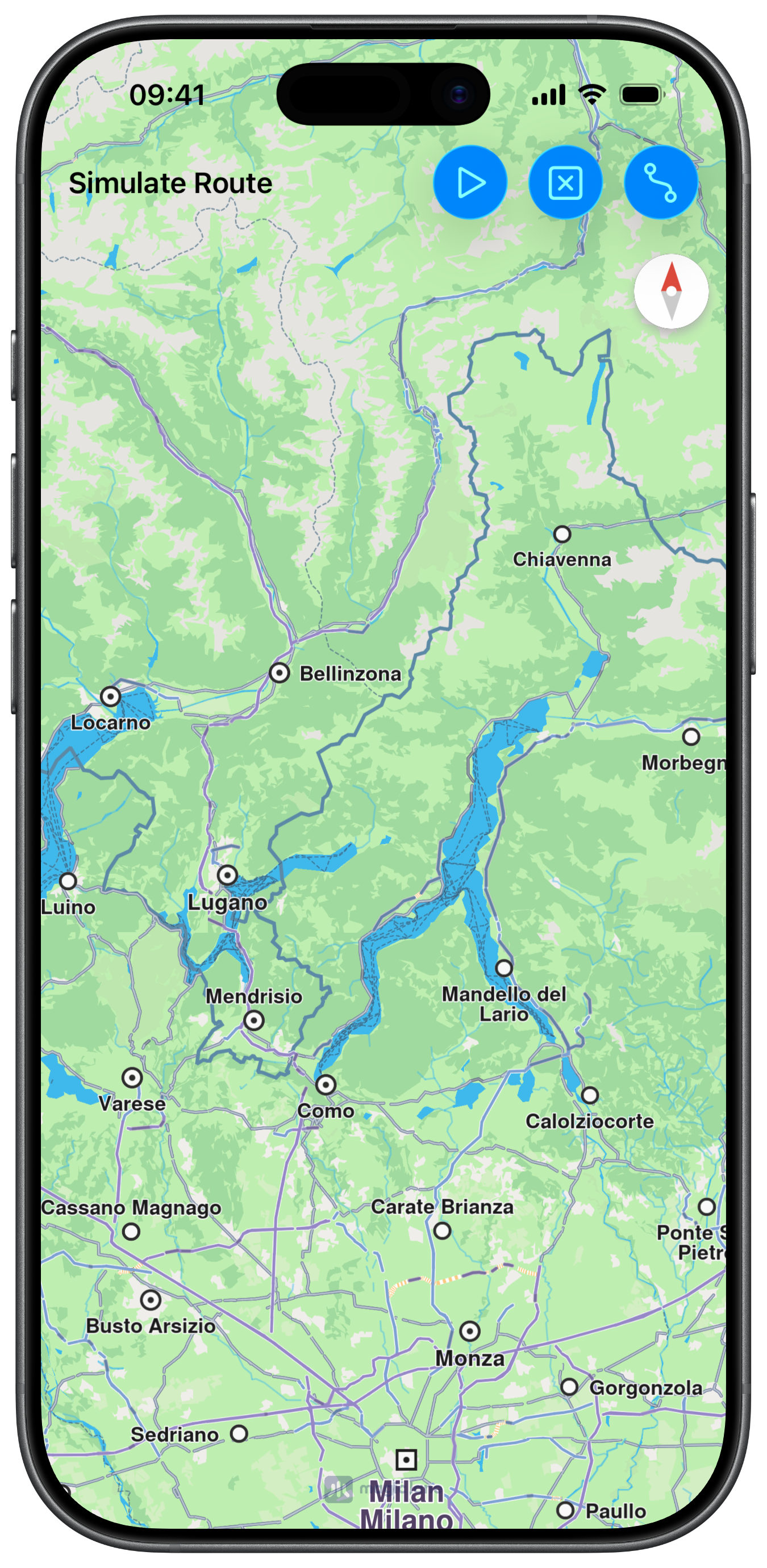

Initial screen

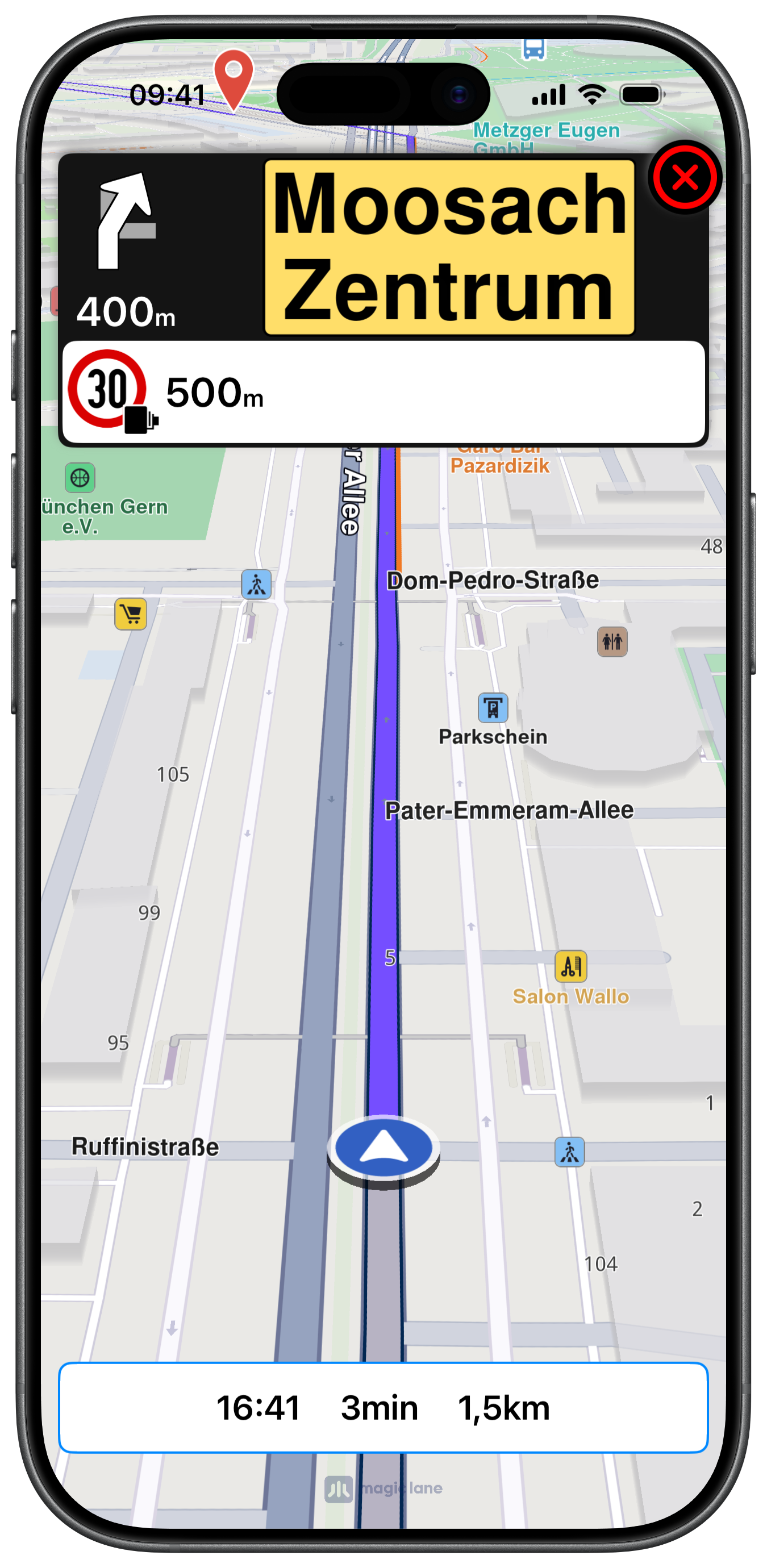

Simulating Route

UI and Map Integration

The view controller embeds a MapViewController and sets up delegates for both map interaction and navigation event callbacks:

ViewController.swiftView on GitHub

class ViewController: UIViewController, MapViewControllerDelegate, NavigationContextDelegate {

    var mapViewController: MapViewController?

    var navigationContext: NavigationContext?
    var soundContext: SoundContext?
    var trafficContext: TrafficContext?
    var alarmContext: AlarmContext?

    var mainRoute: RouteObject?
    var panelNavigationViewController: NavigationViewController?

    override func viewDidLoad() {

        super.viewDidLoad()

        self.createMapView()
        self.setMapFollowPositionPreferences()
        self.mapViewController!.startRender()

        self.addRouteButton()
        self.addLabelText()
    }

    func setMapFollowPositionPreferences() {

        guard let mapViewController = self.mapViewController else { return }

        let followPositionPreferences = mapViewController.getPreferences().getFollowPositionPreferences()

        // Allow user to change follow position angle and zoom by touch (pinch or 2x finger drag)
        followPositionPreferences.setTouchHandlerModifyPersistent(true)
    }

Calculating and Simulating the Route

Once waypoints are set, the route is calculated and the simulation starts, auto-following the simulated position at 2× speed:

ViewController.swiftView on GitHub

        let preferences = RoutePreferencesObject.init()
        preferences.setTransportMode(.car)
        preferences.setRouteType(.fastest)
        preferences.setAvoidMotorways(false)
        preferences.setAvoidTollRoads(false)
        preferences.setAvoidFerries(false)
        preferences.setAvoidUnpavedRoads(true)

        self.navigationContext = NavigationContext.init(preferences: preferences)
        self.navigationContext?.delegate = self

        self.soundContext = SoundContext.init()
        self.soundContext?.setUseTtsWithCompletionHandler({ success in })

        self.alarmContext = AlarmContext.init()
        self.alarmContext?.setAlarmDistance(600)
        self.alarmContext?.setMonitorWithoutRoute(false)
        self.alarmContext?.registerSafetyCameraNotifications(completionHandler: { success in })
        self.alarmContext?.registerSocialReportNotifications(completionHandler: { success in })

        self.departure = LandmarkObject.landmark(
            withName: "Munich 1", location: CoordinatesObject.coordinates(withLatitude: 48.15741, longitude: 11.53739))
        self.destination = LandmarkObject.landmark(
            withName: "Munich 2", location: CoordinatesObject.coordinates(withLatitude: 48.166730, longitude: 11.53687))

        self.navigationContext?
            .calculateRoute(withWaypoints: [self.departure!, self.destination!],
                completionHandler: { [weak self] (results: [RouteObject]) in

                    guard let strongSelf = self else { return }

                    if !results.isEmpty {

                        strongSelf.mapViewController?
                            .presentRoutes(results, withTraffic: strongSelf.trafficContext, showSummary: true, animationDuration: 1600)
                    }
                })

Starting Simulation

After a route is presented, tapping the play button starts the simulation at 2× real speed:

ViewController.swiftView on GitHub

    @objc func startSimulation(item: UIBarButtonItem) {

        self.navigationContext!
            .simulate(withRoute: self.mainRoute!, speedMultiplier: 2) { [weak self] (success) in

                guard let strongSelf = self else { return }

                if success {

                    strongSelf.mapViewController!.showRoutes([strongSelf.mainRoute!], withTraffic: nil, showSummary: false)
                }
            }
    }

Navigation Panel

info

The NavigationViewController used in this example is a full-featured turn-by-turn panel displaying turn images, distance, lane guidance, traffic events, signpost overlays, and safety alerts. Due to its size it is not reproduced here — check the full implementation on GitHub.

SwiftUI

This example demonstrates how to use GEMKit in a SwiftUI application to calculate a route and simulate driving it at an accelerated speed with turn-by-turn voice guidance.

Check the full implementation on GitHub.

Initial screen

Simulating Route

Map View and Navigation Panel

Navigation state is managed in SimulateRouteModel. The view switches between a route summary MapRoute and a live navigation MapRoute once simulation starts, and a NavigationPanelView overlay is shown during simulation:

ContentView.swiftView on GitHub

struct ContentView: View {
    @StateObject private var model = SimulateRouteModel()

    var body: some View {
        MapReader { proxy in
            ZStack(alignment: .top) {
                MapBase {
                    if model.isSimulating, let mainRoute = model.mainRoute {
                        MapRoute(
                            routes: [mainRoute],
                            bubbleSummary: false,
                            animationDuration: -1
                        )
                    } else {
                        if !model.presentedRoutes.isEmpty {
                            MapRoute(
                                routes: model.presentedRoutes,
                                bubbleSummary: true,
                                animationDuration: 800
                            )
                        }
                    }
                }
                .ignoresSafeArea()
                .onAppear {
                    model.setupFollowPositionPreferences(proxy)
                }

                VStack {
                    if model.isSimulating {
                        NavigationPanelView(
                            model: model,
                            onStop: { model.stopSimulation(proxy) }
                        )
                        .padding(.horizontal, 10)
                        .padding(.top, 5)
                    }
                    Spacer()
                }
            }
            .toolbar(model.isSimulating ? .hidden : .visible, for: .navigationBar)
            .toolbar {
                ToolbarItem(placement: .topBarTrailing) {
                    Button("", systemImage: "play") {
                        model.startSimulation(proxy)
                    }
                    .disabled(model.mainRoute == nil)
                    .buttonStyle(.borderedProminent)
                }
            }
        }
        .navigationTitle("Simulate Route")
    }
}

Route Calculation and Starting Simulation

Route preferences and all contexts are initialised lazily in the model. Once a route is available startSimulation(_:) calls simulate(withRoute:speedMultiplier:) and a NavigationHandler closure receives all delegate callbacks:

SimulateRouteModel.swiftView on GitHub

    func calculateRoute(_ proxy: MapProxy) {

        if navigationContext == nil {

            let preferences = RoutePreferencesObject()
            preferences.setTransportMode(.car)
            preferences.setRouteType(.fastest)

            navigationContext = NavigationContext(preferences: preferences)
        }

        if soundContext == nil {
            soundContext = SoundContext()
            soundContext?.setUseTtsWithCompletionHandler({ _ in })
        }

        if alarmContext == nil {
            alarmContext = AlarmContext()
            alarmContext?.setAlarmDistance(600)
            alarmContext?.setMonitorWithoutRoute(false)
            alarmContext?.registerSafetyCameraNotifications(completionHandler: { _ in })
            alarmContext?.registerSocialReportNotifications(completionHandler: { _ in })
        }

        let departure = LandmarkObject.landmark(
            withName: "Munich 1",
            location: CoordinatesObject.coordinates(withLatitude: 48.15741, longitude: 11.53739))
        let destination = LandmarkObject.landmark(
            withName: "Munich 2",
            location: CoordinatesObject.coordinates(withLatitude: 48.166730, longitude: 11.53687))

        navigationContext?.calculateRoute(withWaypoints: [departure, destination], completionHandler: { [weak self] results in

            Task { @MainActor in
                guard let self else { return }
                if !results.isEmpty {
                    self.presentedRoutes = results
                    self.mainRoute = results.first
                }
                self.isCalculating = false
            }
        })
    }

    func startSimulation(_ proxy: MapProxy) {

        guard let navigationContext, let mainRoute else { return }

        let navDelegate = NavigationHandler(
            onNavigationStarted: { [weak self] context, route in
                self?.startFollowPosition(proxy)
            },
            onInstructionUpdated: { [weak self] context, route in

                guard let self else { return }

                let eta = context.getEstimateTimeOfArrivalFormatted() + context.getEstimateTimeOfArrivalUnitFormatted()
                let rtt = context.getRemainingTravelTimeFormatted() + context.getRemainingTravelTimeUnitFormatted()
                let rtd = context.getRemainingTravelDistanceFormatted() + context.getRemainingTravelDistanceUnitFormatted()

                labelText = eta + "     " + rtt + "     " + rtd
                showLabel = true
                isSimulating = true
                navigationInstruction = context.getNavigationInstruction()
                alarmItems = alarmContext?.getOverlayItemAlarms() ?? []
            },
            onDestinationReached: { [weak self] in
                self?.stopSimulation(proxy)
            },
            onSound: { [weak self] sound in
                self?.soundContext?.playSound(sound)
            }
        )

        navigationContext.delegate = navDelegate
        navigationHandler = navDelegate

        navigationContext.simulate(withRoute: mainRoute, speedMultiplier: 2) { [weak self] success in

            Task { @MainActor in
                guard let self, success, let mainRoute = self.mainRoute else { return }
                proxy.removeAllRoutes()
                self.presentedRoutes = [mainRoute]
            }
        }
    }

info

The NavigationPanelView used in this example is a full-featured SwiftUI turn-by-turn panel displaying turn images, distance, lane guidance, traffic events, and safety alerts. Due to its size it is not reproduced here — check the full implementation on GitHub.
