Route Instructions

_{Last updated: April 24, 2026 | 5 minutes read}

UIKit

This example demonstrates how to use GEMKit in a UIKit application to calculate a route and display a detailed list of turn-by-turn instructions alongside any traffic events along the path.

Check the full implementation on GitHub.

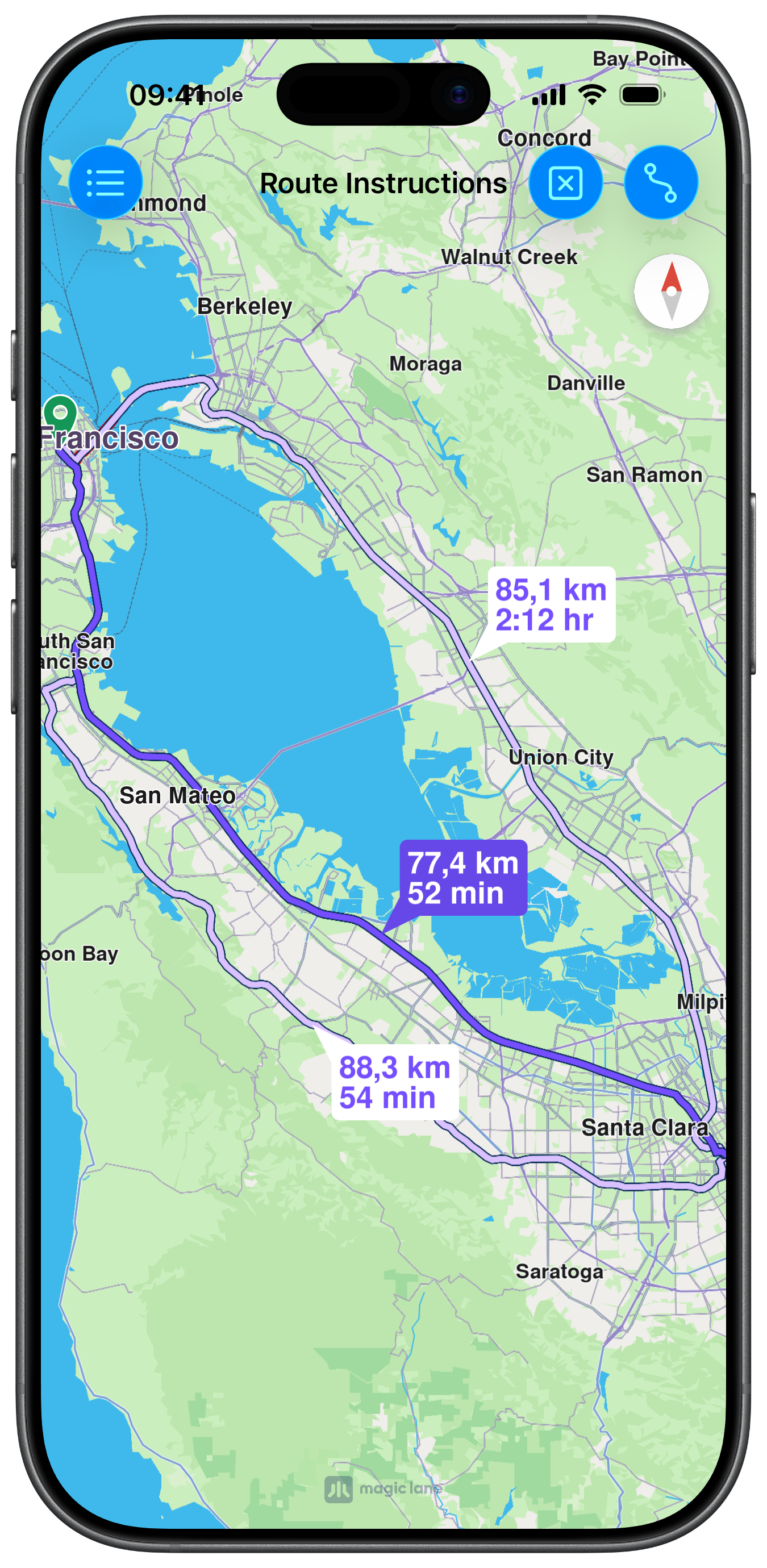

Route Overview

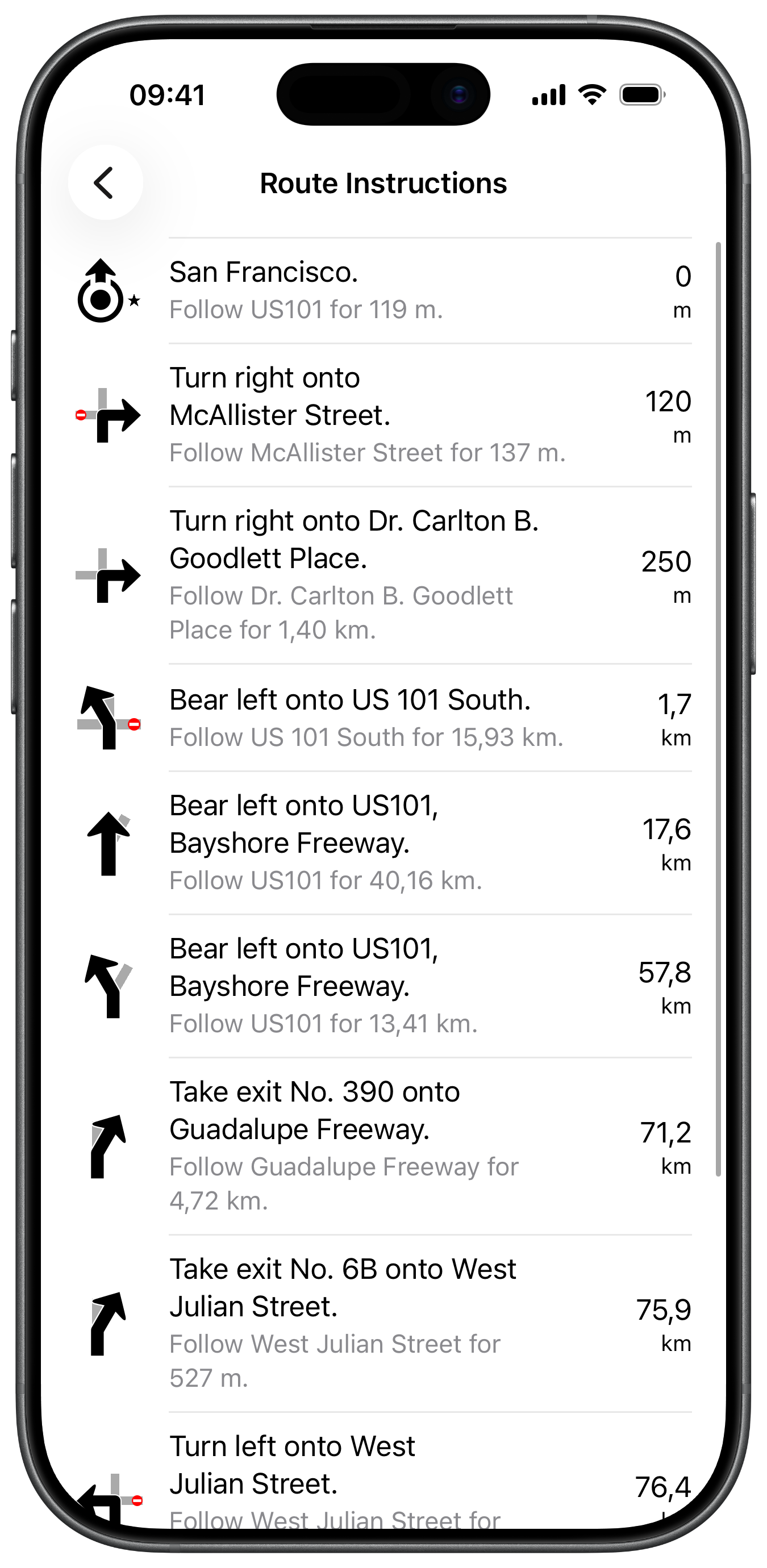

List of Route Instructions

UI and Map Integration

The view controller calculates the route and stores the first result for the instructions view:

ViewController.swiftView on GitHub

class ViewController: UIViewController {

    var mapViewController: MapViewController?
    var navigationContext: NavigationContext?
    var trafficContext: TrafficContext?
    var mainRoute: RouteObject?

    override func viewDidLoad() {
        super.viewDidLoad()

        self.title = "Route Instructions"
        self.navigationItem.largeTitleDisplayMode = .never

        self.createMapView()
        self.mapViewController!.startRender()
        self.addRouteButton()
    }

Calculating the Route

The route is calculated with standard car preferences. The first result is saved on mainRoute for later access by the instructions screen:

ViewController.swiftView on GitHub

        let preferences = RoutePreferencesObject.init()
        preferences.setTransportMode(.car)
        preferences.setRouteType(.fastest)

        self.navigationContext = NavigationContext.init(preferences: preferences)

        self.trafficContext = TrafficContext.init()
        self.trafficContext?.setUseTraffic(.useOnline)

        let waypoints = [
            LandmarkObject.landmark(
                withName: "San Francisco", location: CoordinatesObject.coordinates(withLatitude: 37.77903, longitude: -122.41991)),
            LandmarkObject.landmark(
                withName: "San Jose", location: CoordinatesObject.coordinates(withLatitude: 37.33619, longitude: -121.89058))
        ]

        self.navigationContext?
            .calculateRoute(withWaypoints: waypoints,
                completionHandler: { [weak self] (results: [RouteObject]) in

                    guard let strongSelf = self else { return }

                    if !results.isEmpty {

                        strongSelf.mainRoute = results.first

                        strongSelf.mapViewController?
                            .presentRoutes(results, withTraffic: strongSelf.trafficContext, showSummary: true, animationDuration: 1000)
                    }
                })

Showing Route Instructions

Tapping the list button pushes the RouteInstructionsViewController, which iterates over segments and their instructions to build a table, also incorporating any traffic events:

RouteInstructionsViewController.swiftView on GitHub

    func prepareModelData() {

        guard self.route != nil else { return }

        let scale = UIScreen.main.scale
        let imgSize = CGSize.init(width: 40.0 * scale, height: 40.0 * scale)

        let segmentList = self.route!.getSegments()

        for segment in segmentList {

            for routeInstruction in segment.getInstructions() {

                let item = ModelDataItem.init()
                item.routeInstruction = routeInstruction

                if routeInstruction.hasTurnInfo() {
                    item.title = routeInstruction.getTurnInstruction()
                }

                if routeInstruction.hasFollowRoadInfo() {
                    item.description = routeInstruction.getFollowRoadInstruction()
                }

                if let turn = routeInstruction.getTurnDetails() {

                    item.image = turn.getTurnImage(
                        imgSize,
                        colorActiveInner: UIColor.black,
                        colorActiveOuter: UIColor.white,
                        colorInactiveInner: UIColor.lightGray,
                        colorInactiveOuter: UIColor.lightGray)
                }

                self.modelData.append(item)
            }
        }
    }

SwiftUI

This example demonstrates how to use GEMKit in a SwiftUI application to calculate a route and display a detailed list of turn-by-turn instructions alongside any traffic events along the path.

Check the full implementation on GitHub.

Route Overview

List of Route Instructions

Map View and Instructions Navigation

The map is displayed with a MapRoute declarative child. A toolbar button navigates to RouteInstructionsView once a route is available. When the user selects an instruction and pops back, the map centres on that instruction:

ContentView.swiftView on GitHub

struct ContentView: View {

    @State private var navigationContext: NavigationContext?
    @State private var trafficContext: TrafficContext?

    @State private var presentedRoutes: [RouteObject] = []
    @State private var mainRoute: RouteObject?

    @State private var isCalculating: Bool = false
    @State private var showInstructions: Bool = false
    @State private var selectedItem: InstructionItem?

    var body: some View {
        MapReader { proxy in
            MapBase {
                MapRoute(routes: presentedRoutes)
            }
            .ignoresSafeArea()
            .toolbar {
                ToolbarItem(placement: .topBarLeading) {
                    Button("", systemImage: "list.bullet") {
                        showInstructions = true
                    }
                    .disabled(mainRoute == nil)
                    .buttonStyle(.borderedProminent)
                }
                ToolbarItem(placement: .topBarTrailing) {
                    Button("", systemImage: "point.topleft.down.curvedto.point.bottomright.up") {
                        calculateRoute(proxy)
                    }
                    .disabled(isCalculating)
                    .buttonStyle(.borderedProminent)
                }
            }
            .onChange(of: showInstructions) { newValue in
                if !newValue, let item = selectedItem {
                    selectedItem = nil
                    if let instruction = item.routeInstruction {
                        proxy.mapViewController?.center(onRouteInstruction: instruction, zoomLevel: -1, animationDuration: 2600)
                    } else if let event = item.routeTrafficEvent {
                        proxy.mapViewController?.center(onRouteTrafficEvent: event, zoomLevel: -1, animationDuration: 2000)
                    }
                }
            }
        }
        .navigationDestination(isPresented: $showInstructions) {
            if let route = mainRoute {
                RouteInstructionsView(
                    route: route,
                    selectedItem: $selectedItem,
                    showInstructions: $showInstructions
                )
            }
        }
        .navigationTitle("Route Instructions")
    }
}

Calculating the Route

Route preferences and contexts are initialised lazily. The first result is stored in mainRoute to enable the instructions button and pass the route to RouteInstructionsView:

ContentView.swiftView on GitHub

    func calculateRoute(_ proxy: MapProxy) {

        if navigationContext == nil {

            let preferences = RoutePreferencesObject()
            preferences.setTransportMode(.car)
            preferences.setRouteType(.fastest)

            navigationContext = NavigationContext(preferences: preferences)
        }

        if trafficContext == nil {
            trafficContext = TrafficContext()
            trafficContext?.setUseTraffic(.useOnline)
        }

        let waypoints = [
            LandmarkObject.landmark(
                withName: "San Francisco",
                location: CoordinatesObject.coordinates(withLatitude: 37.77903, longitude: -122.41991)),
            LandmarkObject.landmark(
                withName: "San Jose",
                location: CoordinatesObject.coordinates(withLatitude: 37.33619, longitude: -121.89058))
        ]

        isCalculating = true

        navigationContext?.calculateRoute(withWaypoints: waypoints, completionHandler: { results in

            if !results.isEmpty {
                mainRoute = results.first
                presentedRoutes = results
            }

            isCalculating = false
        })
    }

Building the Instruction List

RouteInstructionsView iterates over route segments and their instructions to build the list. Traffic events are also included and sorted by their distance position along the route. Tapping an item pops back and centres the map on that instruction or event:

RouteInstructionsView.swiftView on GitHub

    private func prepareItems() -> [InstructionItem] {

        var result: [InstructionItem] = []

        let scale = UIScreen.main.scale
        let imgSize = CGSize(width: 40.0 * scale, height: 40.0 * scale)

        for segment in route.getSegments() {

            for routeInstruction in segment.getInstructions() {

                var title = ""
                var description = ""
                var image: UIImage?

                if routeInstruction.hasTurnInfo() {
                    title = routeInstruction.getTurnInstruction()
                }

                if routeInstruction.hasFollowRoadInfo() {
                    description = routeInstruction.getFollowRoadInstruction()
                }

                if let turn = routeInstruction.getTurnDetails() {
                    image = turn.getTurnImage(
                        imgSize,
                        colorActiveInner: UIColor.black,
                        colorActiveOuter: UIColor.white,
                        colorInactiveInner: UIColor.lightGray,
                        colorInactiveOuter: UIColor.lightGray)
                }

                result.append(InstructionItem(
                    title: title,
                    description: description,
                    image: image,
                    // ... statusText, sortKey, routeInstruction
                    routeInstruction: routeInstruction,
                    routeTrafficEvent: nil
                ))
            }
        }

        // Traffic events sorted by distance along the route
        if let timeDistance = route.getTimeDistance() {

            let routeLength = timeDistance.getTotalDistance()

            for event in route.getTrafficEvents() {

                if event.hasTrafficEvent(onDistance: routeLength) {

                    result.append(InstructionItem(
                        title: event.getDelayTimeFormatted() + event.getDelayTimeUnitFormatted() + " (" + event.getDescription() + ")",
                        description: event.getFromLandmark()?.getLandmarkName() ?? "",
                        image: event.getImage(imgSize),
                        // ... statusText, sortKey
                        routeInstruction: nil,
                        routeTrafficEvent: event
                    ))
                }
            }

            result.sort { $0.sortKey < $1.sortKey }
        }

        return result
    }
