Navigate Route

_{Last updated: April 24, 2026 | 7 minutes read}

UIKit

This example demonstrates how to use GEMKit in a UIKit application to calculate a route using the device's real GPS position as the departure point and navigate it turn-by-turn with voice guidance.

Check the full implementation on GitHub.

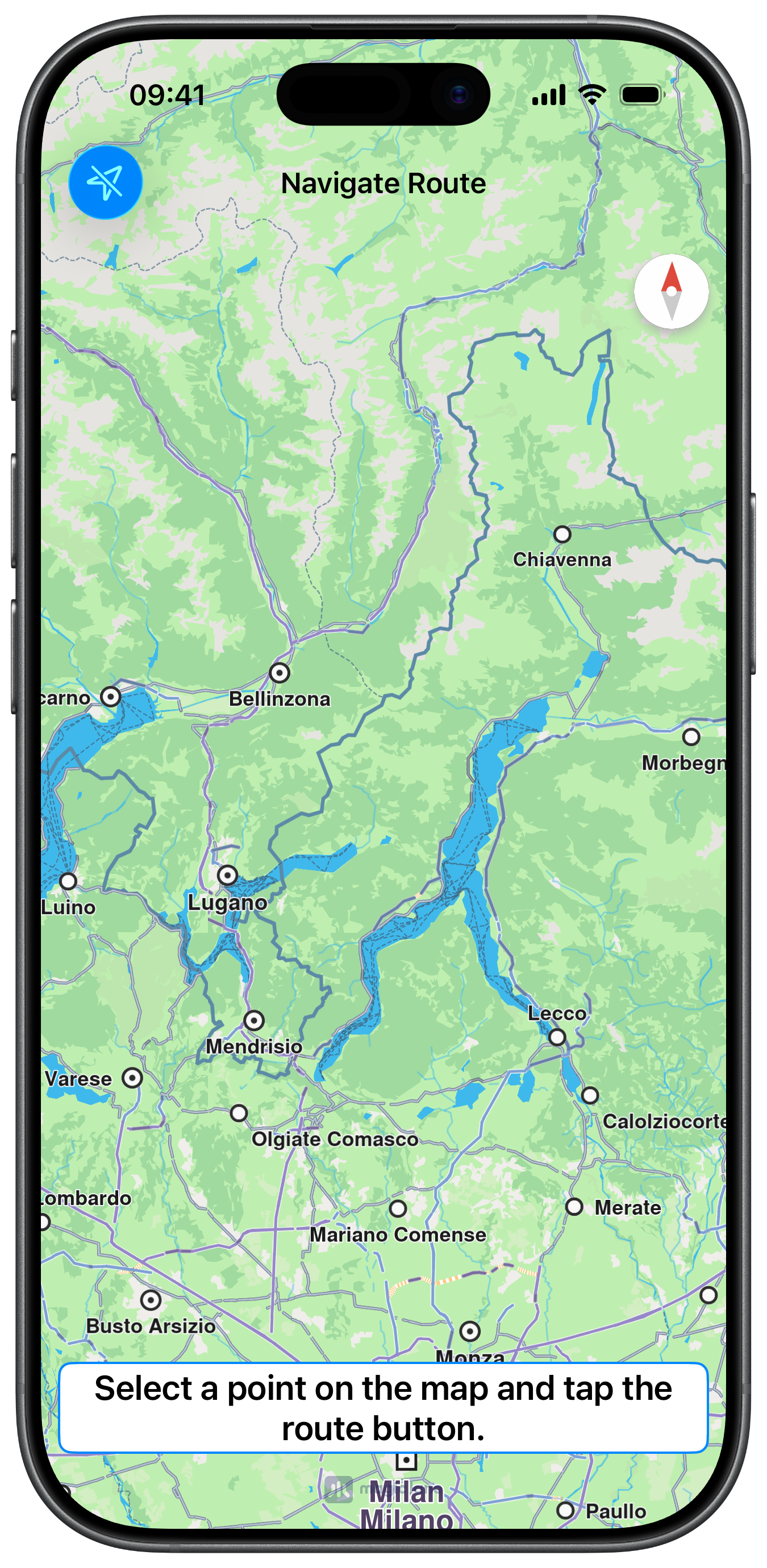

Initial screen

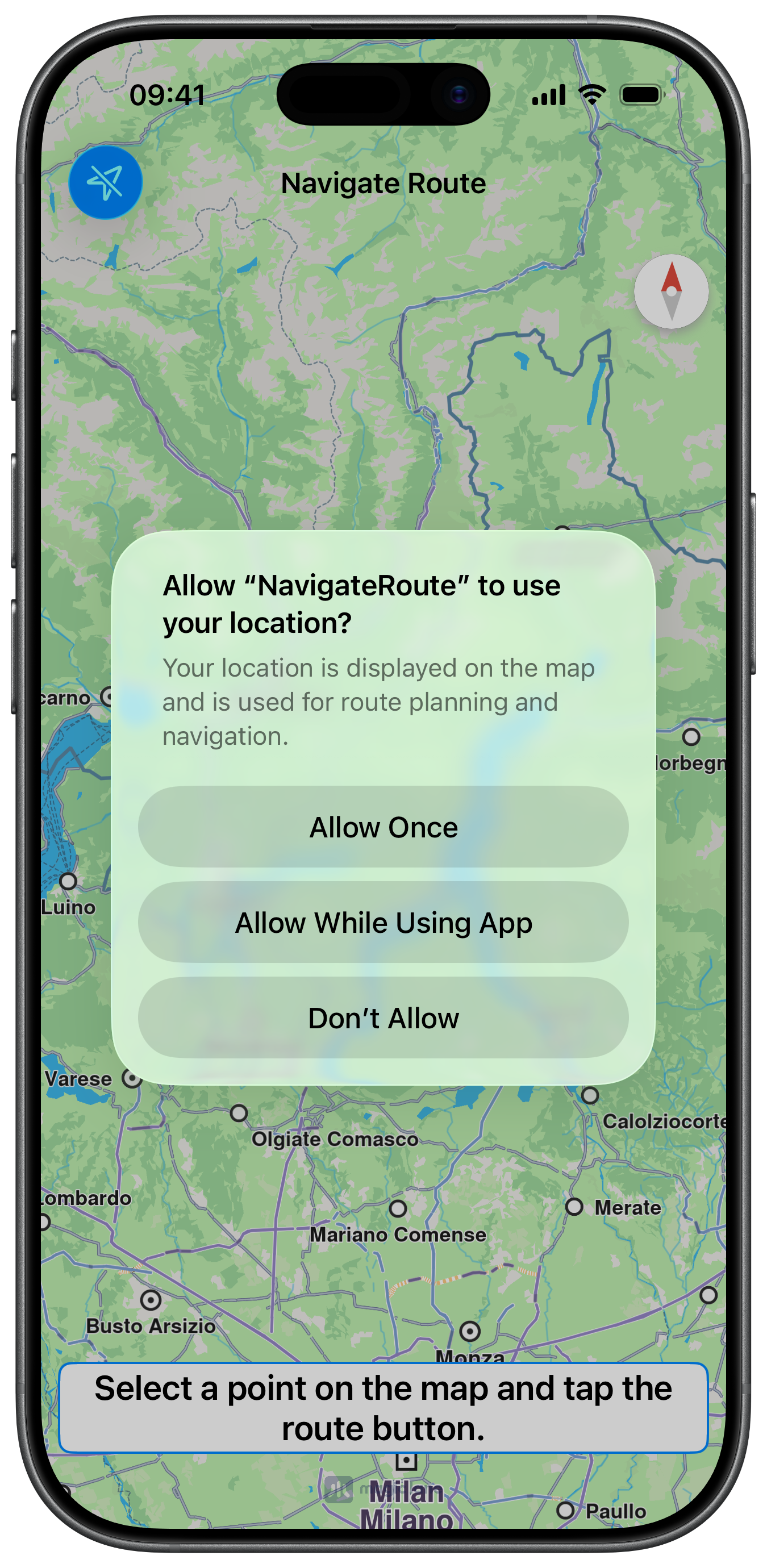

Location Permission

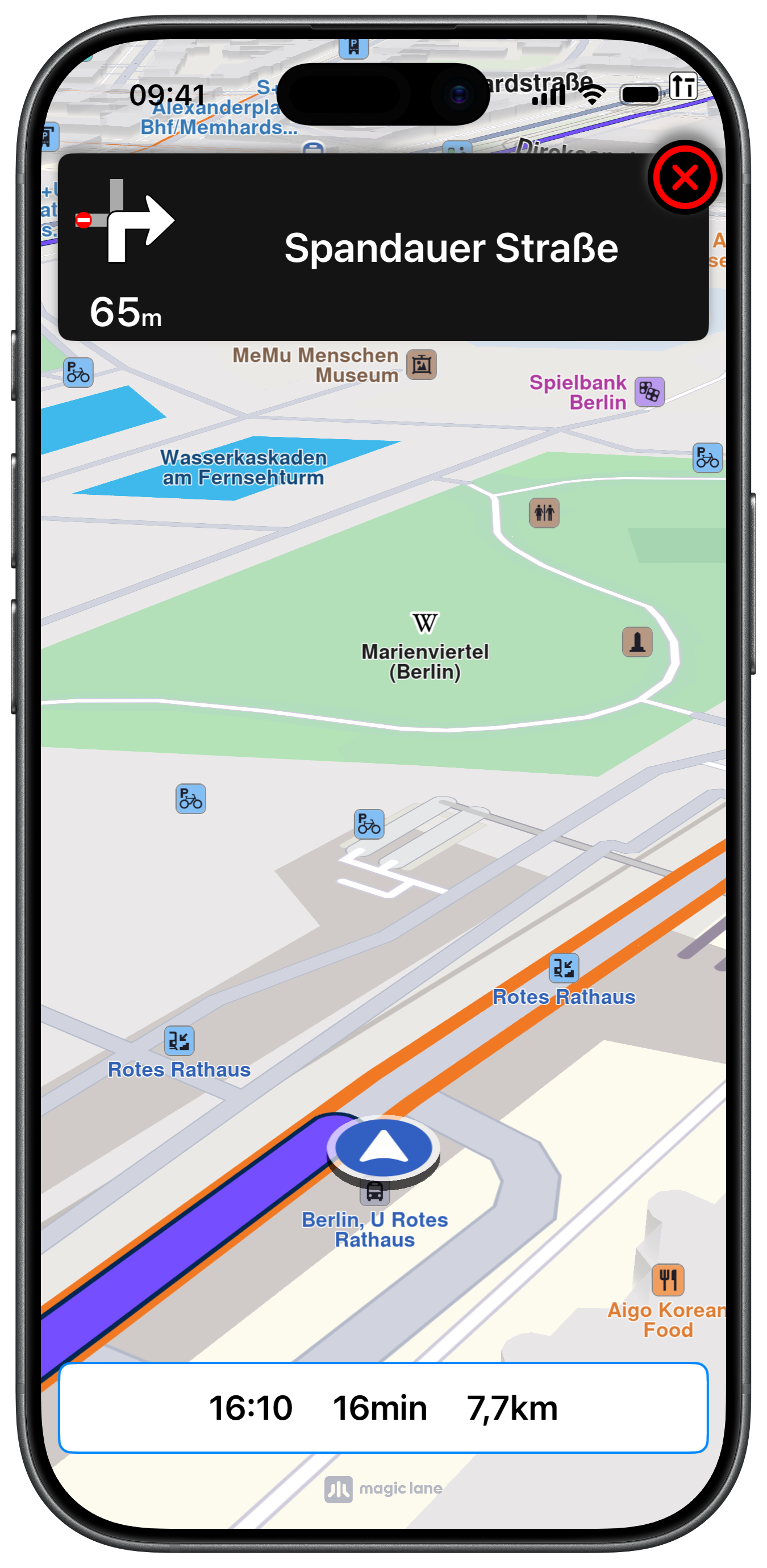

Navigating on Route

UI and Map Integration

The view controller manages a MapViewController, a PositionContext for GPS tracking, and a DataSourceContext configured for automotive navigation:

ViewController.swiftView on GitHub

class ViewController: UIViewController, CLLocationManagerDelegate, MapViewControllerDelegate,
    NavigationContextDelegate, PositionContextDelegate
{

    var mapViewController: MapViewController?
    var locationManager: CLLocationManager?

    var navigationContext: NavigationContext?
    var trafficContext: TrafficContext?
    var mainRoute: RouteObject?
    var soundContext: SoundContext?
    var alarmContext: AlarmContext?
    var positionContext: PositionContext?
    var dataSource: DataSourceContext?

    var panelNavigationViewController: NavigationViewController?

    override func viewDidLoad() {

        super.viewDidLoad()

        let configuration = DataSourceConfigurationObject.init()
        configuration.setPositionDistanceFilter(0)
        configuration.setPositionAccuracy(.whenMoving)
        configuration.setPositionActivity(.automotive)
        configuration.setAllowBackgroundLocationUpdates(true)

        self.dataSource = DataSourceContext.init()
        self.dataSource!.setConfiguration(configuration, for: .improvedPosition)

        self.positionContext = PositionContext.init(context: self.dataSource!)
        self.positionContext!.delegate = self
        self.positionContext!.startUpdatingPositionDelegate(.improvedPosition)

        self.createMapView()
        self.setMapFollowPositionPreferences()
        self.mapViewController!.startRender()
    }

Follow Position Preferences

Persistent follow position is enabled so that the user's zoom and tilt adjustments are remembered during simulation/navigation until clearing the NavigationContext:

ViewController.swiftView on GitHub

    func setMapFollowPositionPreferences() {

        guard let mapViewController = self.mapViewController else { return }

        let followPositionPreferences = mapViewController.getPreferences().getFollowPositionPreferences()

        // Allow user to change follow position angle and zoom by touch (pinch or 2x finger drag)
        followPositionPreferences.setTouchHandlerModifyPersistent(true)
    }

Calculating and Starting Navigation

After the route is calculated, tapping play starts real GPS navigation. A SoundContext provides TTS turn announcements and an AlarmContext monitors safety cameras:

ViewController.swiftView on GitHub

        let preferences = RoutePreferencesObject.init()
        preferences.setTransportMode(.car)
        preferences.setRouteType(.fastest)

        self.navigationContext = NavigationContext.init(preferences: preferences)

        self.soundContext = SoundContext.init()
        self.soundContext?.setUseTtsWithCompletionHandler({ success in })

        self.alarmContext = AlarmContext.init()
        self.alarmContext?.setAlarmDistance(600)
        self.alarmContext?.setMonitorWithoutRoute(false)
        self.alarmContext?.registerSafetyCameraNotifications(completionHandler: { success in })
        self.alarmContext?.registerSocialReportNotifications(completionHandler: { success in })

Getting GPS Position and Calculating the Route

The route button reads the current device location from PositionContext and uses it as the departure point. The destination is set by tapping a landmark or street on the map. Tapping the play button then calls navigate(withRoute:) to begin real GPS navigation:

ViewController.swiftView on GitHub

        guard let position = positionContext.getPosition() else { return }

        let location = position.getCoordinates()

        if location.isValid() == false { return }

        self.departure = LandmarkObject.landmark(withName: "My Position", location: location)

        guard let start = self.departure, let stop = self.destination else { return }

        self.navigationContext?
            .calculateRoute(withWaypoints: [start, stop]) { [weak self] (results: [RouteObject]) in

                guard let strongSelf = self else { return }

                if !results.isEmpty {

                    strongSelf.mainRoute = results.first

                    strongSelf.mapViewController?
                        .presentRoutes(results, withTraffic: strongSelf.trafficContext, showSummary: true, animationDuration: 1000)
                }
            }
    }

    @objc func startNavigation(item: UIBarButtonItem) {

        guard self.mainRoute != nil else { return }

        self.mapViewController!.removeAllRoutes()

        self.navigationContext!
            .navigate(withRoute: self.mainRoute!) { [weak self] (success) in

                guard let strongSelf = self else { return }

                if success {

                    strongSelf.mapViewController!.hideCompass()

                    strongSelf.mapViewController!
                        .presentRoutes(
                            [strongSelf.mainRoute!], withTraffic: strongSelf.trafficContext!, showSummary: false, animationDuration: 1600)

                    strongSelf.startFollowLocation()
                }
            }
    }

Navigation Instruction Updates

navigationInstructionUpdatedForRoute is the primary delegate callback that fires on every navigation tick. It updates ETA, remaining time and distance, lazily creates the panel on the first call, then feeds turn, lane, traffic, signpost, safety camera and social report data into the panel on each subsequent update:

ViewController.swiftView on GitHub

    func navigationContext(
        _ navigationContext: NavigationContext, navigationInstructionUpdatedForRoute route: RouteObject, updatedEvents: Int32
    ) {

        let eta = navigationContext.getEstimateTimeOfArrivalFormatted() + navigationContext.getEstimateTimeOfArrivalUnitFormatted()

        let rtt = navigationContext.getRemainingTravelTimeFormatted() + navigationContext.getRemainingTravelTimeUnitFormatted()

        let rtd = navigationContext.getRemainingTravelDistanceFormatted() + navigationContext.getRemainingTravelDistanceUnitFormatted()

        let text = eta + "     " + rtt + "     " + rtd

        self.label.text = text
        self.label.isHidden = false

        if !self.navigationController!.isNavigationBarHidden {

            if self.panelNavigationViewController == nil {

                self.createNavigationPanel()
            }

            self.navigationController?.setNavigationBarHidden(true, animated: true)
        }

        if let turnInstruction = navigationContext.getNavigationInstruction(), turnInstruction.getNavigationStatus() == .running {

            if turnInstruction.hasNextTurnInfo() {

                self.panelNavigationViewController?.updateTurnInformation(navigationContext: navigationContext)

                self.panelNavigationViewController?.updateLaneInformation(navigationContext: navigationContext)

                self.panelNavigationViewController?.updateTrafficInformation(navigationContext: navigationContext, route: route)

                self.panelNavigationViewController?.updateSignpostInformation(navigationContext: navigationContext)

                self.panelNavigationViewController?.updateRoadCodeInformation(navigationContext: navigationContext)

                self.panelNavigationViewController?
                    .updateSafetyCameraInformation(navigationContext: navigationContext, alarmContext: self.alarmContext!)

                self.panelNavigationViewController?
                    .updateSocialReportInformation(navigationContext: navigationContext, alarmContext: self.alarmContext!)

                self.panelNavigationViewController?.refreshContentLayout()
            }
        }
    }

Navigation Panel

info

The NavigationViewController used in this example is a full-featured turn-by-turn panel displaying turn images, distance, lane guidance, traffic events, signpost overlays, and safety alerts. Due to its size it is not reproduced here — check the full implementation on GitHub.

SwiftUI

This example demonstrates how to use GEMKit in a SwiftUI application to calculate a route using the device's real GPS position as the departure point and navigate it turn-by-turn with voice guidance.

Check the full implementation on GitHub.

Initial screen

Location Permission

Navigating on Route

Map View and Navigation Panel

Navigation state is managed in NavigateRouteModel. The view switches between a route summary and live navigation MapRoute, and shows a NavigationPanelView overlay during navigation. Map delegate modifiers handle tapping landmarks and streets to set the destination:

ContentView.swiftView on GitHub

struct ContentView: View {
    @StateObject private var model = NavigateRouteModel()

    var body: some View {
        MapReader { proxy in
            ZStack(alignment: .top) {
                MapBase {
                    if model.isNavigating, let mainRoute = model.mainRoute {
                        MapRoute(routes: [mainRoute], bubbleSummary: false, animationDuration: -1)
                    } else if !model.presentedRoutes.isEmpty {
                        MapRoute(routes: model.presentedRoutes, bubbleSummary: true, animationDuration: 800)
                    }
                }
                .didSelectLandmarks { landmarks, point, longTouch in
                    guard let landmark = landmarks.first else { return }
                    model.landmarkSelected(proxy, landmark: landmark)
                }
                .didSelectStreets { streets, point, longTouch in
                    guard let street = streets.first else { return }
                    model.landmarkSelected(proxy, landmark: street)
                }
                .ignoresSafeArea()
                .onAppear {
                    model.setupDataSource()
                    model.setupLocation()
                    model.setupFollowPositionPreferences(proxy)
                }

                VStack {
                    if model.isNavigating {
                        NavigationPanelView(
                            model: model,
                            onStop: { model.stopNavigation(proxy) }
                        )
                        .padding(.horizontal, 10)
                        .padding(.top, 5)
                    }
                    Spacer()
                }
            }
            .toolbar(model.isNavigating ? .hidden : .visible, for: .navigationBar)
            .toolbar {
                ToolbarItem(placement: .topBarTrailing) {
                    Button("", systemImage: "play") {
                        model.startNavigation(proxy)
                    }
                    .disabled(model.mainRoute == nil)
                    .buttonStyle(.borderedProminent)
                }
            }
        }
        .navigationTitle("Navigate Route")
    }
}

GPS Position, Route Calculation and Starting Navigation

The model sets up a DataSourceContext and PositionContext for GPS. calculateRoute(_:) reads the current location from positionContext.getPosition() and uses it as the departure point. startNavigation(_:) calls navigate(withRoute:) and a NavigationHandler closure handles all delegate callbacks:

NavigateRouteModel.swiftView on GitHub

    func setupDataSource() {

        let configuration = DataSourceConfigurationObject()
        configuration.setPositionDistanceFilter(0)
        configuration.setPositionAccuracy(.whenMoving)
        configuration.setPositionActivity(.automotive)

        dataSource = DataSourceContext()
        dataSource!.setConfiguration(configuration, for: .improvedPosition)

        positionContext = PositionContext(context: dataSource!)
        positionContext!.startUpdatingPositionDelegate(.improvedPosition)
    }

    func calculateRoute(_ proxy: MapProxy) {

        guard let positionContext, let position = positionContext.getPosition() else { return }

        let location = position.getCoordinates()
        guard location.isValid(), let destination else { return }

        let departure = LandmarkObject.landmark(withName: "My Position", location: location)

        if navigationContext == nil {

            let preferences = RoutePreferencesObject()
            preferences.setTransportMode(.car)
            preferences.setRouteType(.fastest)

            navigationContext = NavigationContext(preferences: preferences)
        }

        if soundContext == nil {
            soundContext = SoundContext()
            soundContext?.setUseTtsWithCompletionHandler({ _ in })
        }

        if alarmContext == nil {
            alarmContext = AlarmContext()
            alarmContext?.setAlarmDistance(600)
            alarmContext?.setMonitorWithoutRoute(false)
            alarmContext?.registerSafetyCameraNotifications(completionHandler: { _ in })
            alarmContext?.registerSocialReportNotifications(completionHandler: { _ in })
        }

        navigationContext?.calculateRoute(withWaypoints: [departure, destination], completionHandler: { [weak self] results in

            Task { @MainActor in
                guard let self else { return }
                if !results.isEmpty {
                    self.presentedRoutes = results
                    self.mainRoute = results.first
                }
                self.isCalculating = false
            }
        })
    }

    func startNavigation(_ proxy: MapProxy) {

        guard let mapViewController = proxy.mapViewController,
              let navigationContext, let mainRoute else { return }

        mapViewController.restoreFollowingPosition(withAnimationDuration: 0) { _ in }
        mapViewController.removeAllRoutes()

        let navDelegate = NavigationHandler(
            onInstructionUpdated: { [weak self] context, route in

                guard let self else { return }

                let eta = context.getEstimateTimeOfArrivalFormatted() + context.getEstimateTimeOfArrivalUnitFormatted()
                let rtt = context.getRemainingTravelTimeFormatted() + context.getRemainingTravelTimeUnitFormatted()
                let rtd = context.getRemainingTravelDistanceFormatted() + context.getRemainingTravelDistanceUnitFormatted()

                labelText = eta + "     " + rtt + "     " + rtd
                showLabel = true
                isNavigating = true
                alarmItems = alarmContext?.getOverlayItemAlarms() ?? []
                navigationInstruction = context.getNavigationInstruction()
            },
            onDestinationReached: { [weak self] in
                self?.stopNavigation(proxy)
            },
            onSound: { [weak self] sound in
                self?.soundContext?.playSound(sound)
            }
        )

        navigationContext.delegate = navDelegate
        navigationHandler = navDelegate

        navigationContext.navigate(withRoute: mainRoute) { [weak self] success in

            Task { @MainActor in
                guard let self, success, let mainRoute = self.mainRoute else { return }
                proxy.removeAllRoutes()
                mapViewController.hideCompass()
                self.presentedRoutes = [mainRoute]
                self.startFollowLocation(proxy)
            }
        }
    }

info

The NavigationPanelView used in this example is a full-featured SwiftUI turn-by-turn panel displaying turn images, distance, lane guidance, traffic events, and safety alerts. Due to its size it is not reproduced here — check the full implementation on GitHub.
