This example demonstrates how to use GEMKit in a UIKit application to generate a static map thumbnail image from a .gpx track without displaying a full interactive map to the user.

Check the full implementation on GitHub.

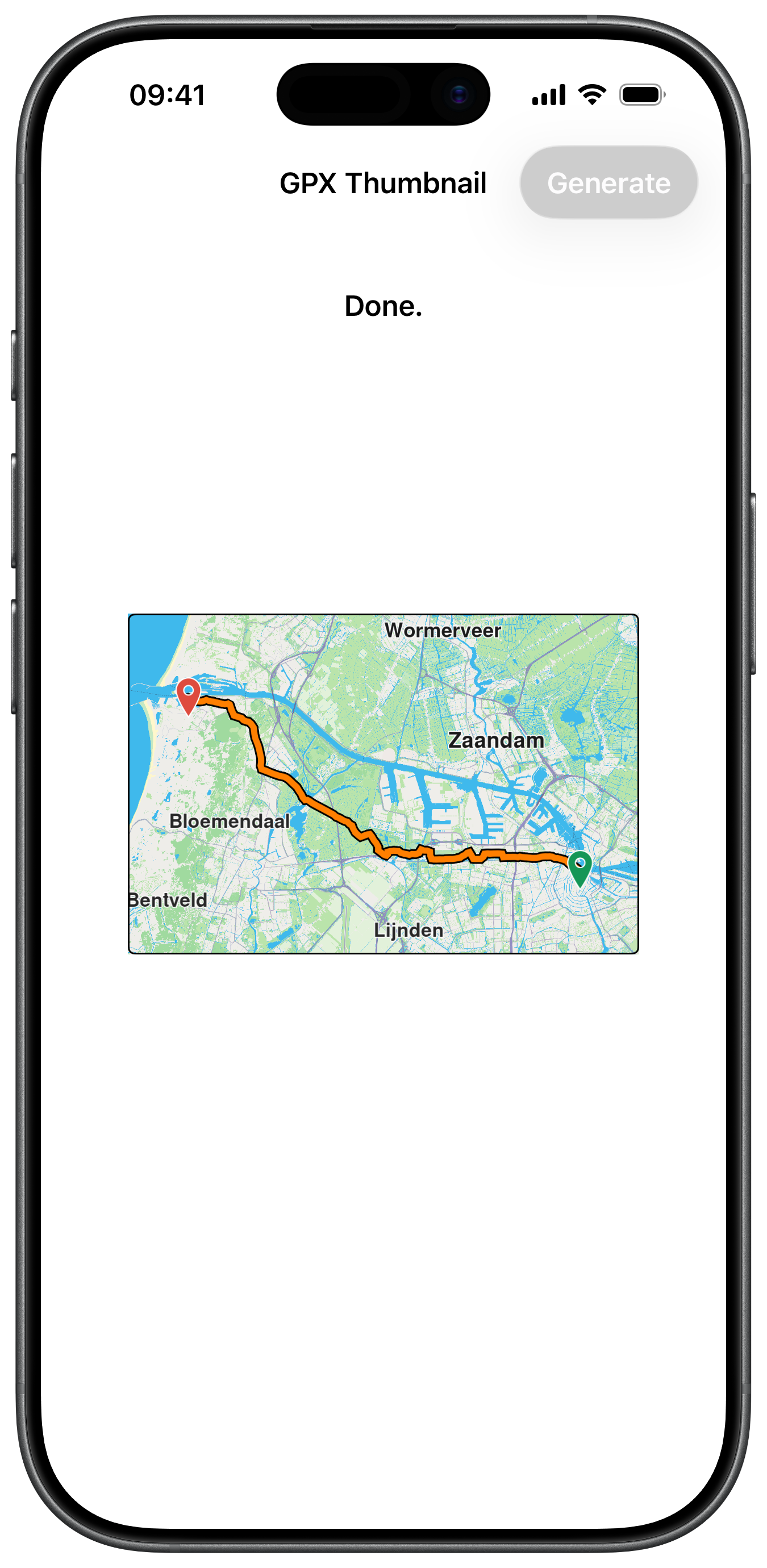

GPX Thumbnail Image Result

Off-screen Map Setup

A MapViewController is created with a fixed frame but never added to the view hierarchy. GEMSdkDelegate callbacks trigger generation only when the map data is current and an internet connection is available:

ViewController.swiftView on GitHub

class ViewController: UIViewController, GEMSdkDelegate {

    var mapViewController: MapViewController?

    let thumbnailSize = CGSize(width: 300, height: 200)

    override func viewDidLoad() {

        super.viewDidLoad()

        GEMSdk.shared().delegate = self

        self.title = "GPX Thumbnail"

        self.addButton()
        self.addLabel()
    }

    func prepareMapView() {

        guard self.mapViewController == nil else { return }

        self.mapViewController = MapViewController.init()
        self.mapViewController!.view.backgroundColor = UIColor.systemBackground

        self.mapViewController!.view.translatesAutoresizingMaskIntoConstraints = false
        NSLayoutConstraint.activate([
            self.mapViewController!.view.widthAnchor.constraint(equalToConstant: self.thumbnailSize.width),
            self.mapViewController!.view.heightAnchor.constraint(equalToConstant: self.thumbnailSize.height)
        ])

        self.mapViewController!.view.layoutIfNeeded()
        self.mapViewController!.startRender()

        let preferences = self.mapViewController!.getPreferences()
        preferences.setMapLabelsFading(false)
        preferences.setTrafficVisibility(false)
    }

Loading the GPX Path and Placing Markers

The GPX data is parsed into a PathObject, then start and end markers are placed using ImageDatabaseObject pin images. The path is rendered on the off-screen map with custom border and inner colours:

ViewController.swiftView on GitHub

    func showPath(buffer: Data) {

        guard let mapViewController = self.mapViewController else { return }
        guard let collection = mapViewController.getPaths() else { return }

        let path = PathObject.init(dataBuffer: buffer, format: .gpx)
        let array = path.getCoordinates()

        if array.count > 1 {

            let imageDatabase = ImageDatabaseObject.init()
            var lmks: [LandmarkObject] = []

            if let start = array.first {

                let lmk = LandmarkObject.init()
                lmk.setCoordinates(start)
                if let object = imageDatabase.getImageById(54008) {  // pin start
                    lmk.setImage(object)
                }
                lmks.append(lmk)
            }

            if let stop = array.last {

                let lmk = LandmarkObject.init()
                lmk.setCoordinates(stop)
                if let object = imageDatabase.getImageById(54006) {  // pin end
                    lmk.setImage(object)
                }
                lmks.append(lmk)
            }

            let settings = HighlightRenderSettings.init()
            settings.imageSize = 4
            mapViewController.presentHighlights(lmks, settings: settings)
        }

        let success = collection.add(path, colorBorder: UIColor.black, colorInner: UIColor.orange, szBorder: 0.5, szInner: 1.1)

        if success {

            if let area = path.getArea() {

                mapViewController.setEdgeAreaInsets(self.calculateInsets())

                mapViewController.center(onArea: area, zoomLevel: -1, animationDuration: 10) { [weak self] finished in

                    // Capture screenshot after centering completes
                }
            }
        }
    }

Waiting for Map Tiles and Capturing the Screenshot

Once the path is centred, a setOnMapViewRendered callback waits until the map is fully rendered and stationary before calling makeScreenshot(), which uses snapshotImage(with:capture:) to produce the final thumbnail:

ViewController.swiftView on GitHub

    func waitingMapTiles(completion: @escaping (_ finished: Bool) -> Void) {

        guard let mapViewController = self.mapViewController else { return }

        self.updateStatus(message: "Waiting for data...")

        mapViewController.setOnMapViewRendered { [weak self] transitionStatus, cameraStatus in

            if transitionStatus == .complete && cameraStatus == .stationary {

                guard let strongSelf = self else { return }

                strongSelf.mapViewController?.resetOnMapViewRenderedCompletion()

                completion(true)
            }
        }
    }

    func makeScreenshot() {

        guard let mapViewController = self.mapViewController else { return }

        self.updateStatus(message: "Done.")

        Task {

            let image = mapViewController.snapshotImage(with: self.thumbnailSize, capture: .zero)

            let tag = 100

            if let imageView = self.view.viewWithTag(tag) as? UIImageView {

                imageView.image = image

            } else {

                let imageView = UIImageView.init()
                imageView.tag = tag
                imageView.image = image
                imageView.contentMode = .scaleAspectFit
                imageView.layer.borderWidth = 1
                imageView.layer.borderColor = UIColor.black.cgColor
                imageView.layer.cornerRadius = 4

                self.view.addSubview(imageView)
                imageView.translatesAutoresizingMaskIntoConstraints = false
                let array: [NSLayoutConstraint] = [
                    imageView.widthAnchor.constraint(equalToConstant: self.thumbnailSize.width),
                    imageView.heightAnchor.constraint(equalToConstant: self.thumbnailSize.height),
                    imageView.centerXAnchor.constraint(equalTo: self.view.centerXAnchor, constant: 0),
                    imageView.centerYAnchor.constraint(equalTo: self.view.centerYAnchor, constant: 0)
                ]
                NSLayoutConstraint.activate(array)
            }
        }
    }
