Finger Draw Route

Last updated: June 10, 2026 | 8 minutes read

This example demonstrates how to use GEMKit in a UIKit application to draw a path on the map and calculate a route from that path, with the option to share it as a .gpx file.

Check the full implementation on GitHub.

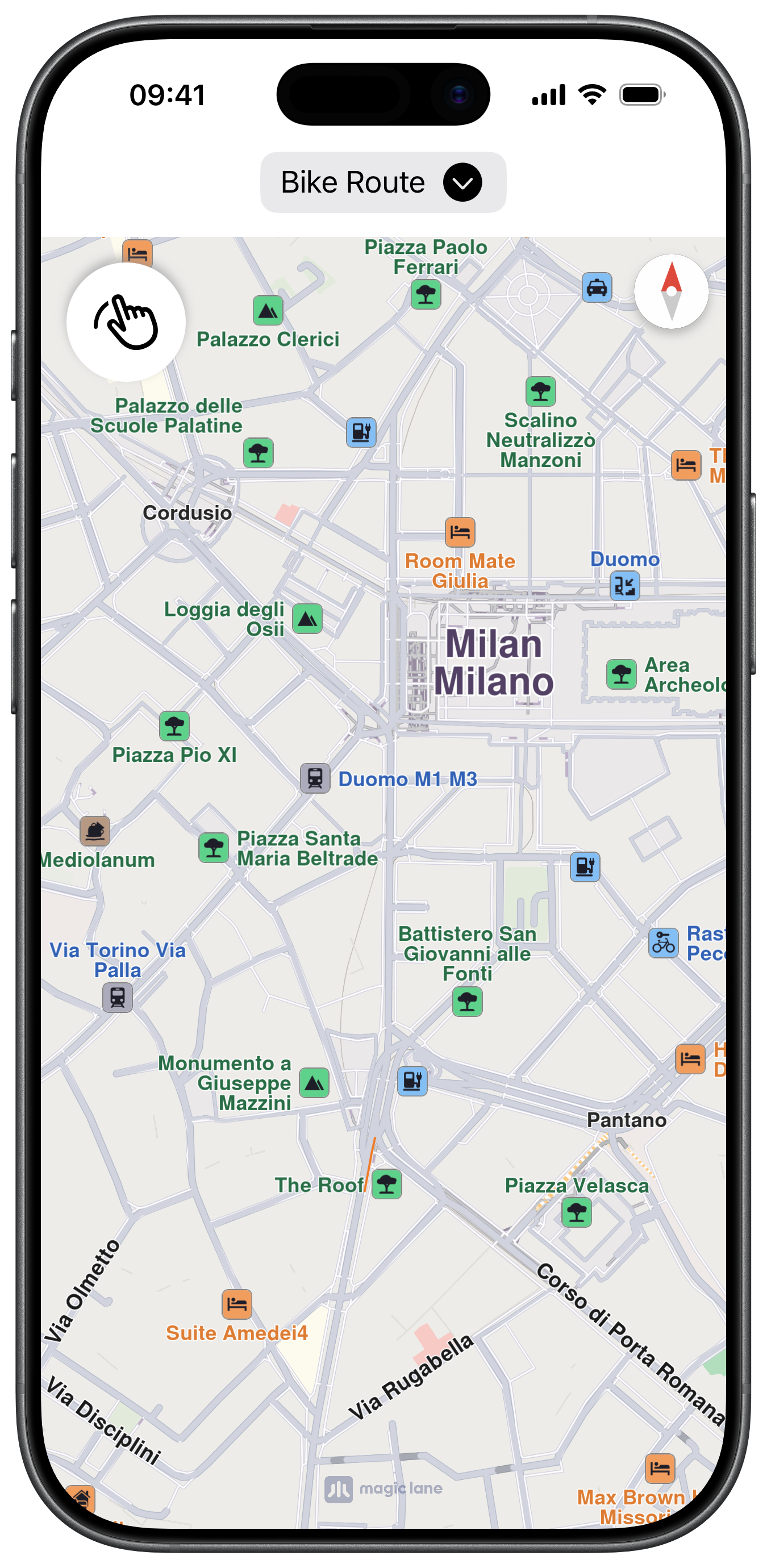

Initial screen

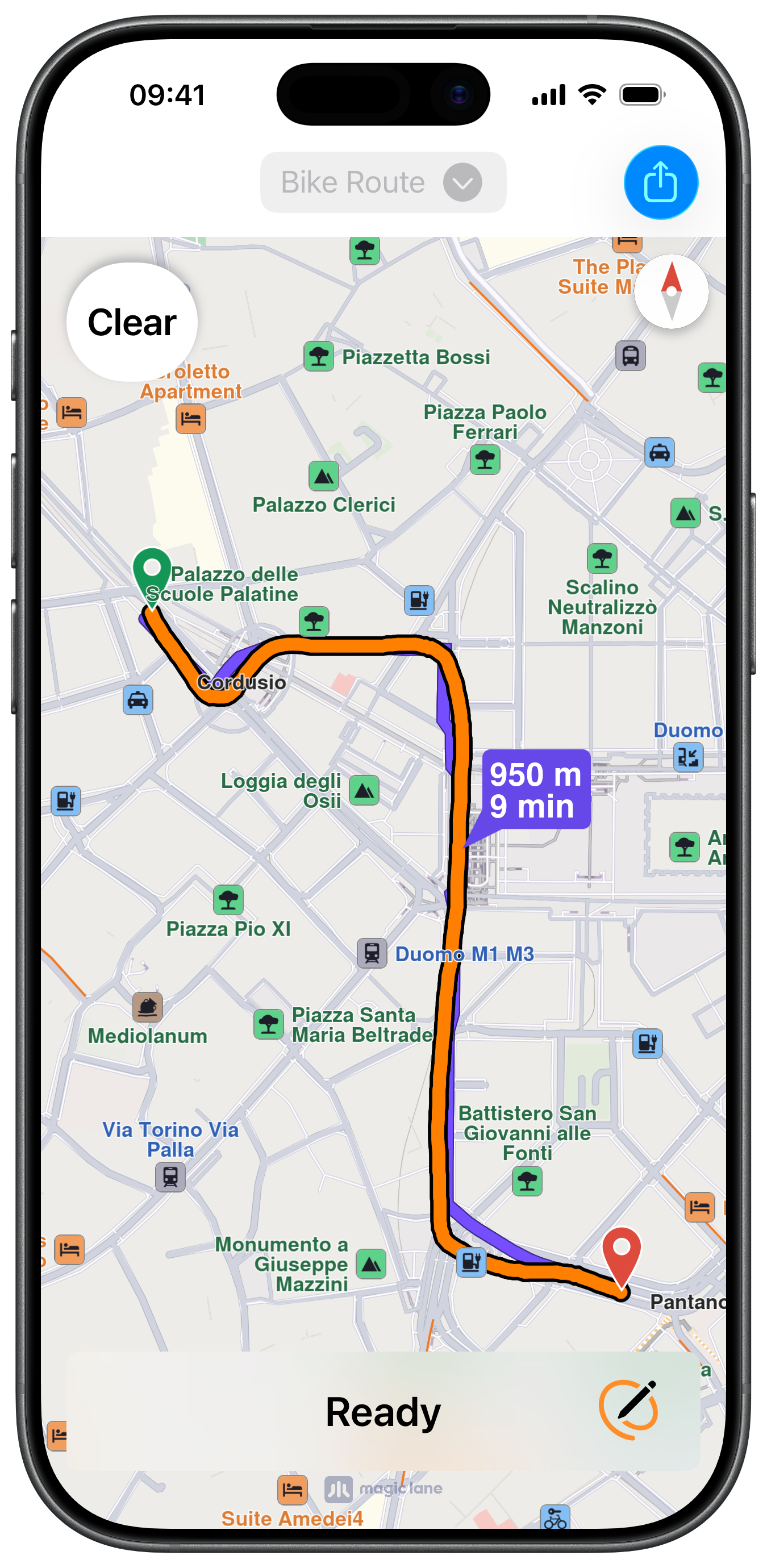

Calculated Route

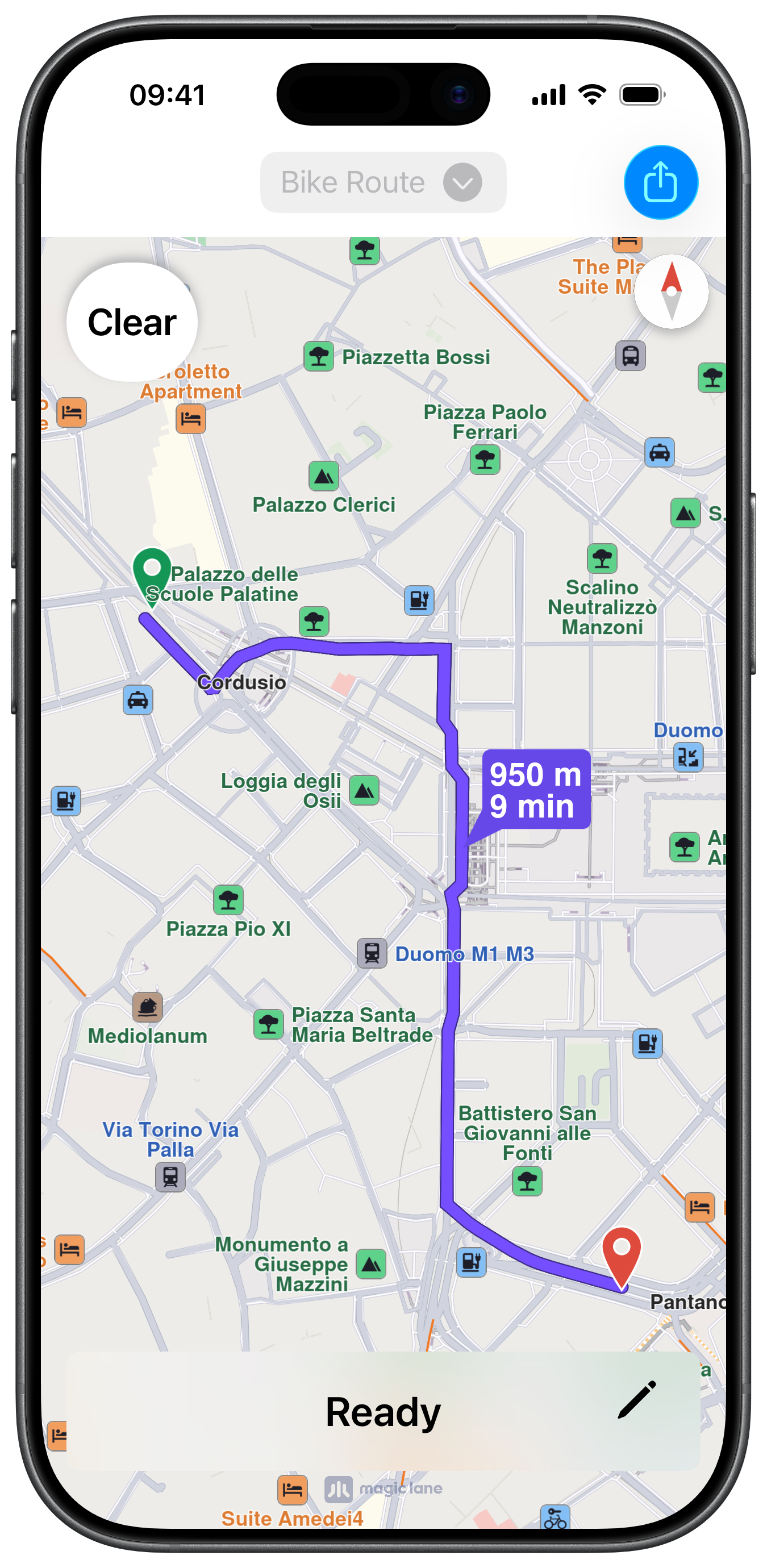

Calculated Route with hidden Markers

UI and Map Integration​

The following code outlines the main view, actions and objects:

ViewController.swiftView on GitHub
class ViewController: UIViewController {

    var mapViewController: MapViewController?
    var navigationContext: NavigationContext?

    let buttonConfiguration = UIImage.SymbolConfiguration(pointSize: 26, weight: .semibold)

    var path: PathObject?

    var drawButton: UIButton?
    var visualEffectView: UIView?
    var statusLabel: UILabel?
    var showHideButton: UIButton?
    var routeType: RouteTransportMode = .bicycle

    var markerCollections: [MarkerCollectionObject] = []

    override func viewDidLoad() {

        super.viewDidLoad()

        self.mapViewController = self.createMapViewController()

        self.refreshTitleViewButton()
    }

    override func viewWillAppear(_ animated: Bool) {

        super.viewWillAppear(animated)

        guard let mapViewController = self.mapViewController else { return }

        mapViewController.startRender()
    }

    override func viewDidAppear(_ animated: Bool) {

        super.viewDidAppear(animated)

        guard let mapViewController = self.mapViewController else { return }

        if mapViewController.view.alpha == 0 {

            let coordinates = CoordinatesObject.coordinates(withLatitude: 45.462514, longitude: 9.188443)  // Milano

            mapViewController.center(onCoordinates: coordinates, zoomLevel: 70, animationDuration: 0)

            UIView.animate(withDuration: 0.25) {

                mapViewController.view.alpha = 1

            } completion: { finished in

                self.addDrawButton()
                self.addStatusButton()
            }
        }
    }

    override func viewWillDisappear(_ animated: Bool) {

        super.viewWillDisappear(animated)

        guard let mapViewController = self.mapViewController else { return }

        mapViewController.stopRender()
    }

    // MARK: - Map View

    func createMapViewController() -> MapViewController {

        let viewController = MapViewController.init()
        viewController.view.alpha = 0
        viewController.view.backgroundColor = UIColor.systemBackground

        self.addChild(viewController)
        self.view.addSubview(viewController.view)
        viewController.didMove(toParent: self)

        viewController.view.translatesAutoresizingMaskIntoConstraints = false
        NSLayoutConstraint.activate([
            viewController.view.topAnchor.constraint(equalTo: self.view.safeAreaLayoutGuide.topAnchor, constant: 0),
            viewController.view.leadingAnchor.constraint(equalTo: self.view.leadingAnchor, constant: 0),
            viewController.view.bottomAnchor.constraint(equalTo: self.view.bottomAnchor, constant: -0),
            viewController.view.trailingAnchor.constraint(equalTo: self.view.trailingAnchor, constant: -0)
        ])

        return viewController
    }

Drawing Button​

The method for the main action button for drawing and clearing the path:

ViewController.swiftView on GitHub
    // MARK: - Drawing

    func addDrawButton() {

        guard let mapViewController = self.mapViewController else { return }

        let image = UIImage.init(systemName: "hand.draw", withConfiguration: self.buttonConfiguration)

        let button = UIButton.init(type: .system)
        button.configuration = .bordered()
        button.configuration?.cornerStyle = .capsule
        button.configuration?.image = image
        button.configuration?.baseBackgroundColor = UIColor.systemBackground
        button.layer.shadowOpacity = 0.6
        button.layer.shadowColor = UIColor.systemGray.cgColor

        let action = UIAction { _ in

            mapViewController.removeAllRoutes()
            mapViewController.removeAllMarkers()

            let state = mapViewController.getTouchViewBehaviour()

            if state == .default && self.path == nil {

                button.isHidden = true

                mapViewController.hideCompass()

                mapViewController.view.layer.borderWidth = 16
                mapViewController.view.layer.borderColor = UIColor.gray.withAlphaComponent(0.26).cgColor

                mapViewController.setTouchViewBehaviour(.fingerDraw) { marker in

                    self.markerCollections = mapViewController.getAvailableMarkers()

                    self.refreshPencilImage()

                    let attributes = AttributeContainer([NSAttributedString.Key.font: UIFont.systemFont(ofSize: 22, weight: .semibold)])
                    button.configuration?.attributedTitle = AttributedString("Clear", attributes: attributes)
                    button.configuration?.image = nil
                    button.isHidden = false

                    mapViewController.view.layer.borderColor = nil
                    mapViewController.view.layer.borderWidth = 0

                    mapViewController.setTouchViewBehaviour(.default)

                    self.refreshTitleViewButton(enabled: false)

                    if let coordinates = marker?.getCoordinates(), !coordinates.isEmpty {

                        let path = PathObject.init(coordinates: coordinates)

                        if let lmk = RouteBookmarksObject.setWaypointTrackData(path) {

                            self.path = path

                            self.calculateRoute(with: [lmk])
                        }
                    }
                }

            } else {

                self.markerCollections.removeAll()

                if let navigationContext = self.navigationContext {

                    navigationContext.cancelCalculateRoute()
                }

                if let view = self.visualEffectView {

                    view.isHidden = true
                }

                mapViewController.showCompass()
                mapViewController.setTouchViewBehaviour(.default)

                button.configuration?.image = image
                button.configuration?.attributedTitle = nil

                self.path = nil

                self.refreshShareTrack()

                self.refreshTitleViewButton(enabled: true)
            }
        }

        button.addAction(action, for: .touchUpInside)

        mapViewController.view.addSubview(button)

        let size: CGFloat = 70

        button.translatesAutoresizingMaskIntoConstraints = false
        NSLayoutConstraint.activate([
            button.topAnchor.constraint(equalTo: mapViewController.view.safeAreaLayoutGuide.topAnchor, constant: 15),
            button.leadingAnchor.constraint(equalTo: mapViewController.view.safeAreaLayoutGuide.leadingAnchor, constant: 15),
            button.widthAnchor.constraint(greaterThanOrEqualToConstant: size),
            button.heightAnchor.constraint(equalToConstant: size)
        ])

        self.drawButton = button
    }

Calculating the Route​

ViewController.swiftView on GitHub
    func createNavigationContext() -> NavigationContext? {

        let preferences = RoutePreferencesObject.init()
        preferences.setRouteType(.fastest)
        preferences.setIgnoreRestrictionsOverTrack(true)

        preferences.setAccurateTrackMatch(false)  // only for track data

        switch self.routeType {

        case .pedestrian:
            preferences.setTransportMode(.pedestrian)

        default:
            preferences.setTransportMode(.bicycle)
        }

        let navigationContext = NavigationContext.init(preferences: preferences)

        return navigationContext
    }

    func calculateRoute(with waypoints: [LandmarkObject]) {

        guard let navigationContext = self.createNavigationContext() else { return }

        self.navigationContext = navigationContext

        navigationContext.calculateRoute(withWaypoints: waypoints) { routeStatus in

            self.refreshStatus(routeStatus: routeStatus)

        } completionHandler: { [weak self] results, code in

            guard let strongSelf = self else { return }

            guard let mapViewController = strongSelf.mapViewController else { return }

            mapViewController.showCompass()

            if !results.isEmpty, let route = results.first {

                let insets = strongSelf.areaEdge(margin: 60)

                mapViewController.setEdgeAreaInsets(insets)

                mapViewController.presentRoutes(results, withTraffic: nil, showSummary: true, animationDuration: 1600)

                let preferences = mapViewController.getPreferences()

                if let settings = preferences.getRenderSettings(route) {

                    settings.textSize = 3.2
                    settings.imageSize = 3.2

                    preferences.setRenderSettings(settings, route: route)
                }

                if let button = strongSelf.showHideButton {

                    button.isHidden = false
                }
            }

            strongSelf.refreshShareTrack()
        }
    }

Sharing the Path​

ViewController.swiftView on GitHub
    @objc func sharePathButton() {

        guard let path = self.path else { return }

        guard let data = path.export(as: .gpx) else { return }

        guard let documentsURL = FileManager.default.urls(for: .documentDirectory, in: .userDomainMask).first else { return }

        let name = "Track.gpx"

        let fileURL = documentsURL.appendingPathComponent(name)

        let success = FileManager.default.createFile(atPath: fileURL.path, contents: data)

        if success {

            let activityItems: [Any] = [fileURL]
            let activityController = UIActivityViewController(activityItems: activityItems, applicationActivities: [])
            activityController.completionWithItemsHandler = { (type, completed, items, error) in }

            self.present(activityController, animated: true, completion: nil)
        }
    }
