Search Along Route

_{Last updated: April 24, 2026 | 5 minutes read}

UIKit

This example demonstrates how to use GEMKit in a UIKit application to calculate a car route, search for landmarks along it using SearchContext, and display the results as grouped Highlights on the map.

Check the full implementation on GitHub.

info

SearchContext settings and parameters showcased in the other examples, such as category and query, can also be applied in this scenario to further refine the search results.

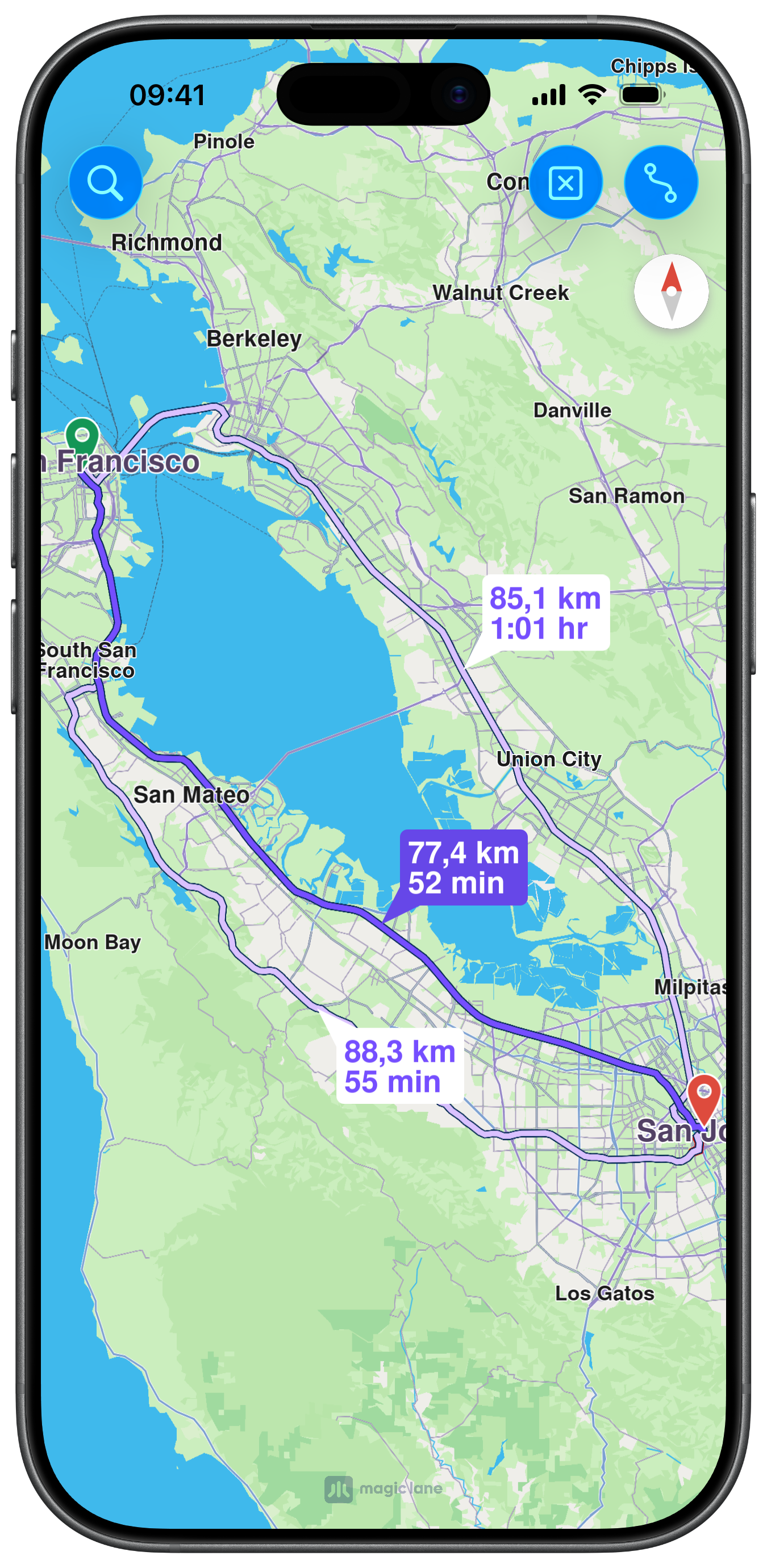

Route Calculated

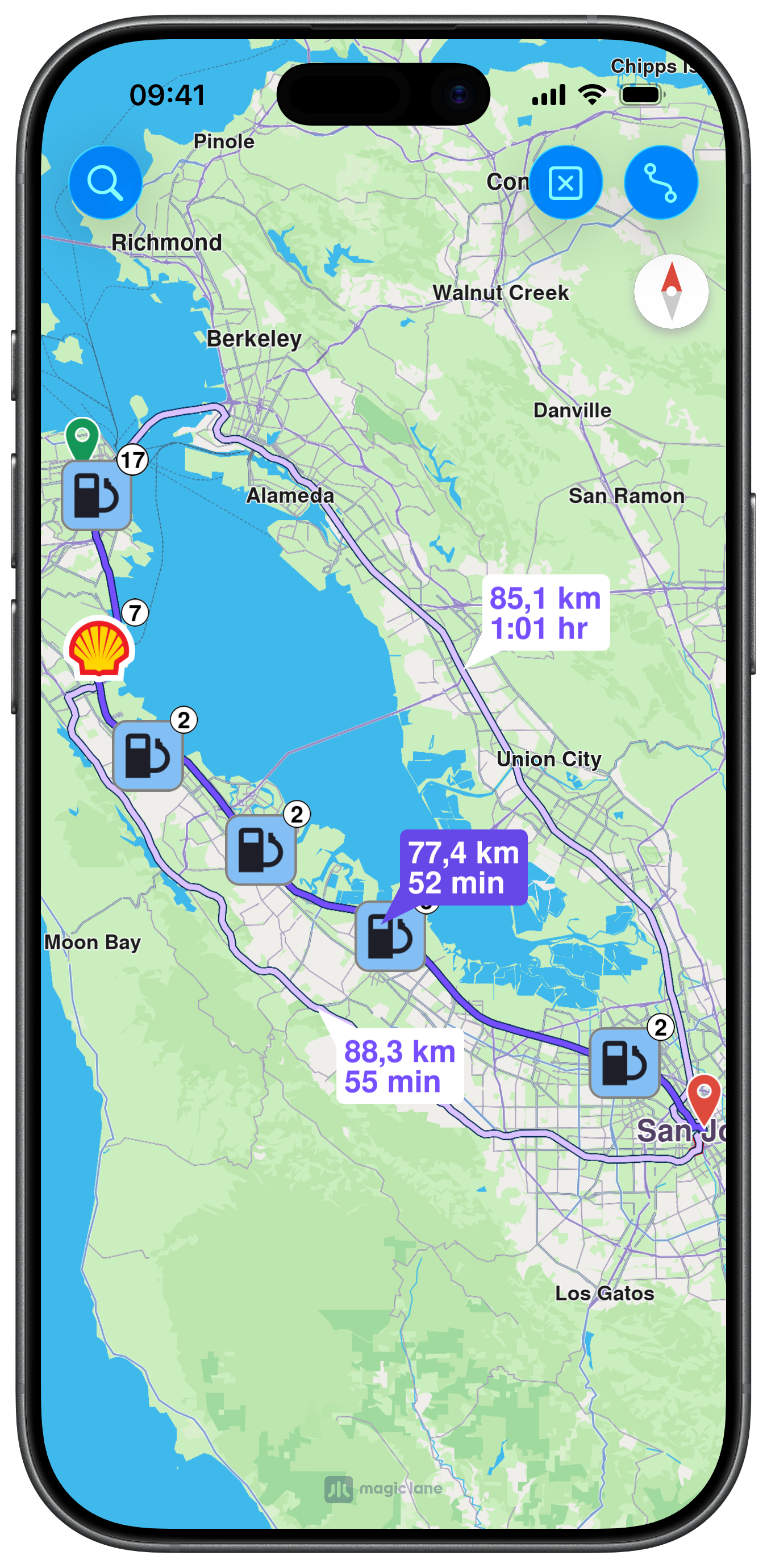

Search Along Route Results

Map View and Route Display

MapViewController is embedded full-screen with edge insets to leave room for route summary bubbles. The delegate is set so route selection events can promote a route to main. Two navigation bar buttons trigger route calculation and clearing:

ViewController.swiftView on GitHub

    func createMapView() {

        self.mapViewController = MapViewController.init()
        self.mapViewController!.delegate = self
        self.mapViewController!.view.backgroundColor = UIColor.systemBackground

        self.addChild(self.mapViewController!)
        self.view.addSubview(self.mapViewController!.view)
        self.mapViewController!.didMove(toParent: self)

        self.mapViewController!.setEdgeAreaInsets(UIEdgeInsets(top: 30, left: 40, bottom: 30, right: 40))

        self.mapViewController?.view.translatesAutoresizingMaskIntoConstraints = false
        NSLayoutConstraint.activate([
            self.mapViewController!.view.topAnchor.constraint(equalTo: self.view.topAnchor),
            self.mapViewController!.view.leadingAnchor.constraint(equalTo: self.view.leadingAnchor),
            self.mapViewController!.view.bottomAnchor.constraint(equalTo: self.view.bottomAnchor),
            self.mapViewController!.view.trailingAnchor.constraint(equalTo: self.view.trailingAnchor)
        ])
    }

    // MARK: - MapViewControllerDelegate

    func mapViewController(_ mapViewController: MapViewController, didSelectRoute route: RouteObject) {

        self.mainRoute = route

        mapViewController.setMainRoute(route)
    }

Calculating the Route

routeButtonAction lazily creates a NavigationContext with car preferences on first tap, then calls calculateRoute(withWaypoints:completionHandler:) with San Francisco and San Jose as waypoints. On completion, routes are presented on the map:

ViewController.swiftView on GitHub

    @objc func routeButtonAction(item: UIBarButtonItem) {

        if self.navigationContext == nil {

            let preferences = RoutePreferencesObject.init()
            preferences.setTransportMode(.car)
            preferences.setRouteType(.fastest)
            preferences.setAvoidUnpavedRoads(true)

            self.navigationContext = NavigationContext.init(preferences: preferences)
            self.navigationContext?.delegate = self
        }

        let waypoints = [
            LandmarkObject.landmark(
                withName: "San Francisco", location: CoordinatesObject.coordinates(withLatitude: 37.77903, longitude: -122.41991)),
            LandmarkObject.landmark(
                withName: "San Jose", location: CoordinatesObject.coordinates(withLatitude: 37.33619, longitude: -121.89058))
        ]

        item.isEnabled = false

        self.navigationContext?
            .calculateRoute(
                withWaypoints: waypoints,
                completionHandler: { [weak self] (results: [RouteObject]) in

                    guard let strongSelf = self else { return }

                    strongSelf.routeResults = results

                    if !results.isEmpty {

                        strongSelf.mainRoute = results.first
                        strongSelf.addSearch()

                        strongSelf.mapViewController?.presentRoutes(results, withTraffic: nil, showSummary: true, animationDuration: 1000)
                    }

                    item.isEnabled = true
                })
    }

Searching Along the Route

searchButton lazily initialises a SearchContext with a maximum of 40 matches, then calls searchAlong(withRoute:query:) using the current main route. Results are rendered on the map as grouped highlights via presentHighlights(_:settings:highlightId:):

ViewController.swiftView on GitHub

    @objc func searchButton() {

        guard let mainRoute = self.mainRoute else { return }

        if self.searchContext == nil {

            self.searchContext = SearchContext.init()
            self.searchContext?.setMaxMatches(40)
            self.searchContext?.setSearchMapPOIs(true)
            self.searchContext?.setSearchAddresses(true)
        }

        self.searchContext!
            .searchAlong(withRoute: mainRoute, query: "Gas station") { [weak self] (results: [LandmarkObject]) in

                guard let strongSelf = self else { return }

                let settings = HighlightRenderSettings()
                settings.imageSize = 7
                settings.options = Int32(HighlightOption.group.rawValue)

                strongSelf.mapViewController?.presentHighlights(results, settings: settings, highlightId: strongSelf.defaultHighlightId)
            }
    }

SwiftUI

This example demonstrates how to use GEMKit in a SwiftUI application to calculate a car route, search for landmarks along it using SearchContext, and display the results as grouped Highlights on the map.

Check the full implementation on GitHub.

info

SearchContext settings and parameters showcased in the other examples, such as category and query, can also be applied in this scenario to further refine the search results.

Route Calculated

Search Along Route Results

Map View and Route Display

MapBase hosts a MapRoute for rendering calculated routes and a MapLandmark for search result highlights. The .didSelectRoutes modifier promotes a selected route to main with proxy.setMain(route:). Three toolbar buttons trigger route calculation, search, and clearing:

ContentView.swiftView on GitHub

    var body: some View {
        MapReader { proxy in
            MapBase {
                if !routeResults.isEmpty {
                    MapRoute(
                        routes: routeResults,
                        bubbleSummary: true,
                        animationDuration: 800
                    )
                }
                MapLandmark(
                    landmarks: searchResultLandmarks,
                    renderSettings: getHighlightSettings(),
                    highlightId: defaultHighlightId,
                    animationDuration: -1
                )
            }
            .didSelectRoutes { routes, point in
                guard let route = routes.first else { return }
                mainRoute = route
                proxy.setMain(route: route)
            }
            .mapEdgeInsets(UIEdgeInsets(top: 30, left: 40, bottom: 30, right: 40))
            .ignoresSafeArea()
            .toolbar {
                ToolbarItem(placement: .topBarTrailing) {
                    Button("", systemImage: "point.topleft.down.curvedto.point.bottomright.up") {
                        calculateRoute(proxy)
                    }
                    .disabled(isCalculating)
                    .buttonStyle(.borderedProminent)
                }
                ToolbarItem(placement: .topBarTrailing) {
                    Button("", systemImage: "clear") {
                        clearAll(proxy)
                    }
                    .buttonStyle(.borderedProminent)
                }
                ToolbarItem(placement: .topBarLeading) {
                    Button("", systemImage: "magnifyingglass") {
                        searchAlongRoute(proxy)
                    }
                    .disabled(mainRoute == nil)
                    .buttonStyle(.borderedProminent)
                }
            }
        }
    }

Calculating the Route

calculateRoute(_:) builds a NavigationContext with car preferences on first call, then calls calculateRoute(withWaypoints:) with San Francisco and San Jose as waypoints. The first result is set as the mainRoute:

ContentView.swiftView on GitHub

    private func calculateRoute(_ proxy: MapProxy) {

        if navigationContext == nil {
            let preferences = RoutePreferencesObject()
            preferences.setTransportMode(.car)
            preferences.setRouteType(.fastest)
            preferences.setAvoidUnpavedRoads(true)
            navigationContext = NavigationContext(preferences: preferences)
        }

        let waypoints = [
            LandmarkObject.landmark(
                withName: "San Francisco",
                location: CoordinatesObject.coordinates(withLatitude: 37.77903, longitude: -122.41991)),
            LandmarkObject.landmark(
                withName: "San Jose",
                location: CoordinatesObject.coordinates(withLatitude: 37.33619, longitude: -121.89058))
        ]

        isCalculating = true

        navigationContext?.calculateRoute(withWaypoints: waypoints) { results in
            routeResults = results

            if !results.isEmpty {
                mainRoute = results.first
                routeResults = results
            }

            isCalculating = false
        }
    }

Searching Along the Route

searchAlongRoute(_:) lazily initialises a SearchContext with a maximum of 40 matches, then calls searchAlong(withRoute:query:) using the selected main route. Results are stored in searchResultLandmarks and rendered automatically by the MapLandmark view:

ContentView.swiftView on GitHub

    private func searchAlongRoute(_ proxy: MapProxy) {
        guard let route = mainRoute else { return }

        if searchContext == nil {
            searchContext = SearchContext()
            searchContext?.setMaxMatches(40)
            searchContext?.setSearchMapPOIs(true)
            searchContext?.setSearchAddresses(true)
        }

        searchContext?.searchAlong(withRoute: route, query: "Gas station") { results in
            searchResultLandmarks = results
        }
    }
