This example demonstrates how to use GEMKit in a UIKit application to draw Shapes on the map using Markers.

Check the full implementation on GitHub.

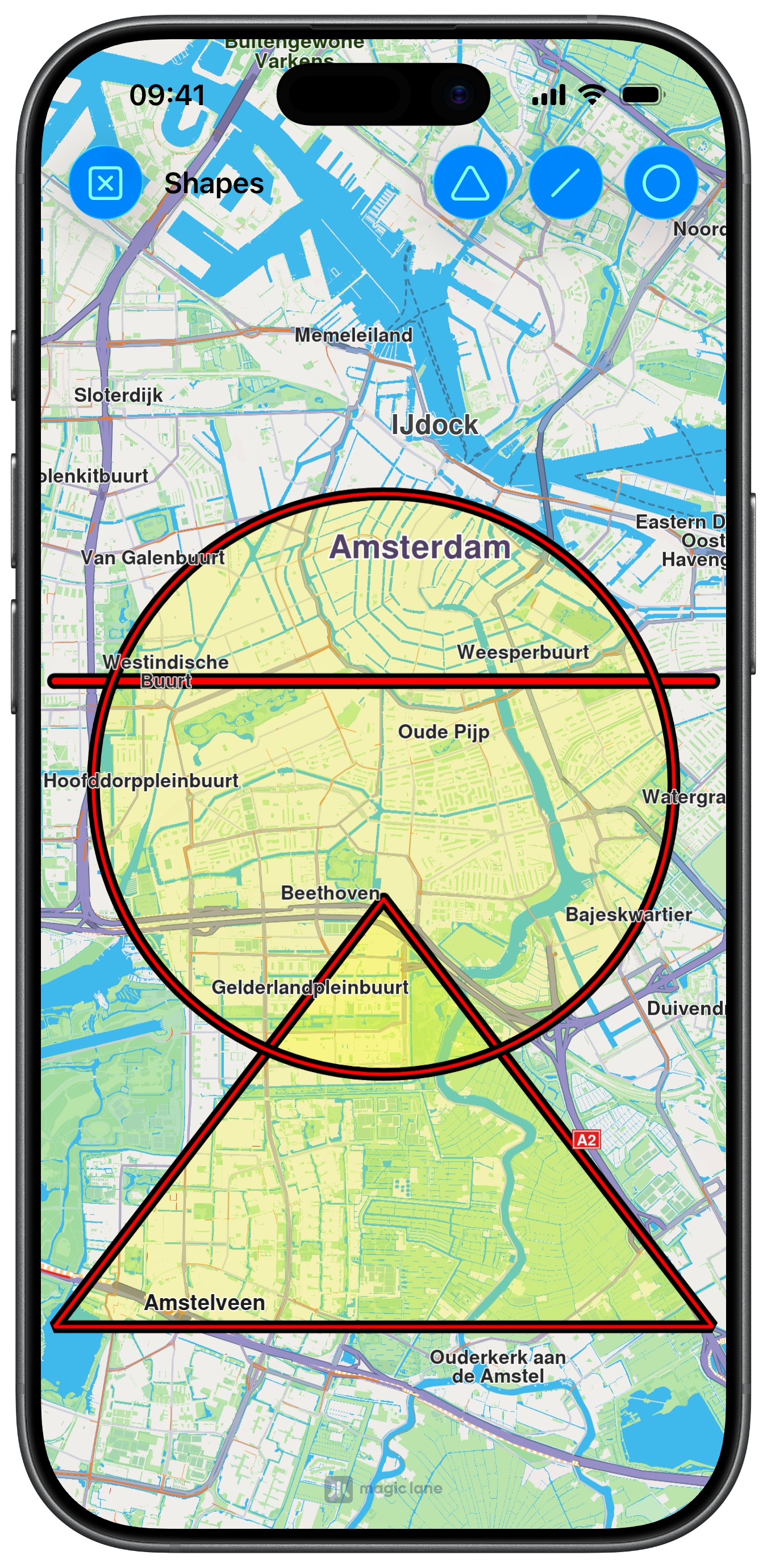

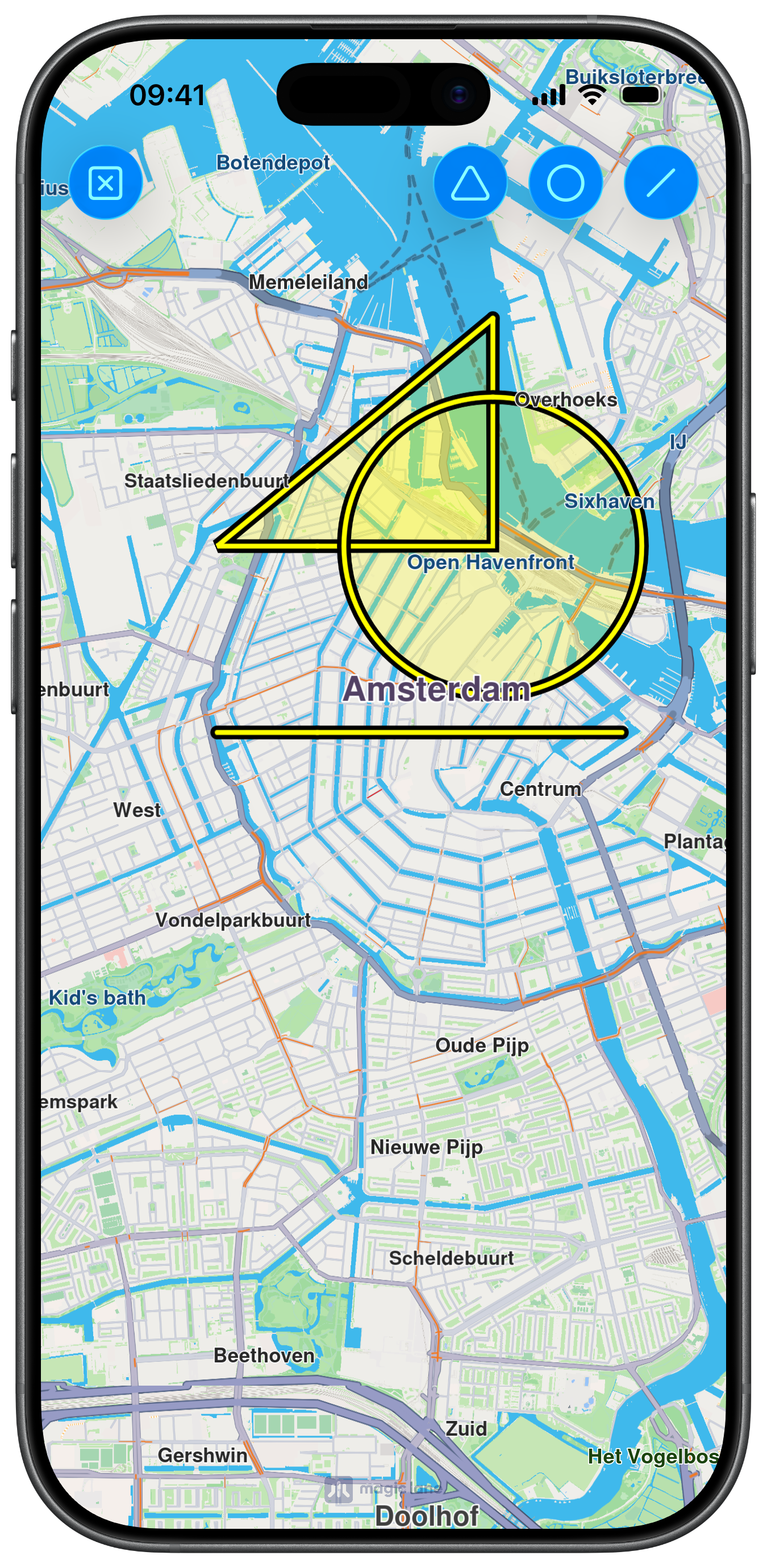

Shapes drawn on Map

UI and Map Integration​

The following code outlines the main view, which displays the map and creates the action buttons:

ViewController.swiftView on GitHub
class ViewController: UIViewController {

    var mapViewController: MapViewController?

    override func viewDidLoad() {
        super.viewDidLoad()
        // Do any additional setup after loading the view.

        if let navigationController = self.navigationController {

            let appearance = navigationController.navigationBar.standardAppearance

            navigationController.navigationBar.scrollEdgeAppearance = appearance
        }

        self.title = "Shapes"

        self.createMapView()

        self.mapViewController!.startRender()
        self.mapViewController!.setEdgeAreaInsets(self.areaEdge(margin: 30))
        self.mapViewController!.hideCompass()

        self.addShapesButton()
    }

    // MARK: - Map View

    func createMapView() {

        self.mapViewController = MapViewController.init()
        self.mapViewController!.view.backgroundColor = UIColor.systemBackground

        self.addChild(self.mapViewController!)
        self.view.addSubview(self.mapViewController!.view)
        self.mapViewController!.didMove(toParent: self)

        self.mapViewController!.view.translatesAutoresizingMaskIntoConstraints = false
        NSLayoutConstraint.activate([
            self.mapViewController!.view.topAnchor.constraint(equalTo: self.view.topAnchor, constant: 0),
            self.mapViewController!.view.leadingAnchor.constraint(equalTo: self.view.leadingAnchor, constant: 0),
            self.mapViewController!.view.bottomAnchor.constraint(equalTo: self.view.bottomAnchor, constant: -0),
            self.mapViewController!.view.trailingAnchor.constraint(equalTo: self.view.trailingAnchor, constant: -0)
        ])
    }

    // MARK: - Shapes

    func addShapesButton() {

        var image = UIImage.init(systemName: "circle")
        let barButton1 = UIBarButtonItem.init(image: image, style: .done, target: self, action: #selector(toggleCircle(_:)))
        barButton1.tag = 1

        image = UIImage.init(systemName: "line.diagonal")
        let barButton2 = UIBarButtonItem.init(image: image, style: .done, target: self, action: #selector(togglePolylines(_:)))
        barButton2.tag = 2

        image = UIImage.init(systemName: "triangle")
        let barButton3 = UIBarButtonItem.init(image: image, style: .done, target: self, action: #selector(togglePolygon(_:)))
        barButton3.tag = 3

        image = UIImage.init(systemName: "clear")
        let barButton = UIBarButtonItem.init(image: image, style: .done, target: self, action: #selector(clearAll))

        self.navigationItem.rightBarButtonItems = [barButton1, barButton2, barButton3]
        self.navigationItem.leftBarButtonItem = barButton
    }

Drawing the Shapes and handling Marker Collections​

The following code implements the methods to draw the shapes, by creating a MarkerCollectionObject for each one, and the methods for general Marker handling:

ViewController.swiftView on GitHub
@objc func toggleCircle(_ barButton: UIBarButtonItem) {
    let name = "My Circle"
    if let marker = self.markerAvailable(name: name) {
        self.mapViewController!.removeMarker(marker)
    } else {
        let coordinates = CoordinatesObject.coordinates(withLatitude: 52.350934, longitude: 4.886882)
        let marker = MarkerObject.init(circleCenter: coordinates, radius: 3000)
        let markerCollection = MarkerCollectionObject.init(name: name, type: .polygon)
        markerCollection.addMarker(marker)
        markerCollection.setInnerSize(0.6)
        markerCollection.setInnerColor(UIColor.red)
        markerCollection.setOuterSize(1.2)
        markerCollection.setOuterColor(UIColor.black)
        markerCollection.setFill(UIColor.yellow.withAlphaComponent(0.25))
        self.mapViewController!.addMarker(markerCollection, animationDuration: 100)
    }
}

@objc func togglePolylines(_ barButton: UIBarButtonItem) {
    let name = "My Polyline"
    if let marker = self.markerAvailable(name: name) {
        self.mapViewController!.removeMarker(marker)
    } else {
        let coordinates = self.generatePolylinesCoordinates()
        let marker = MarkerObject.init(coordinates: coordinates)
        let markerCollection = MarkerCollectionObject.init(name: name, type: .polyline)
        markerCollection.addMarker(marker)
        markerCollection.setInnerSize(1.0)
        markerCollection.setInnerColor(UIColor.red)
        markerCollection.setOuterSize(1.2)
        markerCollection.setOuterColor(UIColor.black)
        self.mapViewController!.addMarker(markerCollection, animationDuration: 100)
    }
}

@objc func togglePolygon(_ barButton: UIBarButtonItem) {
    let name = "My Polygon"
    if let marker = self.markerAvailable(name: name) {
        self.mapViewController!.removeMarker(marker)
    } else {
        let coordinates = self.generatePolygonCoordinates()
        let marker = MarkerObject.init(coordinates: coordinates)
        let markerCollection = MarkerCollectionObject.init(name: name, type: .polygon)
        markerCollection.addMarker(marker)
        markerCollection.setInnerSize(0.6)
        markerCollection.setInnerColor(UIColor.red)
        markerCollection.setOuterSize(1.2)
        markerCollection.setOuterColor(UIColor.black)
        markerCollection.setFill(UIColor.yellow.withAlphaComponent(0.25))
        self.mapViewController!.addMarker(markerCollection, animationDuration: 100)
    }
}

@objc func clearAll() {
    let allMarkers = self.mapViewController!.getAvailableMarkers()
    for marker in allMarkers {
        self.mapViewController!.removeMarker(marker)
    }
}

// MARK: - Utils

func generatePolylinesCoordinates() -> [CoordinatesObject] {
    var coordinates: [CoordinatesObject] = []
    coordinates.append(CoordinatesObject.coordinates(withLatitude: 52.360495, longitude: 4.936882))
    coordinates.append(CoordinatesObject.coordinates(withLatitude: 52.360495, longitude: 4.836882))
    return coordinates
}

func generatePolygonCoordinates() -> [CoordinatesObject] {
    var coordinates: [CoordinatesObject] = []
    coordinates.append(CoordinatesObject.coordinates(withLatitude: 52.340234, longitude: 4.886882))
    coordinates.append(CoordinatesObject.coordinates(withLatitude: 52.300495, longitude: 4.936882))
    coordinates.append(CoordinatesObject.coordinates(withLatitude: 52.300495, longitude: 4.836882))
    return coordinates
}

func markerAvailable(name: String) -> MarkerCollectionObject? {
    let allMarkers = self.mapViewController!.getAvailableMarkers()
    for marker in allMarkers {
        let markerName = marker.getName()
        if markerName == name {
            return marker
        }
    }
    return nil
}
