Map Selection
- UIKit
- SwiftUI
This example demonstrates how to handle user interactions with map elements (e.g. streets, landmarks, overlays, and traffic events) and apply custom highlight styles using HighlightRenderSettings in a UIKit application.
Check the full implementation on GitHub.

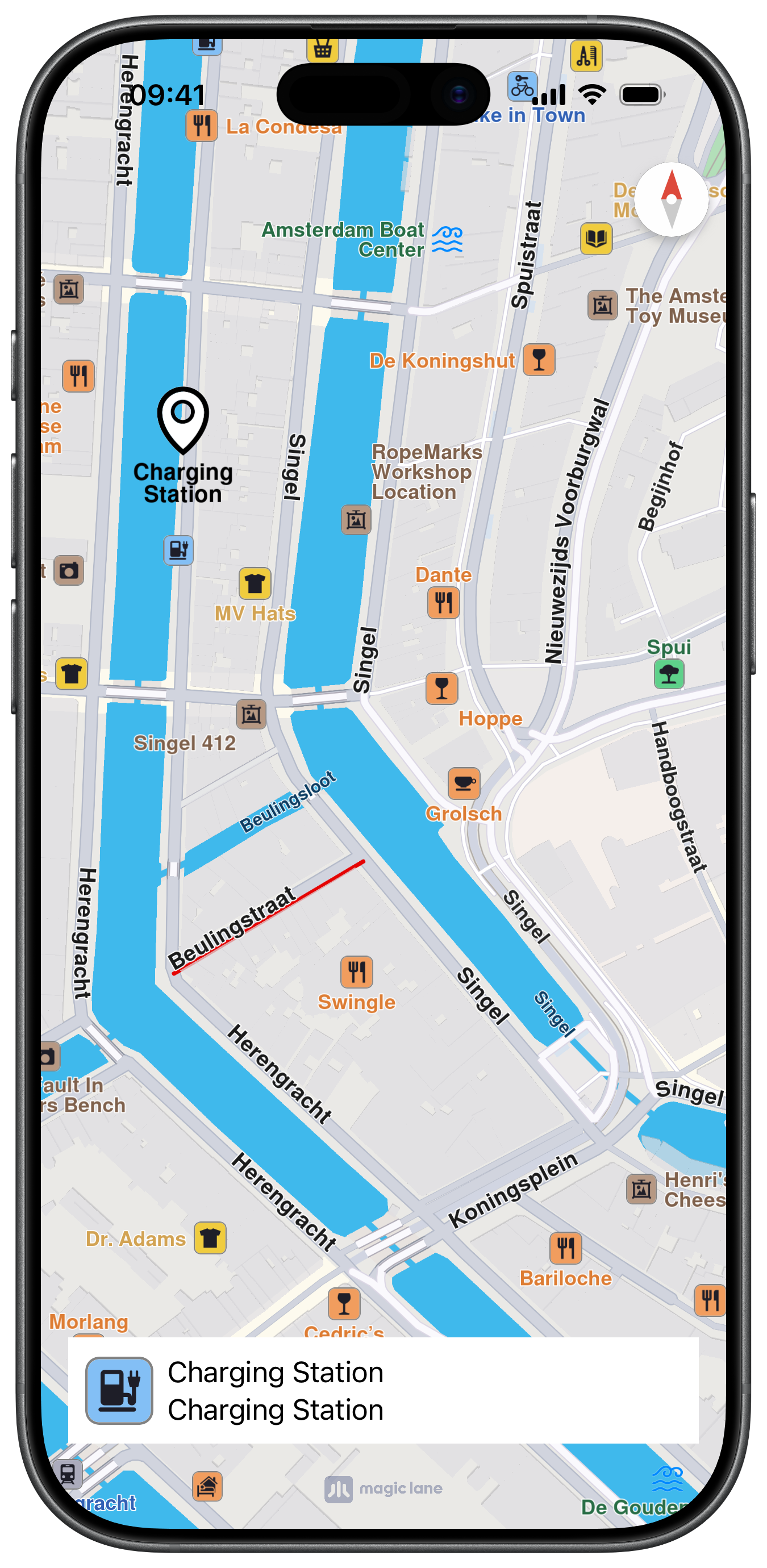

Selected Charging Station POI
UI and Map selection events
The following code outlines the main view controller, which displays the map, centers on a position and implements the selection methods from the MapViewControllerDelegate protocol:
ViewController.swiftView on GitHub
class ViewController: UIViewController, MapViewControllerDelegate {
var mapViewController: MapViewController?
var label = UILabel.init()
var imageView = UIImageView()
override func viewDidLoad() {
super.viewDidLoad()
// Do any additional setup after loading the view.
if let navigationController = self.navigationController {
let appearance = navigationController.navigationBar.standardAppearance
navigationController.navigationBar.scrollEdgeAppearance = appearance
}
self.title = "Map Selection"
self.navigationItem.hidesSearchBarWhenScrolling = false
self.navigationItem.largeTitleDisplayMode = .never
self.createMapView()
self.mapViewController!.startRender()
self.addLabelText()
}
override func viewDidAppear(_ animated: Bool) {
super.viewDidAppear(animated)
// Paris
let location = CoordinatesObject.coordinates(withLatitude: 48.840827, longitude: 2.381899)
self.mapViewController!.center(onCoordinates: location, zoomLevel: 70, animationDuration: 1200)
}
// MARK: - Map View
func createMapView() {
self.mapViewController = MapViewController.init()
self.mapViewController!.delegate = self
self.mapViewController!.view.backgroundColor = UIColor.systemBackground
self.addChild(self.mapViewController!)
self.view.addSubview(self.mapViewController!.view)
self.mapViewController!.didMove(toParent: self)
self.mapViewController?.view.translatesAutoresizingMaskIntoConstraints = false
NSLayoutConstraint.activate([
self.mapViewController!.view.topAnchor.constraint(equalTo: self.view.topAnchor),
self.mapViewController!.view.bottomAnchor.constraint(equalTo: self.view.bottomAnchor),
self.mapViewController!.view.leadingAnchor.constraint(equalTo: self.view.leadingAnchor),
self.mapViewController!.view.trailingAnchor.constraint(equalTo: self.view.trailingAnchor),
])
}
// MARK: - Label
func addLabelText() {
self.imageView.contentMode = .scaleAspectFit
self.imageView.isHidden = true
self.imageView.layer.shadowColor = UIColor.lightGray.cgColor
self.imageView.layer.shadowOpacity = 0.8
self.label.font = UIFont.boldSystemFont(ofSize: 14)
self.label.numberOfLines = 0
self.label.backgroundColor = UIColor.systemBackground
self.label.isHidden = true
self.label.layer.shadowColor = UIColor.lightGray.cgColor
self.label.layer.shadowOpacity = 0.8
self.view.addSubview(self.label)
self.view.addSubview(self.imageView)
self.label.translatesAutoresizingMaskIntoConstraints = false
NSLayoutConstraint.activate([
self.label.leadingAnchor.constraint(equalTo: self.view.leadingAnchor, constant: 10),
self.label.trailingAnchor.constraint(equalTo: self.view.trailingAnchor, constant: -10),
self.label.bottomAnchor.constraint(equalTo: self.view.safeAreaLayoutGuide.bottomAnchor, constant: -10),
self.label.heightAnchor.constraint(equalToConstant: 70)
])
self.imageView.translatesAutoresizingMaskIntoConstraints = false
NSLayoutConstraint.activate([
self.imageView.leadingAnchor.constraint(equalTo: self.label.leadingAnchor),
self.imageView.topAnchor.constraint(equalTo: self.label.topAnchor, constant: -30),
self.imageView.widthAnchor.constraint(equalToConstant: 40),
self.imageView.heightAnchor.constraint(equalToConstant: 40)
])
}
// MARK: - MapViewControllerDelegate
func mapViewController(_ mapViewController: MapViewController, didSelectLandmarks landmarks: [LandmarkObject], onTouch point: CGPoint) {
guard let landmark = landmarks.first else { return }
let text = " " + landmark.getLandmarkName() + "\n" + " " + landmark.getLandmarkDescription()
self.label.text = text
self.label.isHidden = false
let scale = UIScreen.main.scale
self.imageView.image = landmark.getLandmarkImage(CGSize.init(width: 40 * scale, height: 40 * scale))
self.imageView.isHidden = false
self.highlight(landmark: landmark)
}
func mapViewController(
_ mapViewController: MapViewController, didSelectLandmarks landmarks: [LandmarkObject], onLongTouch point: CGPoint
) {
guard let landmark = landmarks.first else { return }
let text = " " + landmark.getLandmarkName() + "\n" + " " + landmark.getLandmarkDescription()
self.label.text = text
self.label.isHidden = false
let scale = UIScreen.main.scale
self.imageView.image = landmark.getLandmarkImage(CGSize.init(width: 40 * scale, height: 40 * scale))
self.imageView.isHidden = false
self.highlight(landmark: landmark)
}
func mapViewController(_ mapViewController: MapViewController, didSelectStreets streets: [LandmarkObject], onTouch point: CGPoint) {
guard let landmark = streets.first else { return }
let text = " " + landmark.getLandmarkName() + "\n" + " " + landmark.getLandmarkDescription()
self.label.text = text
self.label.isHidden = false
let scale = UIScreen.main.scale
self.imageView.image = landmark.getLandmarkImage(CGSize.init(width: 40 * scale, height: 40 * scale))
self.imageView.isHidden = false
self.highlight(landmark: landmark)
}
func mapViewController(_ mapViewController: MapViewController, didSelectStreets streets: [LandmarkObject], onLongTouch point: CGPoint) {
guard let landmark = streets.first else { return }
let text = " " + landmark.getLandmarkName() + "\n" + " " + landmark.getLandmarkDescription()
self.label.text = text
self.label.isHidden = false
let scale = UIScreen.main.scale
self.imageView.image = landmark.getLandmarkImage(CGSize.init(width: 40 * scale, height: 40 * scale))
self.imageView.isHidden = false
self.highlight(landmark: landmark)
}
func mapViewController(_ mapViewController: MapViewController, didSelectOverlays overlays: [OverlayItemObject], onTouch point: CGPoint) {
print("didSelectOverlays")
}
func mapViewController(_ mapViewController: MapViewController, didSelectOverlays overlays: [OverlayItemObject], onLongTouch point: CGPoint) {
print("didSelectOverlays")
}
func mapViewController(_ mapViewController: MapViewController, didSelectTrafficEvents events: [TrafficEventObject]) {
print("didSelectTrafficEvents")
}
func highlight(landmark: LandmarkObject) {
let settings = HighlightRenderSettings.init()
settings.showPin = true
settings.imageSize = 7
if landmark.isContourGeograficAreaEmpty() == false {
settings.options = Int32(
HighlightOption.showLandmark.rawValue | HighlightOption.overlap.rawValue | HighlightOption.showContour.rawValue)
settings.contourInnerColor = UIColor.white
settings.contourOuterColor = UIColor.systemBlue
}
self.mapViewController!.presentHighlights([landmark], settings: settings, highlightId: 0)
// Center animation
// self.mapViewController!.center(onCoordinates: landmark.getCoordinates(), zoomLevel: -1, animationDuration: 900)
}
}
This example demonstrates how to handle user interactions with map elements (e.g. streets, landmarks, overlays, and traffic events) and apply custom highlight styles using HighlightRenderSettings in a SwiftUI application.
Check the full implementation on GitHub.
Selected Charging Station POI
UI and Map selection events
The following code outlines the main view, which displays the map, centers on a position and implements the MapBase view modifiers for different selection events:
ContentView.swiftView on GitHub
struct ContentView: View {
@Environment(\.displayScale) private var displayScale
@State private var selectedLandmark: LandmarkObject?
@State private var zoom = 74
var body: some View {
MapReader { proxy in
ZStack(alignment: .bottom) {
MapBase()
.didSelectStreets { streets, touchPoint, isLongTouch in
proxy.present(highlights: streets, settings: getRenderSettings())
selectedLandmark = streets.first
}
.didSelectLandmarks { landmarks, touchPoint, isLongTouch in
proxy.present(highlights: landmarks, settings: getRenderSettings())
selectedLandmark = landmarks.first
}
.didSelectOverlays { overlays, touchPoint, isLongTouch in
print("didSelectOverlays")
}
.didSelectTrafficEvents { events, touchPoint, isLongTouch in
print("didSelectTrafficEvents")
}
.onAppear {
goToPosition(proxy)
}
.ignoresSafeArea()
if let selectedLandmark = selectedLandmark {
HStack {
Image(uiImage: getLandmarkImage(landmark: selectedLandmark))
.frame(width: 40, height: 40)
Text(selectedLandmark.getLandmarkName() + "\n" + selectedLandmark.getLandmarkDescription())
Spacer()
}
.padding(10)
.background(Rectangle().fill(.background))
.padding()
}
}
}
}
func getRenderSettings() -> HighlightRenderSettings {
let settings = HighlightRenderSettings.init()
settings.showPin = true
settings.imageSize = 7
return settings
}
func getLandmarkImage(landmark: LandmarkObject) -> UIImage {
let image = landmark.getLandmarkImage(CGSize(width: 40 * displayScale, height: 40 * displayScale)) ?? UIImage()
return image
}
func goToPosition(_ proxy: MapProxy) {
proxy.centerOn(coordinates: .amsterdam, zoomLevel: zoom)
}
}
extension CoordinatesObject {
static let amsterdam =
CoordinatesObject.coordinates(withLatitude: 52.368447, longitude: 4.888229)
}
