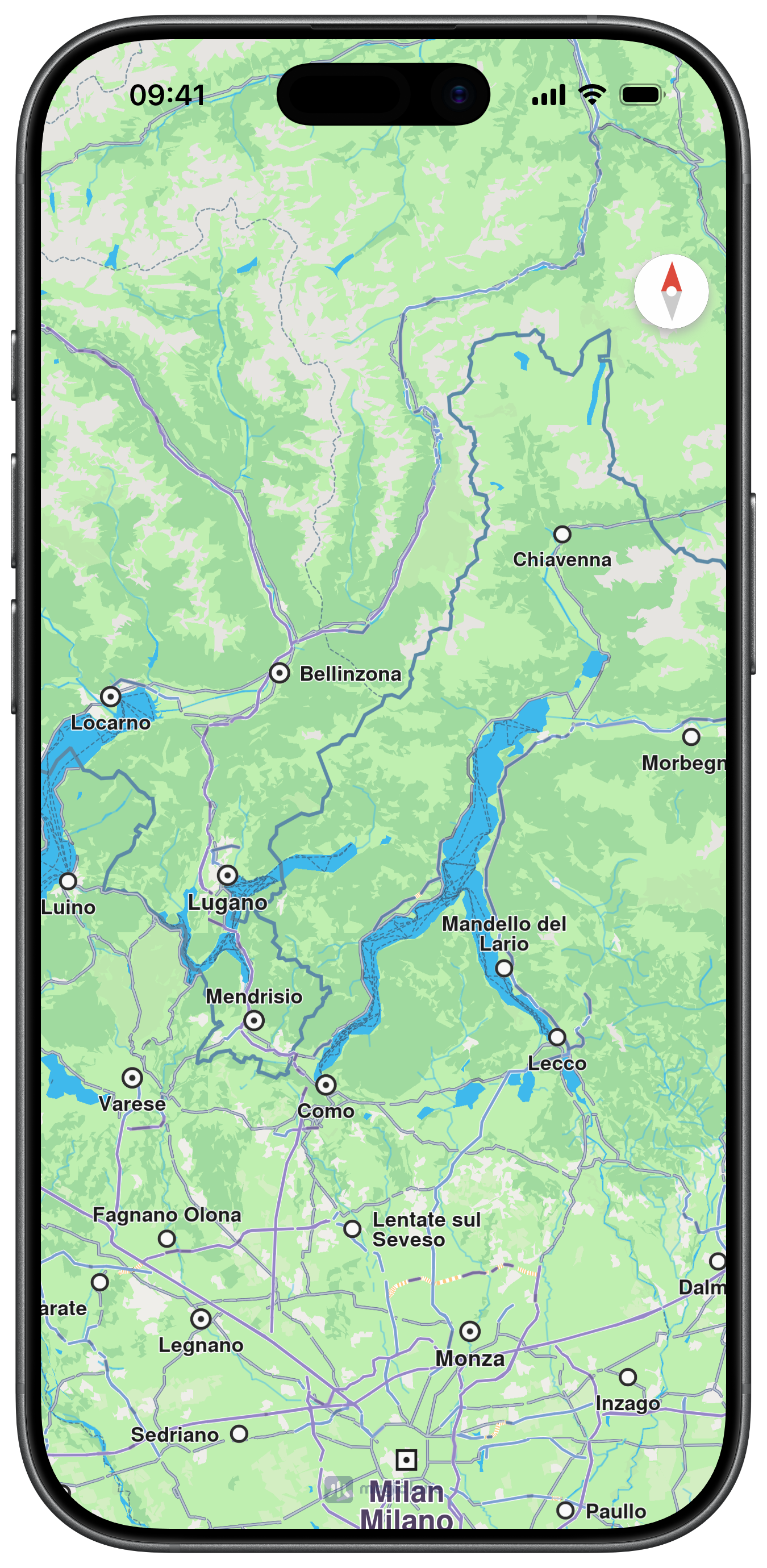

This example demonstrates how to use GEMKit in a UIKit application to display a fully interactive map view.

Check the full implementation on GitHub.

MapViewController View

Map Display

The following code outlines the main view, which displays the map:

ViewController.swiftView on GitHub

class ViewController: UIViewController {

    var mapViewController: MapViewController?

    deinit {

        if let controller = mapViewController {

            controller.destroy()
        }
    }

    override func viewDidLoad() {

        super.viewDidLoad()

        if let navigationController = self.navigationController {

            let appearance = navigationController.navigationBar.standardAppearance

            navigationController.navigationBar.scrollEdgeAppearance = appearance
        }

        self.createMapView()
    }

    override func viewWillAppear(_ animated: Bool) {

        super.viewWillAppear(animated)

        self.mapViewController!.startRender()
    }

    override func viewWillDisappear(_ animated: Bool) {

        super.viewWillDisappear(animated)

        self.mapViewController!.stopRender()
    }

    // MARK: - Map View

    func createMapView() {

        self.mapViewController = MapViewController.init()
        self.mapViewController!.view.backgroundColor = UIColor.systemBackground

        self.addChild(self.mapViewController!)
        self.view.addSubview(self.mapViewController!.view)
        self.mapViewController!.didMove(toParent: self)

        self.mapViewController!.view.translatesAutoresizingMaskIntoConstraints = false
        NSLayoutConstraint.activate([
            self.mapViewController!.view.topAnchor.constraint(equalTo: self.view.topAnchor, constant: 0),
            self.mapViewController!.view.leadingAnchor.constraint(equalTo: self.view.leadingAnchor, constant: 0),
            self.mapViewController!.view.bottomAnchor.constraint(equalTo: self.view.bottomAnchor, constant: -0),
            self.mapViewController!.view.trailingAnchor.constraint(equalTo: self.view.trailingAnchor, constant: -0)
        ])
    }
}

SwiftUI

This example demonstrates how to use GEMKit in a SwiftUI application to display a fully interactive map view.

Check the full implementation on GitHub.

MapBase View

Map Display

The following code outlines the main view, which displays the map:

ContentView.swiftView on GitHub

struct ContentView: View {
    var body: some View {
        MapReader { proxy in
            MapBase()
        }
        .ignoresSafeArea()
    }
}
