Sensors and data sources

This section provides an overview of how the Maps C++ SDK integrates with various sensors and external data sources to enhance map functionality and interactivity. From GPS and compass data to accelerometer readings and custom telemetry inputs, the SDK is designed to support a wide range of sensor-driven scenarios.

You'll learn how to access and configure these inputs, how the SDK responds to real-time changes, and how to incorporate your own data streams into the mapping experience. Whether you're building navigation apps, augmented reality layers, or location-aware services, this section will guide you through the sensor and data integration process.

Sensor types

The supported sensor data types can be summarized in the following table:

Type	Description
Acceleration	Measures linear movement of the device in three-dimensional space. Useful for detecting motion, steps, or sudden changes in speed.
Activity	Represents user activity such as walking, running, or being stationary, typically inferred from motion data. Only available on Android devices.
Attitude	Describes the orientation of the device in 3D space, often expressed as Euler angles or quaternions.
Battery	Provides battery status information such as charge level and power state.
Camera	Indicates data coming from or triggered by the device's camera, such as frames or detection events.
Compass	Gives directional heading relative to magnetic or true north using magnetometer data.
Magnetic Field	Reports raw magnetic field strength, useful for environmental sensing or heading correction.
Orientation	Combines multiple sensors (like accelerometer and magnetometer) to calculate absolute device orientation.
Position	Basic geographic position data, including latitude, longitude, and optionally altitude.
Improved Position	Enhanced position data that has been refined using filtering, correction services, or sensor fusion.
Gyroscope	Measures the rate of rotation around the device’s axes, used to detect turns and angular movement.
Temperature	Provides temperature readings, either ambient or internal device temperature.
Notification	Represents external or system-level events that are not tied to physical sensors.
Mount Information	Describes how the device is physically mounted or oriented within a fixed system, such as in a vehicle.
Heart Rate	Biometric data representing beats per minute, typically from a fitness or health sensor.
NMEA Chunk	Raw navigation data in NMEA sentence format, typically from GNSS receivers for high-precision tracking. Only available on Android devices.
Unknown	A fallback type used when the source of the data cannot be determined.

More details about the sense::IPosition and sense::IImprovedPosition classes are available here.

warning

When using EDataType values, ensure that the specific types are supported on the target platform. Attempting to create data sources or recordings with unsupported types may result in failures.

Working with data sources

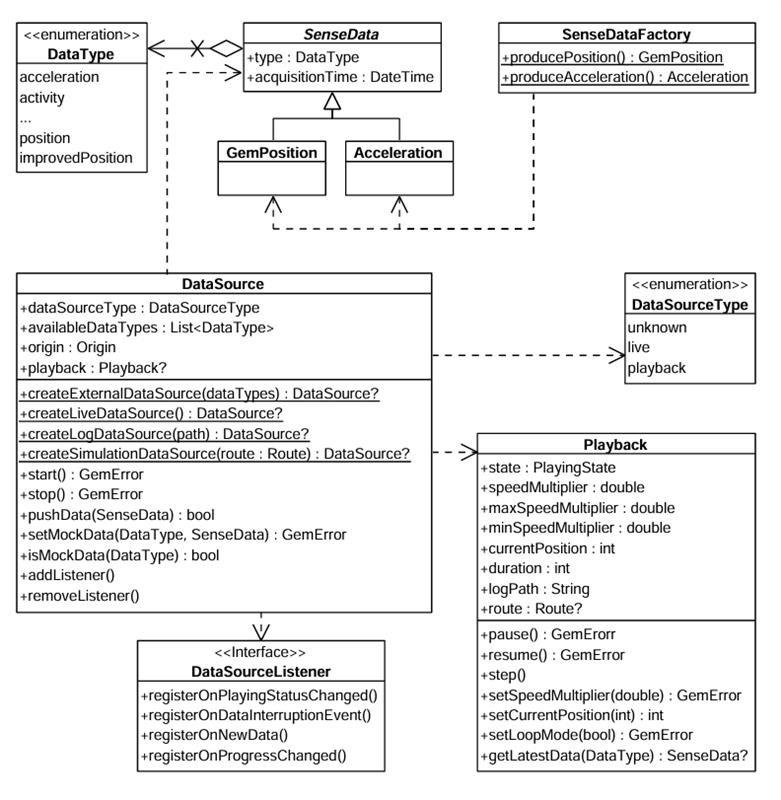

A simplified view of the main classes used to work with data sources can be seen in the following diagram:

DataSource

There are multiple possible data types, represented by the EDataType enum. Each sensor value is stored in a class that is derived from sense::IData. Two such classes are IPosition and IAcceleration.

If you want to create objects of these types, a helper class sense::DataFactory is provided. This class has static methods like producePosition, produceAcceleration that can create custom sensor data. In principle, this will only be necessary if you want to create a custom data source that will be fed with custom data.

You can create a IDataSource by using one of the static methods from sense::DataSourceFactory:

produceLive: Creates a data source that collects data from the device’s built-in sensors in real time. This is the most common use case for applications relying on actual sensor input.
produceExternal: Creates a custom data source that accepts user-supplied data. You can feed data into this source via the pushData method. Note that pushData will return false if used with a non-external source.
produceLog: Creates a data source that replays data from a previously recorded session (log file: gpx, nmea). This is useful for debugging, training, or offline data processing. See the Recorder docs for information about recording data.
produceSimulation: Creates a data source that simulates movement along a specified route. It can be used for UI prototyping, testing, or feature validation without relying on real-world movement.

The first two types (live and external) are categorized under EDataSourceType::Live, whereas the latter two (log and simulation) fall under EDataSourceType::Playback.

note

By default, a data source starts automatically upon creation. However, it's possible that it hasn't fully initialized by the time you obtain the data source object.

If you add a DataSourceListener immediately after acquiring the data source, there's a chance you'll miss the initial "playing status changed" notification that indicates the data source has started - since it may already be in the started state when the listener is attached.

Configuring and Controlling a Data Source

Once created, a data source can be stopped or started using the appropriate control methods:

dataSource->stop();
// ...
dataSource->start();

You can also configure a data source’s behavior using methods like:

setConfiguration: to set the sampling rate or data filtering behavior.
setMockData: to simulate data updates.

warning

The setMockData method for live data sources supports only the EDataType::Position type. To mock other data types, use an external DataSource.

Using `DataSourceListener`

To receive updates from a data source, you can register a DataSourceListener. This listener allows you to react to various events such as:

Changes in the playing status of the data source.
Interruptions in data flow (e.g., sensor stopped, app went to background, etc.).
New sensor data becoming available.
Progress updates during playback.

You can implement a sense::IDataSourceListener:

class MyDataSourceListenerImpl : public sense::IDataSourceListener
{
public:
    void onPlayingStatusChanged( sense::EDataType type, sense::EPlayingStatus status) override
    {
        GEM_INFO_LOG( "DataSource type %d changed status to %d", type, status );
    }

    void onDataInterruptionEvent( sense::EDataType type, sense::EDataInterruptionReason reason, bool ended ) override
    {
        GEM_INFO_LOG( "DataSource type %d interruption event. Reason: %d, ended: %d", type, reason, ended );
    }

    void onNewData( sense::DataPtr data ) override
    {
        GEM_INFO_LOG( "DataSource new data received of type %d", data->getType() );
    }

    void onProgressChanged( LargeInteger progressMs) override
    {
        GEM_INFO_LOG( "DataSource progress changed: %lld ms", progressMs );
    }
};

Once created, this listener can be registered with a IDataSource, for a specific EDataType (in this case the position):

auto listenerPtr = gem::StrongPointerFactory<MyDataSourceListenerImpl>();

myDataSourcePtr->addListener( listenerPtr, sense::EDataType::Position );

Later, you can remove the listener when it’s no longer needed:

dataSourcePtr->removeListener( listenerPtr, sense::EDataType::Position );

Using the `IPlayback` interface

The IPlayback interface allows you to control data sources that support playback functionality - specifically those of type sense::EDataSourceType::Playback, such as log files or simulated route replays. It is not compatible with live or custom data sources.

To access a IPlayback instance, you can check the type of the data source and retrieve it accordingly:

if(myDataSourcePtr->getDataSourceType() == sense::EDataSourceType::Playback)
{
    auto playbackPtr = myDataSourcePtr->getPlayback();

    playback->pause();
    // ...
    playback->resume();
}

As shown above, playback-enabled data sources can be paused and resumed. Additionally, you can adjust the playback speed by setting a speedMultiplier, which must fall within the range defined by IPlayback:getMinSpeedMultiplier and IPlayback::getMaxSpeedMultiplier.

To control playback position, use IPlayback::getCurrentPosition, which represents the elapsed time in milliseconds from the beginning of the log or simulation. This allows you to skip to any point in the playback.

You also have access to supplementary metadata, such as:

IPlayback::getLogPath – the path to the log file being executed
IPlayback::getRoute – the route being simulated (if applicable)

Tracking positions

Positions from a IDataSource can be tracked on a map by rendering a marker polyline between relevant map links points. This is done by using the MapViewExtensions class member of MapView.

Tracked path

The following code illustrates the functionality shown in the screenshot above.

auto mapViewExtensions = mapView->extensions();

MarkerCollectionRenderSettings settings;
settings.polylineInnerColor = Rgba( 255, 0, 0, 255 ); // red
settings.polylineOuterColor = Rgba( 255, 255, 0, 255 ); // yellow
settings.polylineInnerSize = 3.0f;
settings.polylineOuterSize = 2.0f;

auto err = mapViewExtensions.startTrackPositions(
    500, // ms
    settings,
    myDataSourcePtr);

// other code ...

mapViewExtensions.stopTrackPositions();

Method	Parameters	Return type
startTrackPositions	- `updatePositionMs`: The tracked position collection update frequency. High frequency may decrease rendering performances on low end devices - `MarkerCollectionRenderSettings`: The markers collection rendering settings in the map view - `DataSourcePtr`: The DataSource object which positions are tracked	`error`
stopTrackPositions		- `KNoError` on success - `error::KNotFound` if tracking is not started
isTrackedPositions		`bool`
getTrackedPositions		`List<Coordinates>`

info

If the dataSource parameter is left null, tracking will use the current IDataSource set in PositionService. If no IDataSource is set in PositionService, error::KNotFound will be returned.

Getting tracked positions

After calling MapViewExtensions::startTrackPositions, you can retrieve the tracked positions later using getTrackedPositions getter. This method returns a list of Coordinates that are used to render the path polyline on MapView.

auto mapViewExtensions = mapView->extensions();

mapViewExtensions.getTrackedPositions;

// other code ...

mapViewExtensions.stopTrackPositions();

warning

Calling the getTrackedPositions getter after the stopTrackPositions is called will result in returning an empty list.
