Routes

_|

A Route usually represents a navigable path between two or more landmarks (waypoints). It includes data such as distance, estimated time, and navigation instructions.

Routes can be computed in different ways:

• Based on 2 or more intermediary landmarks (waypoints) - route is navigable.
• Over-track routes (based on a predefined path, which could come from a GPX file but is not limited to this) are navigable.
• Route ranges: These routes are not navigable and do not have segments or instructions.

A navigable route consists of one or more segments. Each segment represents the portion of the route between two consecutive waypoints and includes its own set of route instructions.

Instantiating Routes

Routes cannot be instantiated directly. Instead, they must be computed based on a predefined list of landmarks. For detailed guidance on how to calculate routes, refer to the Getting Started with Routing Guide.

warning

Calculating a route does not automatically display it on the map. Refer to the Display markers guide for detailed instructions on how to display one or more routes.

Route specializations

The SDK supports multiple route types, each tailored to specific use cases through dedicated classes:

1. Normal Routes - Standard routes computed for typical navigation scenarios.

2. Public Transport (PT) Routes - Routes calculated using a public transport mode, including additional details such as service frequency, ticket purchase information, and other transit-specific data.

3. Over-Track (OT) Routes - Routes generated from a predefined path, such as GPX files or paths drawn with the route finder.

4. Electric Vehicle (EV) Routes - Designed for EV-specific needs, including charging station information and related details. Not yet fully implemented.

Specific Classes

Each route type is associated with specific classes that offer functionality suited to its requirements:

Route Type	Route Class	Segment Class	Instruction Class
Normal Route	Route	RouteSegment	RouteInstruction
Public Transport Route	PTRoute	PTRouteSegment	PTRouteInstruction
Over-Track Route	OTRoute	Not Available	Not Available
Electric Vehicle Route	EVRoute	EVRouteSegment	EVRouteInstruction

The specific classes extend the functionality of the base classes RouteBase, RouteSegmentBase, RouteInstructionBase that provide the common features for each type of entity.

Route structure

The most important route characteristics are:

Field/Method	Type	Explanation
getGeographicArea	RectangleGeographicArea	A geographic boundary or region covered by the route.
getPolygonGeographicArea	PolygonGeographicArea	A polygon representing the geographic area as a series of connected points.
getTilesGeographicArea	TilesCollectionGeographicArea	A collection of map tiles representing the geographic area.
getDominantRoads	List<String>	A list of road names or identifiers that dominate the route.
hasFerryConnections	bool	Indicates whether the route includes ferry connections.
hasTollRoads	bool	Indicates whether the route includes toll roads.
getTollSections	List of TollSection	The list of toll sections along the route.
getIncursCosts	bool	Specifies if the route incurs any monetary costs, such as tolls or fees [DEPRECATED - same as hasTollRoads]
getRouteStatus	ERouteStatus	If we are navigating a route and we deviate from it, the route is recalculated. This means that the routeStatus might signal that route is computed or we don't have internet connection, or even that on recomputation we got an error.
getTerrainProfile	RouteTerrainProfile	A profile of terrain elevations along the route, represented as a list of elevation values.
getSegments	List<RouteSegment>	A collection of route segments, each representing a specific portion of the route. Segments are split based on the initial waypoints that were used to compute the route. For Public Transit routes a segment is either a pedestrian part or a public transit part.
getTrafficEvents	List<RouteTrafficEvent>	A list of traffic events, such as delays or road closures, affecting the route.

RouteSegment structure

A route segment represents the portion of a route between two consecutive waypoints. For public transport routes, segments are further categorized as either pedestrian sections or public transit sections, depending on the mode of travel within that segment.

Field/Method	Return Type	Description
getWaypoints	List<Landmark>	Retrieves the list of landmarks representing the start and end waypoints of the route segment.
getTimeDistance	TimeDistance	Provides the length in meters and estimated travel time in seconds for the route segment.
getGeographicArea	RectangleGeographicArea	Retrieves the smallest rectangle enclosing the geographic area of the route.
getIncursCosts	bool	Checks whether traveling the route or segment incurs a cost to the user.
getSummary	String	Provides a summary of the route segment.
getInstructions	List<RouteInstruction>	Retrieves the list of route instructions for the segment.
isCommon	bool	Indicates whether the segment shares the same travel mode as the parent route. Mostly used within public transport routes.
getTollSections	List<TollSection>	The list of toll sections along the route segment.

RouteInstruction structure

A route instruction provides detailed guidance for navigation, offering various methods to retrieve specific information about each maneuver the user needs to make, such as coordinates, turn directions, distances and time to next waypoints.

Method	Return Type	Description
getCoordinates	Coordinates	Gets coordinates for this route instruction.
getCountryCodeISO	String	Gets ISO 3166-1 alpha-3 country code for the navigation instruction.
getExitDetails	String	Gets exit route instruction text.
getFollowRoadInstruction	String	Gets textual description for follow road information.
getRealisticNextTurnImage	AbstractGeometryImage	Gets image for the realistic turn information.
getRemainingTravelTimeDistance	TimeDistance	Gets remaining travel time and distance until the destination
getRemainingTravelTimeDistanceToNextWaypoint	TimeDistance	Gets remaining travel time and distance to the next waypoint.
getRoadInfo	List<RoadInfo>	Gets road information.
getRoadInfoImage	RoadInfoImage	Gets road information image.
getSignpostDetails	SignpostDetails	Gets extended signpost details.
getSignpostInstruction	String	Gets textual description for the signpost information.
getTimeDistanceToNextTurn	TimeDistance	Gets distance and time to the next turn.
getTraveledTimeDistance	TimeDistance	Gets traveled time and distance.
getTurnDetails	TurnDetails	Gets full details for the turn.
getTurnImage	Image	Gets image for the turn.
getTurnInstruction	String	Gets textual description for the turn.
hasFollowRoadInfo	bool	Checks if follow road information is available.
hasSignpostInfo	bool	Checks if signpost information is available.
hasTurnInfo	bool	Checks if turn information is available.
hasRoadInfo	bool	Checks if road information is available.
isCommon	bool	Checks if this instruction is of common type - has the same transport mode as the parent route
isExit	bool	Checks if the route instruction is a main road exit instruction.
isFerry	bool	Checks if the route instruction is on a ferry segment.
isTollRoad	bool	Checks if the route instruction is on a toll road.

note

It is important to distinguish between NavigationInstruction and RouteInstruction. NavigationInstruction offers real-time, turn-by-turn navigation based on the user's current position and is relevant only during navigation or simulation. In contrast, RouteInstruction provides an overview of the entire route available as soon as the route is calculated and the list of instructions do not change as the user navigates on the route.

Other classes

Time distance

The TimeDistance class is used to get details about the time and distance to/from certain important points of interests.

The TimeDistance class differentiates between unrestricted and restricted road portions. Restricted segments refer to non-public roads, while unrestricted represent publicly accessible roads:

Field/Method	Type	Explanation
getUnrestrictedTime	int	Unrestricted time in seconds.
getRestrictedTime	int	Restricted time in seconds.
getUnrestrictedDistance	int	Unrestricted distance in meters.
getRestrictedDistance	int	Restricted distance in meters.
getRestrictedBeginEndRatio	double	Ratio representing the division of restricted time/distance between the begin and the end.
getTotalTime	int	Total time in seconds (sum of unrestricted and restricted times).
getTotalDistance	int	Total distance in meters (sum of unrestricted and restricted distances).
empty	bool	Indicates whether the total time is zero.
hasRestrictedBeginEndDifferentiation	bool	Indicates if the begin and end have differentiated restricted values based on the ratio.
getRestrictedTimeAtBegin	int	Restricted time allocated to the beginning, based on the ratio.
getRestrictedTimeAtEnd	int	Restricted time allocated to the end, based on the ratio.
getRestrictedDistanceAtBegin	int	Restricted distance allocated to the beginning, based on the ratio.
getRestrictedDistanceAtEnd	int	Restricted distance allocated to the end, based on the ratio.

Signpost details

Signposts near roadways typically indicate intersections and directions to various destinations. The SDK provides realistic renderings of these signposts, along with relevant supplementary information.

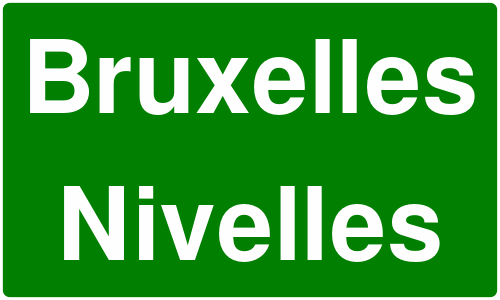

Below is an example of a rendered signpost details image:

Signpost image captured during highway navigation

The SignpostDetails class also provides properties such as:

Member/Method	Type	Description
getBackgroundColor	Color	Retrieves the background color of the signpost.
getBorderColor	Color	Retrieves the border color of the signpost.
getTextColor	Color	Retrieves the text color of the signpost.
hasBackgroundColor	bool	Indicates whether the signpost has a background color.
hasBorderColor	bool	Indicates whether the signpost has a border color.
hasTextColor	bool	Indicates whether the signpost has a text color.
getItems	List<SignpostItem>	Retrieves a list of SignpostItem elements associated with the signpost.
getImage	SignpostImage	Retrieves the signpost image.

Each SignpostItem has the following properties:

Member/Method	Type	Description
getRow	int	Retrieves the one-based row of the item. Zero indicates not applicable.
getColumn	int	Retrieves the one-based column of the item. Zero indicates not applicable.
getConnectionInfo	ESignpostConnectionInfo	Retrieves the connection type of the item (branch, towards, exit, invalid)
getPhoneme	String	Retrieves the phoneme assigned to the item if available, otherwise empty.
getPictogramType	ESignpostPictogramType	Retrieves the pictogram type for the item (airport, busStation, parkingFacility, etc).
getShieldType	ERoadShieldType	Retrieves the shield type for the item (county, state, federal, interstate, etc)
getText	String	Retrieves the text assigned to the item, if available.
getType	ESignpostItemType	Retrieves the type of the item (placeName, routeNumber, routeName, etc).
hasAmbiguity	bool	Indicates if the item has ambiguity. Avoid using such items for TTS.
hasSameShieldLevel	bool	Indicates if the road code item has the same shield level as its road.

The field nextTurnInstruction provides an instruction in text format, suitable for displaying on UI. Please use the onTextToSpeechInstruction callback for getting an instruction suitable for text-to-speech.

Turn Details

The TurnDetails class provides details such as:

• event: enum containing the turn type. Values for this field include straight, right, left, lightLeft, lightRight, sharpRight, sharpLeft, roundaboutExitRight, roundabout, roundRight, roundLeft, infoGeneric, driveOn, exitNr, exitLeft, exitRight, stayOn and more.
• abstractGeometryImage: abstract image of the turn (the user needs to verify if the image is valid). The colors might be further personalized with AbstractGeometryImageRenderSettings.
• roundaboutExitNumber: the roundabout exist number if it exists.

Turn details abstract image vs. turn image:

The difference between images obtained via abstractGeometryImage (left) and turnImage (right) is shown below:

Turn details abstract image

Turn image

• abstractGeometryImage: Provides a detailed representation of the entire intersection, offering a comprehensive view of the turn geometry. This image can be customized, including options to adjust various colors for better visual alignment with the application's theme.
• turnImage: Delivers a simplified schematic of the upcoming turn, focusing solely on the essential turn direction. Unlike abstractGeometryImage, this method does not support customization.

tip

Each image is assigned a unique identifier. You can use the Uid getter of the images classes to retrieve this id and update the image in the UI only when the ID changes. This strategy can significantly enhance performance during navigation, especially in scenarios where frequent updates might otherwise impact efficiency.

Abstract geometry image customization

The AbstractGeometryImageRenderSettings allows for abstract geometry render settings customization, with the possibility of specifying the colors, improving the overall user experience:

 AbstractGeometryImageRenderSettings customizedRenderSettings = AbstractGeometryImageRenderSettings(
    Colors.red,
    Colors.green,
    Colors.blue,
    Colors.yellow,
);

The render settings from above will create the following image when used:

Customized next turn details abstract image

Toll sections

The TollSection class represents a tolled portion of a route. It defines where the toll segment starts and ends (measured in meters from the beginning of the route), along with the toll cost and currency.

Member	Type	Description
startDistanceM	int	Distance in meters where the section starts (from route starting point).
endDistanceM	int	Distance in meters where the section ends (from route starting point).
cost	float	Cost in the specified currency.
currency	String	Currency code, e.g. EUR, USD.

If no data for the cost of the section is available then the cost field is 0 and the currency field is empty string.

tip

In order to get the WGS Coordinates of the start and end of a TollSection, you can use the Route.getCoordinateOnRoute method, passing the startDistanceM and endDistanceM values respectively.

Change the language of the instructions

The texts used in route instructions and related classes follow the language set in the SDK. See the internationalization guide for more details.
