Overlays

_|

An Overlay is an additional map layer, either default or user-defined, with data stored on Magic Lane servers, accessible in online and offline modes, with few exceptions.

In order to define overlay data you can use the Magic Lane Map Studio. It allows uploading data regarding the POIs and their corresponding categories and binary information (via GeoJSON format). An Overlay can have multiple associated categories and subcategories. A single item from an overlay is called an overlay item.

warning

If the corresponding map region has been downloaded locally, overlays will not be available in offline mode, except if they are downloaded too.

See the Downloading overlays guide for more details.

Most overlay features can be used only when a MapView is created and a style containing the overlay is applied.

OverlayInfo

OverlayInfo structure

The class that contains information about an overlay is OverlayInfo. It has the following structure:

Method	Description	Type
getUid	Gets the unique ID of the overlay.	int
getCategories	Gets the categories of the overlay.	List<OverlayCategory>
getCategory	Gets a category by its ID.	OverlayCategory
getImage	Gets the image of the overlay.	ImageRef
getName	Gets the name of the overlay.	StringRef
hasCategories	Checks if the category has subcategories.	bool

Retrieving overlays

To get all overlays which are available for the current map style, the OverlayService().getAvailableOverlays() method is used in the following way:

auto overlays = OverlaysService().getAvailableOverlays(yourProgressListenerImpl);

The OverlayCollection class contains methods and getters such as:

• size: returns the size of the collection.
• getOverlayAt: returns the OverlayInfo at a specified index and null if it doesn't exist.
• getOverlayByUid: returns an OverlayInfo by a given id.

The returned OverlayCollection contains all the overlays available for the current map style: alerts (ECommonOverlayId::OID_Safety), speed cameras (ECommonOverlayId::OID_SocialReports), public transit stops (ECommonOverlayId::OID_PublicTransport).

warning

It is possible that information for certain overlays is unavailable and needs to be downloaded when a network connection is accessible. As a result, the method returns a record of type (OverlayCollectionRef, bool), where the boolean value in the second element is false, indicating that the information is currently unavailable. In this case, the given progress listener notifyComplete needs to be awaited.

Usage

The primary function of the OverlayInfo class is to provide the categories within an overlay. It also provides the Uid of the overlay which can be used to filter the results of search and also can be used to toggle the visibility of the overlay on the map. Other fields can be displayed on the UI.

OverlayCategory

The OverlayCategory class represents hierarchical data related to overlay categories.

OverlayCategory structure

The OverlayCategory has the following structure:

Property / Method	Description	Type
getUid	The category ID.	int
getOverlayUid	The parent overlay ID. Refers to the id of the OverlayInfo object	int
getImage	The category icon.	ImageRef
getName	The category name.	StringRef
getSubcategories	The subcategories of the category.	List<OverlayCategory>
hasSubcategories	Checks if the category has subcategories.	bool

Usage

The OverlayCategory class provides the Uid, which can be utilized in various search functionalities to filter results. Additionally, the Uid can be used to filter and manage overlay items that trigger alerts within the AlarmService.

OverlayItem

The OverlayItem represents a single element from the overlay.

OverlayItem structure

The OverlayItem has the following structure:

Property / Method	Description	Type
getCategoryId	Gets the OverlayItem's category ID. May be 0 if the item does not belong to a specfic category. Gives the id of the root category which may not be the direct parent category.	int
getCoordinates	Gets the coordinates of the OverlayItem.	Coordinates
hasPreviewExtendedData	Checks if the OverlayItem has preview extended data (dynamic data). Available only for overlays predefined.	bool
getImage	Gets the image of the OverlayItem.	ImageRef
getName	Gets the name of the OverlayItem.	StringRef
getUid	Gets the unique ID of the OverlayItem within the overlay.	int
getOverlayInfo	Gets the parent OverlayInfo.	OverlayInfoRef
getPreviewData	Gets the OverlayItem preview data as a parameters list.	SearchableParameterList
getPreviewUrl	Gets the preview URL for the item (if any).	StringRef
getOverlayUid	Gets the parent overlay UID.	int
getPreviewExtendedData	Asynchronously gets the OverlayItem preview extended data.	int
cancelGetPreviewExtendedData	Cancels the asynchronous getPreviewExtendedData operation.	void

warning

The previewData returned is not available if the parent map tile is disposed. Please get the preview data before further interactions with the map.

warning

Avoid confusing the Uid of OverlayInfo, OverlayCategory, and OverlayItem, as they each serve distinct purposes.

tip

To check if a OverlayItem belongs to a OverlayInfo, use the getOverlayUid method, or retrieve the whole OverlayInfo object via the getOverlayInfo method.

The getPreviewData method which provides more information structured inside a SearchableParametersList, information which depend on the overlay type. We can iterate through all the parameters (which are of type Parameter) within a SearchableParameterList in the following way:

SearchableParameterList parameters = overlayItem.getPreviewData();
for (const auto& param : parameters){
  // Unique for every parameter
  auto key = param.getKey();

  // Used for display on UI - might change depending on language
  auto name = param.getName();

  // The type of param.getValue template parameter
  auto valueType = param.getType();

  // The parameter value
  auto value = param.getValue<gem::String>();
}

tip

The getCategoryId getter returns the ID of the root category, which may not necessarily be the direct parent category of the OverlayItem.

To obtain the direct parent category, you can use the following snippet:

int parentCategoryId = overlayItem.getPreviewData.find<int>("icon");

Use the getCategory method from the parent OverlayInfo class to retrieve the OverlayCategory object corresponding to this ID.

Usage

OverlayItems can be selected from the map or be provided by the AlarmService on approach. Other fields and information can be displayed on the UI.

Classification

There are a few types of predefined overlays:

• Safety overlay
• Public transport overlay
• Social reports overlay

The ECommonOverlayId enum contains information about the ids of the predefined overlay categories.

Safety Overlay

These overlays represent speed limit cameras, red light controls and so on.

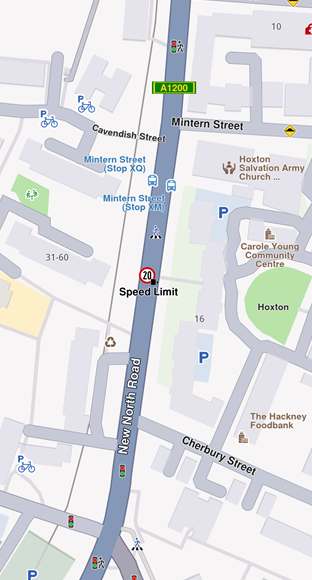

Speed limit overlay item

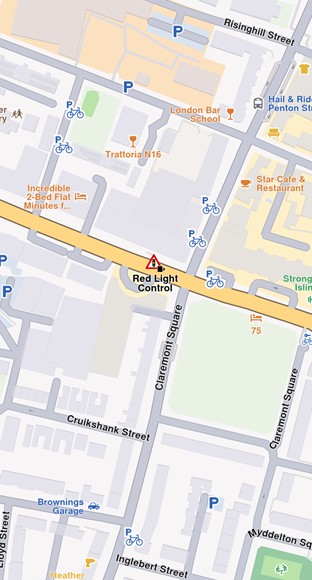

Red light control overlay item

For a speed limit, previewData might include information searchable by keys like:

• eStrDrivingDirection: the driving direction on which the overlay item applies as string, eg. "Both Ways"
• speedValue: value of maximum allowed speed as integer, eg. 50
• speedUnit: measure unit of speed as string, eg "km/h"
• Country: country name where the overlay is reported as string, eg "FRA"

Public Transport Overlay

This overlay is responsible for displaying public transport stations.

Map displaying multiple bus stations

For a bus station, previewData might include information searchable by keys like:

• id: unique overlay id as integer
• create_stamp_utc: unix epoch time when overlay has been created as integer
• icon: an array of 8-bit integeres representing icon data as Uint8List
• name: name of bus station as a string

warning

There are two types of public transport stops available on the map:

• Bus station with schedule information, available on the map as overlay items.
• Bus station without schedule information, available on the map as landmarks.

Social Reports Overlay

This overlay is responsible for displaying fixed cameras, construction sites and more.

Constructions overlay item

Fixed camera overlay item

For a construction report, previewData includes information searchable by keys like:

• longitude: value for longitude coordinate as double
• latitude: value for latitude coordinates as double
• owner_name: user's name that reported the event as string
• score: likes (confirmations) offered by other users
• location_address: address of reported location as string, it contains street, city and country

The SocialOverlay class is responsible for generating, updating, and deleting social reports. It includes several methods designed to perform these operations efficiently.

Interaction with Overlays

Selecting overlay items

Overlay items are selectable. When user taps or clicks, you can identify specific overlay items programmatically (e.g., through the function cursorSelectionOverlayItems()). Please refer to the Map Selection Functionality guide for more details.

Searching overlay items

Overlays are searchable. This can be done in multiple ways, the most common being to set the right properties in the search preferences when performing a regular search. More details can be found within the Get started with Search guide.

Calculating route with overlay items

Overlay items are not designed for route calculation and navigation.

tip

Create a new landmark using the overlay item's relevant coordinates and a representative name, then utilize this object for routing purposes.

Get notifications when approaching overlay items

Alarms can be configured to notify users when they approach specific overlay items from selected overlays.

Activate highlights

Overlay Items can be highlighted using the activateHighlight method provided by the MapView class.
