Add Optimization with Orders Sequences

|

The example covers the following features:

  • Adding an optimization where certain orders must be visited in a specific sequence (not fixed).
  • Defining orders with various fields (e.g., time windows, packages, weights).
  • Setting up vehicles with specific constraints.
  • Displaying the optimized solution on a map.

In this optimization, some orders must be visited in a specific sequence, but the sequence is not fixed, allowing for flexibility in route planning.

When you run the example application:

  • An optimization is created and saved.
  • The optimized solution is returned and displayed on the map.

Create Customers and Orders​

Note

Each order must have a customer associated with it. You can either:

  • Create a new customer and assign it to the order.
  • Use an existing customer (refer to the Get Customer example).

Initializing and Adding Customers​

  1. Initialize a ProgressListener and vrp::Service.
  2. Create twelve vrp::Customer objects and set the desired fields, and add them to the database.
  3. Call the addCustomer() method from the vrp::Service using the vrp::Customer and ProgressListener and wait for the operation to be done.
ProgressListener listener;
gem::vrp::Service serv;

gem::vrp::Customer c0;
c0.setCoordinates(gem::Coordinates(48.234270, -2.133208));
c0.setAlias("c0");
c0.setPhoneNumber("+12312312");
c0.setEmail("c0@yahoo.com");
int ret = serv.addCustomer(&listener, c0);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);

gem::vrp::Customer c1;
c1.setCoordinates(gem::Coordinates(45.854137, 2.853998));
c1.setAlias("c1");
c1.setEmail("c1@yahoo.com");
c1.setPhoneNumber("+12312312");
ret = serv.addCustomer(&listener, c1);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);

gem::vrp::Customer c2(gem::Coordinates(46.199373, 0.069986));
c2.setAlias("c2");
c2.setPhoneNumber("+12312312");
c2.setEmail("c2@yahoo.com");
ret = serv.addCustomer(&listener, c2);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);

gem::vrp::Customer c3(gem::Coordinates(48.052503, 0.119726));
c3.setAlias("c3");
c3.setPhoneNumber("+12312312");
c3.setEmail("c3@yahoo.com");
ret = serv.addCustomer(&listener, c3);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);

gem::vrp::Customer c4(gem::Coordinates(44.346051, 4.694878));
c4.setAlias("c4");
c4.setPhoneNumber("+12312312");
c4.setEmail("c4@yahoo.com");
ret = serv.addCustomer(&listener, c4);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);

gem::vrp::Customer c5(gem::Coordinates(44.464582, 2.455020));
c5.setAlias("c5");
c5.setPhoneNumber("+12312312");
c5.setEmail("c5@yahoo.com");
ret = serv.addCustomer(&listener, c5);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);

gem::vrp::Customer c6(gem::Coordinates(48.656644, 5.907131));
c6.setAlias("c6");
c6.setPhoneNumber("+12312312");
c6.setEmail("c6@yahoo.com");
ret = serv.addCustomer(&listener, c6);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);

gem::vrp::Customer c7(gem::Coordinates(49.161539, 0.500580));
c7.setAlias("c7");
c7.setPhoneNumber("+12312312");
c7.setEmail("c7@yahoo.com");
ret = serv.addCustomer(&listener, c7);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);

gem::vrp::Customer c8(gem::Coordinates(47.702421, 3.384226));
c8.setAlias("c8");
c8.setPhoneNumber("+12312312");
c8.setEmail("c8@yahoo.com");
ret = serv.addCustomer(&listener, c8);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);

gem::vrp::Customer c9(gem::Coordinates(47.198274, 4.630011));
c9.setAlias("c9");
c9.setPhoneNumber("+12312312");
c9.setEmail("c9@yahoo.com");
ret = serv.addCustomer(&listener, c9);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);

gem::vrp::Customer c10(gem::Coordinates(49.655296, 2.243181));
c10.setAlias("c10");
c10.setPhoneNumber("+12312312");
c10.setEmail("c10@yahoo.com");
ret = serv.addCustomer(&listener, c10);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);

gem::vrp::Customer c11(gem::Coordinates(50.719729, 2.160877));
c11.setAlias("c11");
c11.setPhoneNumber("+12312312");
c11.setEmail("c11@yahoo.com");
ret = serv.addCustomer(&listener, c11);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);

Initializing and Adding Orders​

  1. Create a vrp::OrderList and add orders to it. Each order must have a customer associated with it.
  2. Create twelve vrp::Order objects and associate one customer for each, set the desired fields, and add them to the database.
  3. Call the addOrder() method from the vrp::Service using the vrp::Order and ProgressListener and wait for the operation to be done.
gem::vrp::OrderList orders;
gem::vrp::Order order0(c0);
ret = serv.addOrder(&listener, order0, false);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);
orders.push_back(order0);
gem::vrp::Order order1(c1);
ret = serv.addOrder(&listener, order1, false);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);
orders.push_back(order1);
gem::vrp::Order order2(c2);
ret = serv.addOrder(&listener, order2, false);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);
orders.push_back(order2);
gem::vrp::Order order3(c3);
ret = serv.addOrder(&listener, order3, false);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);
orders.push_back(order3);
gem::vrp::Order order4(c4);
ret = serv.addOrder(&listener, order4, false);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);
orders.push_back(order4);
gem::vrp::Order order5(c5);
ret = serv.addOrder(&listener, order5, false);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);
orders.push_back(order5);
gem::vrp::Order order6(c6);
ret = serv.addOrder(&listener, order6, false);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);
orders.push_back(order6);
gem::vrp::Order order7(c7);
ret = serv.addOrder(&listener, order7, false);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);
orders.push_back(order7);
gem::vrp::Order order8(c8);
ret = serv.addOrder(&listener, order8, false);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);
orders.push_back(order8);
gem::vrp::Order order9(c9);
ret = serv.addOrder(&listener, order9, false);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);
orders.push_back(order9);
gem::vrp::Order order10(c10);
ret = serv.addOrder(&listener, order10, false);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);
orders.push_back(order10);
gem::vrp::Order order11(c11);
ret = serv.addOrder(&listener, order11, false);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);
orders.push_back(order11);

Create Departure​

Note

Departures define the starting points for vehicle routes. These locations serve as the origin of a route and can impact optimization by influencing travel distance and time.

  1. Create a vrp::Departure object for the vehicle's starting point.
gem::vrp::Departure departure;
departure.setAlias("departure");
departure.setCoordinates(gem::Coordinates(48.618893, -1.353635));

Create Vehicles and Define Vehicle Constraints​

Initializing and adding vehicles​

Note

Vehicles are the resources that will be used to fulfill the orders. Each vehicle can have specific constraints and capabilities.

  1. Create a vrp::VehicleList and add vehicles to it.
  2. Create a vrp::Vehicle object and set the desired fields, such as name, type, status, and capacity.
  3. Call the addVehicle() method from the vrp::Service using the vrp::Vehicle and ProgressListener and wait for the operation to be done.
gem::vrp::VehicleList vehicles;
gem::vrp::Vehicle vehicle1;
vehicle1.setName("Vehicle 1");
vehicle1.setType(gem::vrp::EVehicleType::VT_Car);
vehicle1.setStatus(gem::vrp::EVehicleStatus::VS_Available);
vehicle1.setManufacturer("Kia");
vehicle1.setModel("Ceed");
vehicle1.setFuelType(gem::vrp::EFuelType::FT_GasolinePremium);
vehicle1.setConsumption(6.5);
vehicle1.setLicensePlate("BV01ASD");
vehicle1.setMaxWeight(35);
vehicle1.setMaxCube(17);
vehicle1.setStartTime(420); //7:00 AM
vehicle1.setEndTime(2880); //0:00 AM next day

ret = serv.addVehicle(&listener, vehicle1);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 5000);
vehicles.push_back(vehicle1);

Define Vehicle Constraints​

Note

Vehicle constraints define the limitations and requirements applied to a vehicle during the route optimization process. Ensure that the vehicle operates within its capabilities, such as time windows, capacity, distance, and revenue. There are two ways of defining the constraints. Each vehicle will have a different contraints or we set only one vehicle constraints that will apply to all vehicles.

  1. Create a vrp::VehicleConstraints object and set the desired constraints.
  2. Add these constraints to a vrp::VehicleConstraintsList.
gem::vrp::VehicleConstraintsList vehConstraintsList;
gem::vrp::VehicleConstraints vehConstr1;
vehConstraintsList.push_back(vehConstr1);

Define Order Sequences​

Note

Order sequences define the specific order in which certain orders must be visited. This allows for custom routing logic where some orders must be visited in a particular sequence.

  1. Create a vrp::OrdersSequenceMap and define the sequence of orders.
  2. Add the sequence to the vrp::ConfigurationParameters.
gem::vrp::OrdersSequenceMap ordersSequence;
gem::LargeIntListList sequence = { { orders[2].getId(), orders[6].getId(), orders[1].getId(), orders[8].getId(), orders[3].getId() } };
ordersSequence.insert(std::make_pair(gem::vrp::EOrdersSequenceOption::OSO_InSequence, sequence));

gem::vrp::ConfigurationParameters params;
params.setOrderSequenceOptions(ordersSequence);

Create the Optimization​

Note

An optimization represents a set of orders, vehicles, constraints, and other parameters that define a routing problem.

  1. Create a vrp::Optimization object.
  2. Assign the OrderList, ConfigurationParameters, VehicleList, VehicleConstraintsList, and Departure to the optimization.
gem::vrp::Optimization optimization;
optimization.setOrders(orders);
optimization.setDepartures({ departure });
optimization.setVehicles(vehicles);
optimization.setVehiclesConstraints(vehConstraintsList);
optimization.setConfigurationParameters(params);

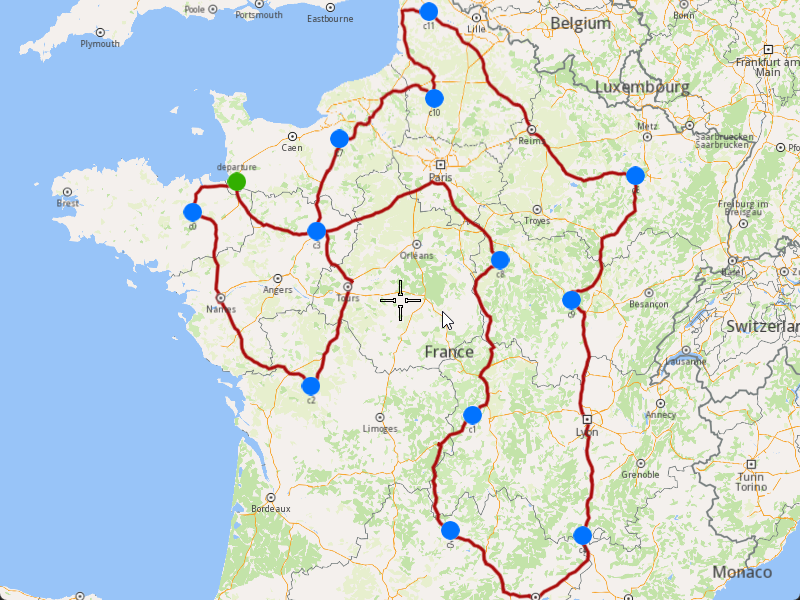

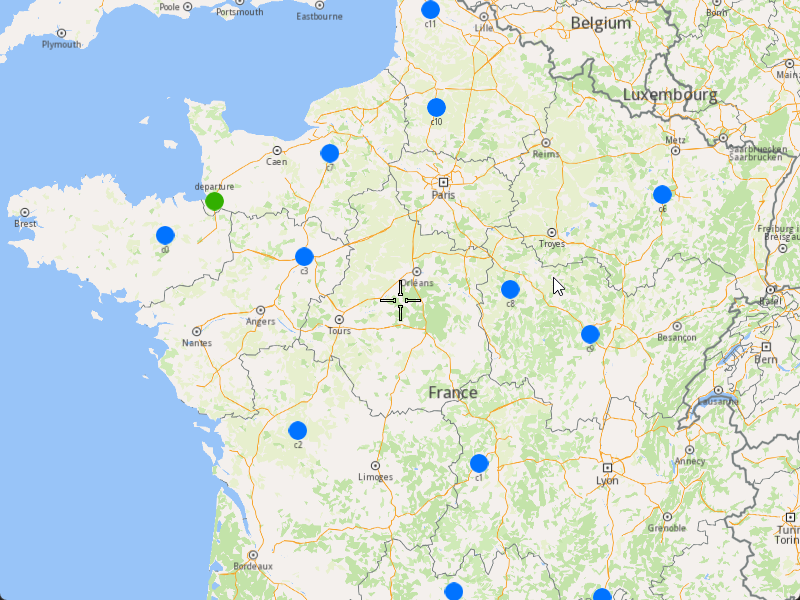

Displaying Orders on the Map​

Once the orders have been added, we can display them on the map.

Initialize Map Components​

  1. Create a MapServiceListener, OpenGLContext, and MapView.
MapViewListenerImpl mapListener;
auto oglContext = session.produceOpenGLContext(Environment::WindowFrameworks::Available, "AddOptimizationWithOrdersSequences");
gem::StrongPointer<gem::MapView> mapView = gem::MapView::produce(oglContext, &mapListener);

Highlight Orders and Departures​

  1. Create a LandmarkList and CoordinatesList using the OrderList and Departure.
  2. Instruct the MapView to highlight the landmarks (orders and departure).
  3. For better visibility, create a PolygonGeographicArea from the CoordinatesList, and center the MapView on this area.
gem::LandmarkList lmks;
gem::CoordinatesList coords;

for (int i = 0; i < optimization.getDepartures().size(); i++)
{
    gem::Landmark landmark;
    landmark.setName(optimization.getDepartures()[i].getAlias());
    landmark.setCoordinates(optimization.getDepartures()[i].getCoordinates());
    landmark.setImage(gem::Icon::Core::GreenBall);

    lmks.push_back(landmark);
    coords.push_back(optimization.getDepartures()[i].getCoordinates());
}

for (int i = 0; i < orders.size(); i++)
{
    gem::Landmark landmark;
    landmark.setName(orders[i].getAlias());
    landmark.setCoordinates(orders[i].getCoordinates());
    landmark.setImage(gem::Icon::Core::BlueBall);

    lmks.push_back(landmark);
    coords.push_back(orders[i].getCoordinates());
}

mapView->activateHighlight(lmks);
gem::PolygonGeographicArea polyArea(coords);
mapView->centerOnArea(polyArea);

ret = WAIT_UNTIL(std::bind(&MapViewListenerImpl::IsFinished, &mapListener), 15000);

Run the Optimization​

  1. Call the addOptimization() method from vrp::Service, passing the Optimization object and the ProgressListener.
  2. After the operation is finished, a solution for optimization will be generated. To view the solution, you need to call the getSolution method from the optimization, which will return a vrp::RouteList containing the optimization results.
std::shared_ptr<gem::vrp::Request> request = std::make_shared<gem::vrp::Request>();
ret = serv.addOptimization(&listener, optimization, request);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 10000);

WAIT_UNTIL([&]() {
    serv.getRequest(&listener, request, request->id);
    WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 7000);
    return request->status == gem::vrp::ERequestStatus::eFinished;
    }, 40000);

gem::vrp::RouteList routes;
ret = optimization.getSolution(&listener, routes);
WAIT_UNTIL(std::bind(&ProgressListener::IsFinished, &listener), 10000);

Display Routes on the Map​

Once the optimization is complete and a solution has been found, we can display the solution on the map.

  1. Ensure that the operation was done, and a solution was found.
  2. Create a MarkerCollection of type Polyline for the route.
  3. Add the route shape to the MarkerCollection.
  4. Set the MarkerCollection in the map view preferences.
  5. After highlighting on the map, center the screen over the route.
if (listener.IsFinished() && listener.GetError() == gem::KNoError && ret == gem::KNoError)
{
    std::cout << "Problem optimized successfully" << std::endl;
    PrintRoutesOnConsole(routes);

    // Display route shape on map
    auto col = gem::MarkerCollection(gem::EMarkerType::MT_Polyline, "shape");

    gem::CoordinatesList shape = routes[0].getShape();
    col.add(gem::Marker(shape));

    mapView->preferences().markers().add(col);
    ret = WAIT_UNTIL(std::bind(&MapViewListenerImpl::IsFinished, &mapListener), 15000);

    gem::PolygonGeographicArea polyArea(shape);
    mapView->centerOnArea(polyArea);
    ret = WAIT_UNTIL(std::bind(&MapViewListenerImpl::IsFinished, &mapListener), 15000);

    WAIT_UNTIL_WINDOW_CLOSE();
}
else
    std::cout << "Problem couldn't be optimized" << std::endl;
Last updated on
