Add Optimization with Single Vehicle
This example demonstrates how to create and optimize a fleet management solution using the Fleet Management Rest API with a single vehicle. The example covers the following features:
- Adding an optimization with a single vehicle.
- Defining orders with various fields (e.g., time windows, packages, weights).
- Setting up a single vehicle with specific constraints.
- Displaying the optimized solution on a map.
How to Use the Sample
When you run the example application:
- An optimization is created and saved.

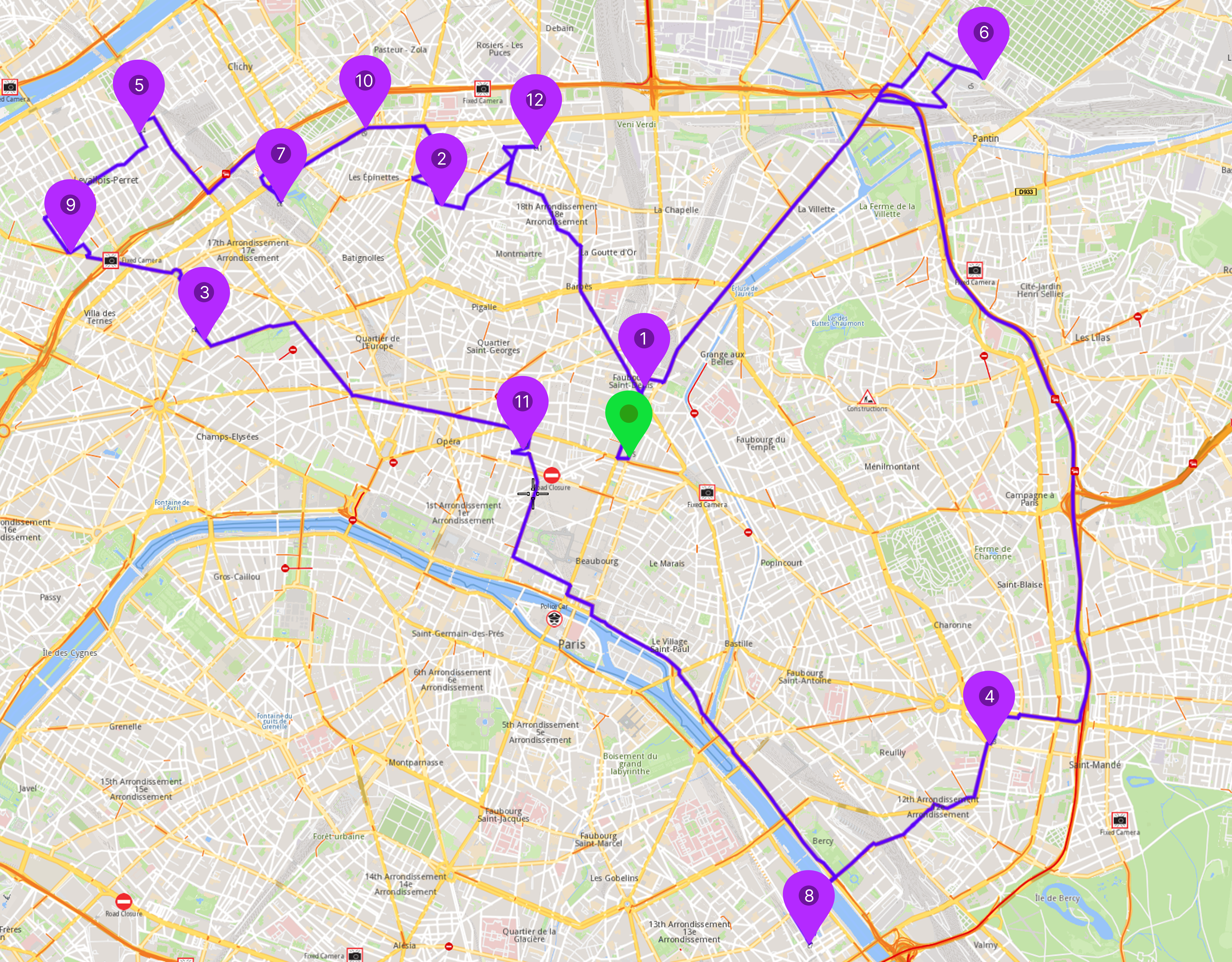

- The optimized solution is returned and displayed on the map.
Step-by-Step Guide
Step 1: Create Customers and Orders
Note
Each order must have a customer associated with it. You can either:
- Create a new customer and assign it to the order.
- Use an existing customer (refer to the Get Customer).
Initializing and Adding Customers
- Initialize Customers: Create twelve
Customerobjects and populate their fields (e.g., name, address, contact details). - Send Request: Call the
Add Customersendpoint to save these customers in the system.
- Method:
POST - Endpoint:
/customers - Headers:
Authorization: YOUR_API_KEYContent-Type: application/json
- URL:
https://fleetmanagement.magiclaneapis.com/v1/customers
Note
If the operation is successful, the Customer object will have its id field populated. If the operation fails, an error code is returned.
Example:
- Request Body:
[
{
"alias": "Customer 1",
"firstName": "Customer1",
"lastName": "Customer1",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer1@example.com",
"phoneNumber": "+12025550180",
"location": [
48.870852,
2.356148
],
"customData": ""
},
{
"alias": "Customer 2",
"firstName": "Customer2",
"lastName": "Customer2",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer2@example.com",
"phoneNumber": "+12025550181",
"location": [
48.892138,
2.330583
],
"customData": ""
},
{
"alias": "Customer 3",
"firstName": "Customer3",
"lastName": "Customer3",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer3@example.com",
"phoneNumber": "+12025550182",
"location": [
48.88025,
2.299601
],
"customData": ""
},
{
"alias": "Customer 4",
"firstName": "Customer4",
"lastName": "Customer4",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer4@example.com",
"phoneNumber": "+12025550183",
"location": [
48.845198,
2.402896
],
"customData": ""
},
{
"alias": "Customer 5",
"firstName": "Customer5",
"lastName": "Customer5",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer5@example.com",
"phoneNumber": "+12025550184",
"location": [
48.897163,
2.292865
],
"customData": ""
},
{
"alias": "Customer 6",
"firstName": "Customer6",
"lastName": "Customer6",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer6@example.com",
"phoneNumber": "+12025550185",
"location": [
48.90092,
2.400039
],
"customData": ""
},
{
"alias": "Customer 7",
"firstName": "Customer7",
"lastName": "Customer7",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer7@example.com",
"phoneNumber": "+12025550186",
"location": [
48.890914,
2.310625
],
"customData": ""
},
{
"alias": "Customer 8",
"firstName": "Customer8",
"lastName": "Customer8",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer8@example.com",
"phoneNumber": "+12025550187",
"location": [
48.827865,
2.379216
],
"customData": ""
},
{
"alias": "Customer 9",
"firstName": "Customer9",
"lastName": "Customer9",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer9@example.com",
"phoneNumber": "+12025550188",
"location": [
48.887096,
2.283513
],
"customData": ""
},
{
"alias": "Customer 10",
"firstName": "Customer10",
"lastName": "Customer10",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer10@example.com",
"phoneNumber": "+12025550189",
"location": [
48.896894,
2.321586
],
"customData": ""
},
{
"alias": "Customer 11",
"firstName": "Customer11",
"lastName": "Customer11",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer11@example.com",
"phoneNumber": "+120255501810",
"location": [
48.870449,
2.342204
],
"customData": ""
},
{
"alias": "Customer 12",
"firstName": "Customer12",
"lastName": "Customer12",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer12@example.com",
"phoneNumber": "+120255501811",
"location": [
48.895658,
2.344042
],
"customData": ""
}
]
- Response Body: (error code
200)
[
{
"id": 1791105,
"alias": "Customer 1",
"firstName": "Customer1",
"lastName": "Customer1",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer1@example.com",
"phoneNumber": "+12025550180",
"location": [
48.870852,
2.356148
],
"customData": ""
},
{
"id": 1791104,
"alias": "Customer 2",
"firstName": "Customer2",
"lastName": "Customer2",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer2@example.com",
"phoneNumber": "+12025550181",
"location": [
48.892138,
2.330583
],
"customData": ""
},
{
"id": 1791103,
"alias": "Customer 3",
"firstName": "Customer3",
"lastName": "Customer3",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer3@example.com",
"phoneNumber": "+12025550182",
"location": [
48.88025,
2.299601
],
"customData": ""
},
{
"id": 1791102,
"alias": "Customer 4",
"firstName": "Customer4",
"lastName": "Customer4",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer4@example.com",
"phoneNumber": "+12025550183",
"location": [
48.845198,
2.402896
],
"customData": ""
},
{
"id": 1791101,
"alias": "Customer 5",
"firstName": "Customer5",
"lastName": "Customer5",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer5@example.com",
"phoneNumber": "+12025550184",
"location": [
48.897163,
2.292865
],
"customData": ""
},
{
"id": 1791100,
"alias": "Customer 6",
"firstName": "Customer6",
"lastName": "Customer6",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer6@example.com",
"phoneNumber": "+12025550185",
"location": [
48.90092,
2.400039
],
"customData": ""
},
{
"id": 1791099,
"alias": "Customer 7",
"firstName": "Customer7",
"lastName": "Customer7",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer7@example.com",
"phoneNumber": "+12025550186",
"location": [
48.890914,
2.310625
],
"customData": ""
},
{
"id": 1791098,
"alias": "Customer 8",
"firstName": "Customer8",
"lastName": "Customer8",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer8@example.com",
"phoneNumber": "+12025550187",
"location": [
48.827865,
2.379216
],
"customData": ""
},
{
"id": 1791097,
"alias": "Customer 9",
"firstName": "Customer9",
"lastName": "Customer9",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer9@example.com",
"phoneNumber": "+12025550188",
"location": [
48.887096,
2.283513
],
"customData": ""
},
{
"id": 1791096,
"alias": "Customer 10",
"firstName": "Customer10",
"lastName": "Customer10",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer10@example.com",
"phoneNumber": "+12025550189",
"location": [
48.896894,
2.321586
],
"customData": ""
},
{
"id": 1791095,
"alias": "Customer 11",
"firstName": "Customer11",
"lastName": "Customer11",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer11@example.com",
"phoneNumber": "+120255501810",
"location": [
48.870449,
2.342204
],
"customData": ""
},
{
"id": 1791094,
"alias": "Customer 12",
"firstName": "Customer12",
"lastName": "Customer12",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer12@example.com",
"phoneNumber": "+120255501811",
"location": [
48.895658,
2.344042
],
"customData": ""
}
]
Initializing and Adding Orders
- Initialize Orders: Create twelve
Orderobjects and associate each with a customer. Populate fields such as time windows, package details, and weights. - Send Request: Call the
Add Ordersendpoint to save these orders in the system.
- Method:
POST - Endpoint:
/orders - Headers:
Authorization: YOUR_API_KEYContent-Type: application/json
- URL:
https://fleetmanagement.magiclaneapis.com/v1/orders
Note
If the operation is successful, the Order object will have its id field populated. If the operation fails, an error code is returned.
Example:
- Request Body:
[
{
"customerId": 1791105,
"location": [
48.870852,
2.356148
],
"alias": "Customer 1",
"firstName": "Customer1",
"lastName": "Customer1",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550180",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 0,
"weight": 0,
"cube": 0,
"revenue": 0,
"timeWindow": [
420,
1086
],
"serviceTime": 0,
"depotId": 0
},
{
"customerId": 1791104,
"location": [
48.892138,
2.330583
],
"alias": "Customer 2",
"firstName": "Customer2",
"lastName": "Customer2",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550181",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 0,
"weight": 0,
"cube": 0,
"revenue": 0,
"timeWindow": [
420,
1086
],
"serviceTime": 0,
"depotId": 0
},
{
"customerId": 1791103,
"location": [
48.88025,
2.299601
],
"alias": "Customer 3",
"firstName": "Customer3",
"lastName": "Customer3",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550182",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 3,
"weight": 5.1,
"cube": 2.5,
"revenue": 12,
"timeWindow": [
770,
1020
],
"serviceTime": 0,
"depotId": 0
},
{
"customerId": 1791102,
"location": [
48.845198,
2.402896
],
"alias": "Customer 4",
"firstName": "Customer4",
"lastName": "Customer4",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550183",
"customData": "",
"type": 1,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 8,
"weight": 15.4,
"cube": 5.8,
"revenue": 2.7,
"timeWindow": [
753,
1036
],
"serviceTime": 0,
"depotId": 0
},
{
"customerId": 1791101,
"location": [
48.897163,
2.292865
],
"alias": "Customer 5",
"firstName": "Customer5",
"lastName": "Customer5",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550184",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 9,
"weight": 16.2,
"cube": 8.4,
"revenue": 7.5,
"timeWindow": [
736,
1086
],
"serviceTime": 0,
"depotId": 0
},
{
"customerId": 1791100,
"location": [
48.90092,
2.400039
],
"alias": "Customer 6",
"firstName": "Customer6",
"lastName": "Customer6",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550185",
"customData": "",
"type": 1,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 9,
"weight": 16.5,
"cube": 9.7,
"revenue": 10,
"timeWindow": [
786,
1053
],
"serviceTime": 0,
"depotId": 0
},
{
"customerId": 1791099,
"location": [
48.890914,
2.310625
],
"alias": "Customer 7",
"firstName": "Customer7",
"lastName": "Customer7",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550186",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 5,
"weight": 7.5,
"cube": 2.6,
"revenue": 13.4,
"timeWindow": [
820,
1020
],
"serviceTime": 0,
"depotId": 0
},
{
"customerId": 1791098,
"location": [
48.827865,
2.379216
],
"alias": "Customer 8",
"firstName": "Customer8",
"lastName": "Customer8",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550187",
"customData": "",
"type": 1,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 11,
"weight": 12.1,
"cube": 4.6,
"revenue": 14.7,
"timeWindow": [
753,
1086
],
"serviceTime": 0,
"depotId": 0
},
{
"customerId": 1791097,
"location": [
48.887096,
2.283513
],
"alias": "Customer 9",
"firstName": "Customer9",
"lastName": "Customer9",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550188",
"customData": "",
"type": 1,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 6,
"weight": 5.2,
"cube": 1.5,
"revenue": 2.9,
"timeWindow": [
770,
1070
],
"serviceTime": 0,
"depotId": 0
},
{
"customerId": 1791096,
"location": [
48.896894,
2.321586
],
"alias": "Customer 10",
"firstName": "Customer10",
"lastName": "Customer10",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550189",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 13,
"weight": 6.3,
"cube": 7.5,
"revenue": 8.1,
"timeWindow": [
836,
1053
],
"serviceTime": 0,
"depotId": 0
},
{
"customerId": 1791095,
"location": [
48.870449,
2.342204
],
"alias": "Customer 11",
"firstName": "Customer11",
"lastName": "Customer11",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+120255501810",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 10,
"weight": 8,
"cube": 4.1,
"revenue": 6.2,
"timeWindow": [
903,
1020
],
"serviceTime": 0,
"depotId": 0
},
{
"customerId": 1791094,
"location": [
48.895658,
2.344042
],
"alias": "Customer 12",
"firstName": "Customer12",
"lastName": "Customer12",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+120255501811",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 6,
"weight": 4.8,
"cube": 11.5,
"revenue": 2.3,
"timeWindow": [
870,
1020
],
"serviceTime": 0,
"depotId": 0
}
]
- Response Body: (error code
200)
[
{
"id": 879888,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791105,
"alias": "Customer 1",
"firstName": "Customer1",
"lastName": "Customer1",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer1@example.com",
"phoneNumber": "+12025550180",
"location": [
48.870852,
2.356148
],
"customData": ""
},
"location": [
48.870852,
2.356148
],
"alias": "Customer 1",
"firstName": "Customer1",
"lastName": "Customer1",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550180",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 0,
"weight": 0,
"cube": 0,
"revenue": 0,
"timeWindow": [
420,
1086
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879887,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791104,
"alias": "Customer 2",
"firstName": "Customer2",
"lastName": "Customer2",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer2@example.com",
"phoneNumber": "+12025550181",
"location": [
48.892138,
2.330583
],
"customData": ""
},
"location": [
48.892138,
2.330583
],
"alias": "Customer 2",
"firstName": "Customer2",
"lastName": "Customer2",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550181",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 0,
"weight": 0,
"cube": 0,
"revenue": 0,
"timeWindow": [
420,
1086
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879886,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791103,
"alias": "Customer 3",
"firstName": "Customer3",
"lastName": "Customer3",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer3@example.com",
"phoneNumber": "+12025550182",
"location": [
48.88025,
2.299601
],
"customData": ""
},
"location": [
48.88025,
2.299601
],
"alias": "Customer 3",
"firstName": "Customer3",
"lastName": "Customer3",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550182",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 3,
"weight": 5.1,
"cube": 2.5,
"revenue": 12,
"timeWindow": [
770,
1020
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879885,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791102,
"alias": "Customer 4",
"firstName": "Customer4",
"lastName": "Customer4",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer4@example.com",
"phoneNumber": "+12025550183",
"location": [
48.845198,
2.402896
],
"customData": ""
},
"location": [
48.845198,
2.402896
],
"alias": "Customer 4",
"firstName": "Customer4",
"lastName": "Customer4",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550183",
"customData": "",
"type": 1,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 8,
"weight": 15.4,
"cube": 5.8,
"revenue": 2.7,
"timeWindow": [
753,
1036
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879884,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791101,
"alias": "Customer 5",
"firstName": "Customer5",
"lastName": "Customer5",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer5@example.com",
"phoneNumber": "+12025550184",
"location": [
48.897163,
2.292865
],
"customData": ""
},
"location": [
48.897163,
2.292865
],
"alias": "Customer 5",
"firstName": "Customer5",
"lastName": "Customer5",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550184",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 9,
"weight": 16.2,
"cube": 8.4,
"revenue": 7.5,
"timeWindow": [
736,
1086
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879883,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791100,
"alias": "Customer 6",
"firstName": "Customer6",
"lastName": "Customer6",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer6@example.com",
"phoneNumber": "+12025550185",
"location": [
48.90092,
2.400039
],
"customData": ""
},
"location": [
48.90092,
2.400039
],
"alias": "Customer 6",
"firstName": "Customer6",
"lastName": "Customer6",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550185",
"customData": "",
"type": 1,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 9,
"weight": 16.5,
"cube": 9.7,
"revenue": 10,
"timeWindow": [
786,
1053
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879882,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791099,
"alias": "Customer 7",
"firstName": "Customer7",
"lastName": "Customer7",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer7@example.com",
"phoneNumber": "+12025550186",
"location": [
48.890914,
2.310625
],
"customData": ""
},
"location": [
48.890914,
2.310625
],
"alias": "Customer 7",
"firstName": "Customer7",
"lastName": "Customer7",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550186",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 5,
"weight": 7.5,
"cube": 2.6,
"revenue": 13.4,
"timeWindow": [
820,
1020
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879881,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791098,
"alias": "Customer 8",
"firstName": "Customer8",
"lastName": "Customer8",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer8@example.com",
"phoneNumber": "+12025550187",
"location": [
48.827865,
2.379216
],
"customData": ""
},
"location": [
48.827865,
2.379216
],
"alias": "Customer 8",
"firstName": "Customer8",
"lastName": "Customer8",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550187",
"customData": "",
"type": 1,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 11,
"weight": 12.1,
"cube": 4.6,
"revenue": 14.7,
"timeWindow": [
753,
1086
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879880,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791097,
"alias": "Customer 9",
"firstName": "Customer9",
"lastName": "Customer9",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer9@example.com",
"phoneNumber": "+12025550188",
"location": [
48.887096,
2.283513
],
"customData": ""
},
"location": [
48.887096,
2.283513
],
"alias": "Customer 9",
"firstName": "Customer9",
"lastName": "Customer9",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550188",
"customData": "",
"type": 1,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 6,
"weight": 5.2,
"cube": 1.5,
"revenue": 2.9,
"timeWindow": [
770,
1070
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879879,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791096,
"alias": "Customer 10",
"firstName": "Customer10",
"lastName": "Customer10",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer10@example.com",
"phoneNumber": "+12025550189",
"location": [
48.896894,
2.321586
],
"customData": ""
},
"location": [
48.896894,
2.321586
],
"alias": "Customer 10",
"firstName": "Customer10",
"lastName": "Customer10",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550189",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 13,
"weight": 6.3,
"cube": 7.5,
"revenue": 8.1,
"timeWindow": [
836,
1053
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879878,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791095,
"alias": "Customer 11",
"firstName": "Customer11",
"lastName": "Customer11",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer11@example.com",
"phoneNumber": "+120255501810",
"location": [
48.870449,
2.342204
],
"customData": ""
},
"location": [
48.870449,
2.342204
],
"alias": "Customer 11",
"firstName": "Customer11",
"lastName": "Customer11",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+120255501810",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 10,
"weight": 8,
"cube": 4.1,
"revenue": 6.2,
"timeWindow": [
903,
1020
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879877,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791094,
"alias": "Customer 12",
"firstName": "Customer12",
"lastName": "Customer12",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer12@example.com",
"phoneNumber": "+120255501811",
"location": [
48.895658,
2.344042
],
"customData": ""
},
"location": [
48.895658,
2.344042
],
"alias": "Customer 12",
"firstName": "Customer12",
"lastName": "Customer12",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+120255501811",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 6,
"weight": 4.8,
"cube": 11.5,
"revenue": 2.3,
"timeWindow": [
870,
1020
],
"serviceTime": 0,
"depotId": 0
}
]
Step 2: Configure Optimization Parameters
Note
Configuration Parameters define the behavior of the optimization process. These settings include optimization goals, search time limits, and flexibility in handling orders. Proper configuration ensures the optimization aligns with your business needs.
- Create Configuration: Define a
ConfigurationParametersobject and set the desired parameters.
{
"name": "Paris - test optimization",
"ignoreTimeWindow": false,
"allowDroppingOrders": false,
"groupingOrders": false,
"balancedRoutes": 0,
"optimizationCriterion": 0,
"arrangeCriterion": 0,
"optimizationQuality": 2,
"maxTimeToOptimize": 300,
"maxWaitTime": 8000,
"routeType": 0,
"restrictions": 0,
"distanceUnit": 0,
"orderSequenceOptions": []
}
Step 3: Create the Vehicle and Define Vehicle Constraints
Note
Vehicle constraints ensure that vehicles operate within their capabilities. These include time windows, capacity limits, distance constraints, and revenue goals. You can define constraints individually for each vehicle or apply a single set of constraints to all vehicles.
Adding Vehicles
- Initialize Vehicles: Create a
Vehicleobject and populate its fields (e.g., type, capacity, availability). - Send Request: Call the
Add Vehiclesendpoint to save vehicle in the database.
- Method:
POST - Endpoint:
/vehicles - Headers:
Authorization: YOUR_API_KEYContent-Type: application/json
- URL:
https://fleetmanagement.magiclaneapis.com/v1/vehicles
Note
If the operation is successful, the Vehicle object will have its id field populated. If the operation fails, an error code is returned.
Example:
- Request Body:
[
{
"type": 0,
"status": 0,
"name": "Car vehicle 1",
"manufacturer": "Renault",
"model": "Master",
"fuelType": 2,
"lastPosition": [
48.870569,
2.356448
],
"consumption": 6.5,
"plate": "AA-123-AA",
"maxLoadWeight": 60,
"maxLoadCube": 50,
"height": 0,
"width": 0,
"weight": 0,
"length": 0,
"axleLoad": 0,
"fixedCost": 0,
"costPerHour": 0,
"startTime": 420,
"endTime": 1439
}
]
- Response Body: (error code
200)
[
{
"id": 135748,
"type": 0,
"status": 0,
"name": "Car vehicle 1",
"manufacturer": "Renault",
"model": "Master",
"fuelType": 2,
"lastPosition": [
48.870569,
2.356448
],
"consumption": 6.5,
"plate": "AA-123-AA",
"maxLoadWeight": 60,
"maxLoadCube": 50,
"height": 0,
"width": 0,
"weight": 0,
"length": 0,
"axleLoad": 0,
"fixedCost": 0,
"costPerHour": 0,
"startTime": 420,
"endTime": 1439
}
]
Defining Vehicle Constraints
- Create Constraints: Define a
VehicleConstraintsobject that applies to added vehicle. Add this object to a list.
[
{
"fuelPrice": 1.09,
"startDate": 1596758400000,
"maxNumberOfPackages": 53,
"minNumberOfOrders": 0,
"maxNumberOfOrders": 99999999,
"minDistance": 0,
"maxDistance": 99999999,
"maxRevenue": 85.9
}
]
Step 4: Create the Departure and Destination
Note
- Departures: Define the starting points for vehicle routes. These locations impact optimization by influencing travel distance and time.
- Destinations: Define the final stops for vehicle routes. These locations ensure routes are optimized for efficiency.
Adding Departures and Destinations
- Initialize Departures: Create a
Departureobject, for added vehicle. Since the route is round-trip, the vehicle will start and end at the same point, so departure will also be used as destination .
[
{
"depotId": 0,
"alias": "Depot 1",
"location": [
48.870569,
2.356448
],
"address": {
"country": "France",
"state": "Ile-de-France",
"county": "Paris",
"city": "Paris",
"postalCode": "75001",
"streetName": "Rue de Rivoli",
"streetNumber": "1"
}
}
]
Step 5: Create the Optimization
Note
An optimization represents a routing problem defined by orders, vehicles, constraints, and configuration parameters. This step combines all the elements to generate an optimized solution.
- Create Optimization: Define an
Optimizationobject and assign theOrderList,ConfigurationParameters,VehicleList,VehicleConstraintsList, andDepartures. - Send Request: Call the
Add Optimizationendpoint to create the optimization.
- Method:
POST - Endpoint:
/optimizations - Headers:
Authorization: YOUR_API_KEYContent-Type: application/json
- URL:
https://fleetmanagement.magiclaneapis.com/v1/optimizations - Query Parameter:
encodeShape(integer, optional)0: The route's shape will not be encoded.1(default): The route's shape will be encoded.
Note
Adding an optimization returns a request object, which allows you to track the status of the optimization process. Once the request status is finished, the solution can be retrieved using Get Optimization's Solution request. The solution consists of one or more routes. A route is the trip that a vehicle travels to visit the orders, so the number of routes returned is maximum the number of vehicles set in the optimization(see Routes).
If the operation is successful, the Optimization object will have its id field populated. If the operation fails, an error code is returned.
Example:
- Request Body:
{
"orders": [
879888,
879887,
879886,
879885,
879884,
879883,
879882,
879881,
879880,
879879,
879878,
879877
],
"departures": [
{
"depotId": 0,
"alias": "Depot 1",
"location": [
48.870569,
2.356448
],
"address": {
"country": "France",
"state": "Ile-de-France",
"county": "Paris",
"city": "Paris",
"postalCode": "75001",
"streetName": "Rue de Rivoli",
"streetNumber": "1"
}
}
],
"destinations": [],
"vehicles": [
135748
],
"vehiclesConstraints": [
{
"fuelPrice": 1.09,
"startDate": 1596758400000,
"maxNumberOfPackages": 53,
"minNumberOfOrders": 0,
"maxNumberOfOrders": 99999999,
"minDistance": 0,
"maxDistance": 99999999,
"maxRevenue": 85.9
}
],
"configurationParameters": {
"name": "Paris - test optimization",
"ignoreTimeWindow": false,
"allowDroppingOrders": false,
"groupingOrders": false,
"balancedRoutes": 0,
"optimizationCriterion": 0,
"arrangeCriterion": 0,
"optimizationQuality": 2,
"maxTimeToOptimize": 300,
"maxWaitTime": 8000,
"routeType": 0,
"restrictions": 0,
"distanceUnit": 0,
"orderSequenceOptions": []
},
"matrixBuildType": 1
}
- Response Body: (error code
200)
{
"id": 137826,
"orders": [
{
"id": 879888,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791105,
"alias": "Customer 1",
"firstName": "Customer1",
"lastName": "Customer1",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer1@example.com",
"phoneNumber": "+12025550180",
"location": [
48.870852,
2.356148
],
"customData": ""
},
"location": [
48.870852,
2.356148
],
"alias": "Customer 1",
"firstName": "Customer1",
"lastName": "Customer1",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550180",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 0,
"weight": 0,
"cube": 0,
"revenue": 0,
"timeWindow": [
420,
1086
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879887,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791104,
"alias": "Customer 2",
"firstName": "Customer2",
"lastName": "Customer2",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer2@example.com",
"phoneNumber": "+12025550181",
"location": [
48.892138,
2.330583
],
"customData": ""
},
"location": [
48.892138,
2.330583
],
"alias": "Customer 2",
"firstName": "Customer2",
"lastName": "Customer2",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550181",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 0,
"weight": 0,
"cube": 0,
"revenue": 0,
"timeWindow": [
420,
1086
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879886,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791103,
"alias": "Customer 3",
"firstName": "Customer3",
"lastName": "Customer3",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer3@example.com",
"phoneNumber": "+12025550182",
"location": [
48.88025,
2.299601
],
"customData": ""
},
"location": [
48.88025,
2.299601
],
"alias": "Customer 3",
"firstName": "Customer3",
"lastName": "Customer3",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550182",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 3,
"weight": 5.1,
"cube": 2.5,
"revenue": 12,
"timeWindow": [
770,
1020
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879885,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791102,
"alias": "Customer 4",
"firstName": "Customer4",
"lastName": "Customer4",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer4@example.com",
"phoneNumber": "+12025550183",
"location": [
48.845198,
2.402896
],
"customData": ""
},
"location": [
48.845198,
2.402896
],
"alias": "Customer 4",
"firstName": "Customer4",
"lastName": "Customer4",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550183",
"customData": "",
"type": 1,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 8,
"weight": 15.4,
"cube": 5.8,
"revenue": 2.7,
"timeWindow": [
753,
1036
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879884,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791101,
"alias": "Customer 5",
"firstName": "Customer5",
"lastName": "Customer5",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer5@example.com",
"phoneNumber": "+12025550184",
"location": [
48.897163,
2.292865
],
"customData": ""
},
"location": [
48.897163,
2.292865
],
"alias": "Customer 5",
"firstName": "Customer5",
"lastName": "Customer5",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550184",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 9,
"weight": 16.2,
"cube": 8.4,
"revenue": 7.5,
"timeWindow": [
736,
1086
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879883,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791100,
"alias": "Customer 6",
"firstName": "Customer6",
"lastName": "Customer6",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer6@example.com",
"phoneNumber": "+12025550185",
"location": [
48.90092,
2.400039
],
"customData": ""
},
"location": [
48.90092,
2.400039
],
"alias": "Customer 6",
"firstName": "Customer6",
"lastName": "Customer6",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550185",
"customData": "",
"type": 1,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 9,
"weight": 16.5,
"cube": 9.7,
"revenue": 10,
"timeWindow": [
786,
1053
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879882,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791099,
"alias": "Customer 7",
"firstName": "Customer7",
"lastName": "Customer7",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer7@example.com",
"phoneNumber": "+12025550186",
"location": [
48.890914,
2.310625
],
"customData": ""
},
"location": [
48.890914,
2.310625
],
"alias": "Customer 7",
"firstName": "Customer7",
"lastName": "Customer7",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550186",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 5,
"weight": 7.5,
"cube": 2.6,
"revenue": 13.4,
"timeWindow": [
820,
1020
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879881,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791098,
"alias": "Customer 8",
"firstName": "Customer8",
"lastName": "Customer8",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer8@example.com",
"phoneNumber": "+12025550187",
"location": [
48.827865,
2.379216
],
"customData": ""
},
"location": [
48.827865,
2.379216
],
"alias": "Customer 8",
"firstName": "Customer8",
"lastName": "Customer8",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550187",
"customData": "",
"type": 1,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 11,
"weight": 12.1,
"cube": 4.6,
"revenue": 14.7,
"timeWindow": [
753,
1086
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879880,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791097,
"alias": "Customer 9",
"firstName": "Customer9",
"lastName": "Customer9",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer9@example.com",
"phoneNumber": "+12025550188",
"location": [
48.887096,
2.283513
],
"customData": ""
},
"location": [
48.887096,
2.283513
],
"alias": "Customer 9",
"firstName": "Customer9",
"lastName": "Customer9",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550188",
"customData": "",
"type": 1,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 6,
"weight": 5.2,
"cube": 1.5,
"revenue": 2.9,
"timeWindow": [
770,
1070
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879879,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791096,
"alias": "Customer 10",
"firstName": "Customer10",
"lastName": "Customer10",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer10@example.com",
"phoneNumber": "+12025550189",
"location": [
48.896894,
2.321586
],
"customData": ""
},
"location": [
48.896894,
2.321586
],
"alias": "Customer 10",
"firstName": "Customer10",
"lastName": "Customer10",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+12025550189",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 13,
"weight": 6.3,
"cube": 7.5,
"revenue": 8.1,
"timeWindow": [
836,
1053
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879878,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791095,
"alias": "Customer 11",
"firstName": "Customer11",
"lastName": "Customer11",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer11@example.com",
"phoneNumber": "+120255501810",
"location": [
48.870449,
2.342204
],
"customData": ""
},
"location": [
48.870449,
2.342204
],
"alias": "Customer 11",
"firstName": "Customer11",
"lastName": "Customer11",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+120255501810",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 10,
"weight": 8,
"cube": 4.1,
"revenue": 6.2,
"timeWindow": [
903,
1020
],
"serviceTime": 0,
"depotId": 0
},
{
"id": 879877,
"creationTimestamp": 1763486363151,
"customerInfo": {
"id": 1791094,
"alias": "Customer 12",
"firstName": "Customer12",
"lastName": "Customer12",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"email": "customer12@example.com",
"phoneNumber": "+120255501811",
"location": [
48.895658,
2.344042
],
"customData": ""
},
"location": [
48.895658,
2.344042
],
"alias": "Customer 12",
"firstName": "Customer12",
"lastName": "Customer12",
"address": {
"country": "",
"state": "",
"county": "",
"city": "",
"postalCode": "",
"streetName": "",
"streetNumber": ""
},
"phoneNumber": "+120255501811",
"customData": "",
"type": 0,
"status": 0,
"state": 1,
"priority": 0,
"numberOfPackages": 6,
"weight": 4.8,
"cube": 11.5,
"revenue": 2.3,
"timeWindow": [
870,
1020
],
"serviceTime": 0,
"depotId": 0
}
],
"departures": [
{
"depotId": 0,
"alias": "Depot 1",
"location": [
48.870569,
2.356448
],
"address": {
"country": "France",
"state": "Ile-de-France",
"county": "Paris",
"city": "Paris",
"postalCode": "75001",
"streetName": "Rue de Rivoli",
"streetNumber": "1"
}
}
],
"destinations": [],
"vehicles": [
{
"id": 135748,
"type": 0,
"status": 0,
"name": "Car vehicle 1",
"manufacturer": "Renault",
"model": "Master",
"fuelType": 2,
"lastPosition": [
48.870569,
2.356448
],
"consumption": 6.5,
"plate": "AA-123-AA",
"maxLoadWeight": 60,
"maxLoadCube": 50,
"height": 0,
"width": 0,
"weight": 0,
"length": 0,
"axleLoad": 0,
"fixedCost": 0,
"costPerHour": 0,
"startTime": 420,
"endTime": 1439
}
],
"vehiclesConstraints": [
{
"fuelPrice": 1.09,
"startDate": 1596758400000,
"maxNumberOfPackages": 53,
"minNumberOfOrders": 0,
"maxNumberOfOrders": 99999999,
"minDistance": 0,
"maxDistance": 99999999,
"maxRevenue": 85.9
}
],
"configurationParameters": {
"name": "Paris - test optimization",
"ignoreTimeWindow": false,
"allowDroppingOrders": false,
"groupingOrders": false,
"balancedRoutes": 0,
"optimizationCriterion": 0,
"arrangeCriterion": 0,
"optimizationQuality": 2,
"maxTimeToOptimize": 300,
"maxWaitTime": 8000,
"routeType": 0,
"restrictions": 0,
"distanceUnit": 0,
"orderSequenceOptions": []
},
"creationTimestamp": 1763486363151,
"matrixBuildType": 1,
"request": {
"id": 26545,
"optimizationId": 137826,
"status": 1,
"message": "Operation done successfully!",
"creationTimestamp": 1763486363151
}
}
Step 6: Display the Solution
Once the optimization is complete, retrieve the solution (routes) to visualize the optimized routes and waypoints.
- Method:
GET - Endpoint:
/optimizations/{id}/solution - Headers:
Authorization: YOUR_API_KEY
- Path Parameter:
id(integer, required) - The unique optimization ID.
- Query Parameter:
encodeShape(integer, optional)0: The route's shape will not be encoded.1(default): The route's shape will be encoded.
Example:
- Response Body: (error code
200)
{
"totalRecords": 1,
"routes": [
{
"configurationParameters": {
"orderSequenceOptions": [
],
"distanceUnit": 0,
"maxTimeToOptimize": 300,
"optimizationQuality": 2,
"routeType": 0,
"arrangeCriterion": 0,
"restrictions": 0,
"maxWaitTime": 8000,
"balancedRoutes": 0,
"groupingOrders": false,
"optimizationCriterion": 0,
"allowDroppingOrders": false,
"ignoreTimeWindow": false,
"name": "Paris - test optimization - Part 0"
},
"vehicleConstraints": {
"startDate": 1596758400000,
"maxNumberOfPackages": 99999999,
"minNumberOfOrders": 0,
"maxNumberOfOrders": 99999999,
"minDistance": 0.0,
"maxDistance": 100000000.0,
"maxRevenue": 100000000.0,
"fuelPrice": 1.0900000333786010742
},
"rideStatus": 1,
"vehicle": {
"length": 0.0,
"weight": 0.0,
"width": 0.0,
"licensePlate": "AA-123-AA",
"consumption": 6.5,
"fuelType": 0,
"make": "Renault",
"id": 161794,
"name": "Car vehicle 1",
"model": "Master",
"costPerHour": 0.0,
"type": 0,
"status": 0,
"maxLoadWeight": 60.0,
"height": 0.0,
"maxLoadCube": 50.0,
"idDriver": 161794,
"endTime": 1100,
"fixedCost": 0.0,
"startTime": 420,
"lastPosition": [
2147483647.0,
2147483647.0
]
},
"destination": {
"depotId": 0,
"alias": "Depot 1",
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
},
"location": [
48.870569000000003257,
2.3564479999999998761
],
"matchedLocation": [
48.870568437499997572,
2.356441562500000142
],
"arrivalTime": 1596811043000,
"traveledDistance": 43.550060272216796875
},
"departure": {
"depotId": 0,
"alias": "Depot 1",
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
},
"location": [
48.870569000000003257,
2.3564479999999998761
],
"matchedLocation": [
48.870568437499997572,
2.356441562500000142
],
"numberOfpackages": 34,
"weight": 49.200000762939453125,
"cube": 21.600000381469726562,
"departureTime": 1596804545693,
"timeToNext": 1014,
"distanceToNext": 5.9496679306030273438
},
"shape": "a`hiHwfkM`GxCBVVPPHs@~Ek_@_QqAu@o@WwD{BOOx@uIDYFSHEAIGAU_@OKiDiBaF}ByBqAwAeBwKoNsC{DoKqNw@kA}@}@qQ",
"creationTimestamp": 1753085297311,
"neededFuel": 2.8307538032531738281,
"matrixBuildType": 1,
"price": 3.085521697998046875,
"totalWaitTime": 0,
"totalServiceTime": 0,
"optimizationId": 148942,
"orders": [
{
"orderInfo": {
"revenue": 10.0,
"serviceTime": 0,
"timeWindow": [
786,
1053
],
"creationTimestamp": 1753085263119,
"cube": 9.6999998092651367188,
"numberOfPackages": 9,
"depotId": 0,
"customData": "",
"weight": 16.5,
"phoneNumber": "+12312312",
"lastName": "",
"status": 1,
"firstName": "",
"alias": "c5",
"state": 1,
"type": 1,
"priority": 0,
"id": 1194037,
"location": [
48.900919999999999277,
2.4000390000000000335
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
},
"customerInfo": {
"phoneNumber": "+12312312",
"email": "c5@yahoo.com",
"lastName": "",
"firstName": "",
"alias": "c5",
"customData": "",
"id": 1998456,
"location": [
48.900919999999999277,
2.4000390000000000335
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
}
}
},
"matchedLocation": [
48.900595937500000332,
2.4000474999999998893
],
"indexInRoute": 0,
"indexInOptimization": 5,
"arrivalTime": 1596805560000,
"timeToNextOrder": 857,
"waitTime": 0,
"numberOfPackagesAtArrival": 34,
"collectedNumberOfPackages": 0,
"deliveredNumberOfPackages": 9,
"weightAtArrival": 49.200000762939453125,
"collectedWeight": 0.0,
"deliveredWeight": 16.5,
"cubeAtArrival": 21.600000381469726562,
"collectedCube": 0.0,
"deliveredCube": 9.6999998092651367188,
"traveledDistance": 5.9496679306030273438,
"distanceToNextOrder": 9.274402618408203125,
"revenueAtArrival": 0.0,
"visitTimestamp": 0
},
{
"orderInfo": {
"revenue": 2.7000000476837158203,
"serviceTime": 0,
"timeWindow": [
753,
1036
],
"creationTimestamp": 1753085263025,
"cube": 5.8000001907348632812,
"numberOfPackages": 8,
"depotId": 0,
"customData": "",
"weight": 15.399999618530273438,
"phoneNumber": "+12312312",
"lastName": "",
"status": 1,
"firstName": "",
"alias": "c3",
"state": 1,
"type": 1,
"priority": 0,
"id": 1194035,
"location": [
48.845198000000003447,
2.4028960000000001429
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
},
"customerInfo": {
"phoneNumber": "+12312312",
"email": "c3@yahoo.com",
"lastName": "",
"firstName": "",
"alias": "c3",
"customData": "",
"id": 1998454,
"location": [
48.845198000000003447,
2.4028960000000001429
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
}
}
},
"matchedLocation": [
48.845262499999996919,
2.4027009375000001334
],
"indexInRoute": 1,
"indexInOptimization": 3,
"arrivalTime": 1596806417000,
"timeToNextOrder": 530,
"waitTime": 0,
"numberOfPackagesAtArrival": 25,
"collectedNumberOfPackages": 0,
"deliveredNumberOfPackages": 8,
"weightAtArrival": 32.700000762939453125,
"collectedWeight": 0.0,
"deliveredWeight": 15.399999618530273438,
"cubeAtArrival": 11.900000572204589844,
"collectedCube": 0.0,
"deliveredCube": 5.8000001907348632812,
"traveledDistance": 15.224070549011230469,
"distanceToNextOrder": 3.1860260963439941406,
"revenueAtArrival": 10.0,
"visitTimestamp": 0
},
{
"orderInfo": {
"revenue": 14.699999809265136719,
"serviceTime": 0,
"timeWindow": [
753,
1086
],
"creationTimestamp": 1753085263204,
"cube": 4.5999999046325683594,
"numberOfPackages": 11,
"depotId": 0,
"customData": "",
"weight": 12.100000381469726562,
"phoneNumber": "+12312312",
"lastName": "",
"status": 1,
"firstName": "",
"alias": "c7",
"state": 1,
"type": 1,
"priority": 0,
"id": 1194039,
"location": [
48.827865000000002738,
2.3792159999999999975
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
},
"customerInfo": {
"phoneNumber": "+12312312",
"email": "c7@yahoo.com",
"lastName": "",
"firstName": "",
"alias": "c7",
"customData": "",
"id": 1998458,
"location": [
48.827865000000002738,
2.3792159999999999975
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
}
}
},
"matchedLocation": [
48.827919999999998879,
2.3791415625000000844
],
"indexInRoute": 2,
"indexInOptimization": 7,
"arrivalTime": 1596806947000,
"timeToNextOrder": 1051,
"waitTime": 0,
"numberOfPackagesAtArrival": 17,
"collectedNumberOfPackages": 0,
"deliveredNumberOfPackages": 11,
"weightAtArrival": 17.300001144409179688,
"collectedWeight": 0.0,
"deliveredWeight": 12.100000381469726562,
"cubeAtArrival": 6.1000003814697265625,
"collectedCube": 0.0,
"deliveredCube": 4.5999999046325683594,
"traveledDistance": 18.410097122192382812,
"distanceToNextOrder": 6.7776498794555664062,
"revenueAtArrival": 12.699999809265136719,
"visitTimestamp": 0
},
{
"orderInfo": {
"revenue": 6.1999998092651367188,
"serviceTime": 0,
"timeWindow": [
903,
1020
],
"creationTimestamp": 1753085263334,
"cube": 4.0999999046325683594,
"numberOfPackages": 10,
"depotId": 0,
"customData": "",
"weight": 8.0,
"phoneNumber": "+12312312",
"lastName": "",
"status": 1,
"firstName": "",
"alias": "c10",
"state": 1,
"type": 0,
"priority": 0,
"id": 1194042,
"location": [
48.870449000000000694,
2.3422040000000001747
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
},
"customerInfo": {
"phoneNumber": "+12312312",
"email": "c10@yahoo.com",
"lastName": "",
"firstName": "",
"alias": "c10",
"customData": "",
"id": 1998461,
"location": [
48.870449000000000694,
2.3422040000000001747
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
}
}
},
"matchedLocation": [
48.870181875000000105,
2.3423449999999998994
],
"indexInRoute": 3,
"indexInOptimization": 10,
"arrivalTime": 1596807998000,
"timeToNextOrder": 595,
"waitTime": 0,
"numberOfPackagesAtArrival": 6,
"collectedNumberOfPackages": 10,
"deliveredNumberOfPackages": 0,
"weightAtArrival": 5.200000762939453125,
"collectedWeight": 8.0,
"deliveredWeight": 0.0,
"cubeAtArrival": 1.5000004768371582031,
"collectedCube": 4.0999999046325683594,
"deliveredCube": 0.0,
"traveledDistance": 25.187747955322265625,
"distanceToNextOrder": 3.8362429141998291016,
"revenueAtArrival": 27.399999618530273438,
"visitTimestamp": 0
},
{
"orderInfo": {
"revenue": 12.0,
"serviceTime": 0,
"timeWindow": [
770,
1020
],
"creationTimestamp": 1753085262979,
"cube": 2.5,
"numberOfPackages": 3,
"depotId": 0,
"customData": "",
"weight": 5.0999999046325683594,
"phoneNumber": "+12312312",
"lastName": "",
"status": 1,
"firstName": "",
"alias": "c2",
"state": 1,
"type": 0,
"priority": 0,
"id": 1194034,
"location": [
48.880249999999996646,
2.2996010000000000062
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
},
"customerInfo": {
"phoneNumber": "+12312312",
"email": "c2@yahoo.com",
"lastName": "",
"firstName": "",
"alias": "c2",
"customData": "",
"id": 1998453,
"location": [
48.880249999999996646,
2.2996010000000000062
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
}
}
},
"matchedLocation": [
48.880213437499996587,
2.2997093749999999446
],
"indexInRoute": 4,
"indexInOptimization": 2,
"arrivalTime": 1596808593000,
"timeToNextOrder": 369,
"waitTime": 0,
"numberOfPackagesAtArrival": 16,
"collectedNumberOfPackages": 3,
"deliveredNumberOfPackages": 0,
"weightAtArrival": 13.200000762939453125,
"collectedWeight": 5.0999999046325683594,
"deliveredWeight": 0.0,
"cubeAtArrival": 5.6000003814697265625,
"collectedCube": 2.5,
"deliveredCube": 0.0,
"traveledDistance": 29.023990631103515625,
"distanceToNextOrder": 1.8877489566802978516,
"revenueAtArrival": 33.59999847412109375,
"visitTimestamp": 0
},
{
"orderInfo": {
"revenue": 2.9000000953674316406,
"serviceTime": 0,
"timeWindow": [
770,
1070
],
"creationTimestamp": 1753085263252,
"cube": 1.5,
"numberOfPackages": 6,
"depotId": 0,
"customData": "",
"weight": 5.1999998092651367188,
"phoneNumber": "+12312312",
"lastName": "",
"status": 1,
"firstName": "",
"alias": "c8",
"state": 1,
"type": 1,
"priority": 0,
"id": 1194040,
"location": [
48.887095999999999663,
2.283513000000000126
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
},
"customerInfo": {
"phoneNumber": "+12312312",
"email": "c8@yahoo.com",
"lastName": "",
"firstName": "",
"alias": "c8",
"customData": "",
"id": 1998459,
"location": [
48.887095999999999663,
2.283513000000000126
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
}
}
},
"matchedLocation": [
48.886898125000001869,
2.2838078125000000895
],
"indexInRoute": 5,
"indexInOptimization": 8,
"arrivalTime": 1596808962000,
"timeToNextOrder": 330,
"waitTime": 0,
"numberOfPackagesAtArrival": 19,
"collectedNumberOfPackages": 0,
"deliveredNumberOfPackages": 6,
"weightAtArrival": 18.300001144409179688,
"collectedWeight": 0.0,
"deliveredWeight": 5.1999998092651367188,
"cubeAtArrival": 8.1000003814697265625,
"collectedCube": 0.0,
"deliveredCube": 1.5,
"traveledDistance": 30.911739349365234375,
"distanceToNextOrder": 1.896412968635559082,
"revenueAtArrival": 45.59999847412109375,
"visitTimestamp": 0
},
{
"orderInfo": {
"revenue": 7.5,
"serviceTime": 0,
"timeWindow": [
736,
1086
],
"creationTimestamp": 1753085263078,
"cube": 8.3999996185302734375,
"numberOfPackages": 9,
"depotId": 0,
"customData": "",
"weight": 16.200000762939453125,
"phoneNumber": "+12312312",
"lastName": "",
"status": 1,
"firstName": "",
"alias": "c4",
"state": 1,
"type": 0,
"priority": 0,
"id": 1194036,
"location": [
48.897162999999999045,
2.2928649999999999309
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
},
"customerInfo": {
"phoneNumber": "+12312312",
"email": "c4@yahoo.com",
"lastName": "",
"firstName": "",
"alias": "c4",
"customData": "",
"id": 1998455,
"location": [
48.897162999999999045,
2.2928649999999999309
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
}
}
},
"matchedLocation": [
48.897063750000000937,
2.2924699999999997857
],
"indexInRoute": 6,
"indexInOptimization": 4,
"arrivalTime": 1596809292000,
"timeToNextOrder": 406,
"waitTime": 0,
"numberOfPackagesAtArrival": 13,
"collectedNumberOfPackages": 9,
"deliveredNumberOfPackages": 0,
"weightAtArrival": 13.100001335144042969,
"collectedWeight": 16.200000762939453125,
"deliveredWeight": 0.0,
"cubeAtArrival": 6.6000003814697265625,
"collectedCube": 8.3999996185302734375,
"deliveredCube": 0.0,
"traveledDistance": 32.8081512451171875,
"distanceToNextOrder": 2.8310110569000244141,
"revenueAtArrival": 48.5,
"visitTimestamp": 0
},
{
"orderInfo": {
"revenue": 13.399999618530273438,
"serviceTime": 0,
"timeWindow": [
820,
1020
],
"creationTimestamp": 1753085263166,
"cube": 2.5999999046325683594,
"numberOfPackages": 5,
"depotId": 0,
"customData": "",
"weight": 7.5,
"phoneNumber": "+12312312",
"lastName": "",
"status": 1,
"firstName": "",
"alias": "c6",
"state": 1,
"type": 0,
"priority": 0,
"id": 1194038,
"location": [
48.890914000000002204,
2.3106249999999999289
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
},
"customerInfo": {
"phoneNumber": "+12312312",
"email": "c6@yahoo.com",
"lastName": "",
"firstName": "",
"alias": "c6",
"customData": "",
"id": 1998457,
"location": [
48.890914000000002204,
2.3106249999999999289
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
}
}
},
"matchedLocation": [
48.891068437500003085,
2.3109646874999998367
],
"indexInRoute": 7,
"indexInOptimization": 6,
"arrivalTime": 1596809698000,
"timeToNextOrder": 185,
"waitTime": 0,
"numberOfPackagesAtArrival": 22,
"collectedNumberOfPackages": 5,
"deliveredNumberOfPackages": 0,
"weightAtArrival": 29.3000030517578125,
"collectedWeight": 7.5,
"deliveredWeight": 0.0,
"cubeAtArrival": 15.0,
"collectedCube": 2.5999999046325683594,
"deliveredCube": 0.0,
"traveledDistance": 35.639163970947265625,
"distanceToNextOrder": 1.2335729598999023438,
"revenueAtArrival": 56.0,
"visitTimestamp": 0
},
{
"orderInfo": {
"revenue": 8.1000003814697265625,
"serviceTime": 0,
"timeWindow": [
836,
1053
],
"creationTimestamp": 1753085263293,
"cube": 7.5,
"numberOfPackages": 13,
"depotId": 0,
"customData": "",
"weight": 6.3000001907348632812,
"phoneNumber": "+12312312",
"lastName": "",
"status": 1,
"firstName": "",
"alias": "c9",
"state": 1,
"type": 0,
"priority": 0,
"id": 1194041,
"location": [
48.896894000000003189,
2.3215859999999999275
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
},
"customerInfo": {
"phoneNumber": "+12312312",
"email": "c9@yahoo.com",
"lastName": "",
"firstName": "",
"alias": "c9",
"customData": "",
"id": 1998460,
"location": [
48.896894000000003189,
2.3215859999999999275
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
}
}
},
"matchedLocation": [
48.897175937500001908,
2.3212631250000002048
],
"indexInRoute": 8,
"indexInOptimization": 9,
"arrivalTime": 1596809883000,
"timeToNextOrder": 240,
"waitTime": 0,
"numberOfPackagesAtArrival": 27,
"collectedNumberOfPackages": 13,
"deliveredNumberOfPackages": 0,
"weightAtArrival": 36.8000030517578125,
"collectedWeight": 6.3000001907348632812,
"deliveredWeight": 0.0,
"cubeAtArrival": 17.600000381469726562,
"collectedCube": 7.5,
"deliveredCube": 0.0,
"traveledDistance": 36.872737884521484375,
"distanceToNextOrder": 1.5006899833679199219,
"revenueAtArrival": 69.40000152587890625,
"visitTimestamp": 0
},
{
"orderInfo": {
"revenue": 14.100000381469726562,
"serviceTime": 0,
"timeWindow": [
420,
1086
],
"creationTimestamp": 1753085262939,
"cube": 0.10000000149011611938,
"numberOfPackages": 1,
"depotId": 0,
"customData": "",
"weight": 4.5999999046325683594,
"phoneNumber": "+12312312",
"lastName": "",
"status": 1,
"firstName": "",
"alias": "c1",
"state": 1,
"type": 0,
"priority": 0,
"id": 1194033,
"location": [
48.892138000000002762,
2.3305829999999998492
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
},
"customerInfo": {
"phoneNumber": "+12312312",
"email": "c1@yahoo.com",
"lastName": "",
"firstName": "",
"alias": "c1",
"customData": "",
"id": 1998452,
"location": [
48.892138000000002762,
2.3305829999999998492
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
}
}
},
"matchedLocation": [
48.892148437499997726,
2.3306215625000001879
],
"indexInRoute": 9,
"indexInOptimization": 1,
"arrivalTime": 1596810123000,
"timeToNextOrder": 281,
"waitTime": 0,
"numberOfPackagesAtArrival": 40,
"collectedNumberOfPackages": 1,
"deliveredNumberOfPackages": 0,
"weightAtArrival": 43.100002288818359375,
"collectedWeight": 4.5999999046325683594,
"deliveredWeight": 0.0,
"cubeAtArrival": 25.100000381469726562,
"collectedCube": 0.10000000149011611938,
"deliveredCube": 0.0,
"traveledDistance": 38.3734283447265625,
"distanceToNextOrder": 1.5621720552444458008,
"revenueAtArrival": 77.5,
"visitTimestamp": 0
},
{
"orderInfo": {
"revenue": 2.2999999523162841797,
"serviceTime": 0,
"timeWindow": [
870,
1020
],
"creationTimestamp": 1753085263379,
"cube": 11.5,
"numberOfPackages": 6,
"depotId": 0,
"customData": "",
"weight": 4.8000001907348632812,
"phoneNumber": "+12312312",
"lastName": "",
"status": 1,
"firstName": "",
"alias": "c11",
"state": 1,
"type": 0,
"priority": 0,
"id": 1194043,
"location": [
48.895657999999997401,
2.3440430000000000987
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
},
"customerInfo": {
"phoneNumber": "+12312312",
"email": "c11@yahoo.com",
"lastName": "",
"firstName": "",
"alias": "c11",
"customData": "",
"id": 1998462,
"location": [
48.895657999999997401,
2.3440430000000000987
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
}
}
},
"matchedLocation": [
48.895803437499999688,
2.3440406249999998778
],
"indexInRoute": 10,
"indexInOptimization": 11,
"arrivalTime": 1596810404000,
"timeToNextOrder": 633,
"waitTime": 0,
"numberOfPackagesAtArrival": 41,
"collectedNumberOfPackages": 6,
"deliveredNumberOfPackages": 0,
"weightAtArrival": 47.700000762939453125,
"collectedWeight": 4.8000001907348632812,
"deliveredWeight": 0.0,
"cubeAtArrival": 25.200000762939453125,
"collectedCube": 11.5,
"deliveredCube": 0.0,
"traveledDistance": 39.93560028076171875,
"distanceToNextOrder": 3.5893819332122802734,
"revenueAtArrival": 91.59999847412109375,
"visitTimestamp": 0
},
{
"orderInfo": {
"revenue": 13.0,
"serviceTime": 0,
"timeWindow": [
420,
1086
],
"creationTimestamp": 1753085262895,
"cube": 0.10000000149011611938,
"numberOfPackages": 1,
"depotId": 0,
"customData": "",
"weight": 3.2000000476837158203,
"phoneNumber": "+12312312",
"lastName": "",
"status": 1,
"firstName": "",
"alias": "c0",
"state": 1,
"type": 0,
"priority": 0,
"id": 1194032,
"location": [
48.870851999999999293,
2.3561480000000001311
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
},
"customerInfo": {
"phoneNumber": "+12312312",
"email": "c0@yahoo.com",
"lastName": "",
"firstName": "",
"alias": "c0",
"customData": "",
"id": 1998451,
"location": [
48.870851999999999293,
2.3561480000000001311
],
"address": {
"streetNumber": "",
"postalCode": "",
"streetName": "",
"county": "",
"state": "",
"extra": "",
"city": "",
"country": ""
}
}
},
"matchedLocation": [
48.87077843750000028,
2.3565665624999998506
],
"indexInRoute": 11,
"indexInOptimization": 0,
"arrivalTime": 1596811037000,
"timeToNextOrder": 6,
"waitTime": 0,
"numberOfPackagesAtArrival": 47,
"collectedNumberOfPackages": 1,
"deliveredNumberOfPackages": 0,
"weightAtArrival": 52.5,
"collectedWeight": 3.2000000476837158203,
"deliveredWeight": 0.0,
"cubeAtArrival": 36.700000762939453125,
"collectedCube": 0.10000000149011611938,
"deliveredCube": 0.0,
"traveledDistance": 43.524982452392578125,
"distanceToNextOrder": 0.025076000019907951355,
"revenueAtArrival": 93.90000152587890625,
"visitTimestamp": 0
}
],
"totalTime": 6497,
"totalDistance": 43.550060272216796875,
"id": 273348
}
]
}
Analyzing the Solution - Paris Route Optimization Test
Summary Table
| Metric | Part 0 (Current Route) |
|---|---|
| Total Distance | 43.55 km |
| Total Time | 1 hr 48 min 17 sec |
| Cost | €3.09 |
| Departure Point | Depot 1 |
| Departure Time | 12:49:05 (07/08/2020) |
| Destination | Depot 1 (Return) |
| Arrival Time | 14:37:23 |
| Total Stops | 12 |
| Pickups | 8 |
| Deliveries | 4 |
Route Insights
Route (Part 0) covers 12 tasks with a mix of 8 pickups and 4 deliveries, spanning a total of 43.55 km and incurring an estimated cost of €3.09.
Departing from Depot 1, the vehicle begins its route with a series of deliveries—starting at Order 6, where it successfully offloads 9 pieces. It then continues to Order 4 and Order 8, delivering 8 and 11 pieces respectively. Following these, two pickups are made at Order 11 and Order 3. The delivery phase concludes at Order 9, where 6 more pieces are handed over.
With all deliveries complete, the vehicle transitions into a focused pickup phase—collecting at Order 5, Order 7, Order 10, Order 2, and Order 12, before making its final collection at Order 1. Throughout the journey, the load is dynamically managed, steadily increasing in volume and weight, and culminating in a final onboard total of 52.5 kg and 36.7 cubic meters.
The route concludes with a return to Depot 1 at 14:37:23, completing a fully optimized loop with no delays, zero wait times, and smooth task sequencing.
Operational Highlights
- Dynamic Load Handling: The vehicle managed an evolving load profile, balancing capacity as pickups added volume, weight, and pieces across the route.
- Time Window Compliance: All service points were visited within their specified time windows, with zero wait times, demonstrating a highly synchronized schedule.
- Compact Route Design: Despite handling 12 stops, the route remained efficient, minimizing both distance and cost while maintaining compliance with constraints.
- Travel Time: Total travel time is approximately 1 hour 47 minutes, efficient given the mix of pickups and deliveries.
Conclusion
This example demonstrates how to create a fully customized optimization with a single vehicle, define orders, and visualize the results on a map. By following the steps above, you can adapt this example to your specific use case and integrate it into your fleet management workflow.
