Get started with maps

_|

The Maps SDK for Android delivers powerful mapping capabilities, enabling developers to effortlessly integrate dynamic map views into their applications. Core features include embedding and customizing map views, controlling displayed locations, and fine-tuning map properties. At the center of the mapping API is the GEMSurfaceView class, which serves as the primary component for rendering maps and handling user interactions.

Display a map

See the Code Implementation section from Create your first app guide for a complete example of displaying a basic map in your application.

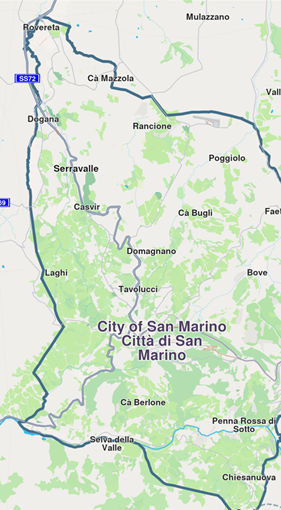

Displaying a default day map

GEMSurfaceView

The GemSurfaceView class is the primary component for displaying maps in an Android application. It extends GLSurfaceView and provides a complete OpenGL rendering surface for map display with built-in touch interaction handling.

Key Features

• Automatic SDK Initialization: If GemSdk isn't initialized, the surface automatically calls GemSdk.initSdkWithDefaults() when attached to a window
• Default MapView Creation: Creates a default MapView automatically unless disabled
• Touch Event Handling: Built-in support for pan, zoom, and other map interactions
• Lifecycle Management: Automatic resource management with configurable cleanup behavior
• OpenGL Context Management: Handles EGL context creation and configuration

Properties

Property	Type	Description
gemGlContext	OpenGLContext?	The OpenGL context created by this surface
gemScreen	Screen?	The screen object for rendering operations
mapView	MapView?	The default MapView instance (if auto-creation is enabled)
hadBeenInitialized	Boolean	Flag indicating if this instance has been initialized
hadBeenReleased	Boolean	Flag indicating if this instance has been released
visibilityChangeListener	VisibilityChangeListener?	Listener for visibility change events

Callback Functions

Callback	Description
onInitSdk	Called when the view is about to initialize the SDK. If provided, user is responsible for SDK initialization
onSdkInitSucceeded	Triggered after successful SDK initialization
onScreenCreated	Called after the OpenGL screen has been successfully created
onDefaultMapViewCreated	Triggered after the default MapView has been created
onPreHandleTouchListener	Called before the screen handles touch events
onPostHandleTouchListener	Called after the screen handles touch events
onDrawFrameCustom	Custom drawing operations on the OpenGL thread

XML Attributes

You can configure GemSurfaceView behavior using XML attributes:

<com.magiclane.sdk.core.GemSurfaceView
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    app:createDefaultMapView="true"
    app:autoReleaseOnDetachedFromWindow="true"
    app:sdkToken="your_sdk_token" />

Attribute	Type	Default	Description
createDefaultMapView	Boolean	true	Whether to automatically create a default MapView
autoReleaseOnDetachedFromWindow	Boolean	true	Whether to automatically release resources when detached
sdkToken	String	null	SDK authorization token

Methods

Method	Description
release()	Releases the drawing context and associated resources
releaseDefaultMapView()	Releases only the default MapView while keeping the surface active

Usage Example

Kotlin

// In your Activity or Fragment
val gemSurfaceView = findViewById<GemSurfaceView>(R.id.gemSurfaceView)

// Configure callbacks
gemSurfaceView.onDefaultMapViewCreated = { mapView ->
    // Configure your map view
    mapView.centerOnCoordinates(coordinates, zoomLevel)
}

gemSurfaceView.onSdkInitSucceeded = {
    // SDK is ready
    Log.d("Map", "SDK initialized successfully")
}

// Add to your layout
parentLayout.addView(gemSurfaceView)

Java

// In your Activity or Fragment
GemSurfaceView gemSurfaceView = findViewById(R.id.gemSurfaceView);

// Configure callbacks
gemSurfaceView.setOnDefaultMapViewCreated(mapView -> {
    // Configure your map view
    mapView.centerOnCoordinates(coordinates, zoomLevel);
});

gemSurfaceView.setOnSdkInitSucceeded(() -> {
    // SDK is ready
    Log.d("Map", "SDK initialized successfully");
});

// Add to your layout
parentLayout.addView(gemSurfaceView);

Programmatic Creation

Kotlin

val gemSurfaceView = GemSurfaceView(
    context = this,
    doCreateDefaultMapView = true,
    sdkToken = "your_sdk_token",
    autoReleaseOnDetachedFromWindow = true,
    postLambdasOnMain = true
)

Java

GemSurfaceView gemSurfaceView = new GemSurfaceView(
    this,
    true,  // doCreateDefaultMapView
    "your_sdk_token",
    true,  // autoReleaseOnDetachedFromWindow
    true   // postLambdasOnMain
);
