Routes

_|

A Route usually represents a navigable path between two or more landmarks (waypoints). It includes data such as distance, estimated time, and navigation instructions.

Routes can be computed in different ways:

• Based on 2 or more intermediary landmarks (waypoints) - route is navigable.
• Over-track routes (based on a predefined path, which could come from a GPX file but is not limited to this) are navigable.
• Route ranges: These routes are not navigable and do not have segments or instructions.

A navigable route consists of one or more segments. Each segment represents the portion of the route between two consecutive waypoints and includes its own set of route instructions.

Instantiating Routes

Routes cannot be instantiated directly. Instead, they must be computed based on a predefined list of landmarks. For detailed guidance on how to calculate routes, refer to the Getting Started with Routing Guide.

danger

Calculating a route does not automatically display it on the map. Refer to the Display markers guide for detailed instructions on how to display one or more routes.

Route specializations

There are 2 special types of routes:

1. Normal Routes - Standard routes computed for typical navigation scenarios.

2. Public Transport (PT) Routes - Routes calculated using a public transport mode, including additional details such as service frequency, ticket purchase information, and other transit-specific data.

Specific Classes

Each route type is associated with specific classes that offer functionality suited to its requirements:

Route Type	Route Class	Segment Class	Instruction Class
Normal Route	Route	RouteSegment	RouteInstruction
Public Transport Route	PTRoute	PTRouteSegment	PTRouteInstruction

Route structure

Field	Type	Explanation
dominantRoads	ArrayList<String>?	Dominant road names. If a road has multiple names, they will be presented as "name1 / name2 / ... / namex".
extraInfo	ParameterList?	Direct access to the extra info attached to this route.
preferences	RoutePreferences?	Route preferences.
routeListener	IRouteListener?	Route-related events listener.
segments	ArrayList<RouteSegment>?	Route segments.
status	ERouteStatus	Route status.
summary	String?	Summary of the route segment.
hasTollRoads()	Boolean	Returns true if the route contains toll roads.
hasIncursCosts()	Boolean	Checks if traveling the route or route segment incurs cost to the user.
hasFerryConnections()	Boolean	Returns true if the route contains ferry connections.
isPTRoute()	Boolean	Returns true if the route is a Public Transport route.
toPTRoute()	PTRoute?	Convert route to a Public Transport route.
getTimeDistance(activePart = true)	TimeDistance?	If activePart is true, returns only the active part of the route metrics; if false, returns whole route metrics.
getCoordinateOnRoute(distance : Int)	Coordinates?	Gets a coordinate on the route at the given distance.
getDistanceOnRoute(coordinates :Coordinates, activePart : Boolean)	Int	Gets route distance from departure at the given coordinate.
getClosestSegment(coordinates :Coordinates)	Int	Gets the index of the closest route segment to the given coordinates.
getPath()	Path?	Builds a path from the route start to the end segment.
getTimeDistanceCoordinates(start : Int, step : Int, end : Int, stepType : Boolean)	TimeDistanceCoordinateList?	Builds a list of timestamp coordinates from a route.

Route segment structure

A route segment represents the portion of a route between two consecutive waypoints. For public transport routes, segments are further categorized as either pedestrian sections or public transit sections, depending on the mode of travel within that segment.

Method	Return Type	Description
geographicArea	RectangleGeographicArea?	Geographic area of the route. The geographic area is the smallest rectangle that can be drawn around the route.
instructions	ArrayList<RouteInstruction>?	Get route instructions list.
summary	String?	Summary of the route segment.
timeDistance	TimeDistance?	Length in meters and estimated travel time in seconds for the route / route segment.
waypoints	LandmarkList?	List of waypoints. The waypoints are ordered like: departure, first waypoint, ..., destination. Only the route can have intermediate waypoints. The segments have only departure and destination.
hasIncursCosts()	Boolean	Method to check if traveling the route or route segment incurs cost to the user.
isCommon()	Boolean	Check if this segment is of common type.
isPublicTransportSegment()	Boolean	Check if this segment is public transport type.
toPTRouteSegment()	PTRouteSegment?	Convert to a PTRouteSegment.

Route instruction structure

A RouteInstruction provides detailed guidance for navigation, offering various methods to retrieve specific information about each maneuver the user needs to make, such as coordinates, turn directions, distances and time to next waypoints.

Method	Return Type	Description
countryCodeISO	String?	Country code in ISO format.
coordinates	Coordinates?	Coordinates of the instruction.
turnDetails	TurnDetails?	Turn details.
turnInstruction	String?	Turn instruction text.
turnImage	Image?	The image for the turn. The API client should check if the image is valid.
followRoadInstruction	String?	Follow road instruction text.
roadInfo	ArrayList<RoadInfo>?	Road information list.
roadInfoImage	RoadInfoImage?	Road info image.
signpostDetails	SignpostDetails?	Signpost details.
signpostInstruction	String?	Signpost instruction text.
realisticNextTurnImage	AbstractGeometryImage?	Image for the realistic next turn. The API client should check if the image is valid.
timeDistanceToNextTurn	TimeDistance?	Time/distance to next turn.
remainingTravelTimeDistance	TimeDistance?	Remaining travel time/distance.
remainingTravelTimeDistanceToNextWaypoint	TimeDistance?	Remaining time/distance to next waypoint.
traveledTimeDistance	TimeDistance?	Traveled time/distance.
hasTurnInfo()	Boolean	Check if turn information is available.
hasFollowRoadInfo()	Boolean	Check if follow road information is available.
hasSignpostInfo()	Boolean	Check if signpost information is available.
hasRoadInfo	Boolean	Check if road information is available.
isFerry()	Boolean	Check if this is a ferry.
isTollRoad()	Boolean	Check if this is a toll road.
isCommon()	Boolean	Check if this instruction is of common type.
toPTRouteInstruction()	PTRouteInstruction?	Casts this Route instruction to a Public transport instruction.

Other classes

Time distance

The TimeDistance class is used to get details about the time and distance to/from certain important points of interests.

The TimeDistance class differentiates between unrestricted and restricted road portions. Restricted segments refer to non-public roads, while unrestricted represent publicly accessible roads:

Property/Method	Type	Explanation
totalTime	Int	Total time in seconds (sum of unrestricted and restricted times).
restrictedTime	Int	Restricted time in seconds.
restrictedBeginEndRatio	Double	Ratio representing the division of restricted time/distance between the begin and the end.
restrictedDistance	Int	Restricted distance in meters.
restrictedDistanceAtBegin	Int	Restricted distance allocated to the beginning, based on the ratio.
restrictedDistanceAtEnd	Int	Restricted distance allocated to the end, based on the ratio.
restrictedTimeAtBegin	Int	Restricted time allocated to the beginning, based on the ratio.
restrictedTimeAtEnd	Int	Restricted time allocated to the end, based on the ratio.
totalDistance	Int	Total distance in meters (sum of unrestricted and restricted distances).
unrestrictedDistance	Int	Unrestricted distance in meters.
hasRestrictedBeginEndDifferentiation()	Boolean	Indicates if the begin and end have differentiated restricted values based on the ratio.
assign(unrestrictedTimeS : Int, unrestrictedDistanceM : Int, restrictedTimeS : Int, restrictedDistanceM : Int, ndBeginEndRatio : Double)	Unit	Assigns values to the TimeDistance object.
isEmpty()	Boolean	Indicates whether the total time is zero.

Signpost details

Signposts near roadways typically indicate intersections and directions to various destinations. The SDK provides realistic renderings of these signposts, along with relevant supplementary information.

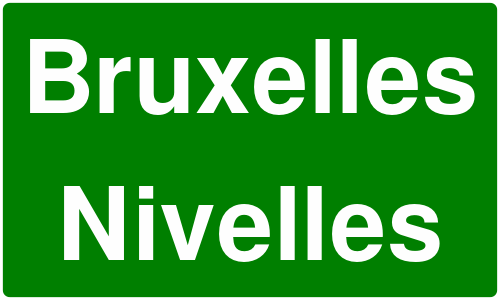

Below is an example of a rendered signpost details image:

Signpost image captured during highway navigation

The SignpostDetails class also provides properties such as:

Property/Method	Type	Description
image	SignpostImage?	Returns the signpost image representation.
hasBackgroundColor()	Boolean	Indicates whether the signpost has a background color.
backgroundColor	Rgba?	Retrieves the background color of the signpost.
hasBorderColor()	Boolean	Indicates whether the signpost has a border color.
borderColor	Rgba?	Retrieves the border color of the signpost.
hasTextColor()	Boolean	Indicates whether the signpost has a text color.
textColor	Rgba?	Retrieves the text color of the signpost.
items	ArrayList<SignpostItem>?	Retrieves a list of SignpostItem elements associated with the signpost.

Signpost item

Each SignpostItem has the following properties:

Property/Method	Type	Description
column	Int	Retrieves the one-based column of the item. Zero indicates not applicable.
connectionInfo	SignpostConnectionInfo	Retrieves the connection type of the item (branch, towards, exit, invalid)
phoneme	String	Retrieves the phoneme assigned to the item if available, otherwise empty.
pictogramType	SignpostPictogramType	Retrieves the pictogram type for the item (airport, busStation, parkingFacility, etc).
row	Int	Retrieves the one-based row of the item. Zero indicates not applicable.
shieldType	RoadShieldType	Retrieves the shield type for the item (county, state, federal, interstate, etc)
text	String	Retrieves the text assigned to the item, if available.
type	SignpostItemType	Retrieves the type of the item (placeName, routeNumber, routeName, etc).
hasAmbiguity()	Boolean	Indicates if the item has ambiguity. Avoid using such items for TTS.
hasSameShieldLevel()	Boolean	Indicates if the road code item has the same shield level as its road.

Turn Details

The TurnDetails class provides details such as:

Property	Type	Description
abstractGeometry	AbstractGeometry?	Returns the abstract geometry representation of the turn.
abstractGeometryImage	AbstractGeometryImage?	Returns the abstract geometry image for the turn.
event	ETurnEvent	Returns the turn event type.
roundaboutExitNumber	Int	Returns the exit number for roundabout turns.

Turn details abstract image vs. turn image:

The difference between images obtained via abstractGeometryImg (left) and turnImage (right) is shown below:

Turn details abstract image

Turn image

• abstractGeometryImg: Provides a detailed representation of the entire intersection, offering a comprehensive view of the turn geometry. This image can be customized, including options to adjust various colors for better visual alignment with the application's theme.
• turnImage: Delivers a simplified schematic of the upcoming turn, focusing solely on the essential turn direction. Unlike abstractGeometryImg, this method does not support customization.

Tip

Each image is assigned a unique identifier. You can use the uid getter of the images classes to retrieve this id and update the image in the UI only when the ID changes. This strategy can significantly enhance performance during navigation, especially in scenarios where frequent updates might otherwise impact efficiency.

Abstract geometry image customization

The AbstractGeometryImageRenderSettings allows for abstract geometry render settings customization, with the possibility of specifying the colors, improving the overall user experience:

Kotlin

val settings = AbstractGeometryImageRenderSettings().apply {
    activeInnerColor = Rgba.red()
    activeOuterColor = Rgba.green()
    inactiveInnerColor = Rgba.blue()
    inactiveOuterColor =Rgba.yellow()
}

Java

AbstractGeometryImageRenderSettings settings = new AbstractGeometryImageRenderSettings();
settings.setActiveInnerColor(Rgba.red());
settings.setActiveOuterColor(Rgba.green());
settings.setInactiveInnerColor(Rgba.blue());
settings.setInactiveOuterColor(Rgba.yellow());

The render settings from above will create the following image when used:

Customized next turn details abstract image

Turn events

ETurnEvent is an enumeration that defines various types of turn events that can occur during navigation. These events help in providing accurate and context-aware navigation instructions to users. The different turn events are:

• NotAvailable - No turn information available
• Straight - Continue straight ahead
• Right - Turn right
• Right1 - Turn right (variant 1)
• Right2 - Turn right (variant 2)
• Left - Turn left
• Left1 - Turn left (variant 1)
• Left2 - Turn left (variant 2)
• LightLeft - Slight left turn
• LightLeft1 - Slight left turn (variant 1)
• LightLeft2 - Slight left turn (variant 2)
• LightRight - Slight right turn
• LightRight1 - Slight right turn (variant 1)
• LightRight2 - Slight right turn (variant 2)
• SharpRight - Sharp right turn
• SharpRight1 - Sharp right turn (variant 1)
• SharpRight2 - Sharp right turn (variant 2)
• SharpLeft - Sharp left turn
• SharpLeft1 - Sharp left turn (variant 1)
• SharpLeft2 - Sharp left turn (variant 2)
• RoundaboutExitRight - Exit roundabout to the right
• Roundabout - Enter roundabout
• RoundRight - Round right maneuver
• RoundLeft - Round left maneuver
• ExitRight - Exit to the right
• ExitRight1 - Exit to the right (variant 1)
• ExitRight2 - Exit to the right (variant 2)
• InfoGeneric - Generic information
• DriveOn - Continue driving
• ExitNo - No exit
• ExitLeft - Exit to the left
• ExitLeft1 - Exit to the left (variant 1)
• ExitLeft2 - Exit to the left (variant 2)
• RoundaboutExitLeft - Exit roundabout to the left
• IntoRoundabout - Enter into roundabout
• StayOn - Stay on current road
• BoatFerry - Take boat ferry
• RailFerry - Take rail ferry
• InfoLane - Lane information
• InfoSign - Sign information
• LeftRight - Left then right maneuver
• RightLeft - Right then left maneuver
• KeepLeft - Keep to the left
• KeepRight - Keep to the right
• Start - Start of route
• Intermediate - Intermediate waypoint
• Stop - End of route

Change the language of the instructions

The texts used in route instructions and related classes follow the language set in the SDK. See the internationalization guide for more details.
